Nissan Versa Note. Manual - part 680





SE-50

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

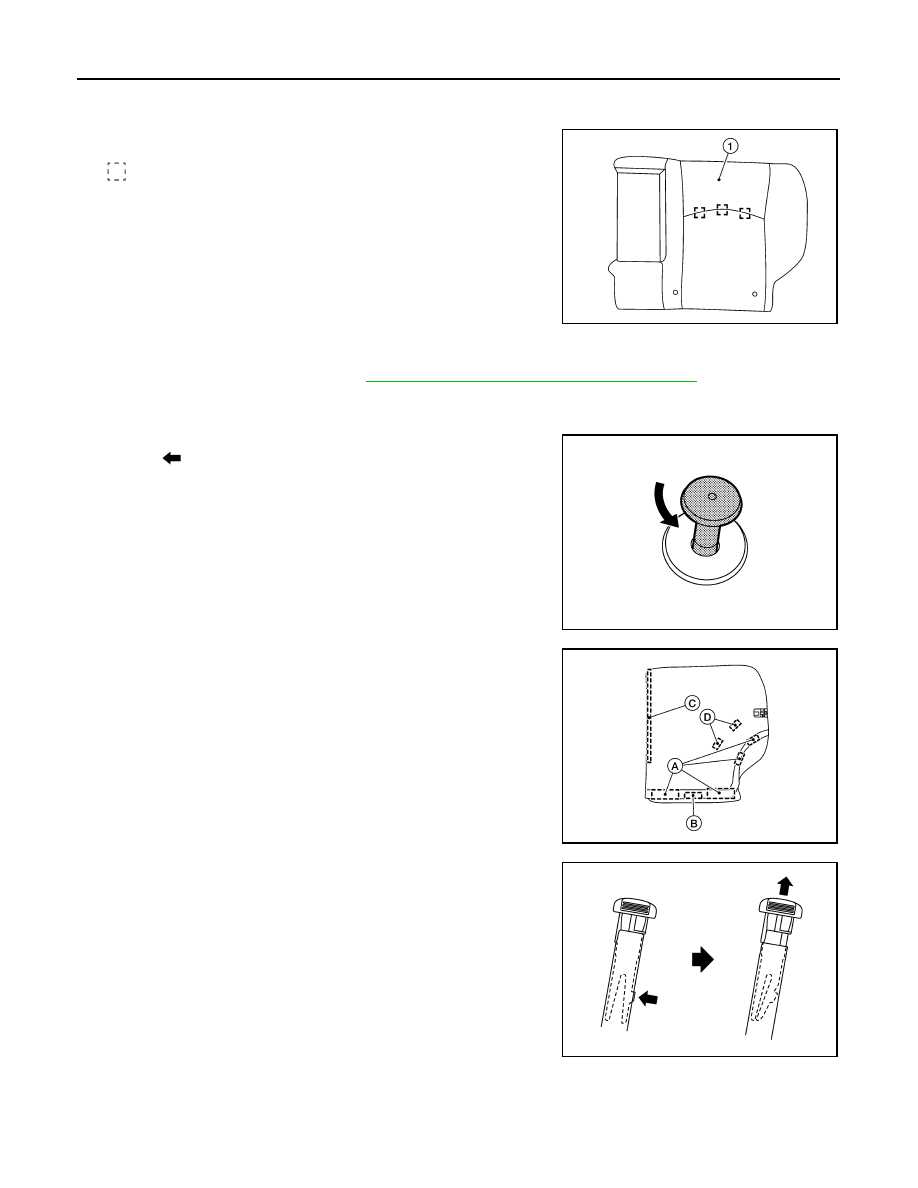

11. Remove the seatback trim and seatback pad from the seatback frame.
12. Remove bolts and the seatback latch.
13. Remove the hog rings and separate the seatback trim (1) from

the seatback pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

Seatback (RH)

1. Remove the seatback (RH). Refer to

SE-30, "SEATBACK : Removal and Installation"

.

2. Remove the headrest.
3. Release clips and remove latch finisher.
4. Rotate the seatback latch release knob counterclockwise as

shown (

) and remove.

5. Release hook fasteners (A), then J-hook retainer (B).
6. Unzip the seatback trim zipper (C), then release J-clip retainers

(D).

7. Release the headrest holder locks as shown and remove.

CAUTION:

Before removing the headrest holder, check its orientation

(front/rear and right/left).

8. Remove the seatback trim and seatback pad from the seatback frame.
9. Remove bolts and the seatback latch.

ALJIA1248ZZ

JMJIA4374ZZ

ALJIA1250ZZ

JMJIA4073ZZ

REAR SEAT

SE-51

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

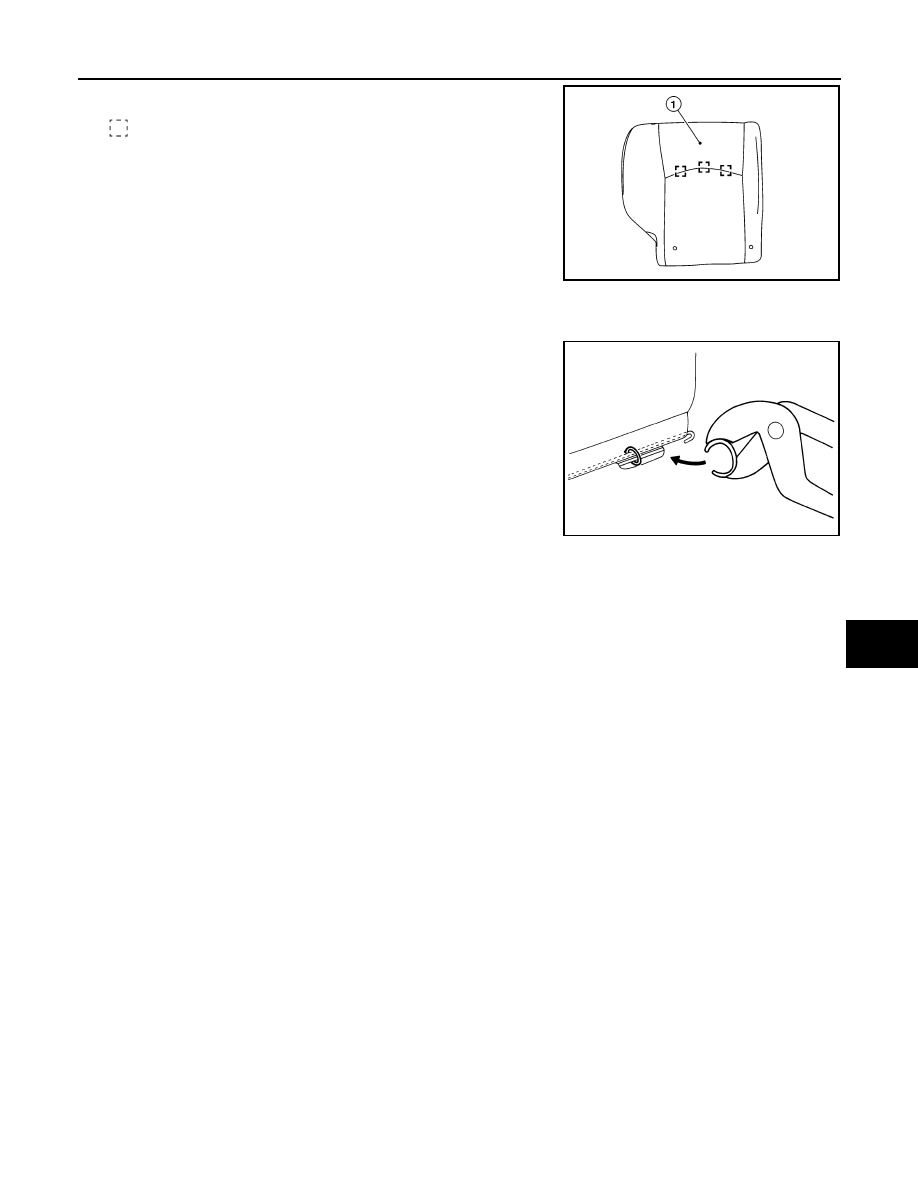

10. Remove the hog rings and separate the seatback trim (1) from

the seatback pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seatback trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat-

back trim and seatback pad wires.

• Use NISSAN standard hog rings and tools to assemble.

ALJIA1249ZZ

PIIB3356J

SEC-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

SEC

A

B

SEC

N

O

P

CONTENTS

SECURITY CONTROL SYSTEM

WITH INTELLIGENT KEY SYSTEM

PRECAUTION ...............................................

5

PRECAUTIONS ...................................................

5

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

5

Precaution for Work  ..................................................

5

PREPARATION ............................................

6

PREPARATION ...................................................

6

Special Service Tool  .................................................

6

SYSTEM DESCRIPTION  ..............................

7

COMPONENT PARTS  ........................................

7

Component Parts Location ........................................

7

CVT Shift Selector (Park Position Switch)  ................

9

BCM ..........................................................................

9

ECM ..........................................................................

9

IPDM E/R  ................................................................

10

NATS Antenna Amp. ...............................................

10

Combination Meter ..................................................

10

Door Switch .............................................................

10

Outside Key Antenna  ..............................................

10

Inside Key Antenna  .................................................

10

Remote Keyless Entry Receiver  .............................

10

Intelligent Key ..........................................................

10

Push-button Ignition Switch .....................................

10

Security Indicator Lamp  ..........................................

10

Starter Relay  ...........................................................

10

Stop Lamp Switch  ...................................................

11

Transmission Range Switch ....................................

11

SYSTEM .............................................................

12

INTELLIGENT KEY SYSTEM/ENGINE START
FUNCTION .................................................................

12

INTELLIGENT KEY SYSTEM/ENGINE START
FUNCTION : System Description ............................

12

NISSAN ANTI-THEFT SYSTEM ................................

14

NISSAN ANTI-THEFT SYSTEM : System De-
scription ...................................................................

15

VEHICLE SECURITY SYSTEM  .................................

17

VEHICLE SECURITY SYSTEM : System Descrip-
tion ...........................................................................

17

DIAGNOSIS SYSTEM (BCM)  ...........................

20

COMMON ITEM  .........................................................

20

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

20

INTELLIGENT KEY ....................................................

21

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY)  ................................................

21

THEFT ALM  ...............................................................

23

THEFT ALM : CONSULT Function (BCM -
THEFT) ....................................................................

23

IMMU ..........................................................................

23

IMMU : CONSULT Function (BCM - IMMU) ............

23

ECU DIAGNOSIS INFORMATION ..............

25

ECM, IPDM E/R, BCM .......................................

25

List of ECU Reference .............................................

25

WIRING DIAGRAM ......................................

26

INTELLIGENT KEY SYSTEM/ENGINE
START FUNCTION  ...........................................

26

Wiring Diagram ........................................................

26

NVIS - WITH INTELLIGENT KEY SYSTEM  .....

40

Wiring Diagram ........................................................

40

VEHICLE SECURITY SYSTEM  ........................

49

Wiring Diagram ........................................................

49

BASIC INSPECTION  ...................................

60

SEC-2

DIAGNOSIS AND REPAIR WORK FLOW ........

60

Work Flow ...............................................................

60

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ................................................

63

ECM ...........................................................................

63

ECM : Description ...................................................

63

ECM : Work Procedure ...........................................

63

BCM ...........................................................................

63

BCM : Description ...................................................

63

BCM : Work Procedure ...........................................

63

DTC/CIRCUIT DIAGNOSIS .........................

65

P1610 LOCK MODE  ..........................................

65

Description ..............................................................

65

DTC Logic ...............................................................

65

Diagnosis Procedure  ..............................................

65

P1611 ID DISCORD, IMMU-ECM  ......................

66

DTC Logic ...............................................................

66

Diagnosis Procedure  ..............................................

66

P1612 CHAIN OF ECM-IMMU ...........................

67

DTC Logic ...............................................................

67

Diagnosis Procedure  ..............................................

67

B2192 ID DISCORD, IMMU-ECM ......................

68

DTC Logic ...............................................................

68

Diagnosis Procedure  ..............................................

68

B2193 CHAIN OF ECM-IMMU ...........................

69

DTC Logic ...............................................................

69

Diagnosis Procedure  ..............................................

69

B2195 ANTI-SCANNING  ...................................

70

DTC Logic ...............................................................

70

Diagnosis Procedure  ..............................................

70

B2196 DONGLE UNIT  .......................................

71

Description ..............................................................

71

DTC Logic ...............................................................

71

Diagnosis Procedure  ..............................................

71

B2198 NATS ANTENNA AMP.  .........................

73

DTC Logic ...............................................................

73

Diagnosis Procedure  ..............................................

73

B2555 STOP LAMP ...........................................

76

DTC Logic ...............................................................

76

Diagnosis Procedure  ..............................................

76

Component Inspection ............................................

77

B2556 PUSH-BUTTON IGNITION SWITCH  .....

79

DTC Logic ...............................................................

79

Diagnosis Procedure  ..............................................

79

Component Inspection ............................................

80

B2557 VEHICLE SPEED  ...................................

81

DTC Logic ...............................................................

81

Diagnosis Procedure ...............................................

81

B2601 SHIFT POSITION  ...................................

82

DTC Logic  ...............................................................

82

Diagnosis Procedure ...............................................

82

B2602 SHIFT POSITION  ...................................

84

DTC Logic  ...............................................................

84

Diagnosis Procedure ...............................................

84

Component Inspection  ............................................

86

B2603 SHIFT POSITION  ...................................

87

DTC Logic  ...............................................................

87

Diagnosis Procedure ...............................................

87

Component Inspection (Transmission Range
Switch) ....................................................................

90

Component Inspection [CVT Shift Selector (Park
Position Switch)]  .....................................................

90

B2604 SHIFT POSITION  ...................................

91

DTC Logic  ...............................................................

91

Diagnosis Procedure ...............................................

91

Component Inspection  ............................................

93

B2605 SHIFT POSITION  ...................................

94

DTC Logic  ...............................................................

94

Diagnosis Procedure ...............................................

94

B2608 STARTER RELAY  .................................

96

DTC Logic  ...............................................................

96

Diagnosis Procedure ...............................................

96

Component Inspection  ............................................

97

B260F ENGINE STATUS  ..................................

98

Description ..............................................................

98

DTC Logic  ...............................................................

98

Diagnosis Procedure ...............................................

98

B261F ASCD CLUTCH SWITCH  ......................

99

DTC Logic  ...............................................................

99

Diagnosis Procedure ...............................................

99

Component Inspection  ..........................................

101

B2620 PARK/NEUTRAL POSITION SWITCH ..

102

DTC Logic  .............................................................

102

Diagnosis Procedure .............................................

102

Component Inspection  ..........................................

104

B26E8 CLUTCH INTERLOCK SWITCH  ..........

105

DTC Logic  .............................................................

105

Diagnosis Procedure .............................................

105

Component Inspection (Clutch Interlock Switch)  ..

107

B26F3 STARTER CONTROL RELAY  .............

108

DTC Logic  .............................................................

108

Diagnosis Procedure .............................................

108

B26F4 STARTER CONTROL RELAY  .............

109

DTC Logic  .............................................................

109

Diagnosis Procedure .............................................

109

B26F7 BCM  ......................................................

110















Content   ..  678  679  680  681   ..
