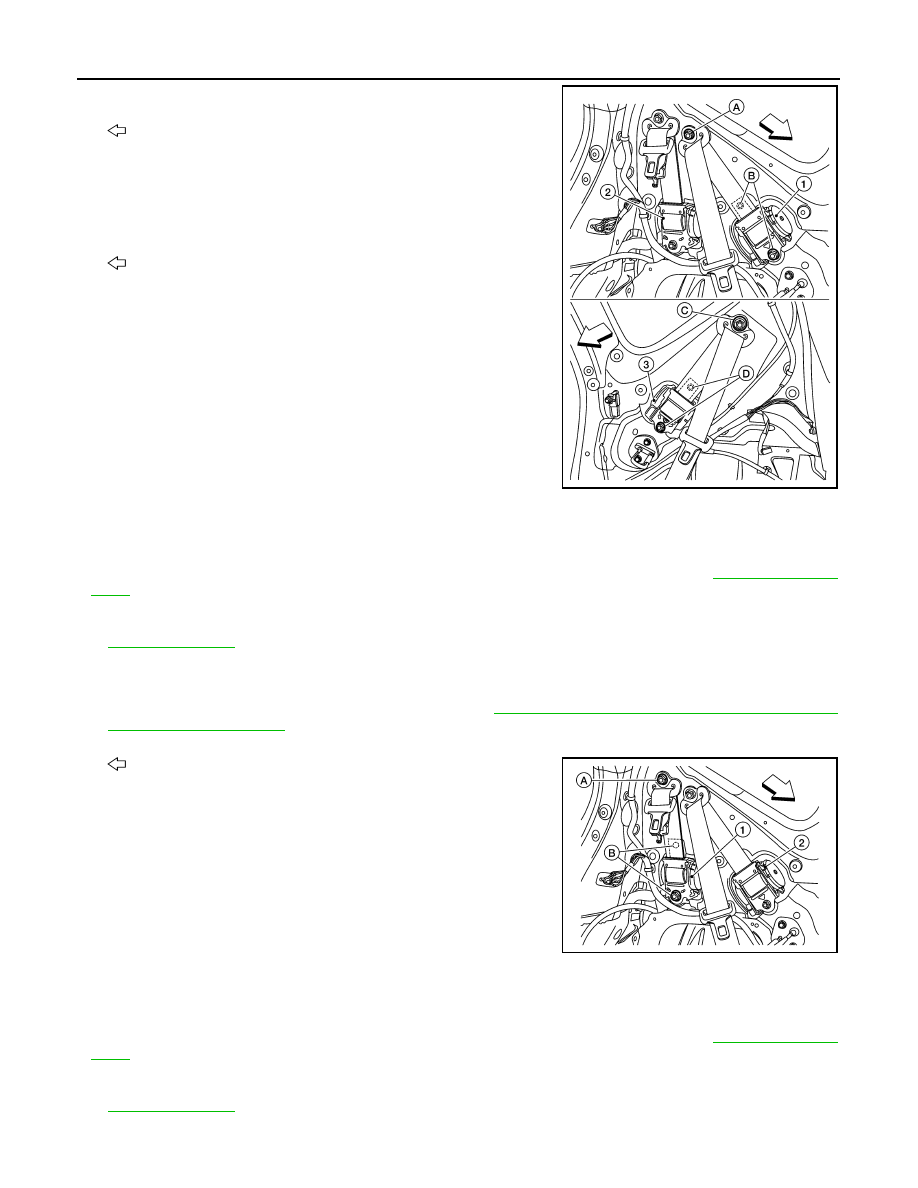

SB-14 < REMOVAL AND INSTALLATION > REAR SEAT BELT 2. For seat belt retractor (LH) (1). : Front CAUTION: Before removing the D-ring anchor bolt, note the positions of washers and spacers for correct installation. b. Remove bolts (B) and the seat belt retractor (LH) (1). (2): Seat belt retractor (center) 3. For seat belt retractor (RH) (3). : Front a. Remove D-ring anchor bolt (C). CAUTION: Before removing the D-ring anchor bolt, note the positions of washers and spacers for correct installation. b. Remove bolts (D) and seat belt retractor (RH) (3). INSTALLATION Installation is in the reverse order of removal. • Install the seat belt retractor upper bolt first. • Tighten the D-ring anchor bolt and the seat belt retractor bolts to specification. Refer to . • Make sure the D-ring anchor operates freely. • Always perform an inspection after repair to make sure the system is functioning within specifications. Refer REMOVAL - Seat Belt Retractor (center) 1. Remove luggage side upper finisher (LH). Refer to INT-35, "LUGGAGE SIDE UPPER FINISHER : . 2. Remove D-ring anchor bolt (A). : Front CAUTION: Before removing the D-ring anchor bolt, note the positions of washers and spacers for correct installation. 3. Remove bolts (B) and seat belt retractor (center) (1). (2): Seat belt retractor (LH) INSTALLATION Installation is in the reverse order of removal. • Install the center seat belt retractor upper bolt first. • Tighten the D-ring anchor bolt and the seat belt retractor bolts to specification. Refer to . • Make sure the D-ring anchor operates freely. • Always perform an inspection after repair to make sure the system is functioning within specifications. Refer ALHIA0318ZZ ALHIA0313ZZ |
