PREPARATION

RAX-3

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

PREPARATION

PREPARATION

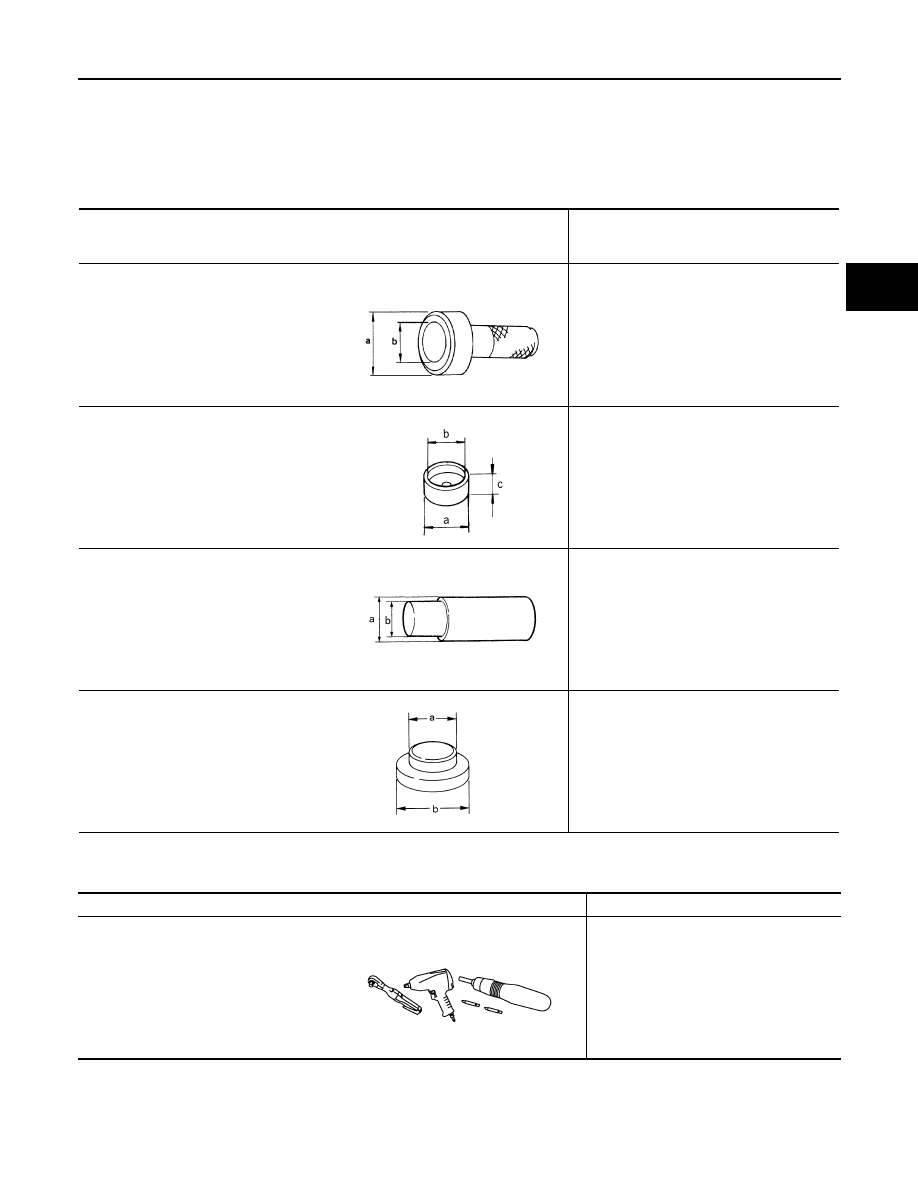

Special Service Tools

INFOID:0000000009486646

The actual shapes of Kent-Moore tools may differ from those of special tools illustrated here.

Commercial Service Tool

INFOID:0000000009486647

Tool number
(Kent-Moore No.)
Tool name

Description

ST30720000
(

—

)

Drift

Installing hub cap
a: 77 mm (3.03 in) dia.
b: 55 mm (2.17 in) dia.

KV40104730
(

—

)

Drift

Installing wheel bearing
a: 53.7 mm (2.114 in) dia.
b: 47 mm (1.85 in) dia.
c: 15 mm (0.59 in).

ST33710000
(

—

)

Drift

Removing wheel bearing
a: 30 mm (1.18 in) dia.
b: 23 mm (0.91 in) dia.

ST30032000
(

—

)

Drift

Installing sensor rotor
a: 38 mm (1.50 in) dia.
b: 80 mm (3.15 in) dia.

ZZA0701D

ZZA1133D

ZZA1234D

ZZA0881D

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

RAX-4

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009486648

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×: Applicable

Reference page

RSU-5

—

RAX-5

RSU-4

WT

-40

WT

-42

BR-7

Possible cause and SUSPECTED PARTS

Im

pro

pe

r in

st

a

lla

tion

, lo

os

en

es

s

Part

s int

erference

Whe

e

l be

ari

ng da

ma

ge

REAR AXLE AND

R

E

AR SUSPENSI

ON

TIRE

ROAD WHEEL

BRAKE

Symptom

Noise

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

Shimmy

×

×

×

×

×

×

Shudder

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

REAR WHEEL HUB

RAX-5

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

PERIODIC MAINTENANCE

REAR WHEEL HUB

Inspection

INFOID:0000000009486649

• Check the axle and suspension parts for excessive play, wear, or damage.

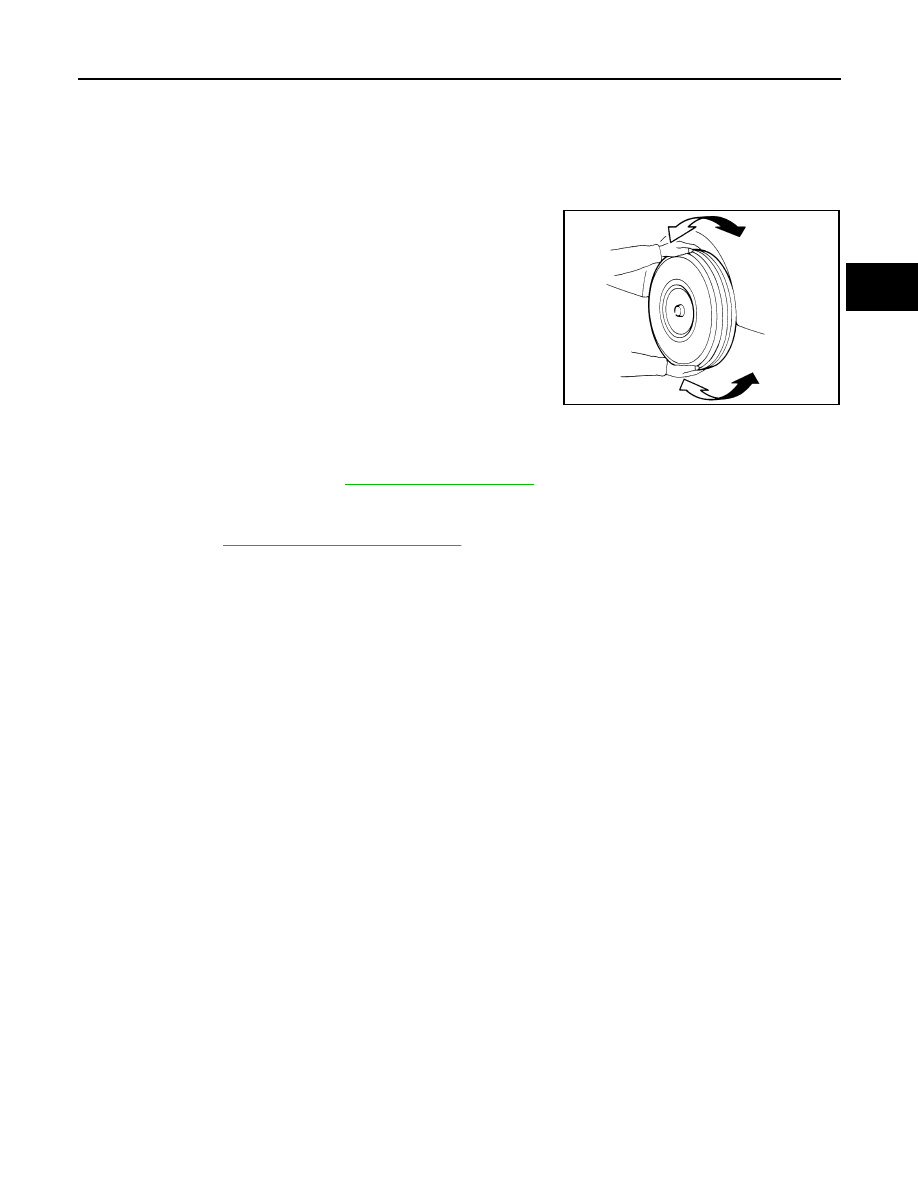

• Shake each rear wheel to check for excessive play as shown.

REAR WHEEL BEARING INSPECTION

• Move wheel in the axial direction by hand. Make sure the axial end play is within specification.

• Check that the wheel bearing operates smoothly.

• Replace the wheel bearing if the axial end play exceeds specification, or if the wheel bearing does not turn

smoothly. Refer to

RAX-6, "Removal and Installation"

.

CAUTION:

The wheel bearing does not require maintenance. If any of the following symptoms are noted,

replace the wheel bearing.

• Growling noise is emitted from the wheel bearing during operation.

• Wheel bearing drags or turns roughly.

SMA525A

Axial end play

: Refer to

RAX-10, "Wheel Bearing"

.

RAX-6

< REMOVAL AND INSTALLATION >

REAR WHEEL HUB

REMOVAL AND INSTALLATION

REAR WHEEL HUB

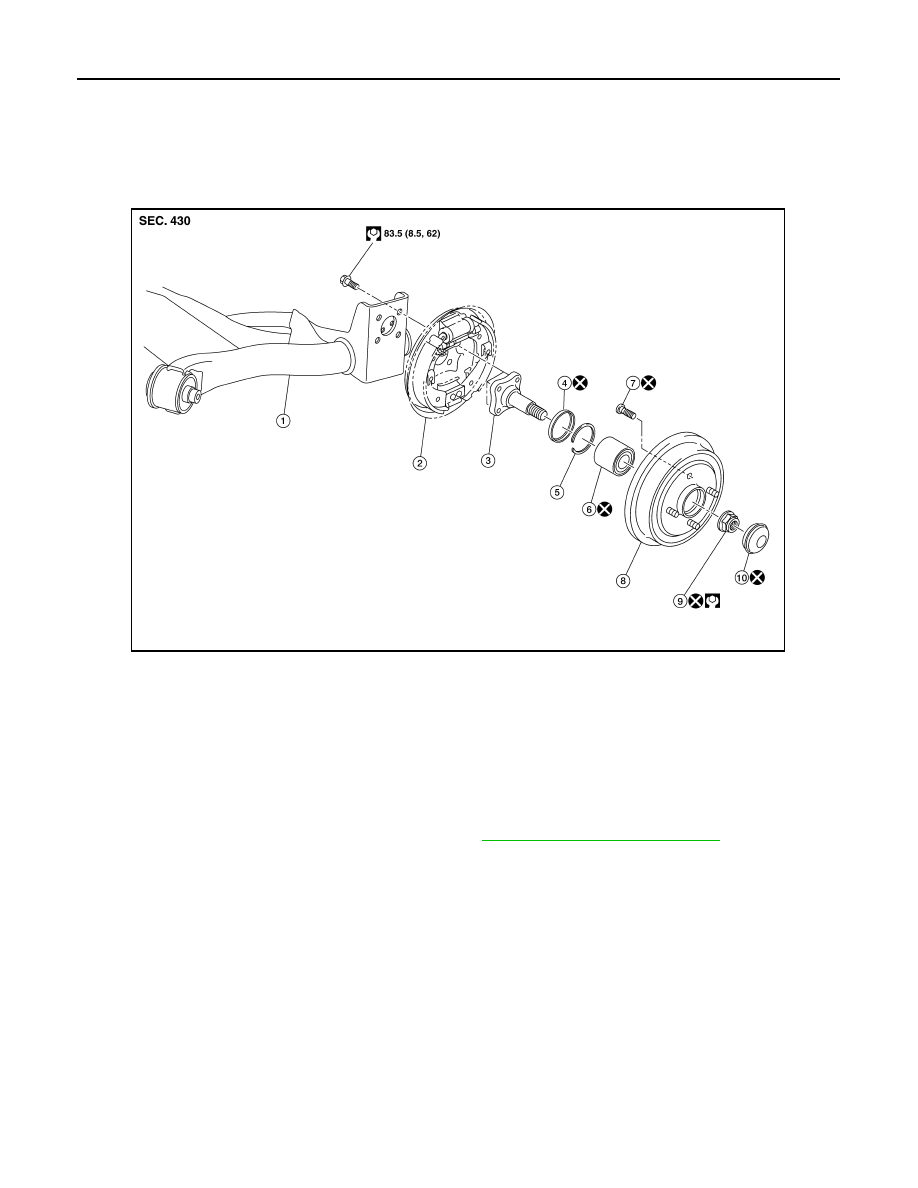

Exploded View

INFOID:0000000009486650

Removal and Installation

INFOID:0000000009486651

REMOVAL

1. Remove the wheel and tire using power tool. Refer to

WT-45, "Removal and Installation"

.

2. Remove hub cap from brake drum using a suitable tool.
3. Remove wheel hub lock nut and brake drum.

CAUTION:

• Do not depress brake pedal while rear drum is removed.

• Do not apply force to the brake drum to avoid damage to the wheel bearing. If the wheel bearing

inner race is separated due to force, replace the wheel bearing with a new one.

4. Remove spindle bolts. Separate back plate and spindle from rear suspension beam.

CAUTION:

Do not remove rear brake components. Support the rear brake components using wire.

5. If required, remove the wheel studs from brake drum using a suitable press.

CAUTION:

• Do not hammer the wheel stud and avoid impact to the brake drum.

• Press the wheel stud straight out to avoid damage.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear suspension beam

2.

Rear brake components

3.

Spindle

4.

Sensor rotor

5.

Snap ring

6.

Wheel bearing

7.

Wheel stud

8.

Brake drum

9.

Wheel hub lock nut

10. Hub cap

AWDIA1107ZZ
