Nissan Versa Note. Manual - part 642





PWC-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009561098

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000009560301

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

PREPARATION

PWC-5

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009560299

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

PWC-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

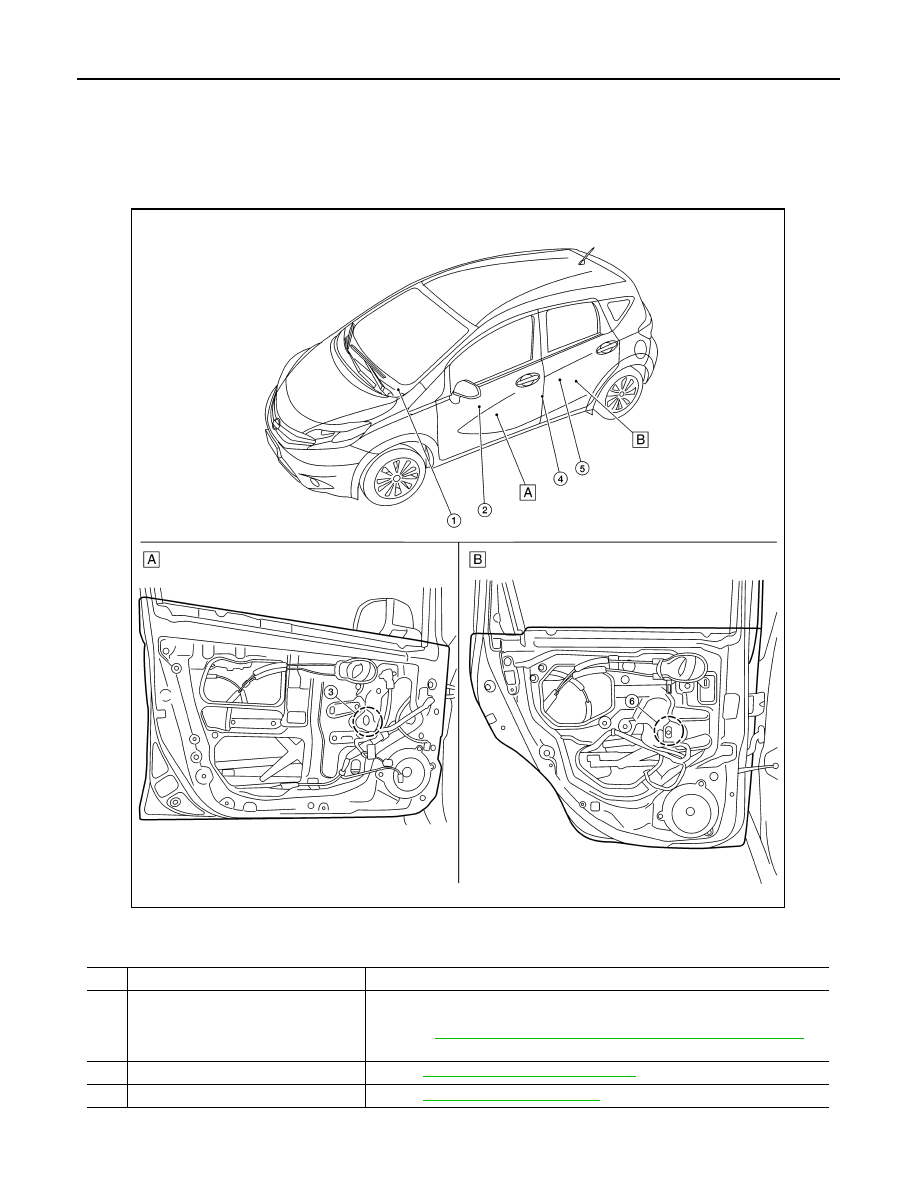

Component Parts Location

INFOID:0000000009619466

A. View with LH front door finisher removed

B. View with LH rear door finisher removed

No.

Component parts

Function

1.

BCM

• Supplies power supply to power window switch.
• Controls retained power.
• Refer  to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for

detailed installation location.

2.

Power window main switch

Refer to

PWC-7, "Power Window Main Switch"

.

3.

Front power window motor (driver side)

Refer to

PWC-7, "Power Window Motor"

.

ALKIA3202ZZ

COMPONENT PARTS

PWC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

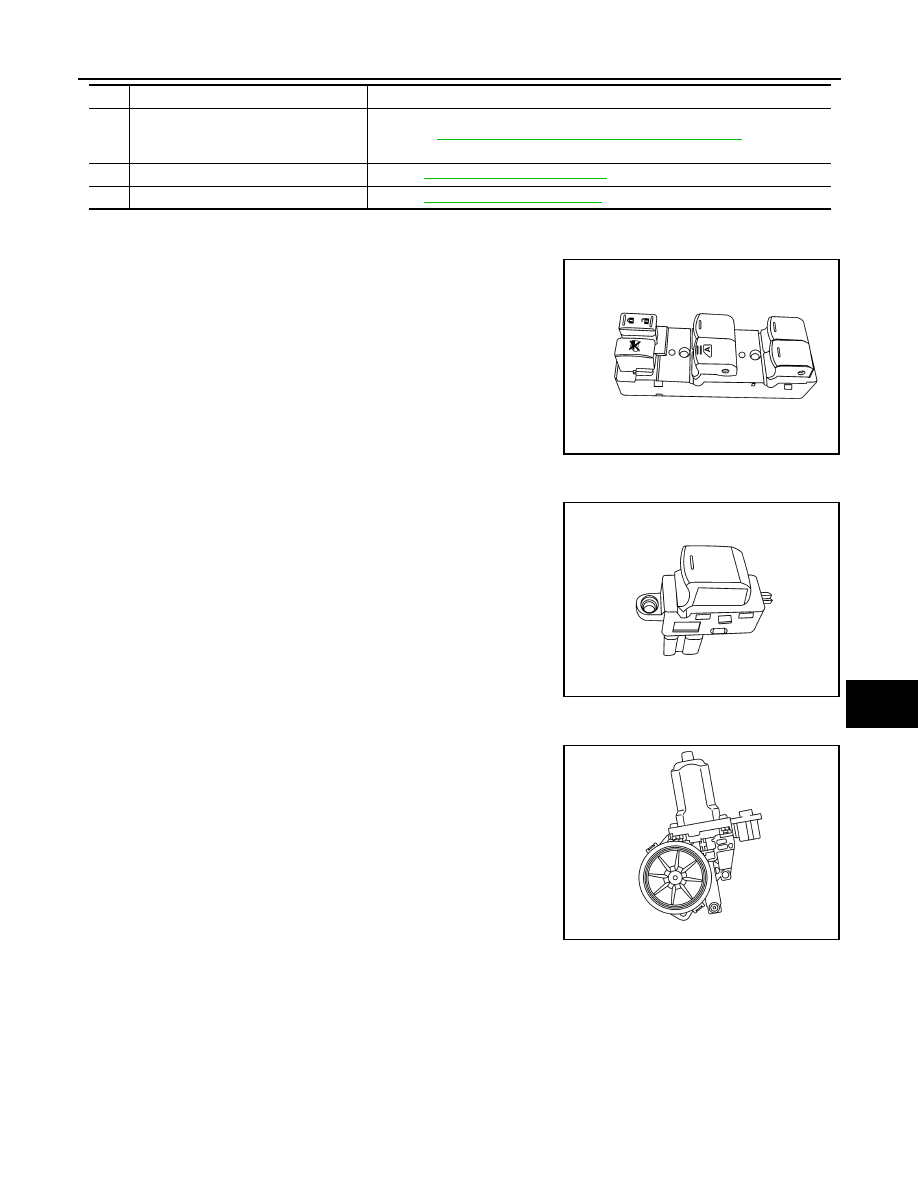

Power Window Main Switch

INFOID:0000000009619467

• Power window main switch controls all power windows.

• Power window main switch integrates UP/DOWN switch, power

window lock switch, and door lock/unlock switch.

• Power window main switch controls the power window lock

function.

Power Window Switch

INFOID:0000000009619468

• Each power window switch transmits UP/DOWN signal to each

motor.

• Each power window switch transmits UP/DOWN signal from power

window main switch to each motor.

Power Window Motor

INFOID:0000000009619469

• Starts operation according to signals from power window main

switch (front driver side).

• Transmits front power window motor (driver side) rotation as a

pulse signal to power window main switch.

• Excepting power window motor for driver door, starts operation

according to signals from power window main switch or each

power window switches.

4.

Front door switch (driver side)

• Inputs door open/close condition to BCM.
• Refer to

DLK-19, "INTELLIGENT KEY SYSTEM : Door Switch"

 for detailed in-

stallation location.

5.

Rear power window switch LH

Refer to

PWC-7, "Power Window Switch"

.

6.

Rear power window motor LH

Refer to

PWC-7, "Power Window Motor"

.

No.

Component parts

Function

ALKIA3203ZZ

ALKIA3204ZZ

JMKIA6528ZZ
