Nissan Versa Note. Manual - part 631

PG

GROUND

PG-31

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

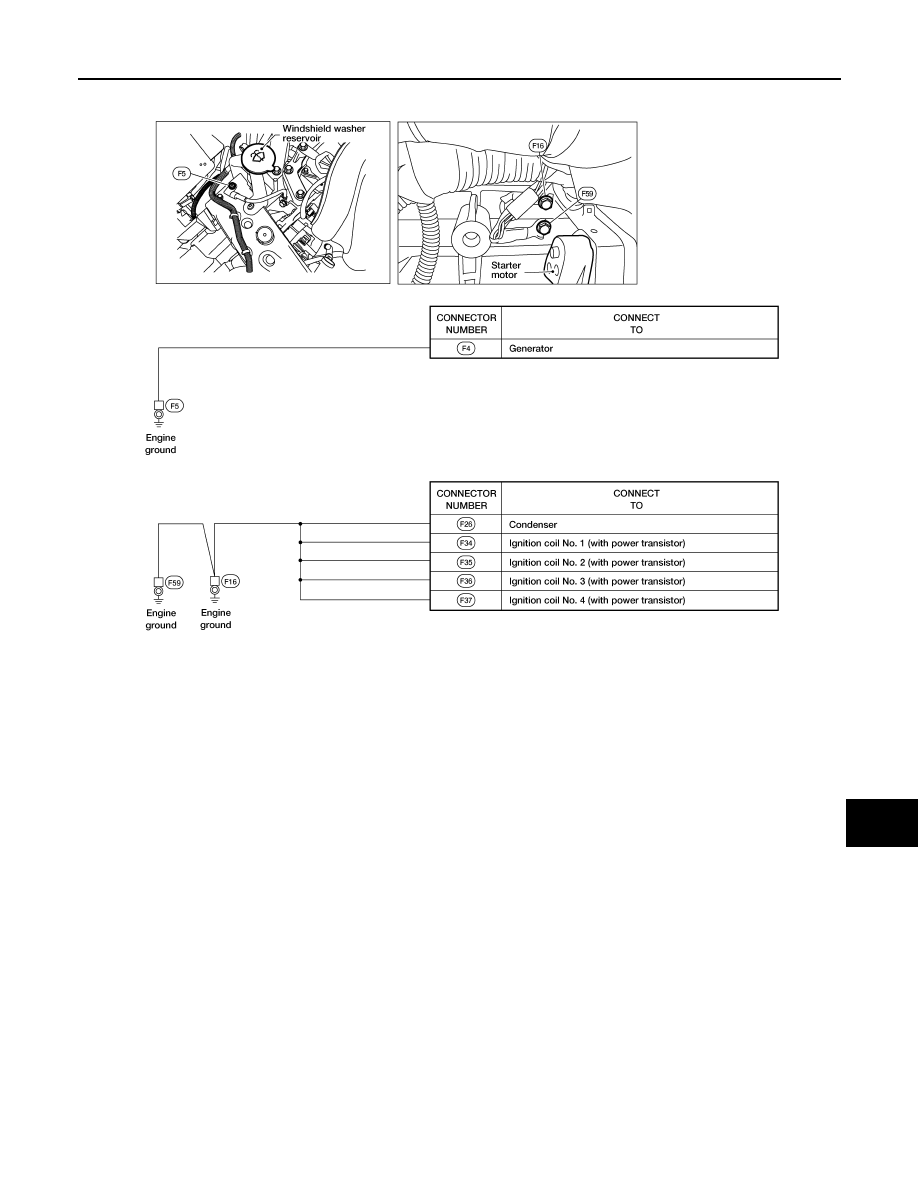

ENGINE CONTROL HARNESS

AAMIA1782GB

PG-32

< DTC/CIRCUIT DIAGNOSIS >

GROUND

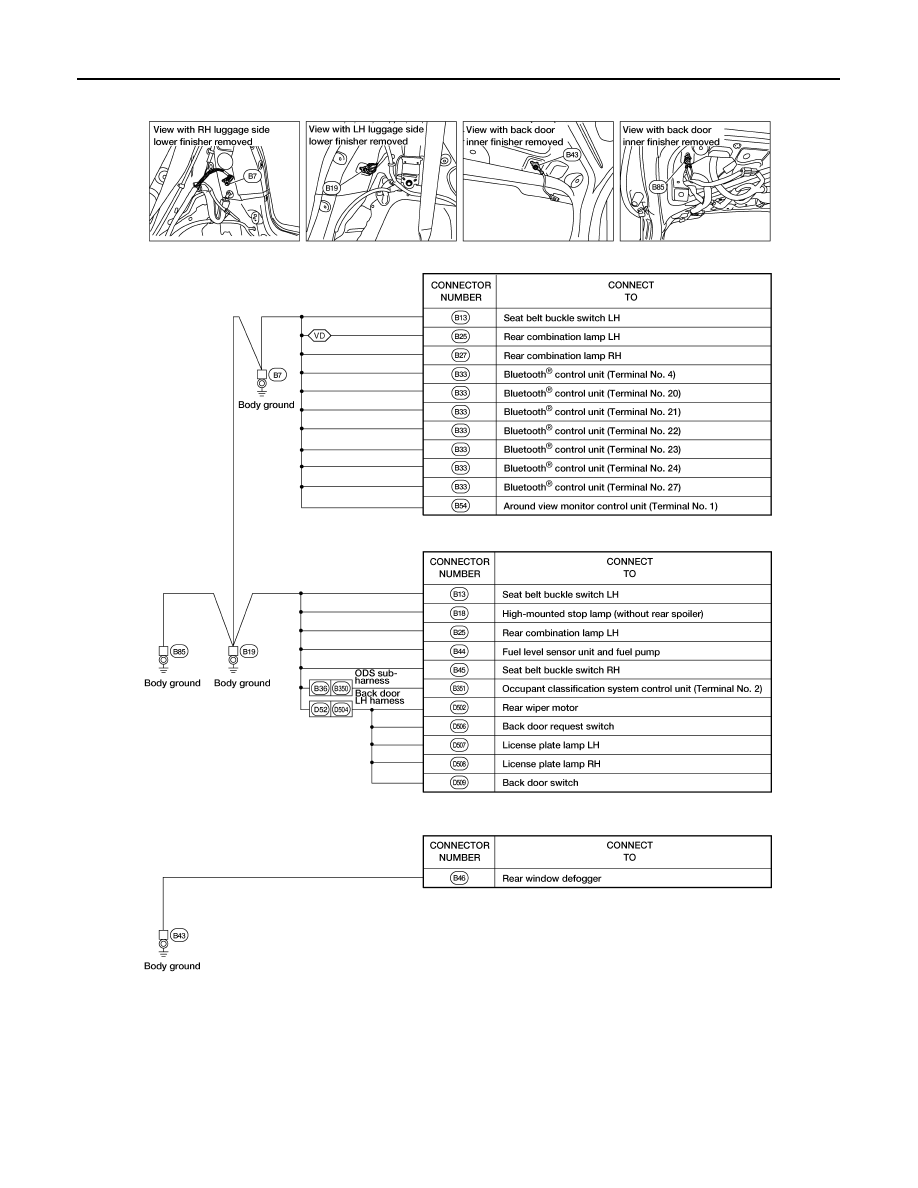

BODY HARNESS

AAMIA1783GB

PG

HARNESS

PG-33

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HARNESS

Harness Layout

INFOID:0000000009723969

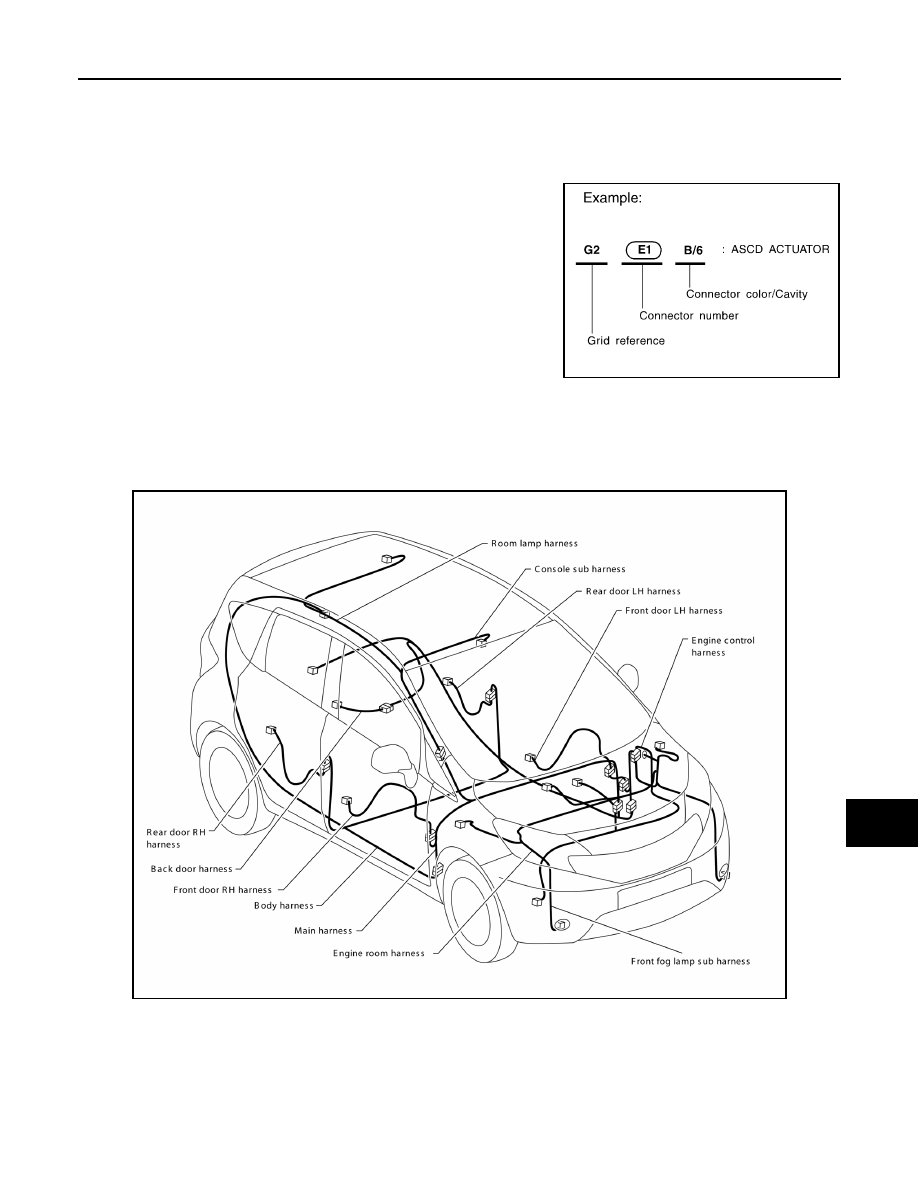

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate

connectors on the drawings:

• Main Harness and Console Sub Harness

• Engine Room Harness and Front Fog lamp Sub Harness

• Engine Room Harness (Passenger Compartment)

• Engine Control Harness

• Body Harness

• Room Lamp Harness

To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter col-

umn and number row.

4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

OUTLINE

SEL252V

AAMIA1790GB

PG-34

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

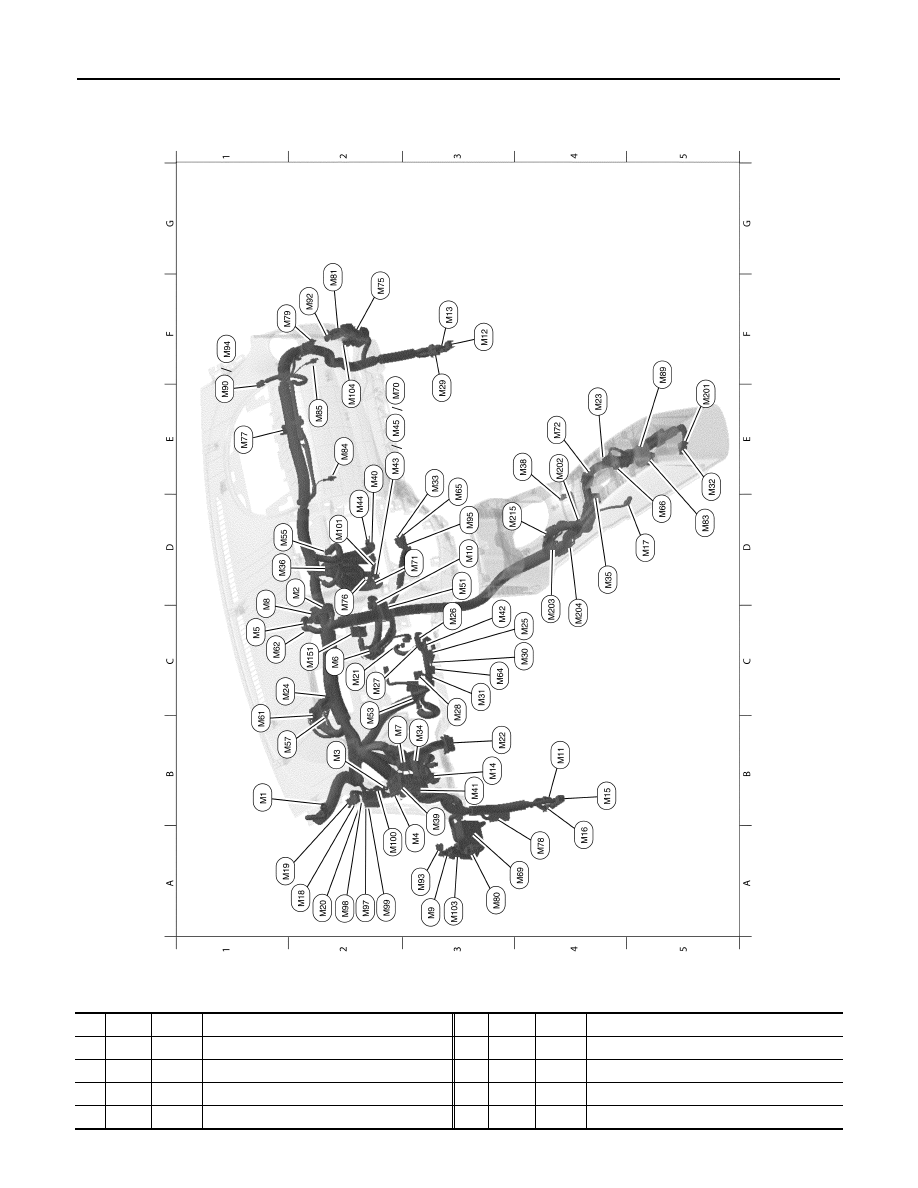

MAIN HARNESS

AAMIA0185ZZ

B1

M1         W/8

:  To  R1

D3

M51        GR/20

:  Joint  connector-M04

D2 M2         GR/2

:  Diode

C2

M53        B/8

:  EPS  control  unit

B2

M3         W/1

:  Fuse  block  (J/B)

D1

M55        W/4

:  Hazard  switch

A3

M4         W/1

:  Fuse  block  (J/B)

B1

M57        —

:  Body  ground

C1 M5         BR/20

:  Joint  connector–M03

B1

M61        —

:  Body  ground
