< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

DIAGNOSIS SYSTEM (BCM)

*: Initial Setting

AUTO LOCK SET

MODE7

5 min

Auto door lock time setting.

MODE6

4 min

MODE5

3 min

MODE4

2 min

MODE3*

1 min

MODE2

30 sec

MODE1

Off

Support Item

Setting

Description

PCS

BCM

PCS-71

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000009579003

ECU

Reference

BCM

BCS-28, "Reference Value"

BCS-46, "Fail-safe"

BCS-47, "DTC Inspection Priority Chart"

BCS-48, "DTC Index"

PCS-72

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

WIRING DIAGRAM

POWER DISTRIBUTION SYSTEM

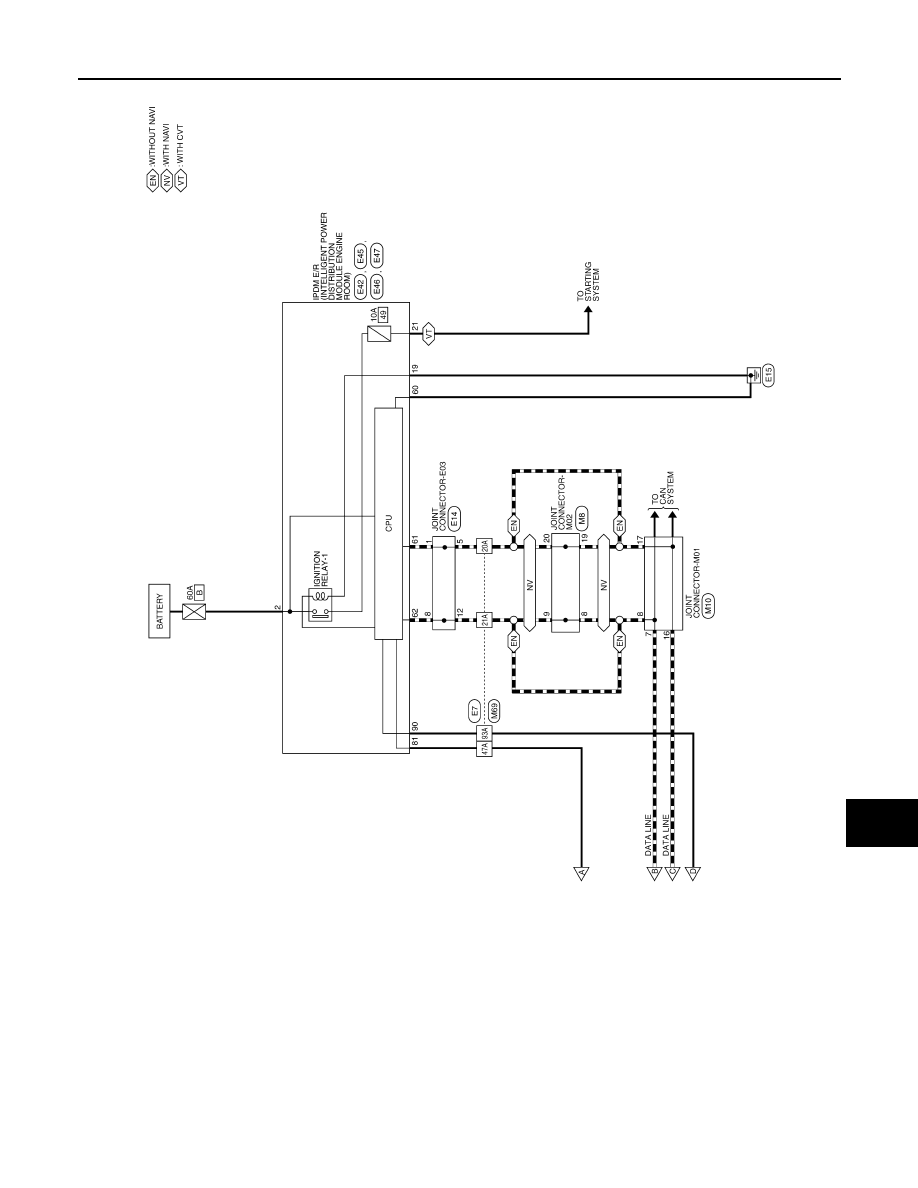

Wiring Diagram

INFOID:0000000009579004
