Nissan Versa Note. Manual - part 537

IP-22

< REMOVAL AND INSTALLATION >

CLUSTER LID C

CLUSTER LID C

Removal and Installation

INFOID:0000000009405652

REMOVAL

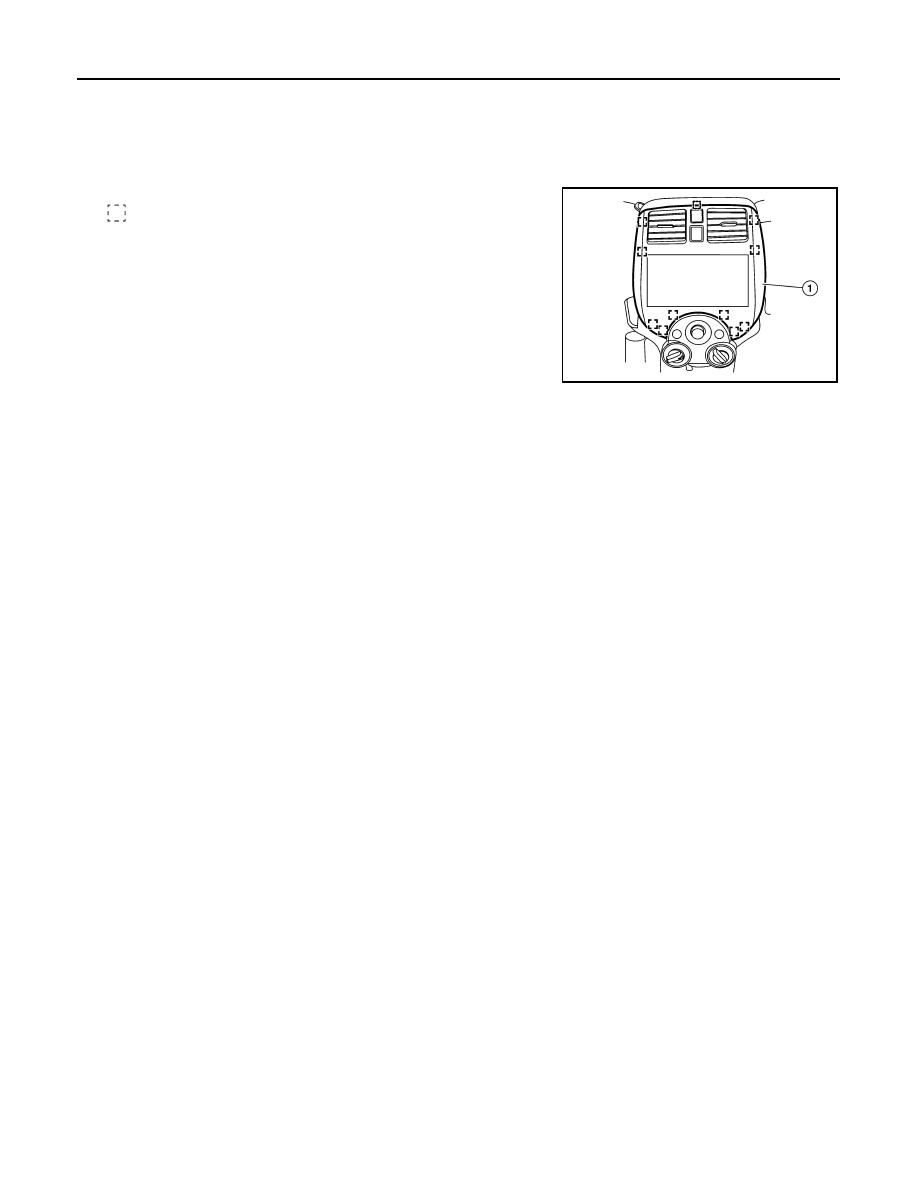

1. Release the cluster lid C (1) clips using a suitable tool.

: Metal clip

2. Disconnect harness connectors from cluster lid C and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1231ZZ

FRONT AIR CONTROL FINISHER

IP-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

FRONT AIR CONTROL FINISHER

Removal and Installation

INFOID:0000000009567630

REMOVAL

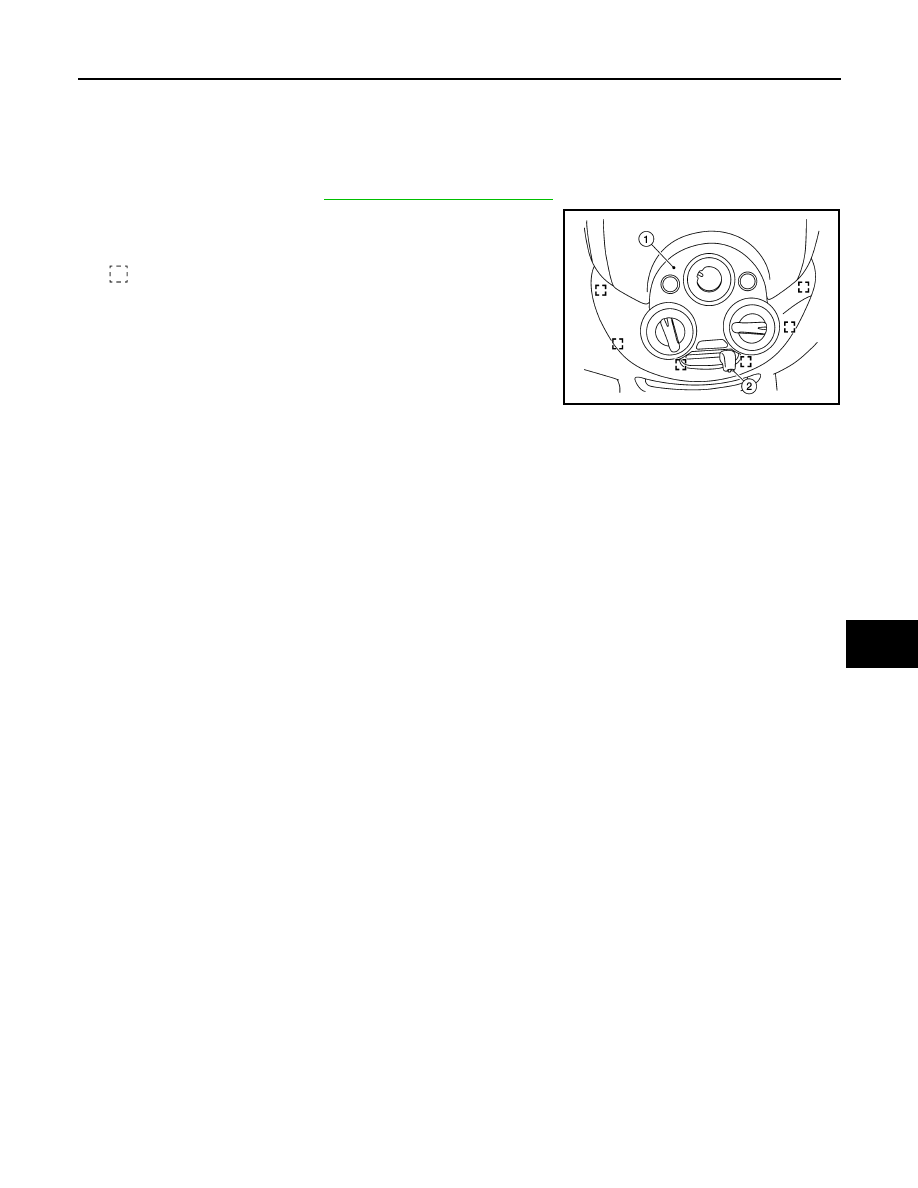

1. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

2. Remove intake door lever knob (2).
3. Release the front air control finisher (1) clips using a suitable

tool and remove.

: Metal clip

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1234ZZ

IP-24

< REMOVAL AND INSTALLATION >

INSTRUMENT LOWER PANEL LH

INSTRUMENT LOWER PANEL LH

Removal and Installation

INFOID:0000000009405651

REMOVAL

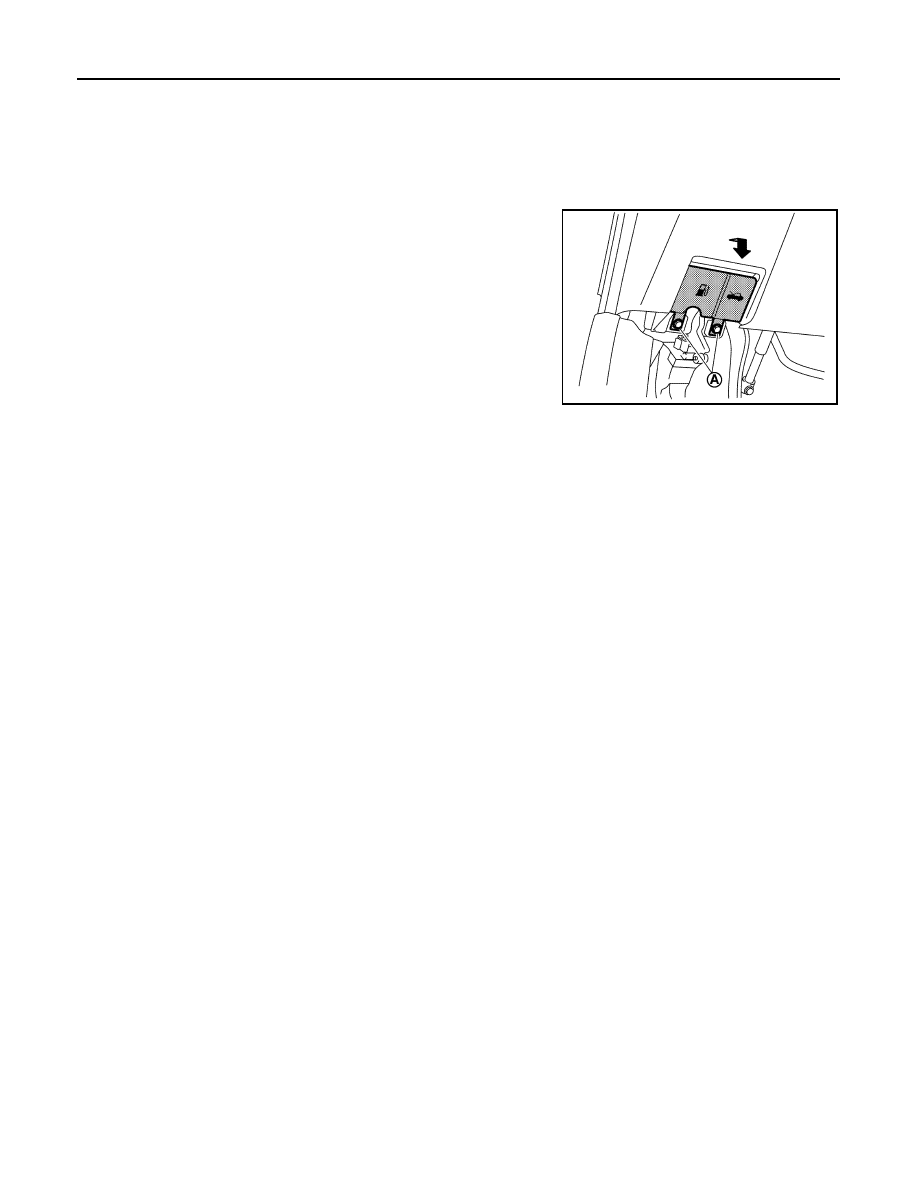

1. Remove data link connector from instrument lower panel LH.
2. Remove bolts (A) and position hood lock/fuel filler door release

handle aside.

3. Remove instrument lower panel LH.
a. Release instrument lower panel LH metal clips and pawls using a suitable tool.

CAUTION:

Release pawls and metal clips slowly so that they are not damaged.

b. Disconnect the harness connectors from instrument lower panel LH and remove.

INSTALLATION

Installation is in the reverse order of removal.

JMKIA7998ZZ

GLOVE BOX ASSEMBLY

IP-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

GLOVE BOX ASSEMBLY

Removal and Installation

INFOID:0000000009405653

REMOVAL

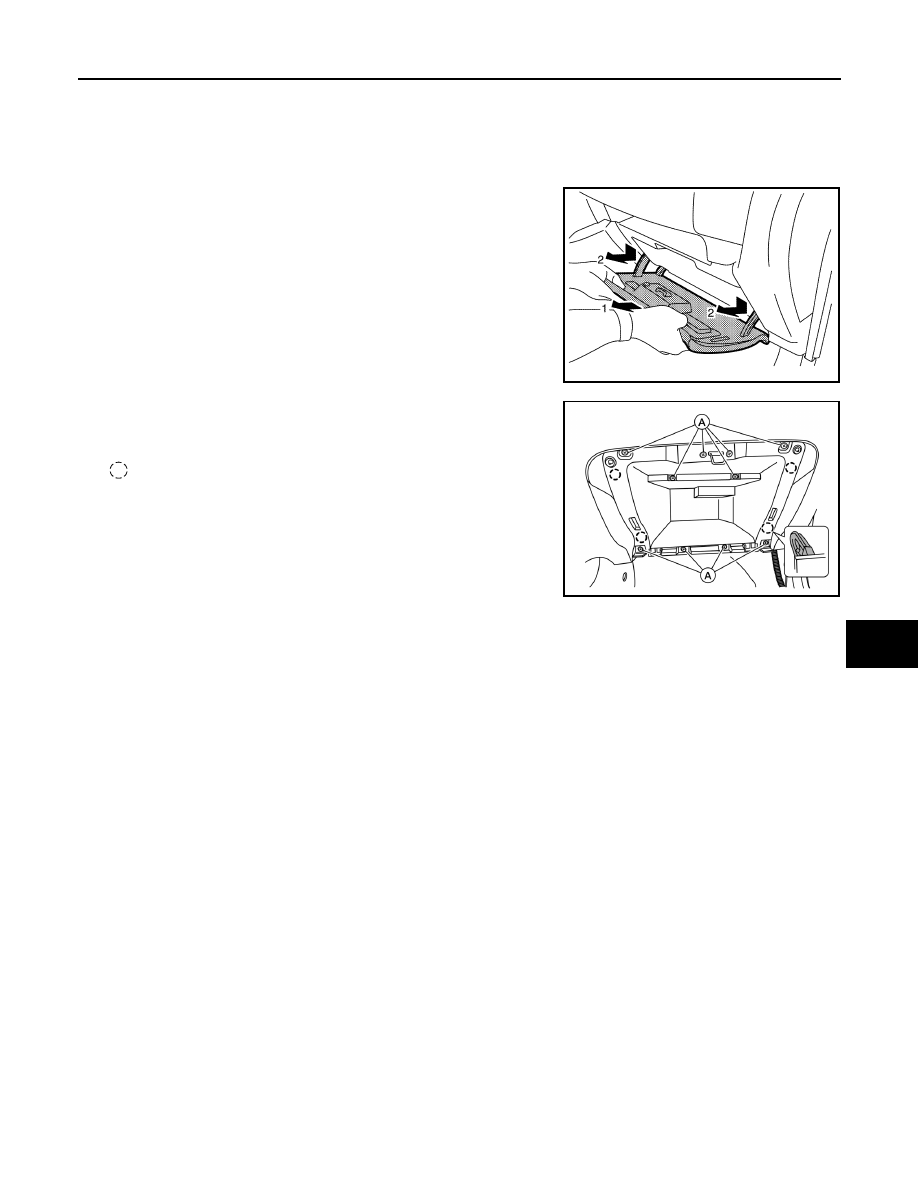

1. Remove glove box lid.
a. Open glove box lid.
b. Pull glove box lid rearward and glove box lid hinges down and

rearward to release, then remove the glove box lid.

2. Remove glove box assembly.
a. Remove glove box assembly screws (A).
b. Pull glove box assembly rearward to release pawls and remove.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

JMJIA6060ZZ

AWJIA0714ZZ
