REMOVAL AND INSTALLATION

FRONT DOOR FINISHER

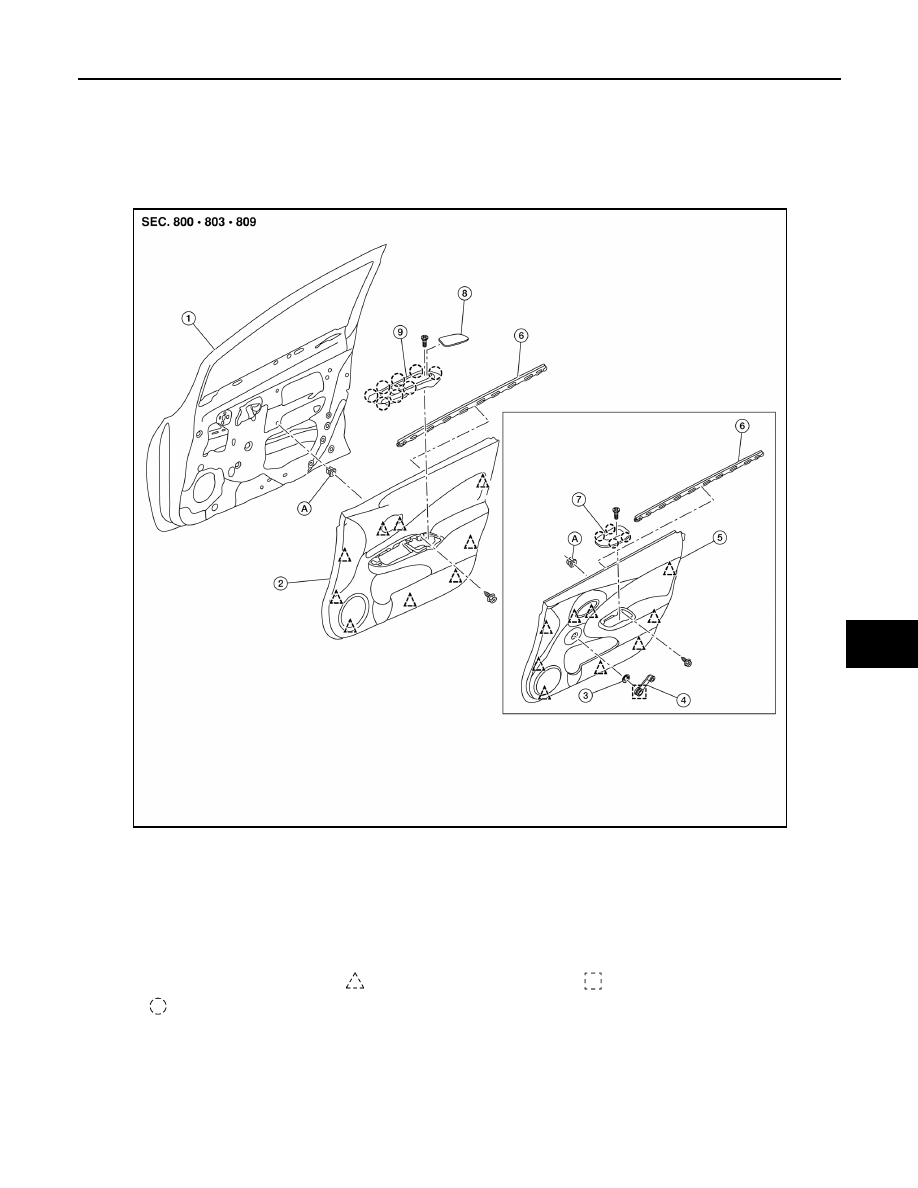

Exploded View

INFOID:0000000008969699

NOTE:

 RH side door shown; LH side door similar.

Removal and Installation

INFOID:0000000008969700

REMOVAL - POWER WINDOW

1.

Front door panel

2.

Power window/lock front door finish-
er

3.

Manual window crank wash-
er (if equipped)

4.

Manual window crank han-
dle (if equipped)

5.

Manual window/lock door finisher (if
equipped)

6.

Front door inside seal

7.

Storage tray (if equipped)

8.

Door pull handle escutcheon

9.

Power window and door
lock/unlock switch (RH) fin-
isher

A.

Grommet

Clip

Metal clip

Pawl

AWJIA1145ZZ

INT-16

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

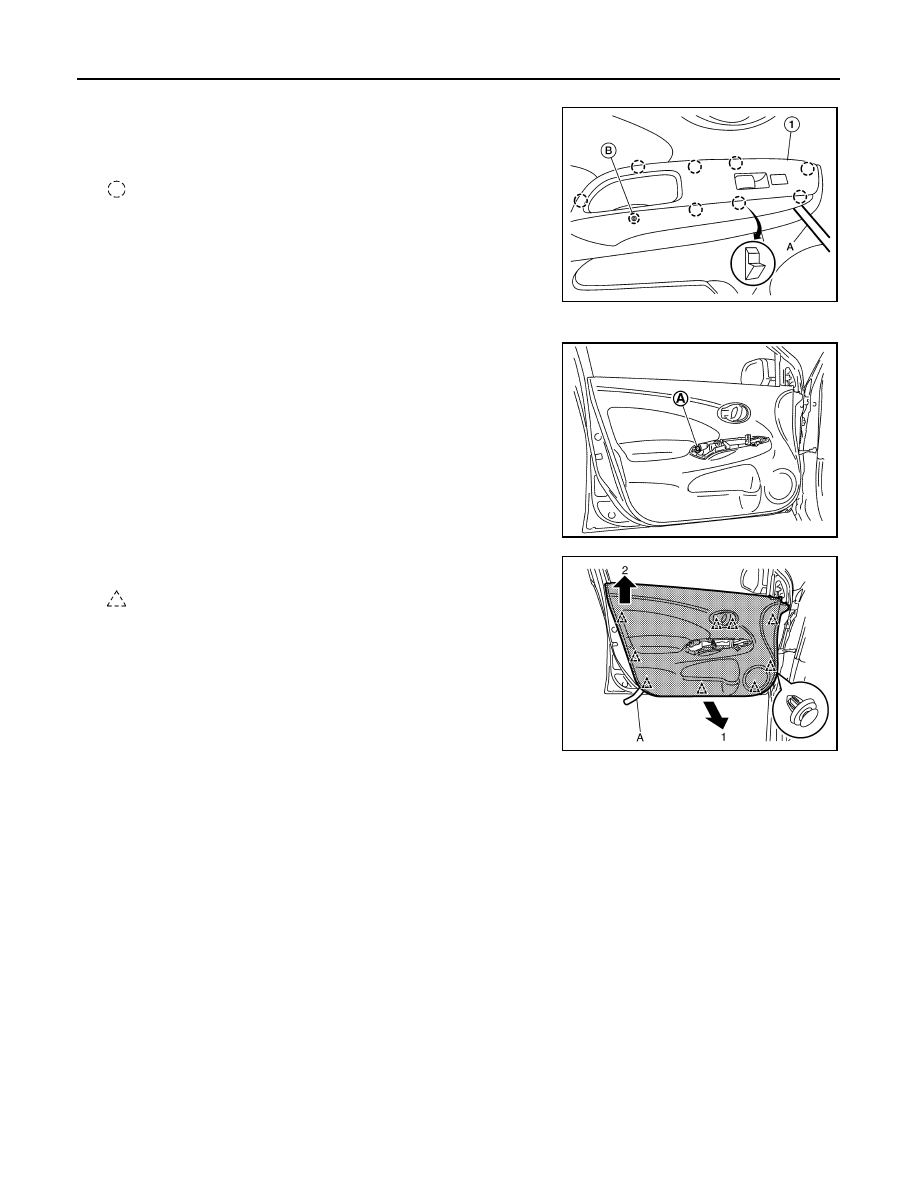

1. Remove door pull handle escutcheon using a suitable tool.
2. Remove screw (B) from power window and door lock/unlock

switch (RH) finisher.

3. Remove power window and door lock/unlock switch (RH) fin-

isher (1) using a suitable tool (A).

: Pawl

4. Disconnect the harness connector from the power window and door lock/unlock switch (RH).
5. Remove front door finisher bolt (A).

6. Release clips using a suitable tool (A) and remove front door fin-

isher as shown.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing front door finisher, check that clips and pawls are securely placed into door panel

holes.

REMOVAL - MANUAL WINDOW

1. Remove door pull handle escutcheon using a suitable tool.
2. Release pawls using a suitable tool and remove storage tray (LH/RH).

AWJIA1140ZZ

JMJIA6023ZZ

AWJIA1122ZZ

FRONT DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

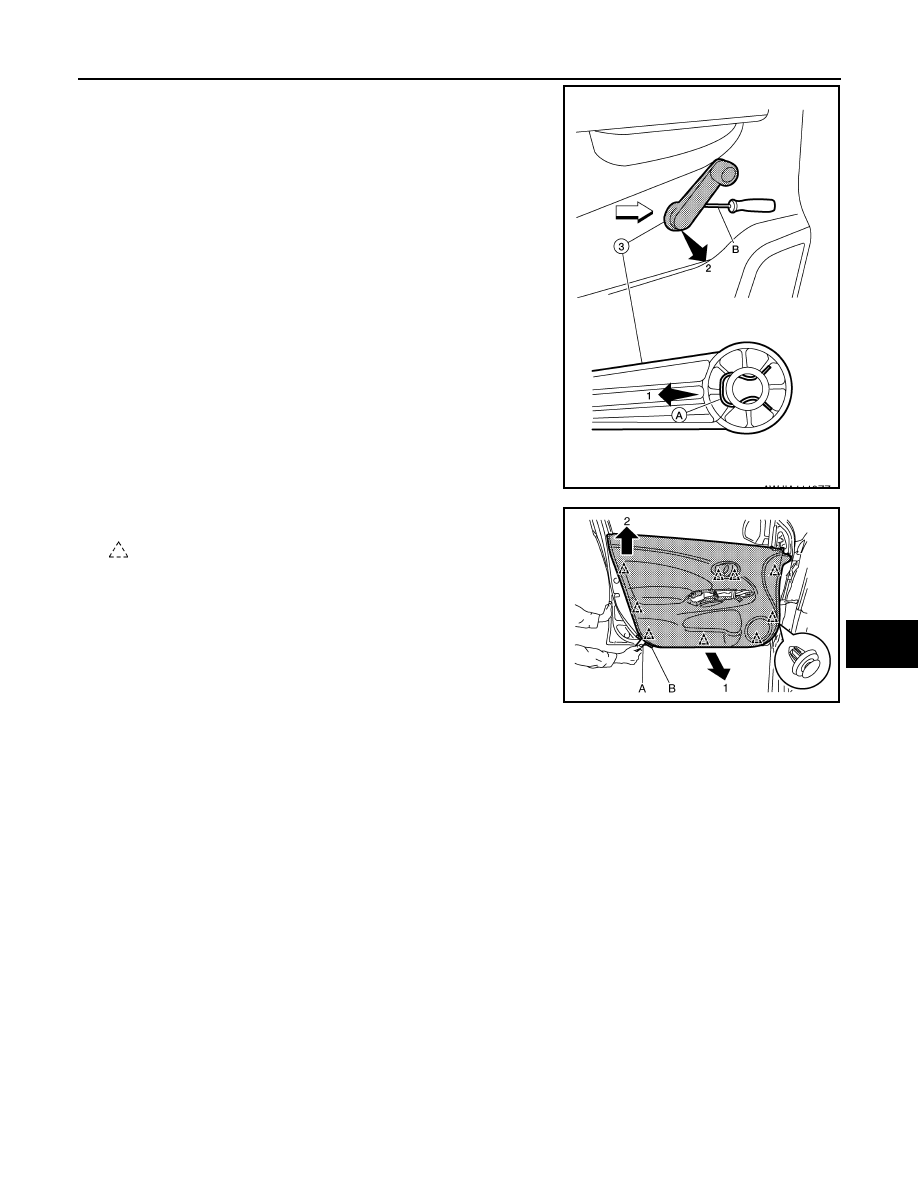

3. Release the metal clip (A) behind the manual window crank han-

dle using a suitable tool (B). Pull the manual window crank han-

dle (1) outward from the front door finisher and remove handle.

4. Remove front door finisher.
5. Remove front door finisher bolt (A).

6. Release clips using a suitable tool (A) and remove front door fin-

isher as shown.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing front door finisher, check that clips and pawls are securely placed into door panel

holes.

AWJIA1119ZZ

AWJIA1083ZZ

INT-18

< REMOVAL AND INSTALLATION >

REAR DOOR FINISHER

REAR DOOR FINISHER

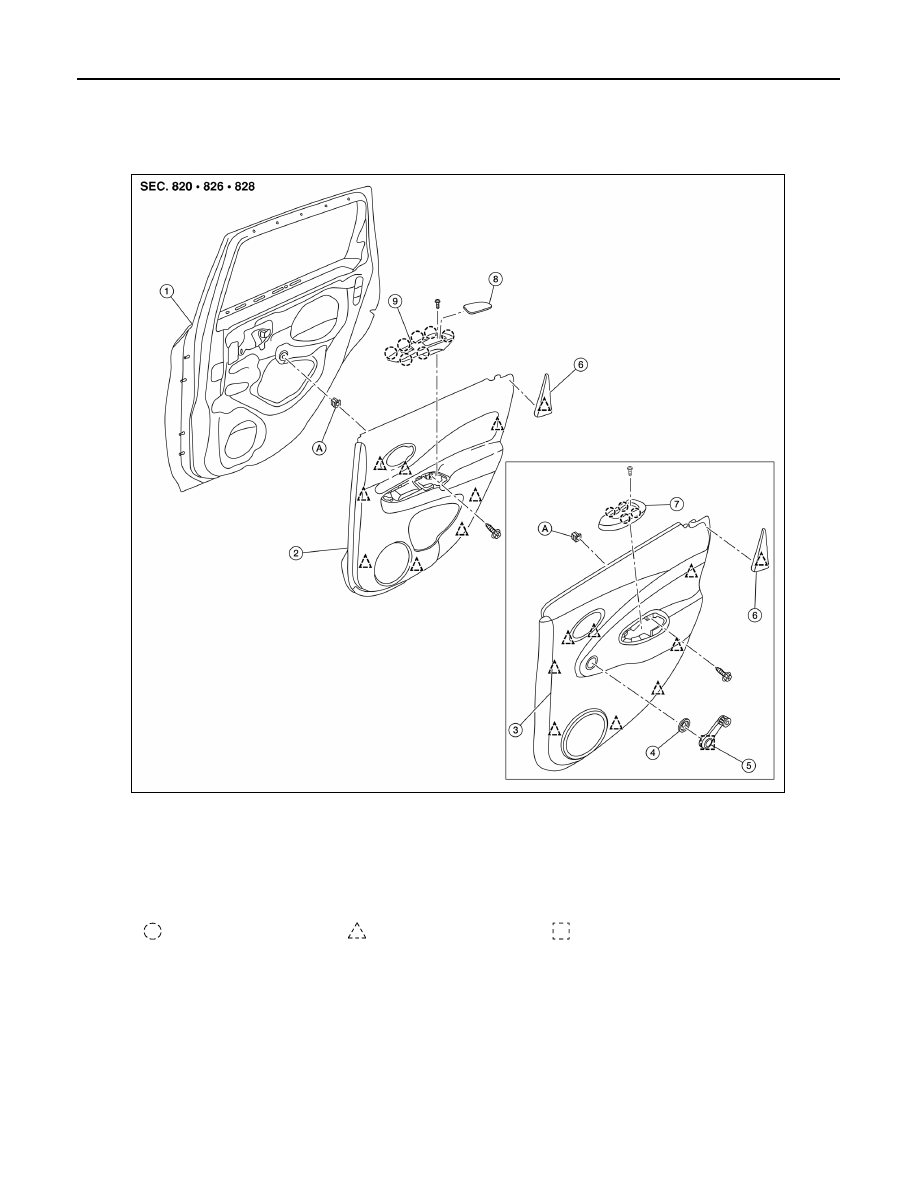

Exploded View

INFOID:0000000008969701

Removal and Installation

INFOID:0000000008969702

REMOVAL - POWER WINDOW

1. Release rear door corner finisher clip using a suitable tool.
2. Remove rear door pull handle escutcheon using a suitable tool. .

1.

Rear door panel

2.

Rear door finisher

3.

Rear manual window door finisher
(if equipped)

4.

Manual window crank washer
(if equipped)

5.

Manual window crank handle
(if equipped)

6.

Rear door corner finisher

7.

Manual window storage tray (if
equipped)

8.

Rear power window switch fin-
isher (if equipped)

A. Grommet

Pawl

Clip

Metal Clip

AWJIA1144ZZ
