PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

Description

INFOID:0000000009695427

Provides the power supply and the ground to control the push-button ignition switch illumination.

Component Function Check

INFOID:0000000009695428

1.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION OPERATION

CONSULT

1. Turn the ignition switch ON.

2. Select ENGINE SW ILLUMI of BCM (INTELLGENT KEY) active test item.

3. While operating the test item, check that the push-button ignition switch illumination turns ON/OFF

Is the inspection result normal?

YES

>> Push-button ignition switch illumination circuit is normal.

NO

>> Refer to

INL-48, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009695429

Regarding Wiring Diagram information, refer to

INL-28, "Wiring Diagram"

.

1.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION OPERATION

CONSULT

1. Turn the ignition switch ON.

2. Select ENGINE SW ILLUMI of BCM (INTELLIGENT KEY) active test item.

3. While operating the test item, check voltage between push-button ignition switch connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect BCM connector and push-button ignition switch connector.

3. Check continuity between BCM connector and push-button ignition switch connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the harness or connectors.

ON

: Push-button ignition switch illumination ON

OFF

: Push-button ignition switch illumination OFF

Terminals

Test item

Voltage

(+)

(-)

Push-button ignition switch

Ground

ENGINE SW ILLUMI

Connector

Terminal

M25

5

ON

Battery voltage

OFF

0 V

BCM

Push-button ignition switch

Continuity

Connector

Terminal

Connector

Terminal

M98

90

M25

5

Yes

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

INL-49

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

3.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY SHORT CIRCUIT

Check continuity between BCM connector M98 terminal 90 and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-70, "Removal and Installation"

.

NO

>> Repair or replace the harness or connectors.

4.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION GROUND CIRCUIT

1. Turn the ignition switch OFF

2. Disconnect push-button ignition switch connector.

3. Check continuity between push-button ignition switch connector and ground.

Is the inspection result normal?

YES

>> Replace push-button ignition switch. Refer to

PCS-103, "Removal and Installation"

.

NO

>> GO TO 5.

5.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION GROUND OPEN CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between BCM connector and push-button ignition switch connector.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-70, "Removal and Installation"

.

NO

>> Repair or replace the harness or connectors.

BCM

Ground

Continuity

Connector

Terminal

M98

90

No

Push-button ignition switch

Ground

Continuity

Connector

Terminal

M25

6

Yes

BCM

Push-button ignition switch

Continuity

Connector

Terminal

Connector

Terminal

M98

92

M25

6

Yes

INL-50

< SYMPTOM DIAGNOSIS >

INTERIOR LIGHTING SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

INTERIOR LIGHTING SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009643000

CAUTION:

Perform the self-diagnosis with CONSULT before the symptom diagnosis. Perform the trouble diagno-

sis if any DTC is detected.

Symptom

Possible cause

Inspection item

• Interior room lamp does not turn ON even though the

door is open.
(It turns ON when turning the interior room lamp ON.)

• Interior room lamp does not turn OFF even though

the door is closed.

• Harness between BCM and each

door switch

• Harness between BCM and each

interior room lamp

• BCM

Door switch circuit
Refer to

DLK-95

 (with Intelligent Key)

or

DLK-225

 (without Intelligent Key).

Interior room lamp control circuit
Refer to

INL-43

.

Interior room lamp timer does not activate.
(It turns ON/ OFF when the door opens/closes.)

—

Check the interior room lamp setting.
Refer to

INL-11

 (with Intelligent Key) or

INL-17

 (without Intelligent Key).

Interior room lamp battery saver does not activate.

—

Check the interior room lamp battery
saver setting.
Refer to

INL-14

 (with Intelligent Key) or

INL-19

 (without Intelligent Key).

Cargo lamp does not turn ON even though the back
door is open.
(It turns ON when turning the cargo lamp ON.)

• Harness between BCM and car-

go lamp

• Harness between BCM and back

door switch

• BCM

Back door switch circuit
Refer to

DLK-93

 (with Intelligent Key)

or

DLK-225

 (without Intelligent Key).

Cargo lamp circuit
Refer to

INL-46

.

MAP LAMP

INL-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

REMOVAL AND INSTALLATION

MAP LAMP

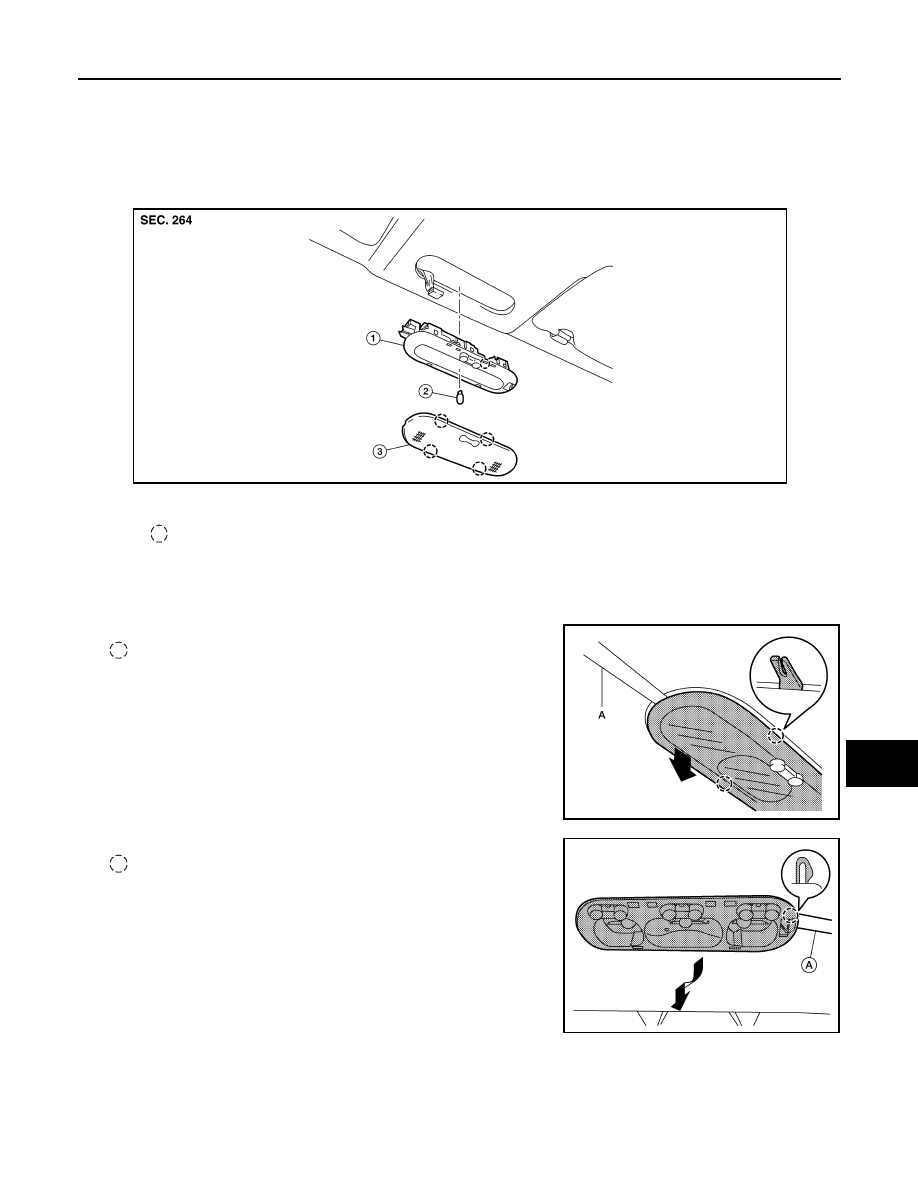

Exploded View

INFOID:0000000008969463

Removal and Installation

INFOID:0000000008969464

REMOVAL

1. Release lens pawls using a suitable tool (A) and remove.

: Pawl

2. Release map lamp pawl using suitable tool (A).

: Pawl

3. Disconnect the harness connector from map lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000008969465

WARNING:

1.

Map lamp

2.

Bulb

3.

Lens

Pawl

AWLIA2175ZZ

AWLIA2150ZZ

AWLIA2144ZZ
