INL-8

< SYSTEM DESCRIPTION >

SYSTEM

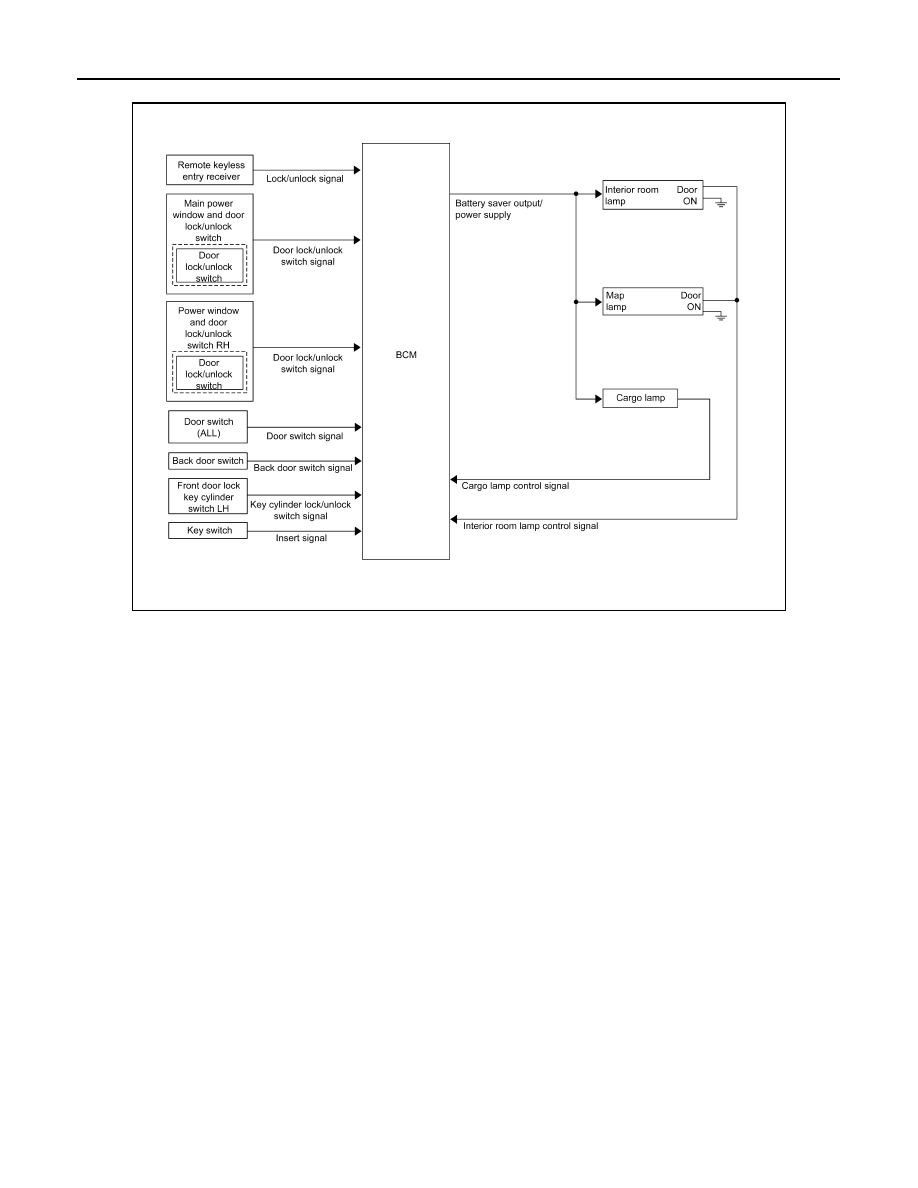

SYSTEM DIAGRAM (WITHOUT INTELLIGENT KEY)

OUTLINE

• Interior room lamp* is controlled by the interior room lamp timer control function of the BCM.

• Cargo lamp is controlled by the cargo lamp control function of the BCM.

• Push-button ignition switch illumination is controlled by the push-button ignition switch illumination control

function of BCM and combination meter.

The timer control functions of the BCM activate based on inputs from the key cylinder lock/unlock switch LH,

the door switches, the key switch and door lock/unlock switches.

*Interior room lamp and map lamp (if equipped) (when lamp switch is in DOOR position).

ROOM LAMP TIMER OPERATION

When the interior room lamp switch is in the DOOR position and when all conditions below are met, the BCM

begins timer control (maximum 30 seconds) for interior room lamp ON/OFF.

• When the front door LH is unlocked with key fob, main power window and door lock/unlock switch, power

window and door lock/unlock switch RH or front door lock assembly LH (key cylinder switch).

• When a door opens

→ closes and the push-button ignition switch is not pressed (with Intelligent Key).

• When a door opens

→ closes and the key is not inserted in the ignition switch (without Intelligent Key).

Timer control is cancelled under the following conditions.

• When the front door LH is locked with key fob, main power window and door lock/unlock switch, power win-

dow and door lock/unlock switch RH or front door lock assembly LH (key cylinder switch).

• A door is opened (door switch turns ON).

• Ignition switch is turned ON.

Interior lamp operational settings can be changed with the function setting of CONSULT.

INTERIOR LAMP BATTERY SAVER CONTROL

If an interior lamp is left ON and does not turn OFF even when the doors are closed, the BCM turns off power

to the interior lamps automatically to save the battery 10 minutes after the ignition switch is turned OFF.

The BCM controls power and ground to all interior lamps.

After the battery saver system turns the lamps OFF, the lamps will illuminate again when

ALLIA1327GB

SYSTEM

INL-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

• a signal is received from a key fob, main power window and door lock/unlock switch, power window and

door lock/unlock switch RH or when the front door lock assembly LH (key cylinder switch) is locked or

unlocked

• a door is opened or closed

• the key is removed from or inserted into the ignition switch (without Intelligent Key).

The interior lamp battery saver control time period can be changed with the function setting of CONSULT.

ILLUMINATION CONTROL SYSTEM
ILLUMINATION CONTROL SYSTEM : System Description

INFOID:0000000009642984

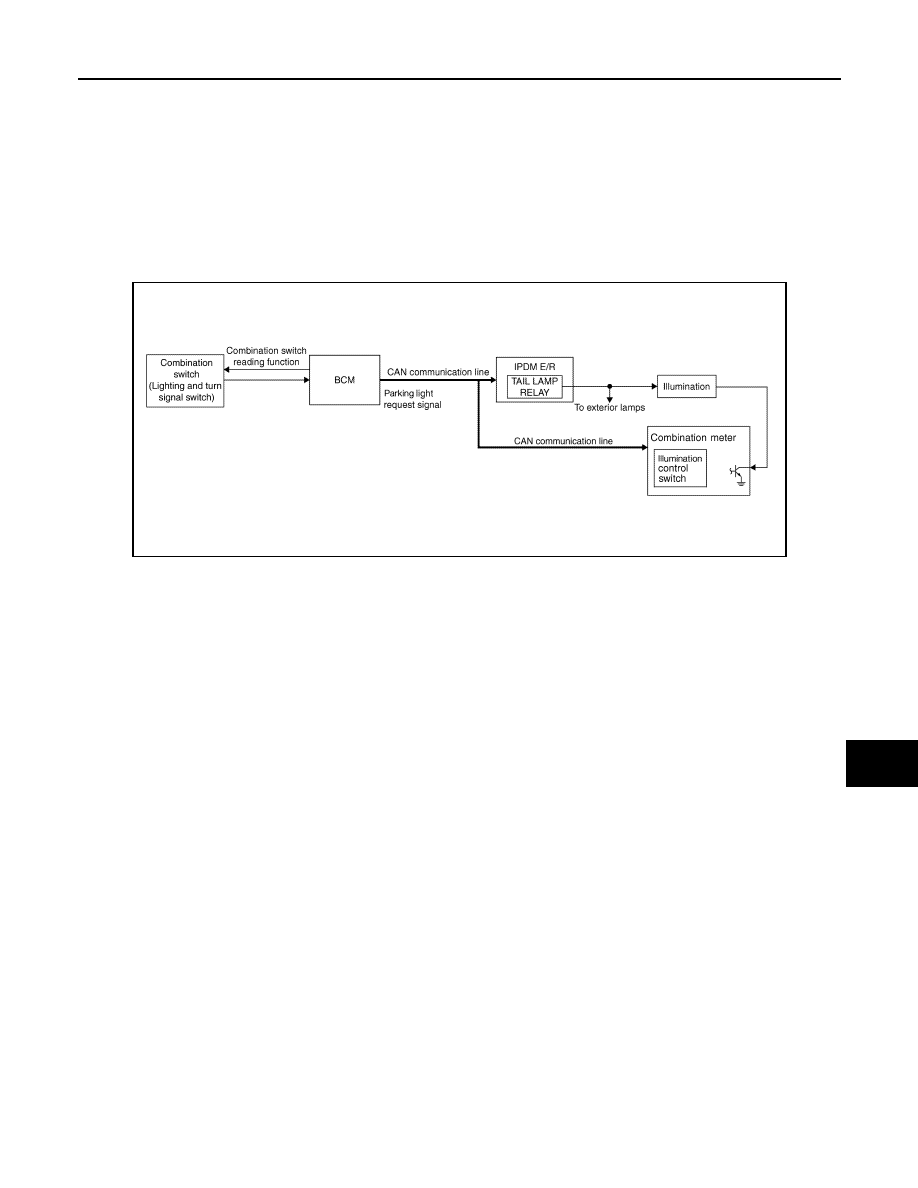

SYSTEM DIAGRAM

OUTLINE

The illumination lamps operation is dependent upon the position of the combination switch (lighting and turn

signal switch). When the combination switch (lighting and turn signal switch) is placed in the 1ST or 2ND posi-

tion the BCM (body control module) receives input requesting the parking lamps to illuminate. This input is

communicated to the IPDM E/R (intelligent power distribution module engine room) via the CAN communica-

tion lines. The CPU (central processing unit) of the IPDM E/R controls the tail lamp relay coil. When energized,

this relay directs power to the parking and illumination lamps, which then illuminate.

BATTERY SAVER CONTROL

When the combination switch (lighting and turn signal switch) is in the 1st or 2nd position and the ignition

switch is turned from ON or ACC to OFF, the battery saver control feature is activated. Under this condition,

the illumination lamps remain illuminated for 10 minutes unless the combination switch (lighting and turn signal

switch) position is changed. If the combination switch (lighting and turn signal switch) position is changed, then

the illumination lamps are turned off after a 15 second delay. When the combination switch (lighting and turn

signal switch) is turned from OFF to 1st or 2nd position after illumination lamps have been turned off by the

battery saver control, the illumination lamps illuminate again.

AWLIA1767GB

INL-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009695430

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

ECU identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

ECU id

en

tif

ica

tion

Se

lf Di

ag

no

st

ic

 Res

u

lt

Dat

a

 M

on

ito

r

Acti

ve

 T

est

W

o

rk

 su

pp

ort

Co

nf

ig

ur

at

io

n

CAN DIAG SUP

P

OR

T MNTR

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

Signal buffer system

SIGNAL BUFFER

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

INL-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

DOOR LOCK
DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

INFOID:0000000009695431

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

*: Initial setting

INT LAMP
INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000009695432

DATA MONITOR

Monitor Item [Unit]

Description

REQ SW-DR [On/Off]

Indicates condition of door request switch LH.

REQ SW-AS [On/Off]

Indicates condition of door request switch RH.

REQ SW -BD/TR [On/Off]

Indicates condition of back door request switch.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

DOOR SW-BK [On/Off]

Indicates condition of back door switch.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

CDL UNLOCK SW [On/Off]

Indicates condition of unlock signal from door lock and unlock switch.

KEY CYL LK-SW [On/Off]

Indicates condition of lock signal from door key cylinder switch.

KEY CYL UN-SW [On/Off]

Indicates condition of unlock signal from door key cylinder switch.

Test Item

Description

DOOR LOCK

This test is able to check door lock operation [OTR ULK/AS UNLK/DR UNLK/ALL UNLK/ALL
LOCK].

Support Item

Setting

Description

DOOR LOCK-UNLOCK SET

On*

Automatic door locks function ON.

Off

Automatic door locks function OFF.

AUTOMATIC LOCK/UNLOCK
SELECT

Lock/Unlock*

Automatic door locks function operates in lock and unlock.

Lock Only

Automatic door locks function operates in lock only.

Unlock Only

Automatic door locks function operates in unlock only.

Off

Automatic door locks function OFF.

AUTOMATIC DOOR LOCK SELECT

P RANGE

Doors lock automatically when shifted out of Park (P).

VH SPD*

Doors lock automatically when vehicle speed reaches 24 km/h (15 mph).

AUTOMATIC DOOR UNLOCK
SELECT

MODE6*

Drivers door unlocks automatically when key is removed.

MODE5

Drivers door unlocks automatically when shifted into Park (P).

MODE4

Drivers door unlocks automatically when ignition is switched from ON to OFF.

MODE3

Doors unlock automatically when key is removed.

MODE2

Doors unlock automatically when shifted into Park (P).

MODE1

Doors unlock automatically when ignition is switched from ON to OFF.
