FRONT BLOWER MOTOR RESISTOR

Exploded View

INFOID:0000000009395321

Removal and Installation

INFOID:0000000009395322

REMOVAL

1. Disconnect harness connector from front blower motor resistor.
2. Remove screws and front blower motor resistor.

INSTALLATION

Installation is in the reverse order of removal.

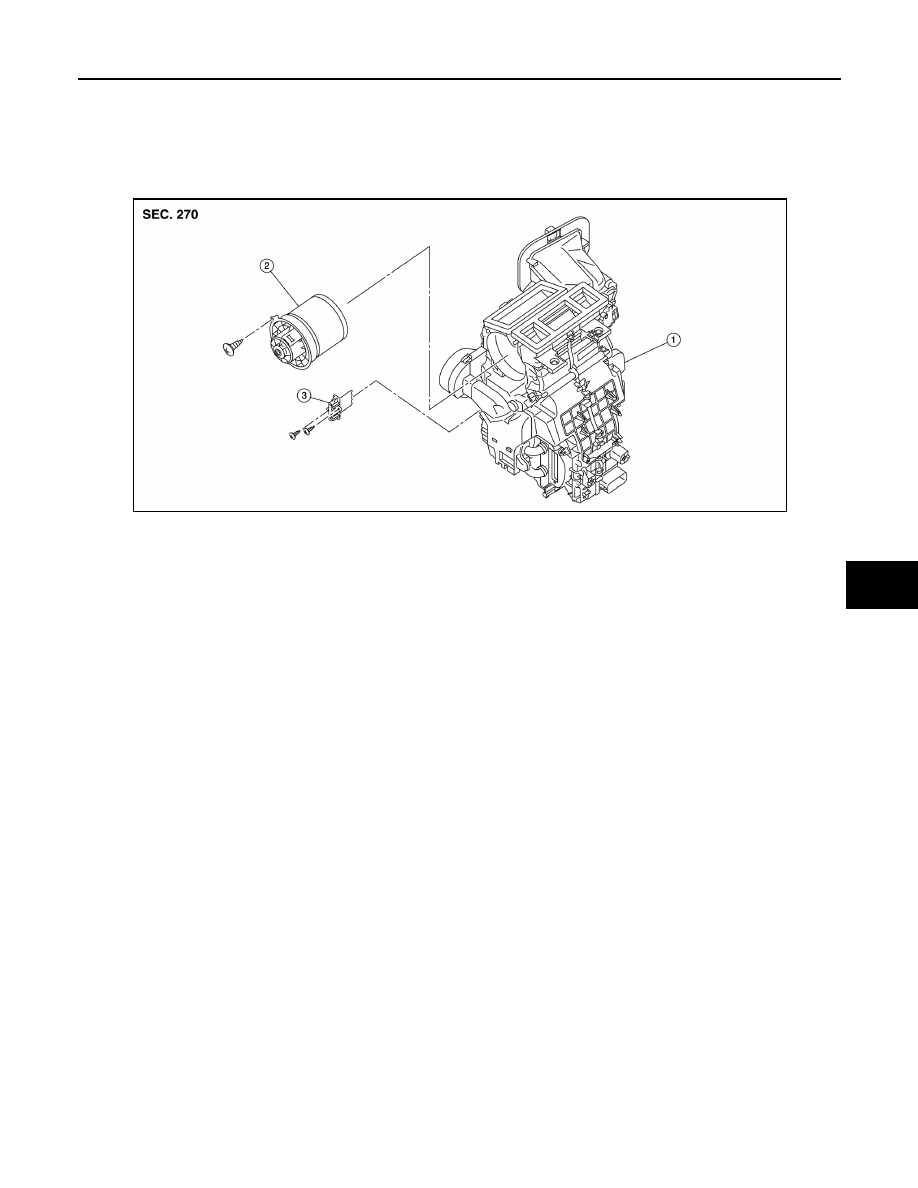

1. Heating and cooling unit assembly

2. Front blower motor

3. Front blower motor resistor

AWIIA1465ZZ

HAC-60

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

DOOR CABLE

DOOR CABLE

Exploded View

INFOID:0000000008968977

INTAKE DOOR CABLE
INTAKE DOOR CABLE : Removal and Installation

INFOID:0000000009395323

The intake door cable is not serviced separately. Refer to

HAC-56, "Removal and Installation"

.

INTAKE DOOR CABLE : Adjustment

INFOID:0000000009395324

1. Remove glove box assembly. Refer to

IP-25, "Removal and Installation"

.

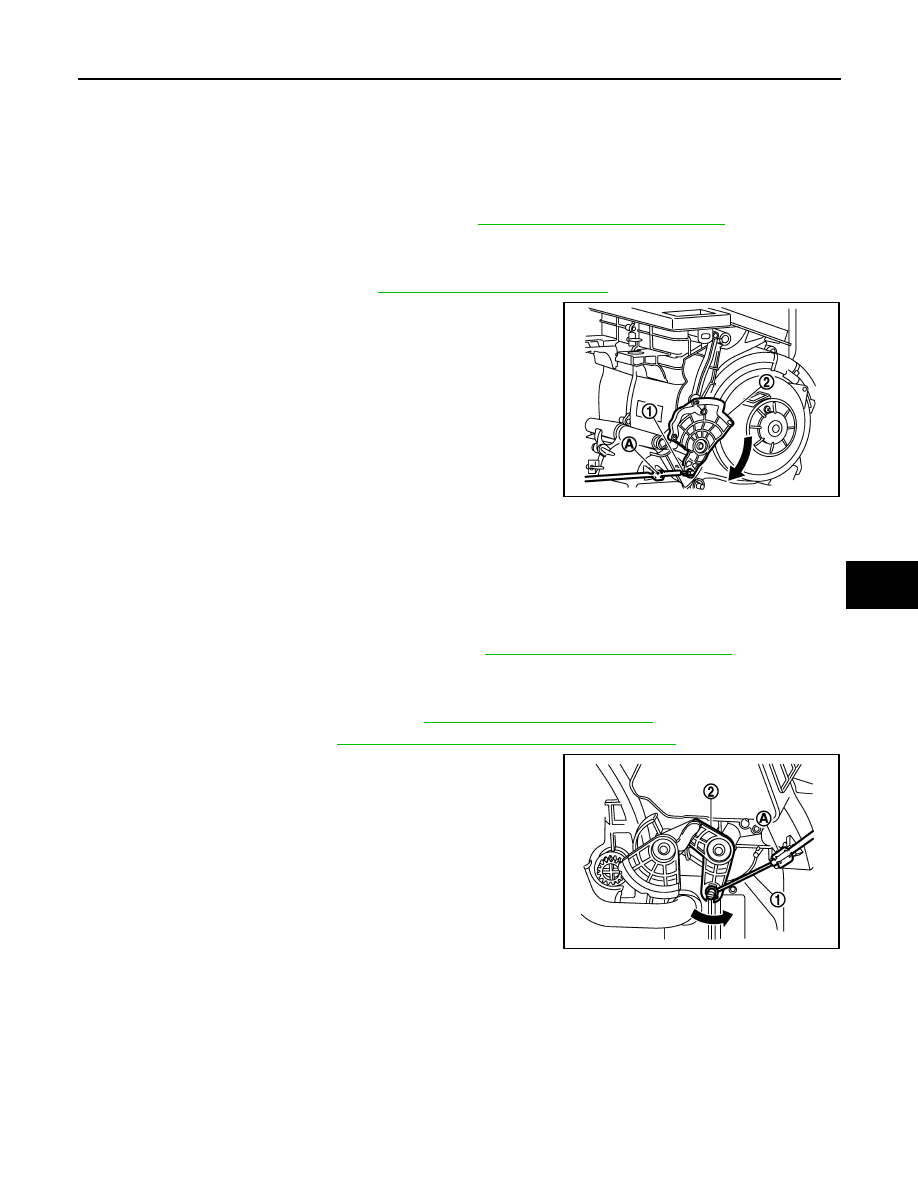

2. Disconnect intake door cable (1) from clip (A).
3. Set intake door lever to REC position.
4. Push intake door link (2) in the direction shown, then carefully

pull outer cable to front air control side and connect clip.

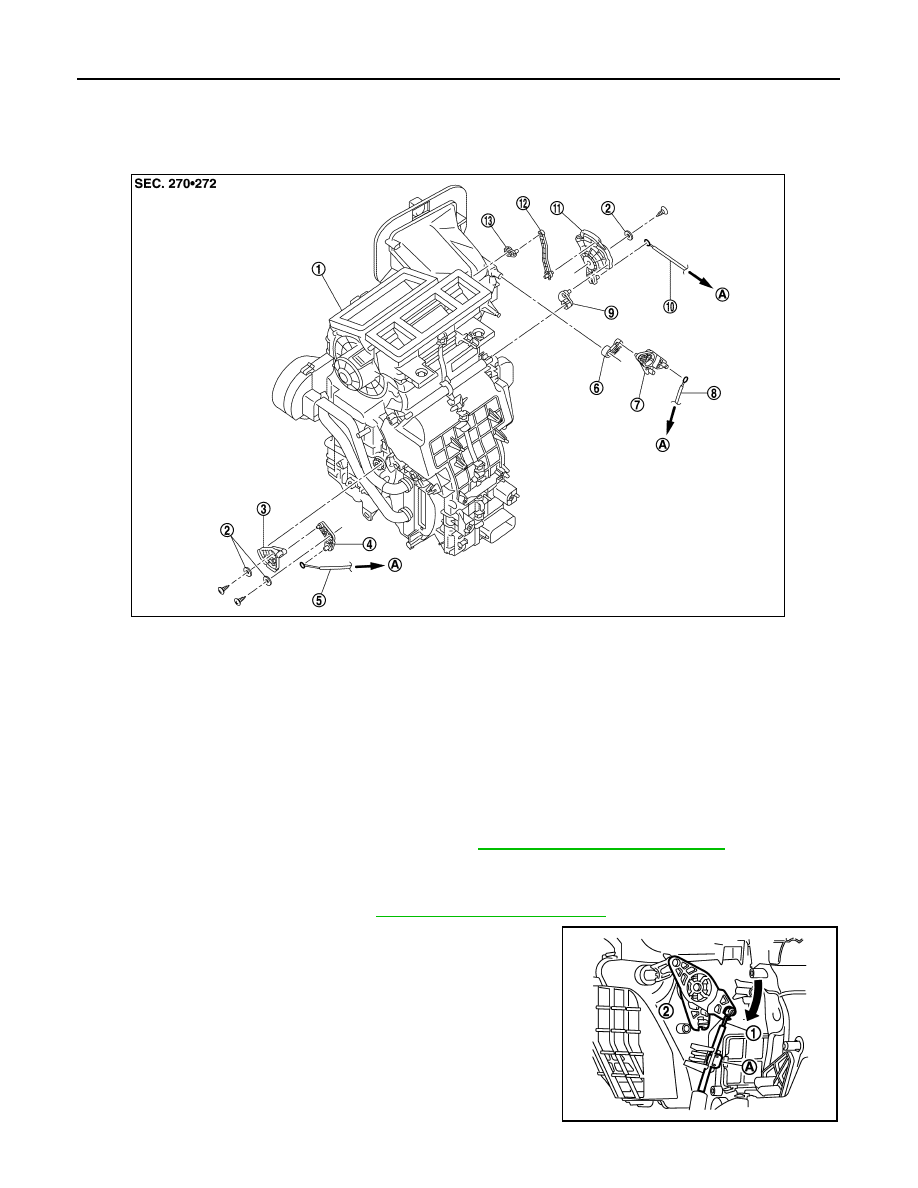

1.

Heating and cooling unit assembly

2.

Plate

3.

Air mix door linkage 2

4.

Air mix door linkage 1

5.

Air mix door cable

6.

Intake door lever

7.

Intake door linkage

8.

Intake door cable

9.

Foot door lever

10. Mode door cable

11. Main linkage

12. Ventilator door rod

13. Ventilator door lever
A.

To front air control

JMIIA1742ZZ

JMIIA0617ZZ

DOOR CABLE

HAC-61

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

5. Operate intake door lever to make sure that inner cable moves smoothly.

CAUTION:

When clipping outer cable, do not move inner cable.

MODE DOOR CABLE
MODE DOOR CABLE : Removal and Installation

INFOID:0000000009395325

The mode door cable is not serviced separately. Refer to

HAC-56, "Removal and Installation"

.

MODE DOOR CABLE : Adjustment

INFOID:0000000009395326

1. Remove glove box assembly. Refer to

IP-25, "Removal and Installation"

.

2. Disconnect mode door cable (1) from clip (A).
3. Set mode dial to VENT position.
4. Push main link (2) in the direction shown, then carefully pull

outer cable to front air control side and connect clip.

5. Operate mode dial to make sure that inner cable moves smoothly.

CAUTION:

When clipping outer cable, do not move inner cable.

AIR MIX DOOR CABLE
AIR MIX DOOR CABLE : Removal and Installation

INFOID:0000000009395327

The air mix door cable is not serviced separately. Refer to

HAC-56, "Removal and Installation"

.

AIR MIX DOOR CABLE : Adjustment

INFOID:0000000009395328

1. Remove instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

2. Remove foot duct (LH). Refer to

VTL-7, "FOOT DUCT : Removal and Installation"

.

3. Disconnect air mix door cable (1) from clip (A).
4. Set temperature dial to full cold position.
5. Push air mix door link (2) in the direction shown, then carefully

pull outer cable to front air control side and connect clip.

6. Operate temperature dial to make sure that inner cable moves smoothly.

CAUTION:

When clipping outer cable, do not move inner cable.

JMIIA0618ZZ

JMIIA0619ZZ
