REFRIGERATION SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

REFRIGERATION SYSTEM SYMPTOMS

Trouble Diagnosis For Unusual Pressure

INFOID:0000000008968519

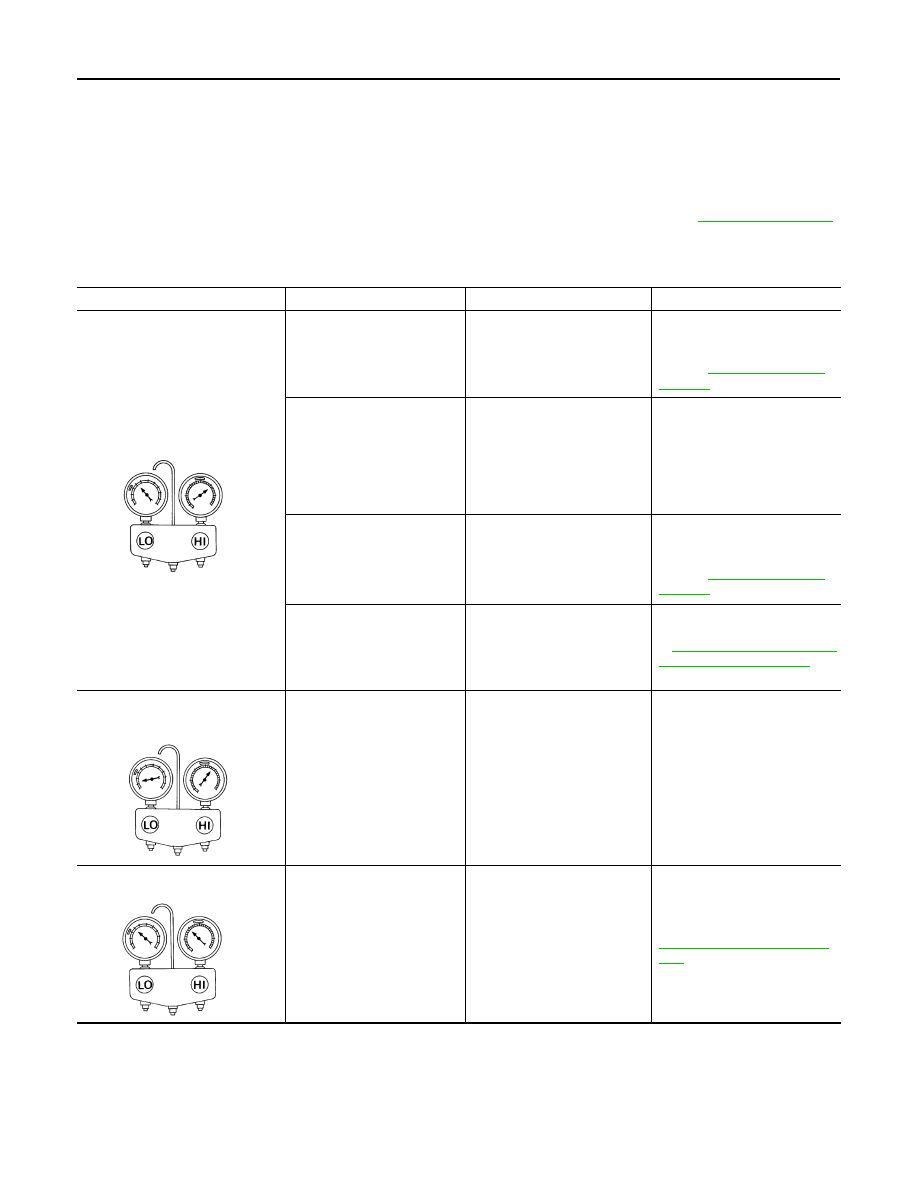

Diagnose using a manifold gauge set whenever refrigerant pressures are unusual. The marker above the

gauge scale in the following table indicates the standard (usual) pressure range. Refer to

HA-23, "Inspection"

.

Symptom Table

INFOID:0000000008968520

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Both high and low-pressure sides
are too high.

The pressure returns to nor-
mal soon after sprinkling wa-
ter on condenser.

Overfilled refrigerant.

Recover refrigerant, evacuate
system, and recharge with the
specified amount of refrigerant.
Refer to

HA-19, "Recycle Re-

frigerant"

.

Air flow to condenser is insuf-
ficient.

Insufficient condenser cooling
performance.
• Poor cooling fan rotation.
• Missing and/or improper in-

stallation of air guides.

• Clogged or dirty condenser

fins.

• Repair or replace malfunc-

tioning parts.

• Clean and/or repair condens-

er fins.

When compressor stops,
high-pressure gauge quickly
drops by approximately 196
kPa (2 kg/cm

2

, 28 psi), then

gradually decreases.

Air mixed with refrigerant.

Recover refrigerant, evacuate
system, and recharge with the
specified amount of refrigerant.
Refer to

HA-19, "Recycle Re-

frigerant"

.

• Low-pressure pipe is cooler

than the outlet of evapora-
tor.

• Low-pressure pipe is frost-

ed.

Expansion valve opened too
much (excessive flow of refrig-
erant).

Replace expansion valve. Refer
to

HA-33, "EXPANSION VALVE

: Removal and Installation"

.

High-pressure side is excessively
high and low-pressure side is too
low.

High-pressure pipe and upper
side of condenser become
hot, however, liquid tank does
not become so hot.

Clogged or crushed high-pres-
sure pipe located between
compressor and condenser.

Repair or replace the malfunc-
tioning parts.

High-pressure side is too low and
low-pressure side is too high.

• The readings of both sides

become equal soon after
compressor stops.

• There is no temperature dif-

ference between high and
low-pressure sides.

Malfunctioning compressor (in-
sufficient compressor pressure
operation).
• Damaged or broken of inter-

nal components.

• Malfunctioning gaskets.

Replace compressor. Refer to

HA-25, "Removal and Installa-
tion"

.

AC359A

AC360A

AC356A

REFRIGERATION SYSTEM SYMPTOMS

HA-15

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

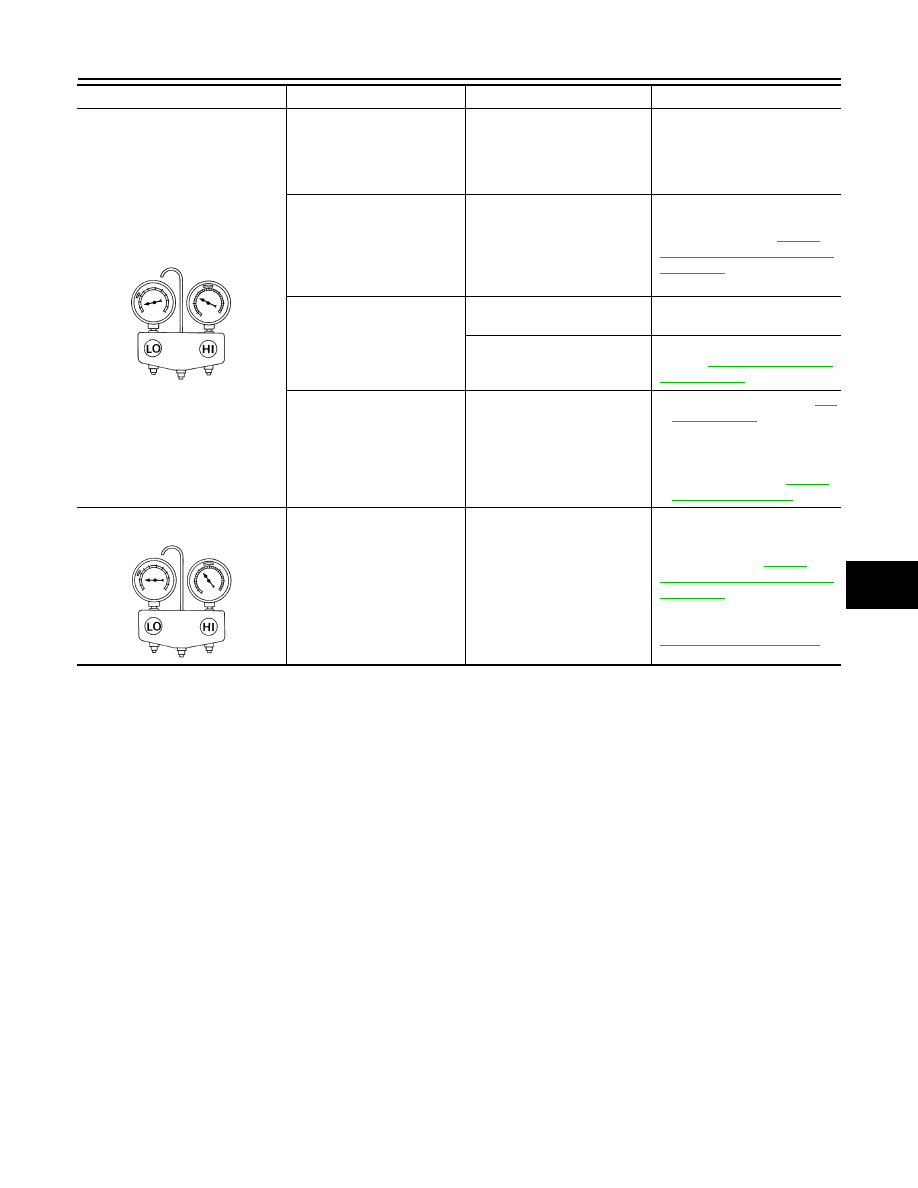

Both high and low-pressure sides
are too low.

• The area around evapora-

tor outlet does not become
cold.

• The area around evapora-

tor inlet becomes frosted.

Clogged expansion valve.
• Breakage of temperature

sensor.

• Clogging by foreign material.

Eliminate foreign material from
expansion valve, or replace it.

• There is a temperature dif-

ference between the areas
around outlet and inlet
pipes of liquid tank.

• Liquid tank becomes frost-

ed.

Malfunction inside liquid tank
(clogged strainer).

Replace condenser (includes
liquid tank). Refer to

HA-29,

"CONDENSER : Removal and
Installation"

.

Evaporator becomes frosted.

Clogged or crushed low-pres-
sure pipe.

Repair or replace malfunction-
ing parts.

Malfunctioning thermo amp.

Check thermo amp. system.
Refer to

HAC-11, "Component

Parts Location"

.

There is a small temperature
difference between the high
and low pressure pipes.

• Low refrigerant charge.
• Leak or leaks in A/C system.

• Check for leaks. Refer to

HA-

17, "Leak Test"

.

• Recover refrigerant, evacu-

ate system, and recharge
with the specified amount of
refrigerant. Refer to

HA-19,

"Recycle Refrigerant"

.

Low-pressure side sometimes be-
comes negative.

• Sometimes the area

around evaporator outlet
does not become cold.

• Sometimes the area

around evaporator inlet is
frosted.

• Icing caused by moisture

mixed with refrigerant.

• Deteriorated dryer material

in liquid tank.

Recover refrigerant then re-
place condenser (includes liq-
uid tank). Refer to

HA-29,

"CONDENSER : Removal and
Installation"

. Evacuate system

and recharge with the specified
amount of refrigerant. Refer to

HA-19, "Charge Refrigerant"

.

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

AC353A

AC354A

HA-16

< SYMPTOM DIAGNOSIS >

NOISE

NOISE

Symptom Table

INFOID:0000000008968521

Symptom

Noise source

Probable cause

Corrective action

Unusual noise from compressor
when A/C is ON.

Inside of compressor

Worn, broken, or clogged internal com-
ponents.

Check compressor oil. Re-
fer to

HA-21, "Inspection"

.

Magnet clutch

Contact of clutch disc with pulley.

Check clearance between
clutch disc and pulley. Refer
to

HA-25, "Inspection"

.

Compressor body

Loose compressor mounting bolts.

Check torque of mounting
bolts. Refer to

HA-25, "Ex-

ploded View"

.

Unusual noise from cooler piping.

Cooler piping (pipe and
flexible hose)

Loose or improper installation of clip
and bracket.

Check installation of cooler
piping. Refer to

HA-27, "Ex-

ploded View"

.

Unusual noise from expansion
valve when A/C is ON.

Expansion valve

Low refrigerant charge.

• Check for leaks. Refer to

HA-17, "Leak Test"

.

• Recover refrigerant,

evacuate system, and re-
charge with the specified
amount of refrigerant.

Worn, broken, or clogged internal com-
ponents.

Eliminate foreign material
from expansion valve, or re-
place it.

Unusual noise from belt.

—

Loose belt

Check belt tension. Refer to

EM-17, "Adjustment"

.

Damaged or broken components in-
side compressor.

Replace compressor. Refer
to

HA-25, "Removal and In-

stallation"

.

REFRIGERANT

HA-17

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

PERIODIC MAINTENANCE

REFRIGERANT

Description

INFOID:0000000009460329

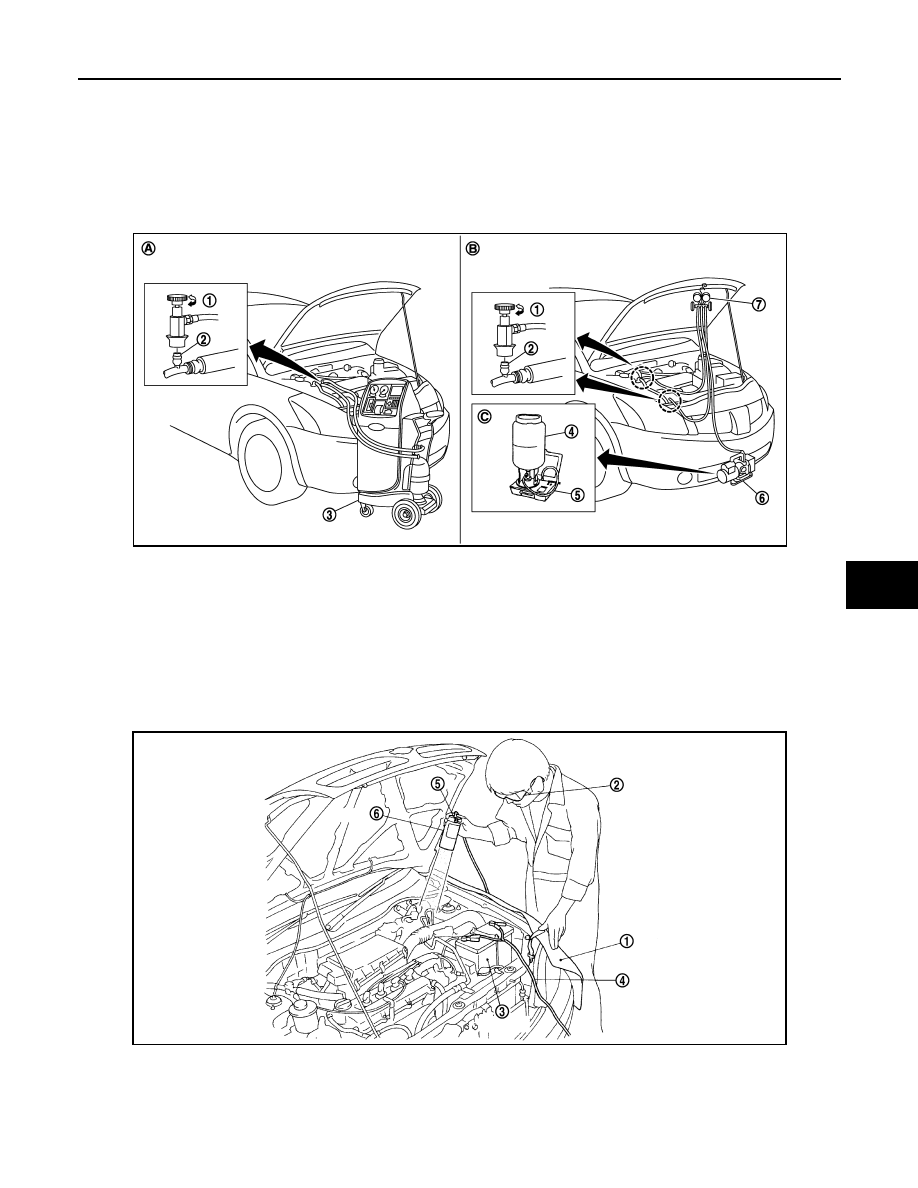

CONNECTION OF SERVICE TOOLS AND EQUIPMENT

Leak Test

INFOID:0000000009460330

CHECK REFRIGERANT LEAKS USING FLUORESCENT LEAK DETECTION DYE

1. Install a fender cover (1).
2. Wear UV safety goggles (2) provided with refrigerant dye leak detection kit.
3. Connect power cable (4) of UV lamp (6) to positive and negative terminals of the battery (3).

1.

Shut-off valve

2.

A/C service valve

3.

Recovery/recycling/recharging
equipment

4.

Refrigerant container (HFC-134a)

5.

Weight scale

6.

Vacuum pump

7.

Manifold gauge set

A.

Preferred (best) method

B.

Alternative method

C.

For charging

JSIIA0239ZZ

RJIA3815J
