3. Open fuel filler lid.
4. Open fuel filler cap and release the pressure inside fuel tank.
5. Remove the rear seat cushion. Refer to

SE-30, "SEAT CUSHION : Removal and Installation"

.

6. Remove the inspection hole cover.

NOTE:

Inspection hole cover is held by an adhesive.

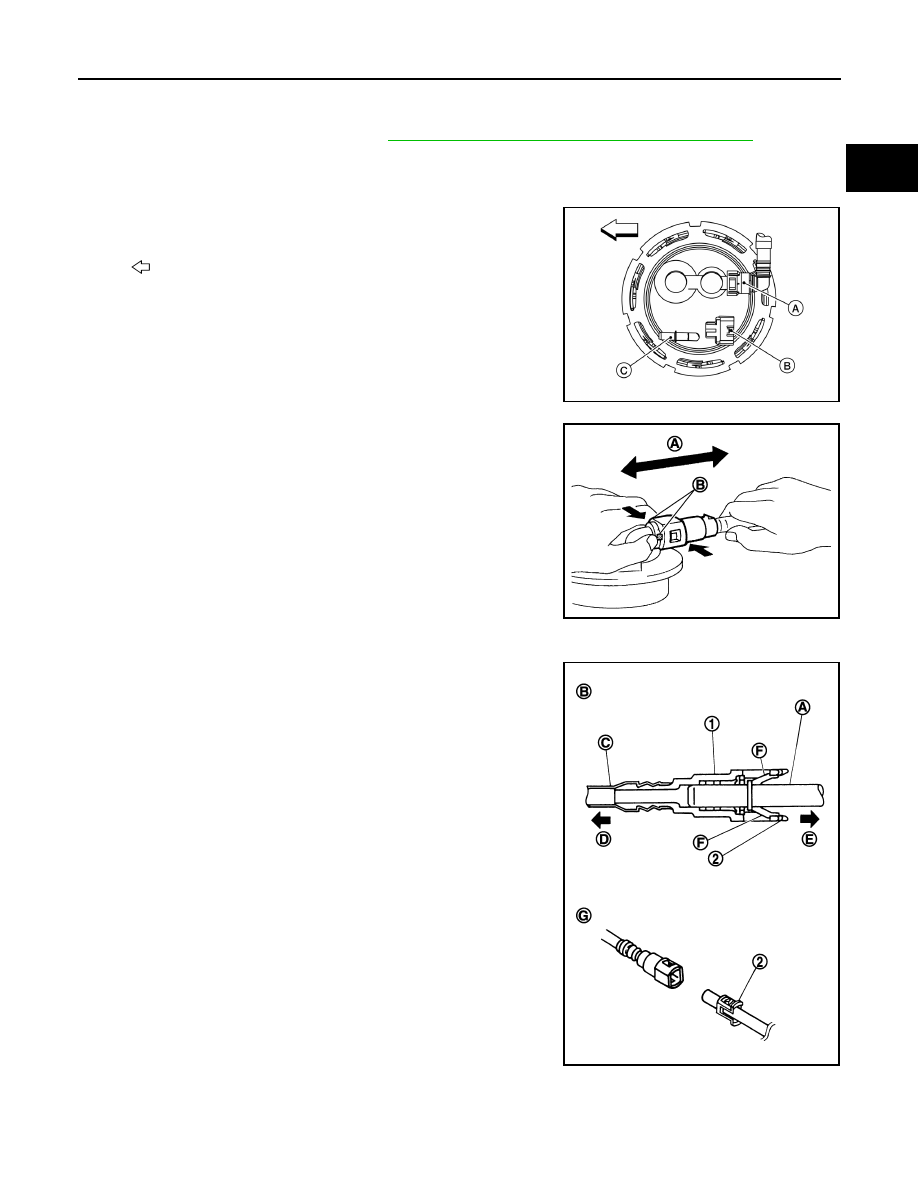

7. Disconnect the harness connector (B), fuel feed tube (C) and

EVAP tube (A).

Remove the quick connector as follows:

• Hold the sides of the connector, push in tabs (B) and pull (A)

out the tube.

• If the connector and the tube are stuck together, push and pull

several times until they start to move. Then disconnect them

by pulling.

CAUTION:

• Quick connector (1) can be disconnected when the tabs

(F) are depressed completely. Do not twist it more than

necessary.

• Do not use any tools to disconnected quick connector.

• Keep resin tube (C) away from heat. Be especially careful

when welding near the resin tube.

• Prevent acid liquid such as battery electrolyte, etc. from

getting on resin tube.

• Do not bend or twist resin tube during installation and dis-

connection.

• Do not remove the remaining retainer (2) on hard tube (or

the equivalent) (A) except when resin tube or retainer is

replaced.

• When resin tube or hard tube (or the equivalent) is

replaced, also replace retainer with new one.

: Front

ALBIA0747ZZ

JPBIA0134ZZ

(B)

: Connection (cross-section)

(D)

: To under floor fuel line

(E)

: To fuel tank

(G)

: Disconnection

JPBIA0130ZZ

FL-12

< REMOVAL AND INSTALLATION >

FUEL TANK

• To keep the connecting portion clean and to avoid dam-

age and foreign materials, cover them completely with

plastic bags (A) or something similar.

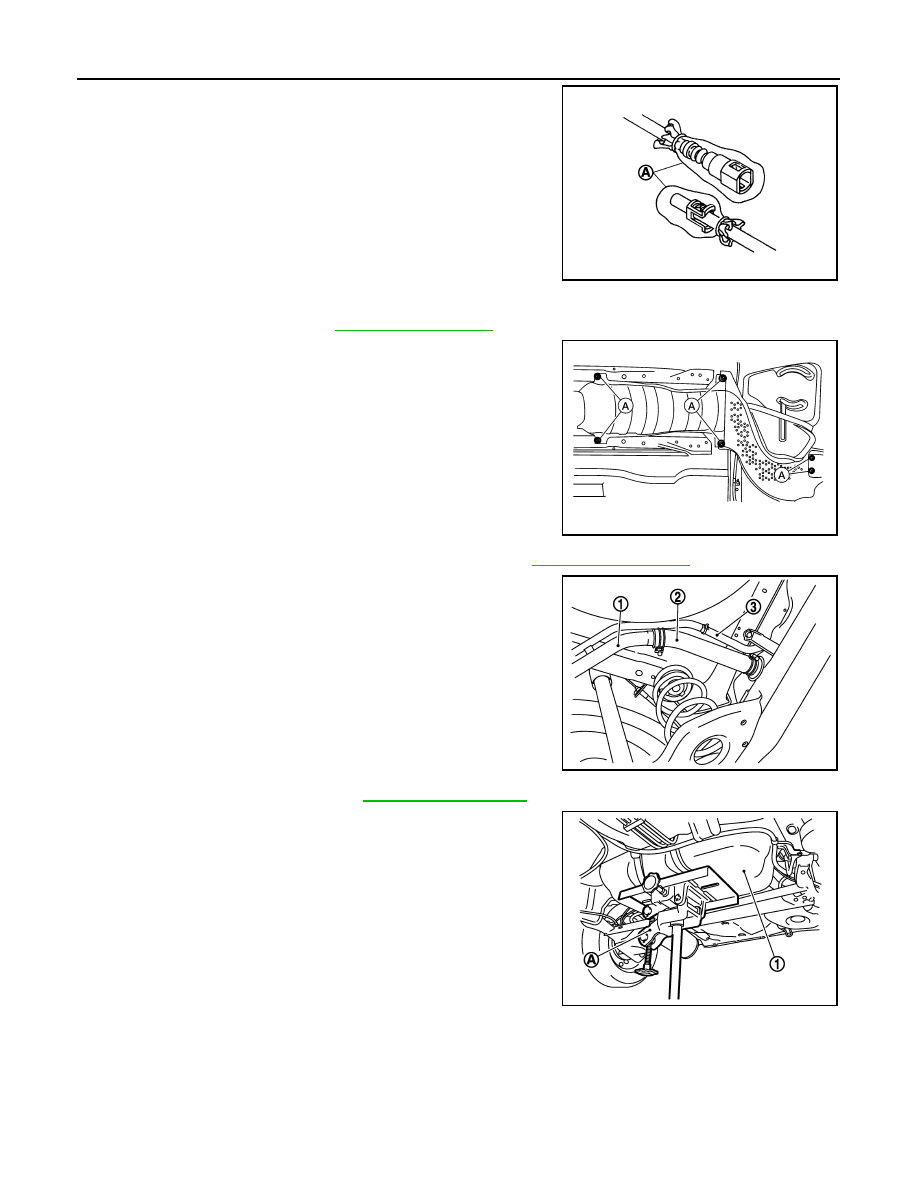

8. Remove center muffler. Refer to

EX-5, "Exploded View"

.

9. Remove nut (A) and remove center floor insulators.

10. Disconnect the rear park brake cable brackets (LH). Refer to

PB-6, "Exploded View"

.

11. Disconnect fuel filler hose (2) at fuel filler tube (1) side.
12. Disconnect vent hose (3) from fuel tank side.

13. Disconnect EVAP vent line. Refer to

FL-14, "Exploded View"

.

14. Support the center part of fuel tank (1) using a suitable jack (A).

15. Remove fuel tank mounting bands (LH/RH).
16. Lower suitable jack carefully to remove fuel tank while holding it by hand.

CAUTION:

Fuel tank may be in an unstable condition because of the shape of fuel tank bottom. Be sure to

hold tank securely.

JPBIA0135ZZ

ALBIA1147ZZ

JPBIA3423ZZ

JPBIA3424ZZ

FUEL TANK

FL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

17. If replacing the fuel tank, remove the fuel level sensor unit, fuel filter and fuel pump assembly to transfer to

the new fuel tank.

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

Fuel Filler Hose

• Insert fuel filler hose to the length below.

• Be sure hose clamp is not placed on swelled area of fuel filler tube.

• Install fuel filler hose to fuel tank, paying attention to install mark.

EVAP Hose

1. Check connections for damage or foreign material.
2. Align the matching side connection part with the center of shaft, and insert connector straight until a "click"

sound is heard.

Inspection

INFOID:0000000009445765

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leaks.
1. Turn ignition switch “ON” (with engine stopped), then check fuel system connections for leaks by applying

fuel pressure to fuel piping.

2. Start engine and let it idle and check there are no fuel leaks at the fuel system connections.

Fuel filler hose

: 35 mm (1.38 in)

The other hose

: 25 mm (0.98 in)

FL-14

< REMOVAL AND INSTALLATION >

EVAP CANISTER

EVAP CANISTER

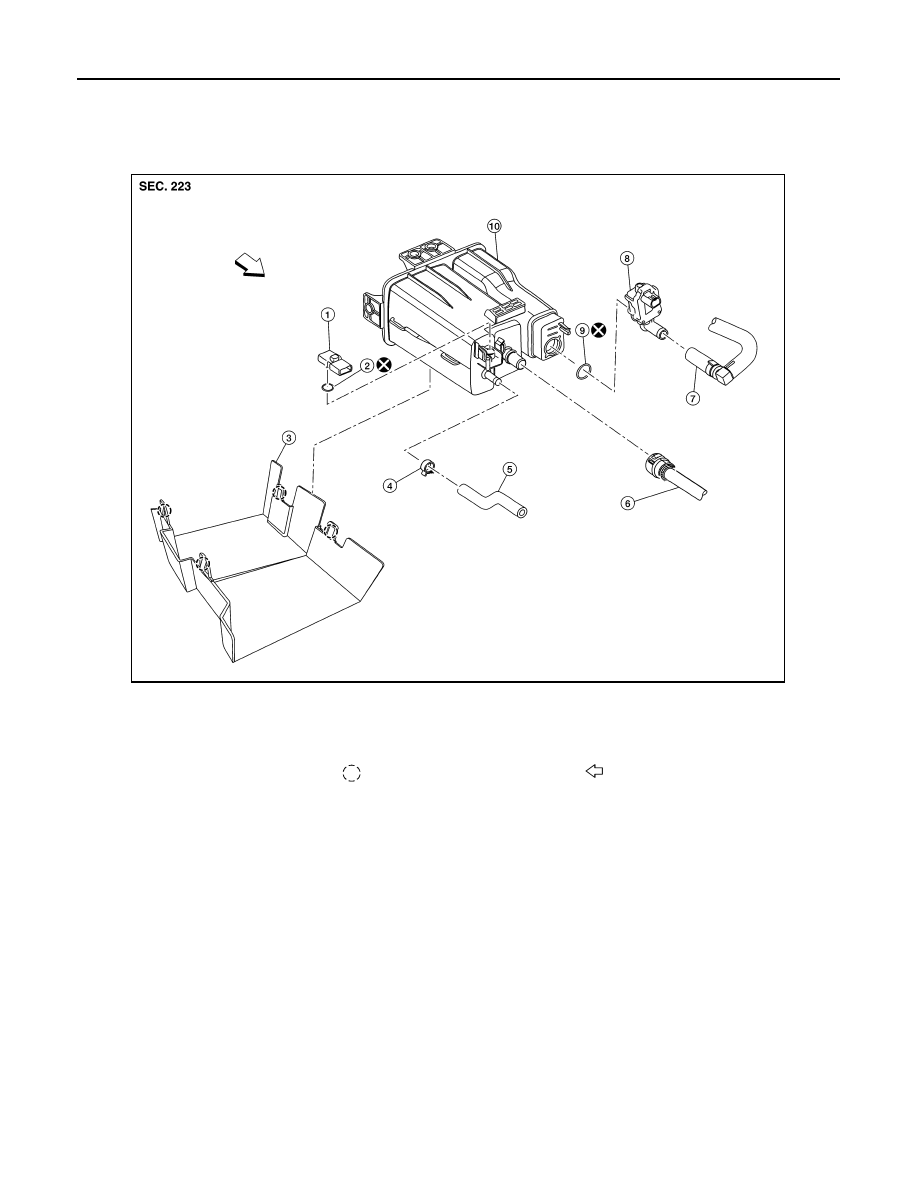

Exploded View

INFOID:0000000009445766

Removal and Installation

INFOID:0000000009445767

NOTE:

The EVAP canister vent control valve and EVAP canister system pressure sensor can be removed without

removing the EVAP canister.

REMOVAL

1. Release pawls and remove EVAP canister protector cover.
2. Disconnect the harness connectors from the EVAP control system pressure sensor and the EVAP canis-

ter vent control valve.

3. Disconnect the EVAP canister purge hose, the EVAP vent line, and the EVAP canister vent control valve

hose.

4. Remove the EVAP canister bolt.
5. Remove the EVAP canister from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-rings.

1.

EVAP control system pressure sensor 2.

O-ring

3.

EVAP canister protector

4.

Hose clamp

5.

EVAP canister purge hose

6.

EVAP vent line

7.

EVAP canister vent control valve hose 8.

EVAP canister vent control valve

9.

O-ring

10. EVAP canister

Pawl

Front

AWBIA1593ZZ
