UNDER COVER

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

UNDER COVER

FRONT UNDER COVER

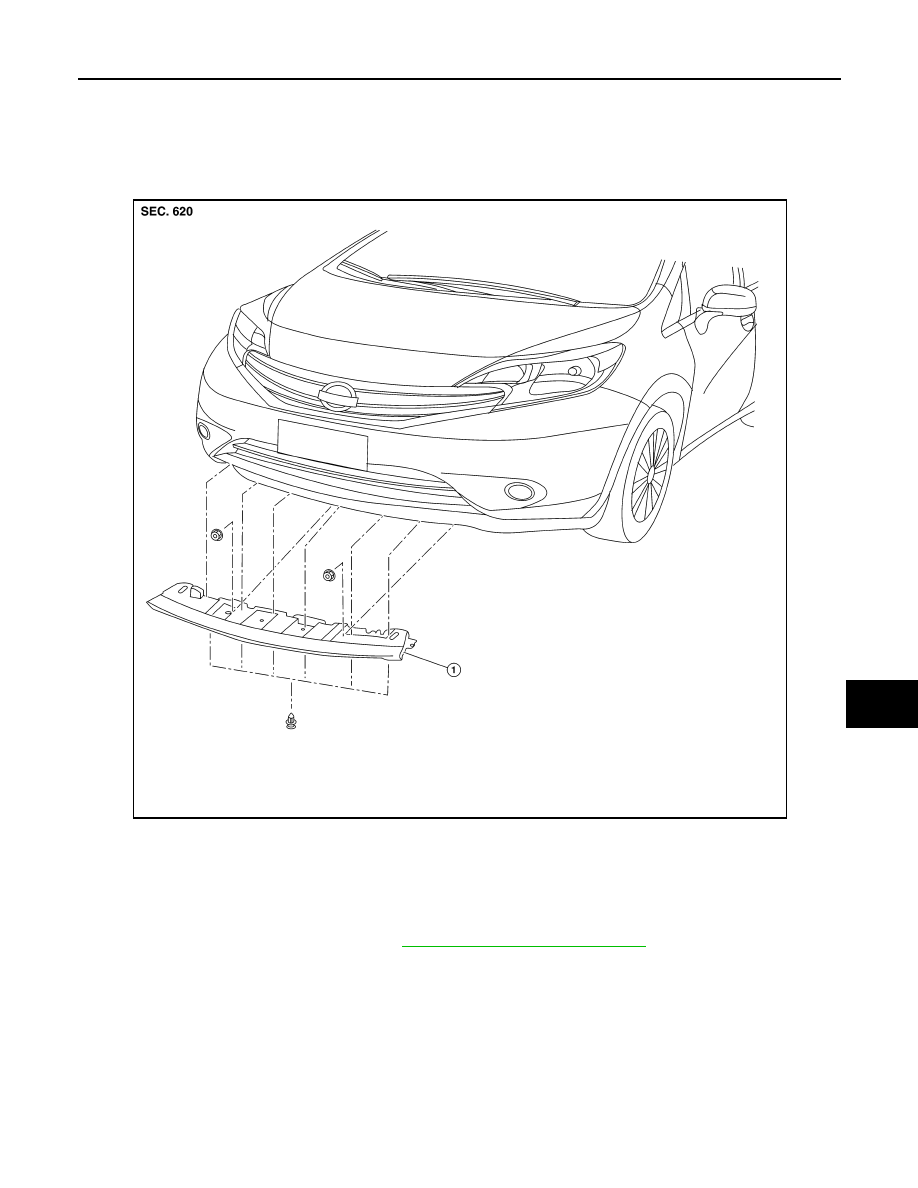

FRONT UNDER COVER : Exploded View

INFOID:0000000009444558

FRONT UNDER COVER : Removal and Installation

INFOID:0000000009444559

REMOVAL

1. Remove the front bumper fascia. Refer to

EXT-24, "Removal and Installation"

.

2. Remove the front under cover clips and nuts.
3. Slide the front under cover forward slightly to release pawls and to allow clearance of studs, then remove

the front under cover.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front under cover

AWKIA2555ZZ

EXT-38

< REMOVAL AND INSTALLATION >

UNDER COVER

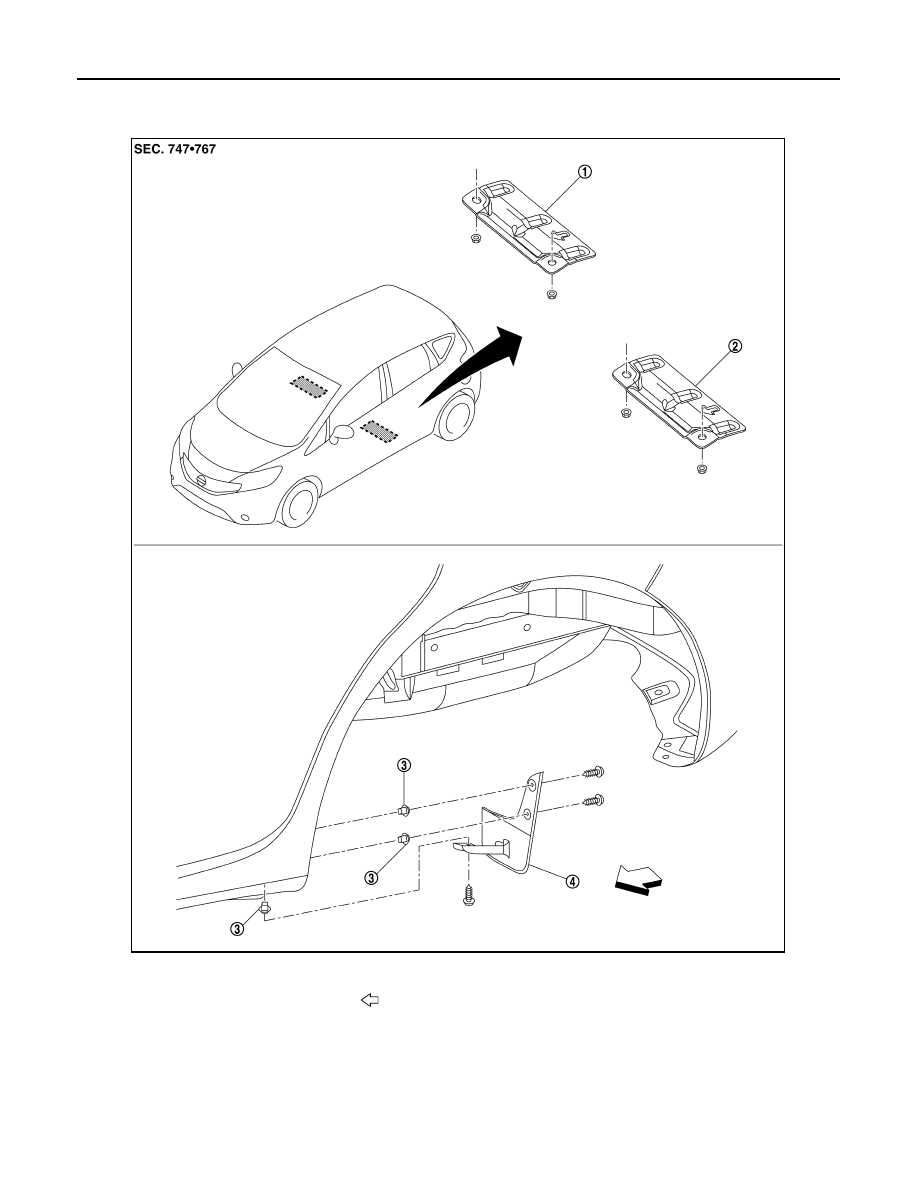

Exploded View

INFOID:0000000008969524

FLOOR UNDER COVER
FLOOR UNDER COVER : Removal and Installation

INFOID:0000000009444568

REMOVAL

Remove the rear floor under cover nuts and the rear floor under cover.

1.

Rear floor under cover (RH)

2.

Rear floor under cover (LH)

3.

Grommet

4.

Rear wind deflector

Front

JMKIB0581ZZ

UNDER COVER

EXT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

REAR WIND DEFLECTOR
REAR WIND DEFLECTOR : Removal and Installation

INFOID:0000000009606345

REMOVAL

Remove the rear wind deflector screws and the rear wind deflector.

INSTALLATION

Installation is in the reverse order of removal.

EXT-40

< REMOVAL AND INSTALLATION >

ROOF SIDE MOLDING

ROOF SIDE MOLDING

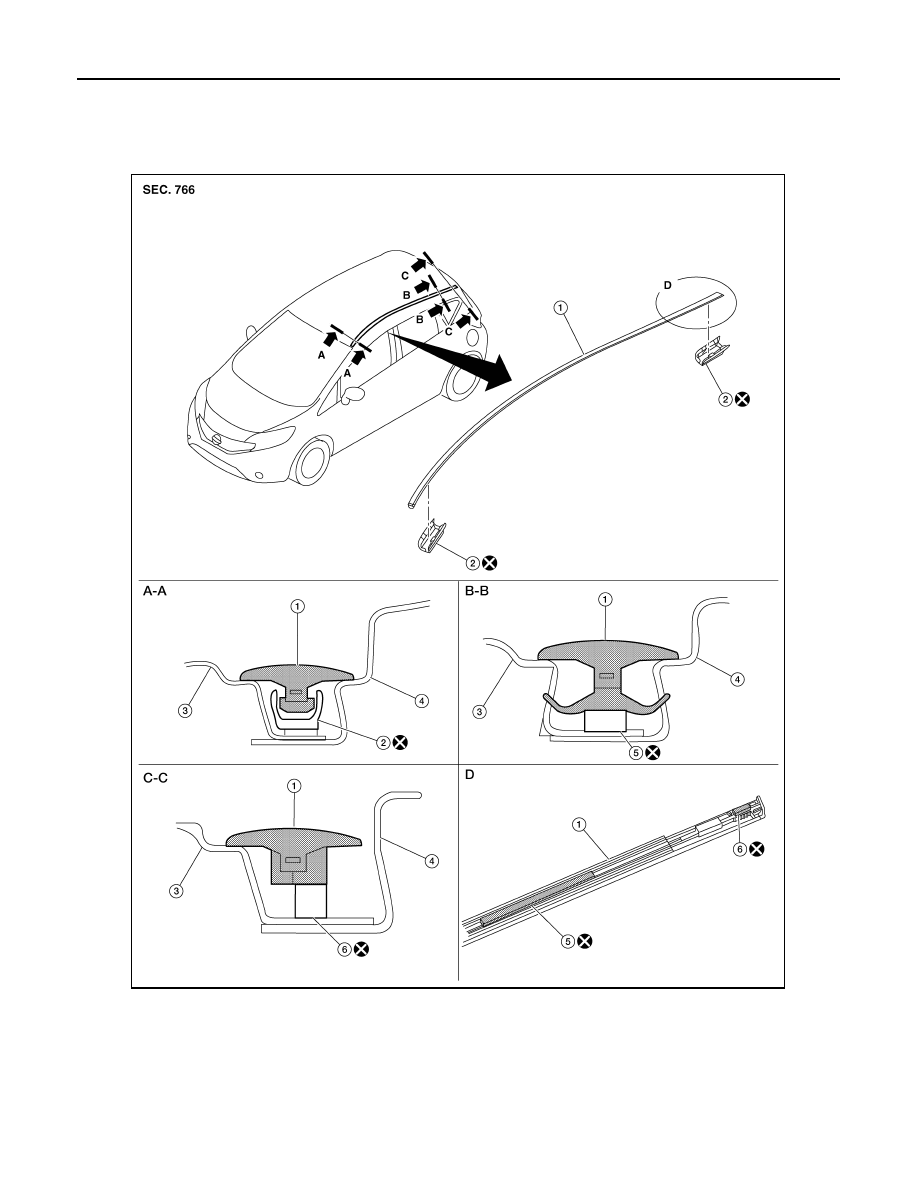

Exploded View

INFOID:0000000008969525

Removal and Installation

INFOID:0000000008969526

ROOF SIDE MOLDING

1.

Roof side molding

2. Roof side molding clip

3.

Roof panel

4.

Body side outer panel

5. Double-sided tape

[t: 2.5 mm (0.098 in)]

6.

Double-sided tape
[t: 4.0 mm (0.157 in)]

AWKIA2556ZZ
