SQUEAK AND RATTLE TROUBLE DIAGNOSES

EXT-21

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

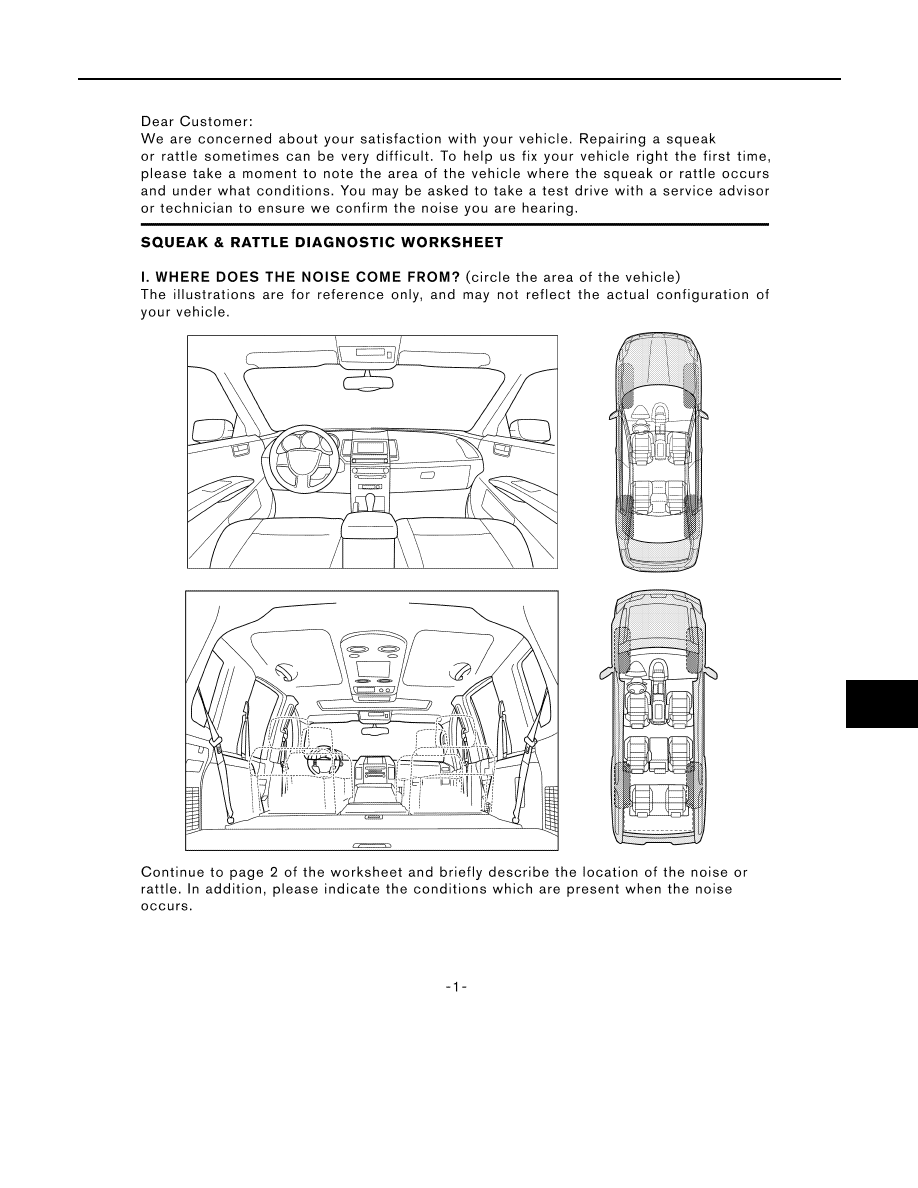

Diagnostic Worksheet

INFOID:0000000009671258

LAIA0072E

EXT-22

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

LAIA0071E

FRONT BUMPER

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REMOVAL AND INSTALLATION

FRONT BUMPER

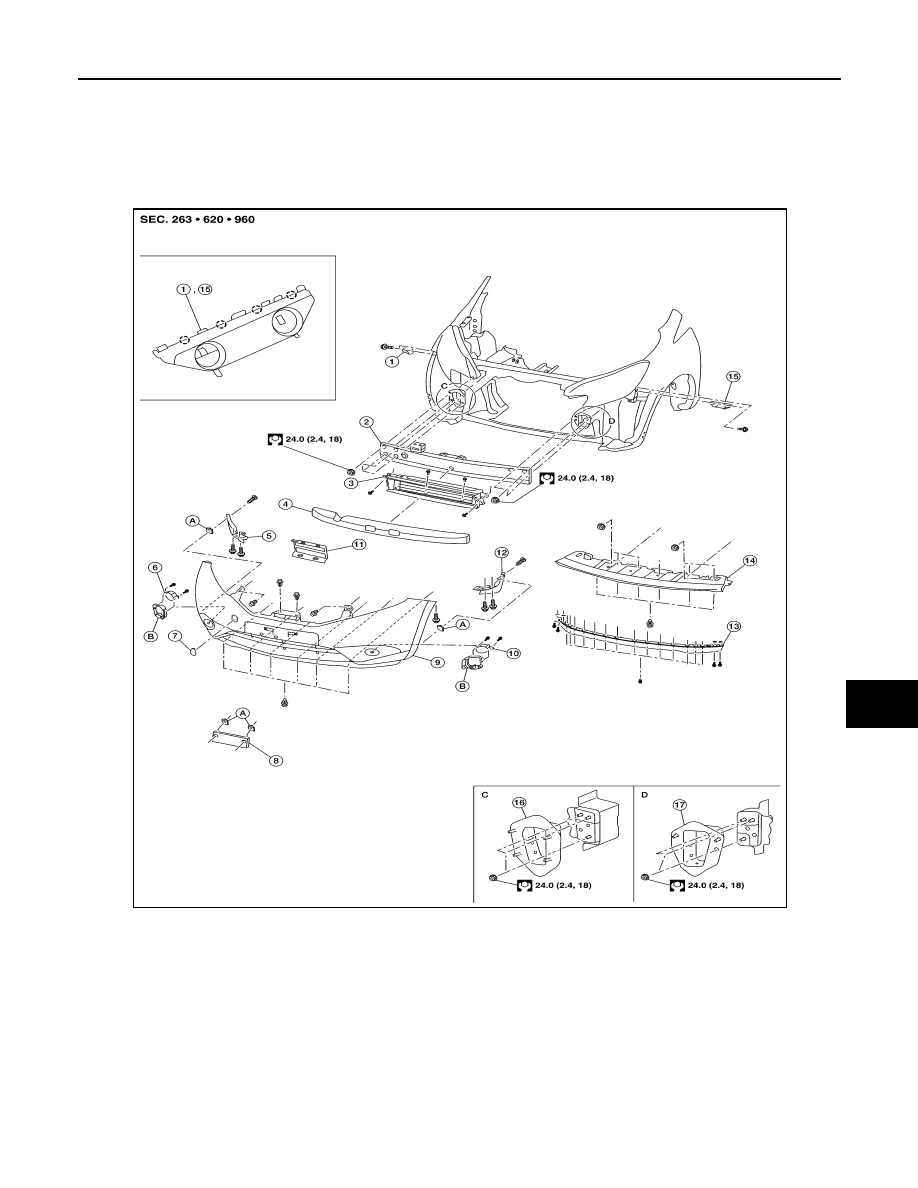

Exploded View

INFOID:0000000008969513

1.

Front bumper fascia side bracket
(RH)

2.

Front bumper reinforcement

3.

Active grille shutter (if equipped)

4.

Front energy absorber

5.

Front fascia side deflector
(RH)

6.

Front fog lamp (RH) (if equipped)

7.

Tow cover

8.

Front license plate bracket

9.

Front bumper fascia

10. Front fog lamp (LH) (if equipped) 11. Front bumper finisher

(if equipped)

12. Front fascia side deflector (LH)

13. Front air spoiler

14. Front under cover

15. Front bumper fascia side bracket

(LH)

AWKIA2516ZZ

EXT-24

< REMOVAL AND INSTALLATION >

FRONT BUMPER

Removal and Installation

INFOID:0000000008969514

CAUTION:

Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily

substances.

REMOVAL

1. Remove the front grille. Refer to

EXT-29, "Removal and Installation"

.

2. Remove the four front bumper fascia upper clips.
3. Remove the front under cover. Refer to

EXT-37, "FRONT UNDER COVER : Removal and Installation"

.

4. Partially remove front fender protectors (LH/RH) at the front edge to access front bumper fascia bolts.

Refer to

EXT-36, "Exploded View"

.

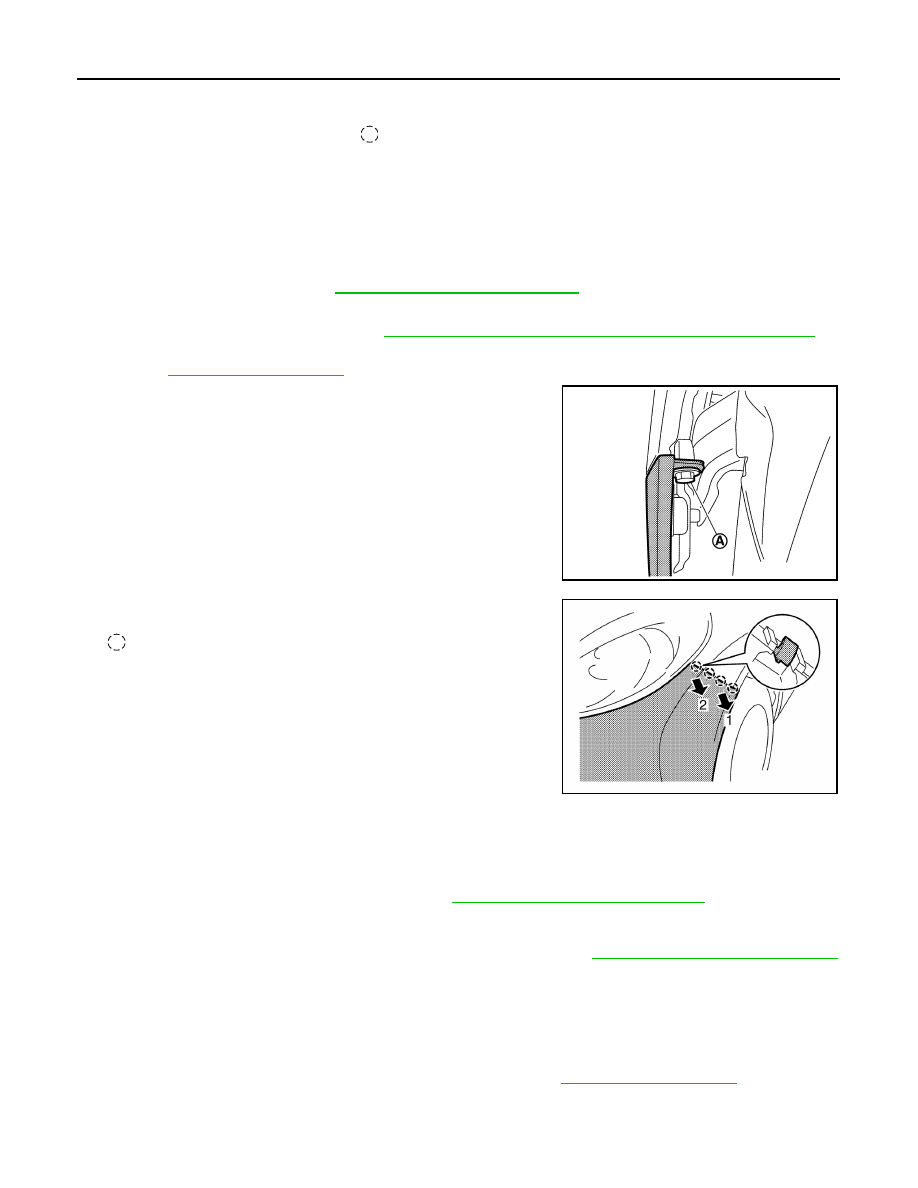

5. Remove front bumper fascia bolts (A) (LH/RH).

6. Remove the front bumper fascia from the front bumper fascia

side brackets (LH/RH) by releasing the pawls as shown.

: Pawl

CAUTION:

When removing front bumper fascia, two people are

required to avoid damaging.

7. Disconnect the harness connectors from the front fog lamps (LH/RH) (if equipped).
8. Remove front bumper fascia.
9. Remove the following parts after removing front bumper fascia (if necessary).

• Tow cover

• Front fog lamps (LH/RH) (if equipped). Refer to

EXL-101, "Removal and Installation"

.

• Front license plate bracket

• Front bumper finisher (if equipped)

10. Remove the active grille shutter (if equipped) (if necessary). Refer to

EXT-31, "Removal and Installation"

(ACTIVE GRILLE SHUTTER).

11. Remove the front energy absorber (if necessary).
12. Remove nuts and front bumper reinforcement (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

Tighten the front bumper reinforcement nuts to specification. Refer to

EXT-23, "Exploded View"

.

NOTE:

• The following table shows the specified values for checking normal installation specifications.

• Fitting adjustment cannot be performed.

16. Front bumper reinforcement

bracket (RH)

17. Front bumper reinforcement

bracket (LH)

A.

J nut

B.

Front fog lamp bracket

Pawl

JMKIA8017ZZ

AWKIA1890ZZ
