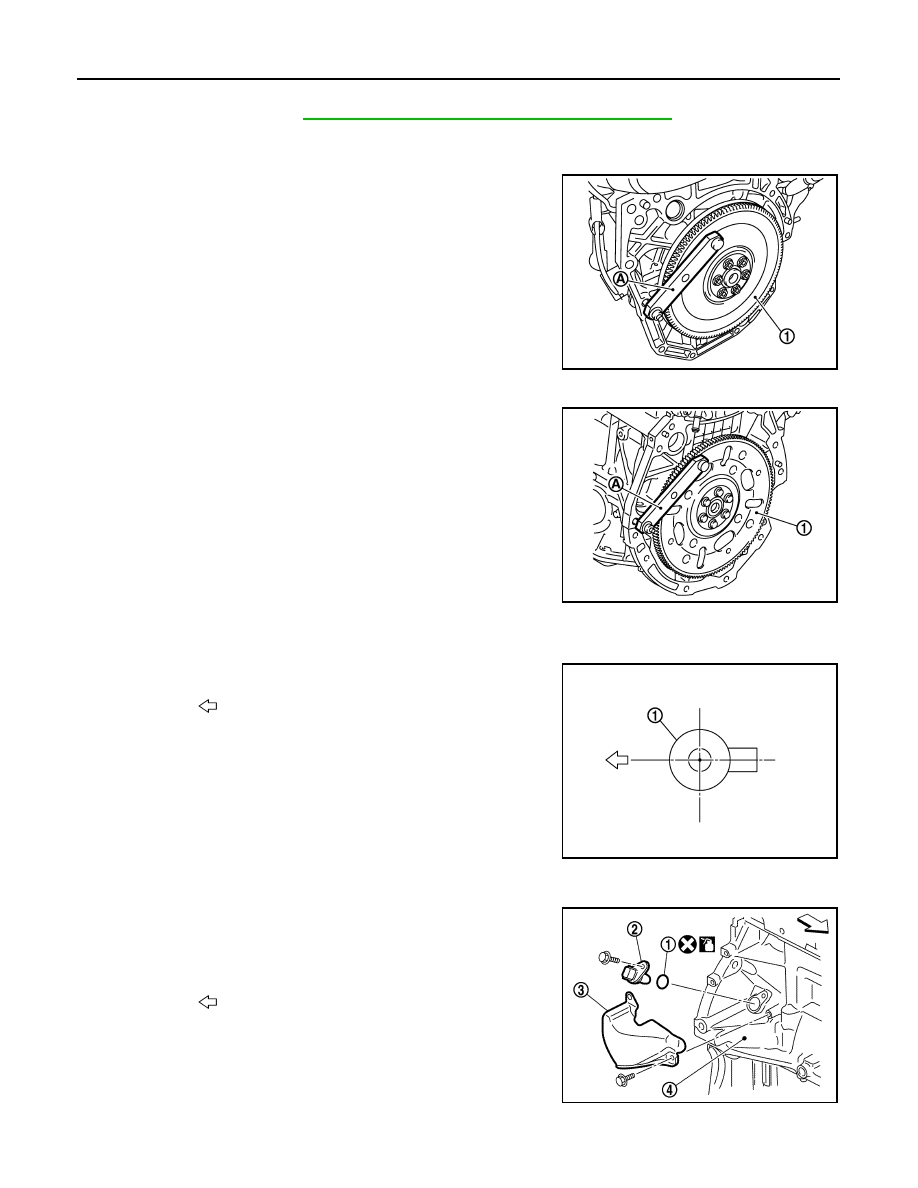

EM-100 < UNIT DISASSEMBLY AND ASSEMBLY > [HR16DE] CYLINDER BLOCK Install the rear oil seal after installing the oil pan (upper). 17. Install rear oil seal. Refer to EM-74, "REAR OIL SEAL : Removal and Installation" 18. Install flywheel (M/T models) or drive plate (CVT models). M/T models • Secure crankshaft with a stopper plate (A) and tighten bolts crosswise over several times. CVT models • Secure crankshaft with a stopper plate (A) and tighten bolts crosswise over several times. CAUTION: Do not damage or scratch and contact surface for clutch disc of flywheel. 19. Install knock sensor (1). • Install connectors so that they are positioned toward the rear of the engine. CAUTION: • Do not tighten bolt while holding the connector. • If any impact by dropping is applied to knock sensor, replace it with a new one. NOTE: • Check that there is no foreign material on the cylinder block mating surface and the back surface of knock sensor. • Check that knock sensor does not interfere with other parts. 20. Install crankshaft position sensor (POS) (2) and O-ring (1) and then install the crankshaft position sensor cover (3) on the cylin- der block (4). • Tighten bolts with sensor inserted completely. CAUTION: • Avoid impacts such as a dropping. • Do not disassemble. • Keep sensor away from metal particles. • Do not place the sensor in a location where it is exposed to magnetism. • Do not reuse O-ring. (1) :Flywheel Tool number : KV11105210 (J-44716) MBIB1382E (1) :Drive plate Tool number : KV11105210 (J-44716) PBIC3226J : Engine front : Engine front PBIC3754E JPBIA4202ZZ |
