EC-378

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

P1554 BATTERY CURRENT SENSOR

P1554 BATTERY CURRENT SENSOR

DTC Logic

INFOID:0000000009429309

DTC DETECTION LOGIC

NOTE:

If DTC P1554 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to

EC-378, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM COMPONENT FUNCTION CHECK

Perform component function check. Refer to

EC-378, "Component Function Check"

.

NOTE:

Use component function check to check the overall function of the battery current sensor circuit. During this

check, a 1st trip DTC might not be confirmed.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-379, "Diagnosis Procedure"

.

Component Function Check

INFOID:0000000009429310

1.

PRECONDITIONING

TESTING CONDITION:

• Before performing the following procedure, confirm that battery voltage is more than 12.8V at idle.

• Before performing the following procedure, confirm that all load switches and A/C switch are turned

OFF.

>> GO TO 2.

2.

PERFORM COMPONENT FUNCTION CHECK

With CONSULT

1. Start engine and let it idle.

2. Select “BAT CUR SEN” in “DATA MONITOR” mode with CONSULT.

3. Check “BAT CUR SEN” indication for 10 seconds.

“BAT CUR SEN” should be above 2,300mV at least once.

Without CONSULT

1. Start engine and let it idle.

2. Check the voltage between ECM harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-379, "Diagnosis Procedure"

.

DTC No.

Trouble diagnosis content

DTC detecting condition

Possible cause

P1554

Battery current sensor perfor-
mance

The output voltage of the battery current
sensor is lower than the specified value
while the battery voltage is high enough.

• Harness or connectors

(The sensor circuit is open or shorted.)

• Battery current sensor

ECM

Ground

Voltage

Connector

Terminal

F11

58

(Battery current sensor signal)

Ground Above 2.3V at least once

P1554 BATTERY CURRENT SENSOR

EC-379

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Diagnosis Procedure

INFOID:0000000009429311

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E15. Refer to Ground Inspection in

GI-44, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT

1. Disconnect battery current sensor harness connector.

2. Turn ignition switch ON.

3. Check the voltage between battery current sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit or sort to ground or short to power in harness or connectors.

3.

CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between battery current sensor harness connector and ECM harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or sort to ground or short to power in harness or connectors.

4.

CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Check the continuity between battery current sensor harness connector and ECM harness connector.

2. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or sort to ground or short to power in harness or connectors.

5.

CHECK BATTERY CURRENT SENSOR

Refer to

EC-380, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace battery negative cable assembly.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

Battery current sensor

Ground

Voltage

Connector

Terminal

F9

1

Ground Approx. 5V

Battery current sensor

ECM

Continuity

Connector

Terminal

Connector Terminal

F9

3

F11

68

Existed

Battery current sensor

ECM

Continuity

Connector

Terminal

Connector Terminal

F9

4

F11

58

Existed

EC-380

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

P1554 BATTERY CURRENT SENSOR

>> INSPECTION END

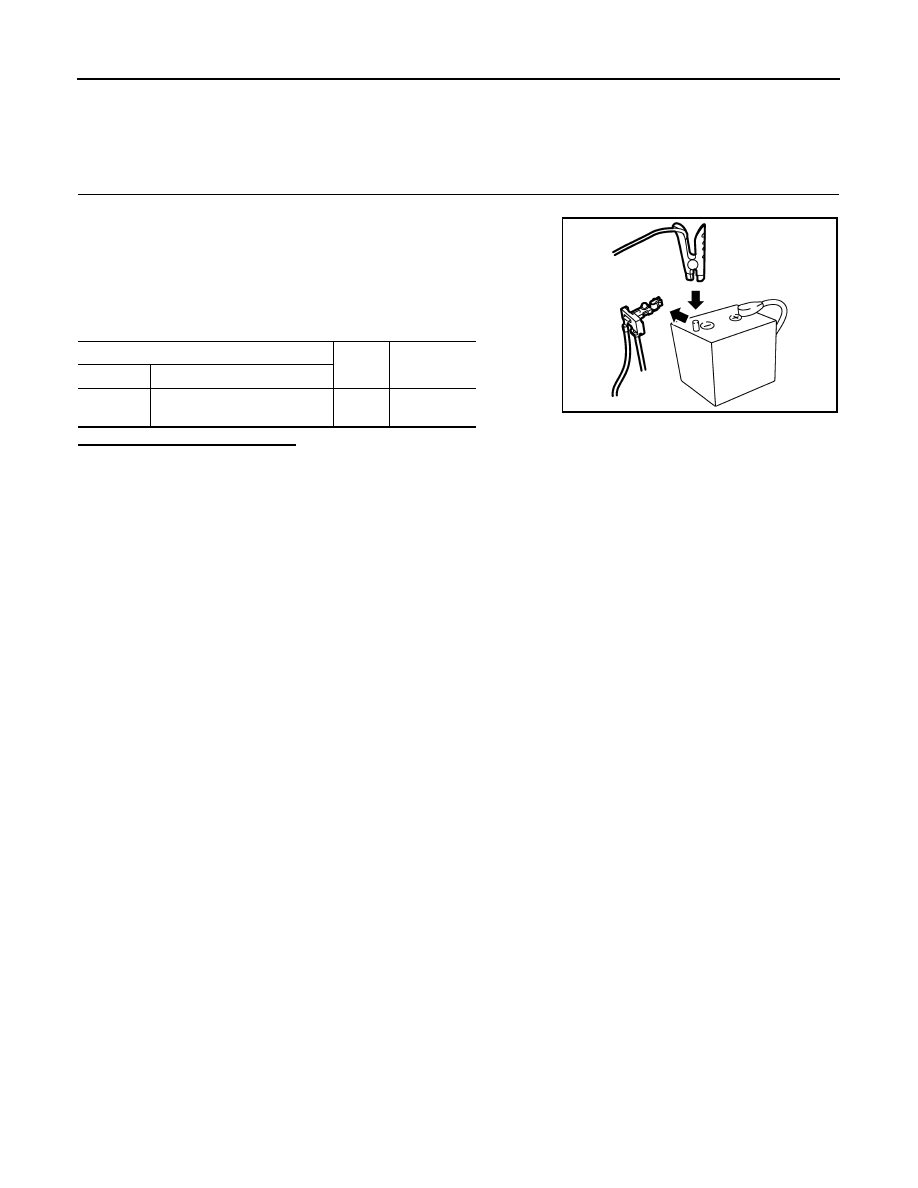

Component Inspection

INFOID:0000000009429312

1.

CHECK BATTERY CURRENT SENSOR

1. Reconnect harness connectors disconnected.

2. Disconnect battery negative cable.

3. Install jumper cable between battery negative terminal and body

ground.

4. Turn ignition switch ON.

5. Check the voltage between ECM harness connector and

ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace battery negative cable assembly.

ECM

Ground

Voltage

Connector

Terminal

F11

58

(Battery current sensor signal)

Ground Approx. 2.5V

JPBIA3287ZZ

P1564 ASCD STEERING SWITCH

EC-381

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1564 ASCD STEERING SWITCH

DTC Logic

INFOID:0000000009020873

DTC DETECTION LOGIC

NOTE:

If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to

EC-349, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Wait at least 10 seconds.

3. Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.

4. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.

5. Press ACCEL/RES switch for at least 10 seconds, then release it and wait at least 10 seconds.

6. Press COAST/SET switch for at least 10 seconds, then release it and wait at least 10 seconds.

7. Check DTC.
Is DTC detected?

YES

>> Proceed to

EC-381, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009020874

1.

CHECK ASCD STEERING SWITCH CIRCUIT

 With CONSULT

1. Turn ignition switch ON.

2. Select “MAIN SW”, “CANCEL SW”, “RESUME/ACC SW” and “SET SW” in “DATA MONITOR” mode of

“ENGINE” using CONSULT.

3. Check each item indication as per the following conditions.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P1564

ASCD SW
(ASCD steering switch)

• An excessively high voltage signal from the ASCD

steering switch is sent to ECM.

• ECM detects that input signal from the ASCD steering

switch is out of the specified range.

• ECM detects that the ASCD steering switch is stuck ON.

• Harness or connectors

(ASCD steering switch circuit
is open or shorted.)

• ASCD steering switch
• ECM

Monitor item

Condition

Indication

MAIN SW

MAIN switch

Pressed

ON

Released

OFF

CANCEL SW

CANCEL switch

Pressed

ON

Released

OFF

RESUME/ACC SW

ACCEL/RES switch

Pressed

ON

Released

OFF
