P1212 TCS COMMUNICATION LINE

P1212 TCS COMMUNICATION LINE

Description

INFOID:0000000009020863

This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse

signals are exchanged between ECM and “ABS actuator and electric unit (control unit)”.

Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit

(control unit)” but also for ECM after TCS related repair.

DTC Logic

INFOID:0000000009020864

DTC DETECTION LOGIC

NOTE:

• If DTC P1212 is displayed with DTC U1001, first perform the trouble diagnosis for DTC U1001. Refer

to

EC-162, "DTC Logic"

.

• If DTC P1212 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-351, "DTC Logic"

.

Freeze frame data is not stored in the ECM for this self-diagnosis.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and let it idle for at least 10 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-366, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009020865

Perform the trouble diagnosis for TCS. Refer to

BRC-50, "Work Flow"

.

NOTE:

If DTC P1212 is displayed with DTC UXXXX and/or P0607, perform the following trouble diagnosis.

• Trouble diagnosis for DTC UXXXX Refer to

EC-86, "DTC Index"

.

• Trouble diagnosis for DTC P0607 Refer to

EC-351, "DTC Logic"

.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P1212

TCS/CIRC
(TCS communication line)

ECM can not receive the information from
“ABS actuator and electric unit (control
unit)” continuously.

• Harness or connectors

(CAN communication line is open or shorted.)

• ABS actuator and electric unit (control unit)
• Dead (Weak) battery

P1217 ENGINE OVER TEMPERATURE

EC-367

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1217 ENGINE OVER TEMPERATURE

DTC Logic

INFOID:0000000009020866

DTC DETECTION LOGIC

NOTE:

• If DTC P1217 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.

• If DTC P1217 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-351, "DTC Logic"

.

If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will

rise.

When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is

indicated.

CAUTION:

When a malfunction is indicated, be sure to replace the coolant. Refer to

CO-9, "Refilling"

. Also,

replace the engine oil. Refer to

LU-8, "Refilling"

.

1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to

use coolant with the proper mixture ratio. Refer to

MA-12, "Anti-Freeze Coolant Mixture Ratio"

.

2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.

DTC CONFIRMATION PROCEDURE

1.

PERFORM COMPONENT FUNCTION CHECK

Perform component function check. Refer to

EC-367, "Component Function Check"

.

NOTE:

Use component function check to check the overall function of the cooling fan. During this check, a DTC might

not be confirmed.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-368, "Diagnosis Procedure"

.

Component Function Check

INFOID:0000000009020867

1.

PERFORM COMPONENT FUNCTION CHECK-I

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-

sure fluid escaping from the radiator.

Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up

pressure to escape. Then turn the cap all the way off.

DTC No.

Trouble diagnosis content

DTC detecting condition

Possible cause

P1217

Engine over temperature
(Overheat)

• Cooling fan does not operate properly

(Overheat).

• Cooling fan system does not operate

properly (Overheat).

• Engine coolant was not added to the

system using the proper filling method.

• Engine coolant is not within the specified

range.

• Harness or connectors

(The cooling fan circuit is open or shorted.)

• IPDM E/R (Cooling fan low relay, high relay)
• Cooling fan relay
• Cooling fan motor
• Radiator hose
• Radiator
• Radiator  cap
• Reservoir tank
• Water pump
• Thermostat

EC-368

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

P1217 ENGINE OVER TEMPERATURE

Check the coolant level in the reservoir tank and radiator.

Allow engine to cool before checking coolant level.
Is the coolant level in the reservoir tank and/or radiator below the

proper range?

YES

>> Go to

EC-368, "Diagnosis Procedure"

.

NO

>> GO TO 2

2.

PERFORM COMPONENT FUNCTION CHECK-II

Confirm whether customer filled the coolant or not.
Did customer fill the coolant?

YES

>> Go to

EC-368, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM COMPONENT FUNCTION CHECK-III

With CONSULT

1. Turn ignition switch ON.

2. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT and touch “LOW” on the CONSULT

screen.

3. Make sure that cooling fan operates at low speed.

Without CONSULT

1. Start engine and let it idle.

2. Turn air conditioner switch and blower fan switch ON.

3. Make sure that cooling fan operates at low speed.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Go to

EC-368, "Diagnosis Procedure"

.

4.

PERFORM COMPONENT FUNCTION CHECK-IV

With CONSULT

1. Touch “HI” on the CONSULT screen.

2. Make sure that cooling fan operates at higher speed than low speed.

Without CONSULT

1. Turn ignition switch OFF.

2. Turn air conditioner switch and blower fan switch OFF.

3. Disconnect engine coolant temperature sensor harness connector.

4. Connect 150

Ω resistor to engine coolant temperature sensor harness connector.

5. Restart engine and make sure that cooling fan operates at higher speed than low speed.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-368, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009020868

1.

CHECK COOLING FAN OPERATION

With CONSULT

1. Turn ignition switch ON.

2. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT.

3. Make sure that cooling fan motor operate at each speed (LOW/HI).

Without CONSULT

1. Perform IPDM E/R auto active test and check cooling fan motor operation. Refer to

PCS-10, "Diagnosis

Description"

 (with I-Key),

PCS-39, "Diagnosis Description"

 (without I-Key).

2. Make sure that cooling fan motor operate at each speed (Low/High).

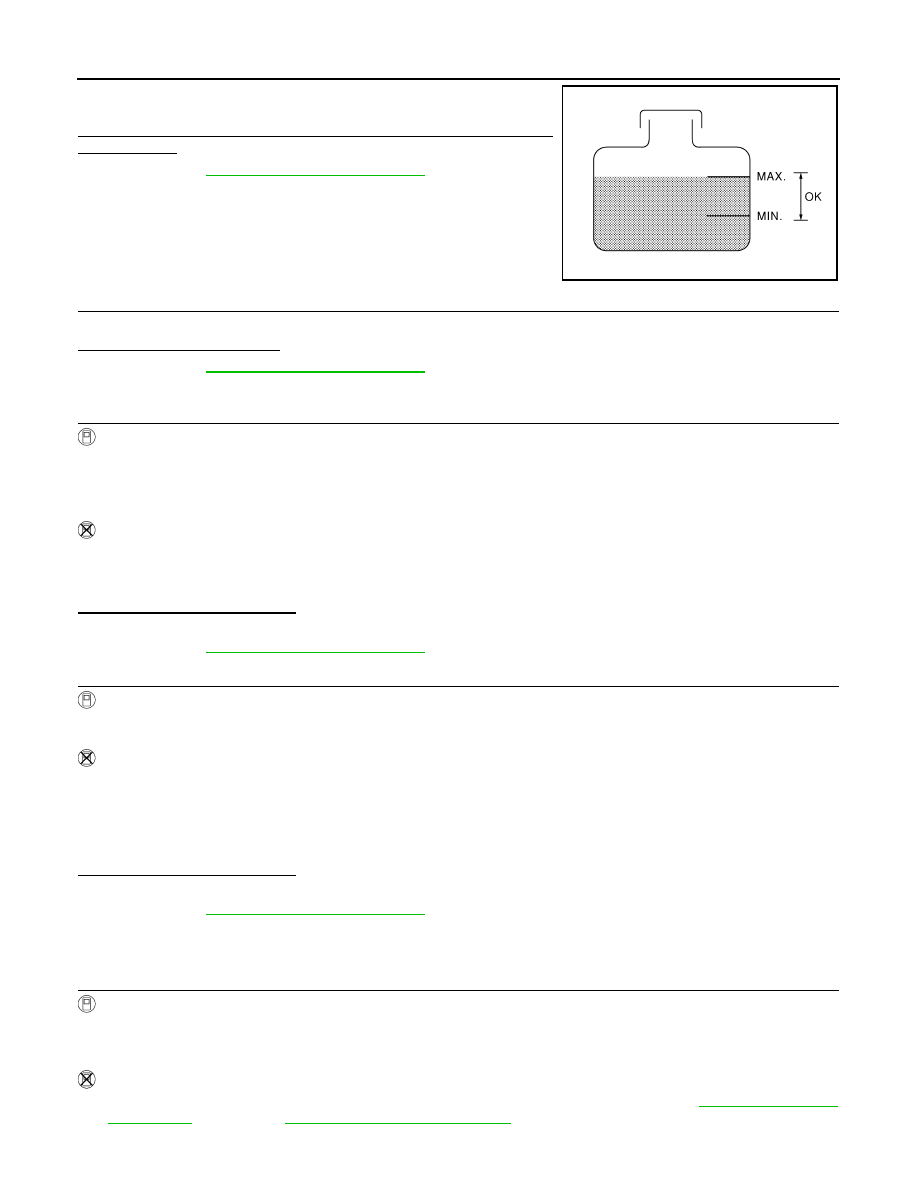

SEF621W

P1217 ENGINE OVER TEMPERATURE

EC-369

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Go to

EC-429, "Diagnosis Procedure"

.

2.

CHECK COOLING SYSTEM FOR LEAK-I

Check cooling system for leak. Refer to

CO-8, "Inspection"

.

Is leakage detected?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK COOLING SYSTEM FOR LEAK-II

Check the following for leak.

• Hose (Refer to

CO-8, "Inspection"

.)

• Radiator (Refer to

CO-12, "RADIATOR : Inspection"

.)

• Water pump (Refer to

CO-19, "Removal and Installation"

.)

>> Repair or replace malfunctioning part.

4.

CHECK RADIATOR CAP

Check radiator cap. Refer to

CO-12, "RADIATOR CAP : Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace radiator cap. Refer to

CO-14, "Exploded View"

.

5.

CHECK THERMOSTAT

Check thermostat. Refer to

CO-21, "Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace thermostat. Refer to

CO-21, "Removal and Installation"

.

6.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Refer to

EC-199, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace engine coolant temperature sensor. Refer to

CO-24, "Exploded View"

.

7.

OVERHEATING CAUSE ANALYSIS

If the cause cannot be isolated, check

CO-6, "Troubleshooting Chart"

.

>> INSPECTION END
