P0524 ENGINE OIL PRESSURE

P0524 ENGINE OIL PRESSURE

DTC Logic

INFOID:0000000009020842

DTC DETECTION LOGIC

NOTE:

If DTC P0524 is displayed with DTC P0520 or P0075, perform trouble diagnosis for DTC P0520 or P0075

first. Refer to

EC-336, "DTC Logic"

 or

EC-177, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

CAUTION:

If “Diagnosis Procedure” is unfinished, be sure to perform Step 3 and 4.

1.

PRECONDITIONING-I

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.

>> GO TO 2.

2.

PRECONDITIONING-II

Is “Diagnosis Procedure” of DTC P0524 finished?

YES

>> GO TO 5.

NO

>> GO TO 3.

3.

CHECK ENGINE OIL LEVEL

Check engine oil level. Refer to

LU-7, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Proceed to

EC-339, "Diagnosis Procedure"

4.

CHECK ENGINE OIL PRESSURE

 WITH CONSULT

1. Turn ignition switch ON.

2. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

3. Start the engine and check that “EOP SENSOR” changes, according to engine speeds.

Without CONSULT

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

Detecting condition

Possible cause

P0524

ENGINE OIL PRESSURE
(Engine oil pressure too low)

An engine oil pressure sensor signal
voltage applied to ECM remains lower
than the specified value continuously for
10 seconds or more when the engine
speed is 1,000 rpm or more.

• Decrease in engine oil pressure
• Decrease in engine oil level
• Engine oil condition
• Engine oil pressure sensor
• Engine body

Monitor item

Condition

Value

(Approx.)

EOP SENSOR

• Engine oil temperature: 80

°C (176°F)

• Selector lever: P or N position (CVT),

Neutral position (M/T)

• Air conditioner switch: OFF
• No  load

Engine speed:
600 rpm

1,053 mV or more

Engine speed:
2,000 rpm

1,802 mV or more

P0524 ENGINE OIL PRESSURE

EC-339

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Check engine oil level. Refer to

LU-7, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Proceed to

EC-339, "Diagnosis Procedure"

5.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and warm it up to normal operating temperature.

2. Maintain the following conditions for about 10 consecutive seconds.

NOTE:

With engine speed set around 4,000 rpm, the phenomenon can be reproduced more easily.

3. Check DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-339, "Diagnosis Procedure"

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009020843

1.

CHECK ENGINE OIL LEVEL

1. Turn ignition switch OFF.

2. Check engine oil level. Refer to

LU-7, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK ENGINE OIL PRESSURE

 WITH CONSULT

1. Turn ignition switch ON.

2. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

3. Start the engine and check that “EOP SENSOR” changes, according to engine speeds.

Without CONSULT

Check engine oil level. Refer to

LU-7, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check oil pressure. Refer to

LU-7, "Inspection"

.

3.

CHECK ENGINE OIL PRESSURE SENSOR

Check engine oil pressure sensor. Refer to

EC-337, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> Replace engine oil pressure sensor. Refer to

EM-92, "Exploded View"

.

4.

CHECK ENGINE OIL LEAKAGE

Check engine oil leakage. Refer to

LU-7, "Inspection"

.

Selector lever

P or N position (CVT)
Neutral position (M/T)

Engine coolant temperature

70

°C (158°F) or more

Engine speed

1,000 rpm or more

Monitor item

Condition

Value

(Approx.)

EOP SENSOR

• Engine oil temperature: 80

°C (176°F)

• Selector lever: P or N position (CVT),

Neutral position (M/T)

• Air conditioner switch: OFF
• No load

Engine speed:
600 rpm

1,053 mV or more

Engine speed:
2,000 rpm

1,802 mV or more

EC-340

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

P0524 ENGINE OIL PRESSURE

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK CAUSE OF ENGINE OIL CONSUMPTION

Check the following item.

>> Repair or replace error-detected parts.

Component Inspection

INFOID:0000000009020844

1.

CHECK ENGINE OIL PRESSURE SENSOR

1. Turn ignition switch OFF.

2. Disconnect engine oil pressure sensor harness connector.

3. Check the resistance between engine oil pressure sensor connector terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine oil pressure sensor. Refer to

EM-92, "Exploded View"

.

Step

Inspection item

Equipment

Standard

Reference

1

PCV  valve

EC-464, "Inspection"

2

Exhaust front tube

Visual

• No blocking
• No abnormal sounds

—

3

Oil pump

Visual

• No blocking
• No damage

—

4

• Piston
• Piston  pin
• Piston ring

• Piston to piston pin oil clearance

EM-101, "Inspection"

• Piston ring side clearance

EM-101, "Inspection"

• Piston ring end gap

EM-101, "Inspection"

5

Cylinder block

• Cylinder block top surface distortion

EM-101, "Inspection"

• Piston to cylinder bore clearance

EM-101, "Inspection"

Engine oil pressure sensor

Resistance (k

Ω)

+

−

Terminal

1

2

4  –  10

3

2  –  8

2

1

4  –  10

3

1  –  3

3

1

2  –  8

2

1  –  3

P059F ACTIVE GRILLE SHUTTER

EC-341

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P059F ACTIVE GRILLE SHUTTER

DTC Logic

INFOID:0000000009509489

DTC DETECTION LOGIC

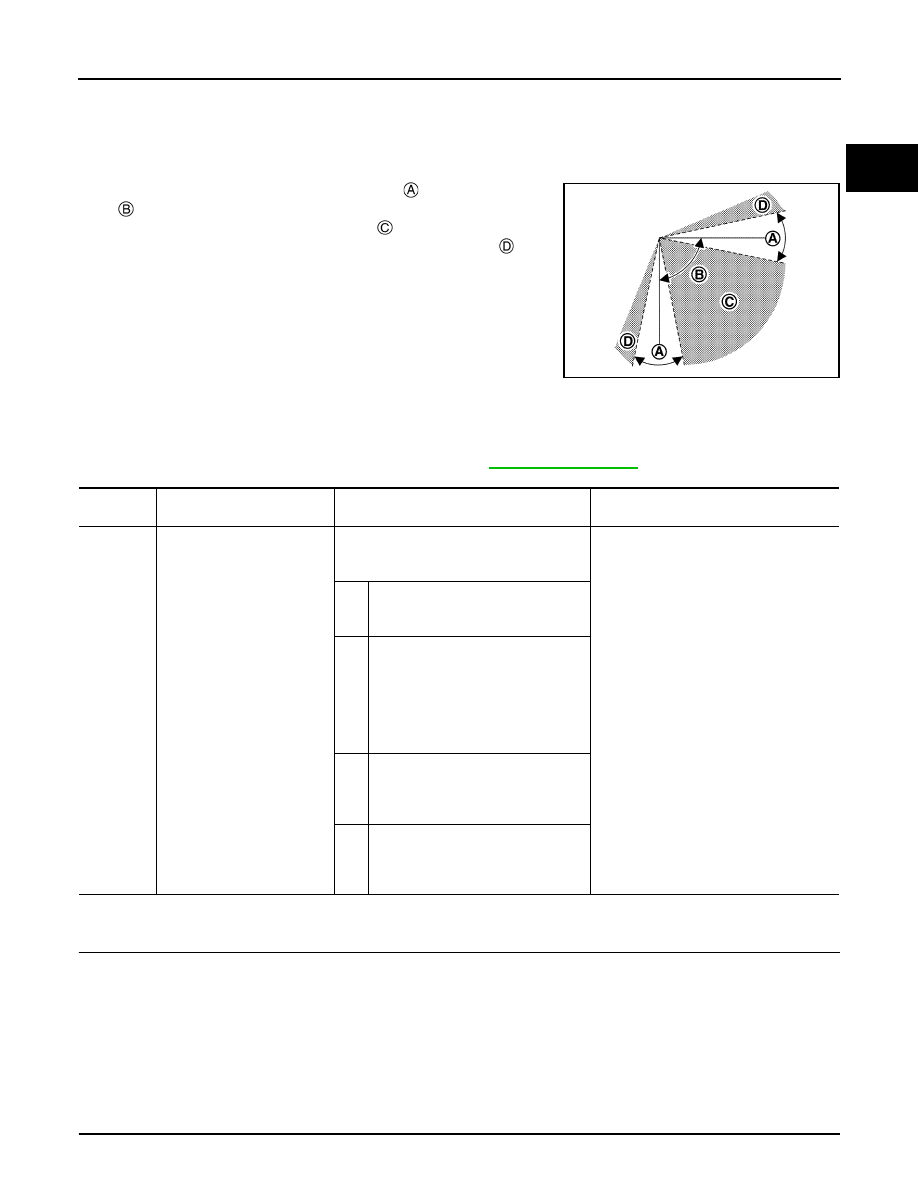

Active grille shutter normally stops within zone   which is defined by
zone

(90

°±20°).

If the active grille shutter stops within zone   stuck error is detected,
and if the active grille shutter stops at position beyond zone   over-

run error is detected.

NOTE:

If DTC P059F displayed with DTC UXXXX, P0116, P0117, P0118, P0125, P0196, P0197, P0198, P0500,

P0607, or P1720 first perform the trouble diagnosis for DTC UXXXX, P0116, P0117, P0118, P0125,

P0196, P0197, P0198, P0500, P0607, or P1720. Refer to

EC-86, "DTC Index"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If another DTC Confirmation Procedure is conducted just before this procedure, always turn ignition switch

OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is between 11V and 16V with ignition

switch ON.

With CONSULT     >>GO TO 2.

Without CONSULT>>GO TO 5.

2.

DTC CONFIRMATION PROCEDURE B

JSKIA3478ZZ

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P059F

ACTIVE GRILLE AIR SHUT-
TER A
(Active grille air shutter A per-
formance/stuck off)

ECM records the DTCs when it receives fol-
lowing diagnosis signals from active grille
shutter actuator.

• Harness or connectors

(Active grille shutter circuit is open or
shorted.)

• Active grille shutter

A

Detects the malfunction of initial posi-
tion learning or operational malfunc-
tions for specified times.

B

• Active grille shutter power supply

voltage is lower than 7.5 V for more
than 5 seconds consecutively.

• Active grille shutter power supply

voltage is more than 17.5 V for
more than 5 seconds consecutive-
ly.

C

Detects the temperature of active
grille shutter actuator is more than
155

°C (311°F) for more than 600 sec-

onds for accumulation.

D

Detects the temperature of active
grille shutter actuator is more than
155

°C (311°F) for more than speci-

fied times.
