BACK DOOR LOCK

DLK-297

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Tighten outside handle bolts to specification. Refer to

DLK-296, "Exploded View"

.

• After installation, check back door open/close and lock/unlock operation.

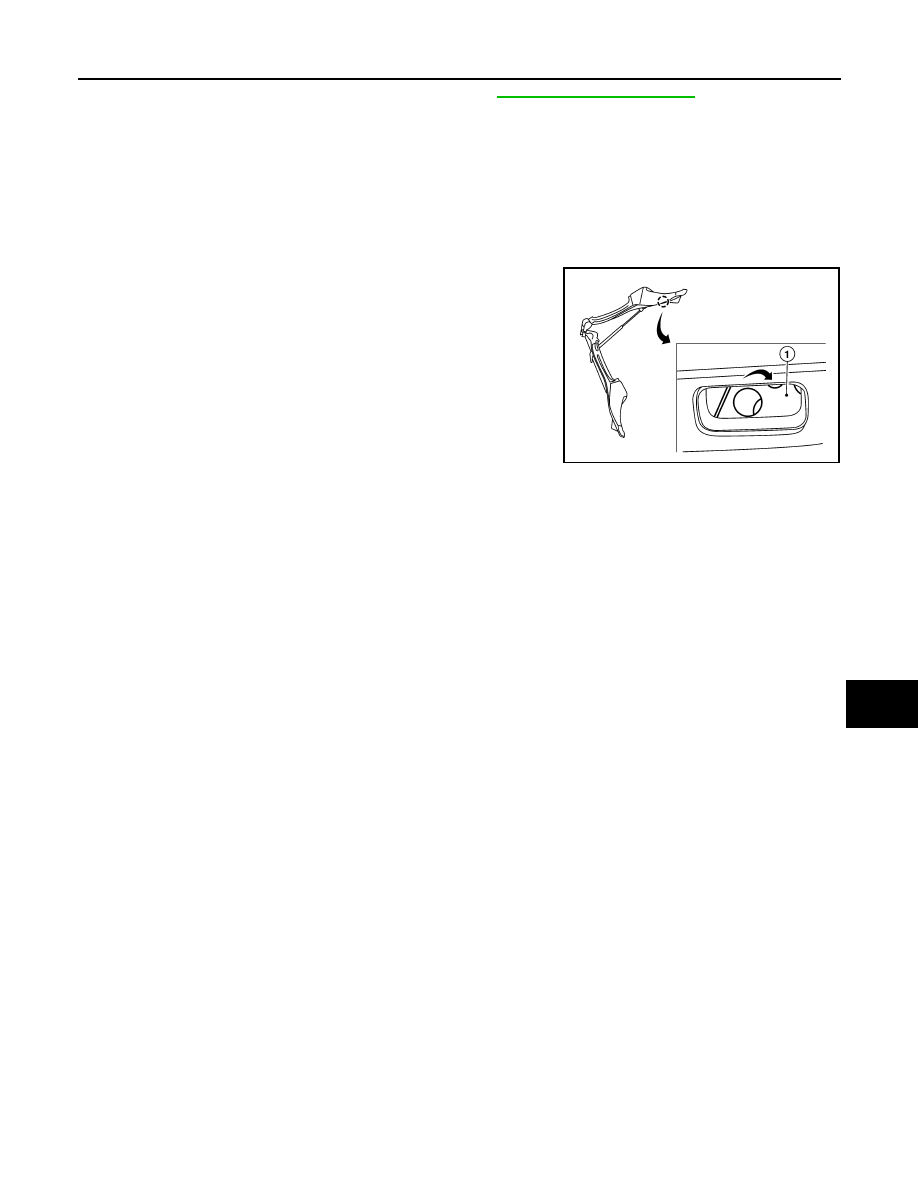

EMERGENCY LEVER
EMERGENCY LEVER : Removal and Installation

INFOID:0000000009645214

UNLOCK PROCEDURE

NOTE:

If back door lock cannot be unlocked due to a malfunction or battery discharge, perform the following proce-

dure to unlock back door assembly.

From inside the vehicle, using a suitable tool, rotate the emergency

lever (1) in a clockwise direction to unlock the back door assembly.

AWKIA2577ZZ

DLK-298

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

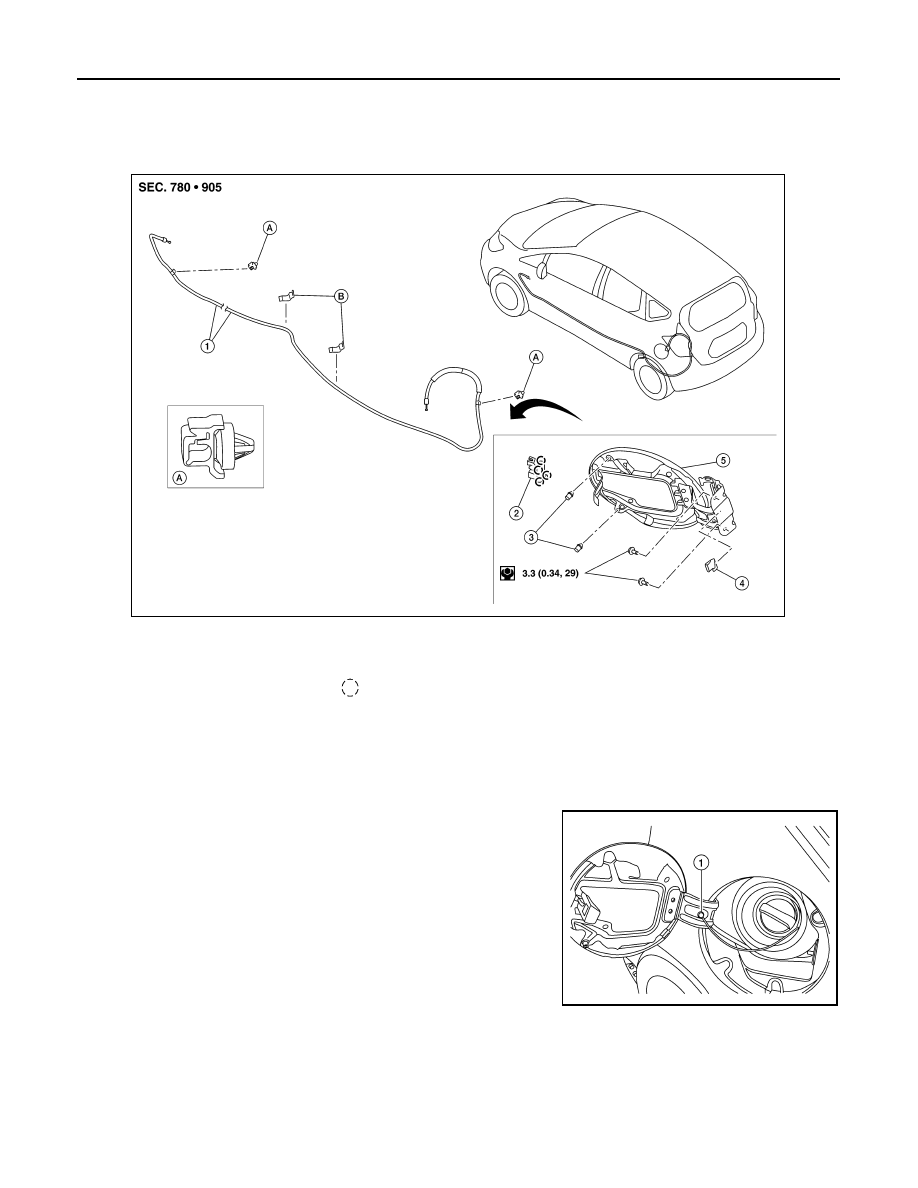

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

Exploded View

INFOID:0000000009645215

FUEL FILLER LID
FUEL FILLER LID : Removal and Installation

INFOID:0000000009645216

REMOVAL

1. Remove fuel cap pin (1).

1.

Fuel filler lid lock release cable

2.

Fuel filler lid lock

3.

Fuel filler lid bumper

4.

Fuel filler lid spring

5.

Fuel filler lid

A.

Clip

B.

Cable protector

Pawl

AWKIA2582ZZ

ALKIA3198ZZ

FUEL FILLER LID OPENER

DLK-299

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

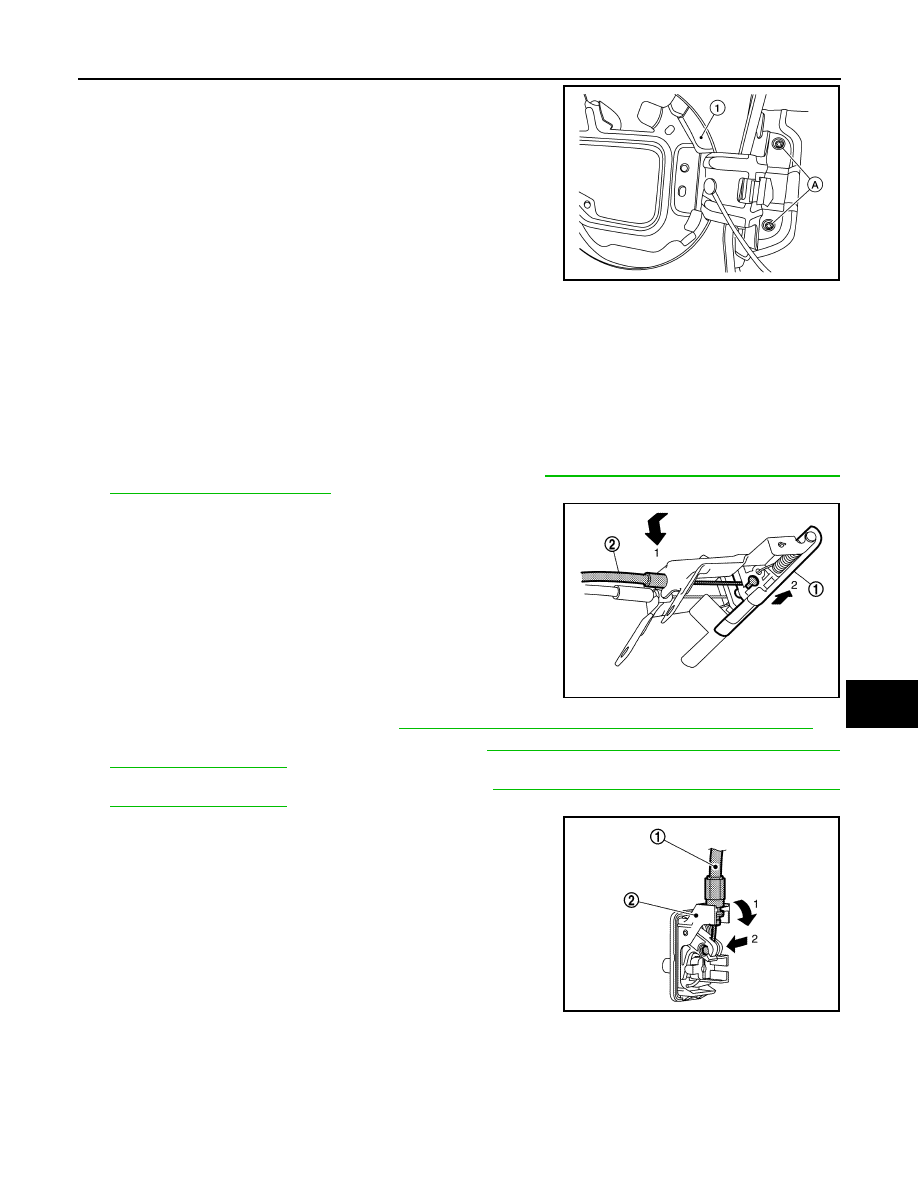

2. Remove fuel filler lid screws (A) and fuel filler lid (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close and lock/unlock operation.

FUEL FILLER OPENER CABLE
FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000009645217

REMOVAL

1. Remove hood lock/fuel filler lid lock release handle. Refer to

DLK-161, "HOOD LOCK RELEASE HAN-

DLE : Removal and Installation"

.

2. Disconnect fuel filler lid opener cable (2) from hood lock/fuel

filler lid lock release handle (1).

3. Remove dash side finisher (LH). Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

4. Remove center pillar lower finisher (LH). Refer to

INT-25, "CENTER PILLAR LOWER FINISHER :

Removal and Installation"

.

5. Remove luggage side lower finisher (LH). Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

6. Disconnect fuel filler lid opener cable (1) by pulling downward

and then sliding cable end to the side to remove from fuel filler

lid lock assembly (2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

FUEL FILLER LID LOCK

ALKIA3199ZZ

JMKIA7999ZZ

JMKIA8139ZZ

DLK-300

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

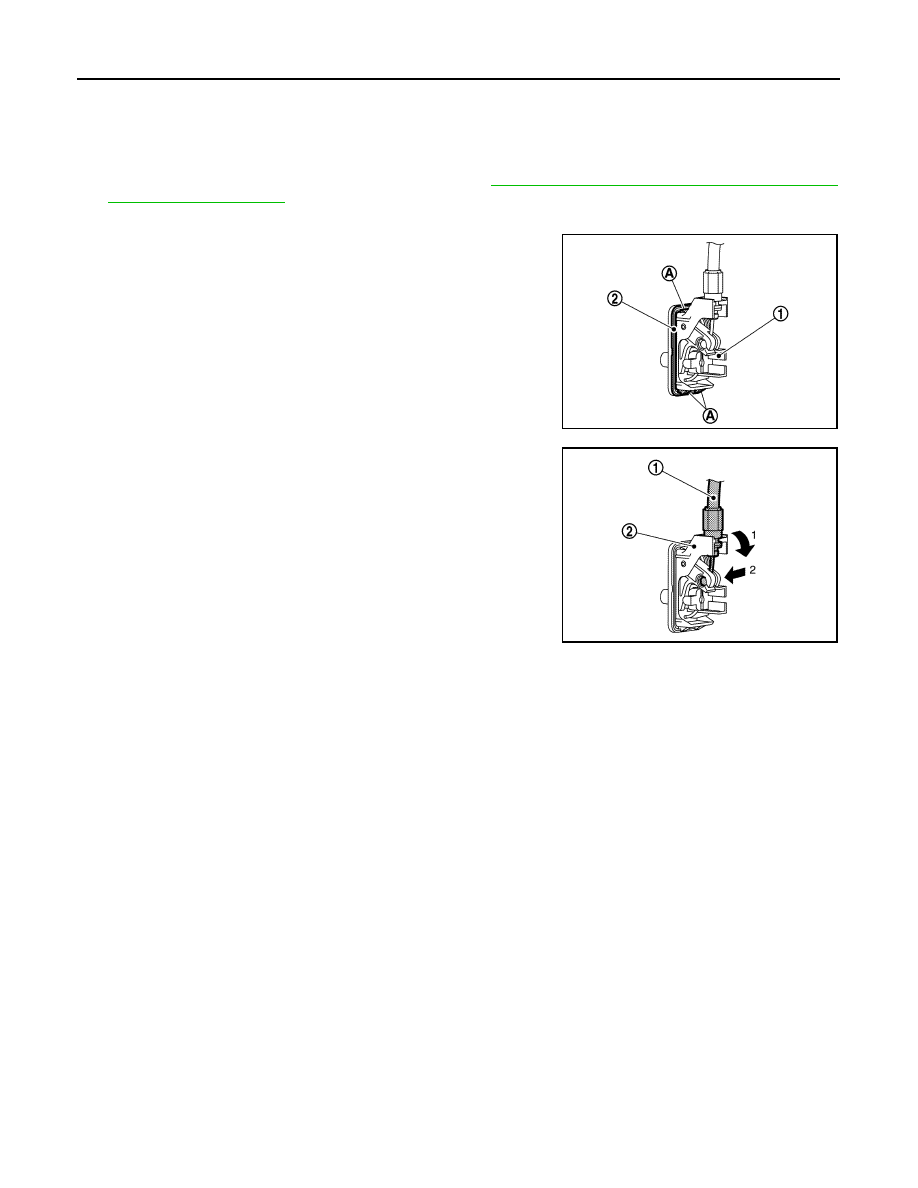

FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000009645218

REMOVAL

1. Fully open fuel filler lid.
2. Remove luggage side lower finisher (LH). Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

3. Disconnect the harness connector from the fuel filler lid lock assemby.
4. Release pawls (A) and remove fuel filler lid lock assembly (1).

CAUTION:

Be careful not to damage gasket (2) when removing.

5. Disconnect fuel filler lid opener cable (1) by pulling downward

and then sliding cable end to the side to remove from fuel filler

lid lock assembly (2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.
