INSIDE KEY ANTENNA

DLK-177

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

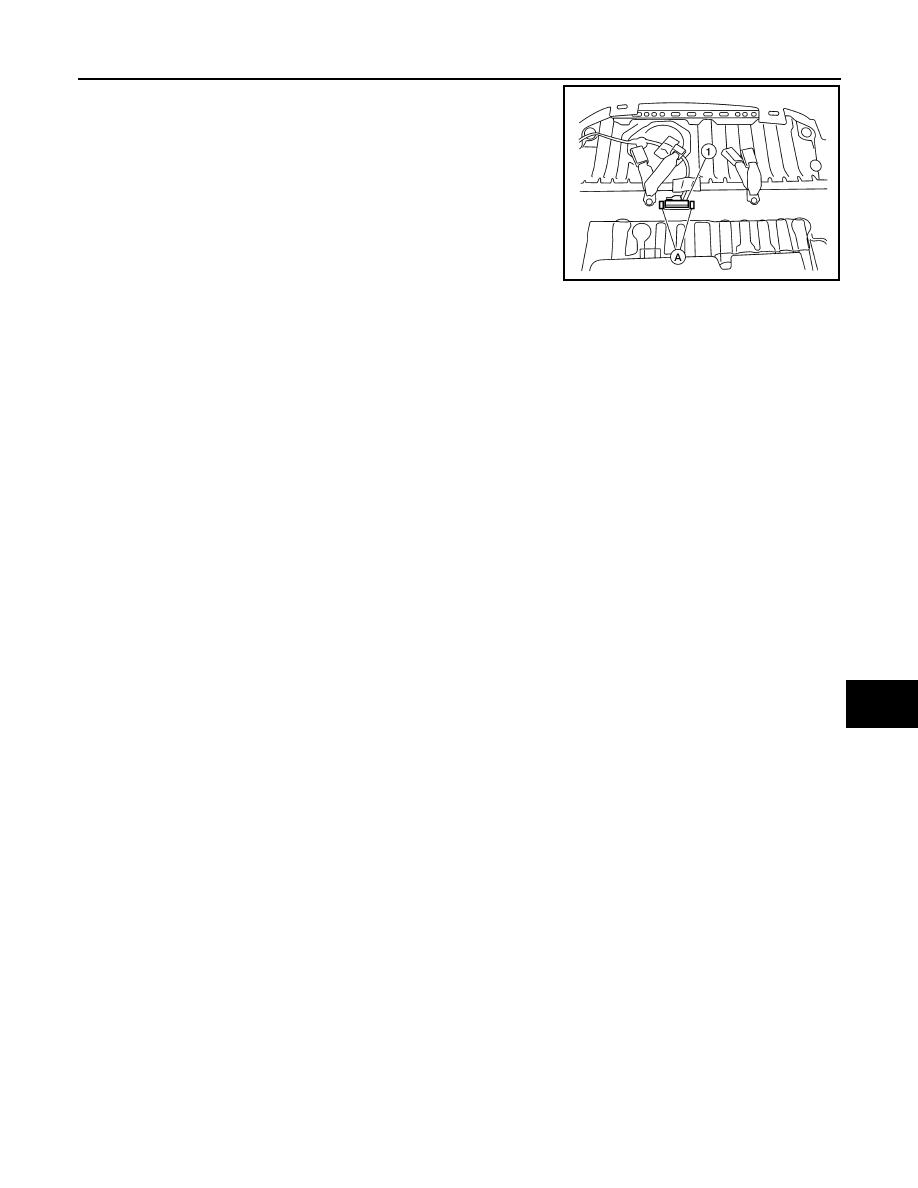

3. Release clips (A) and remove inside key antenna (luggage

room) (1).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3208ZZ

DLK-178

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

OUTSIDE KEY ANTENNA

OUTSIDE KEY ANTENNA

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009486693

REMOVAL

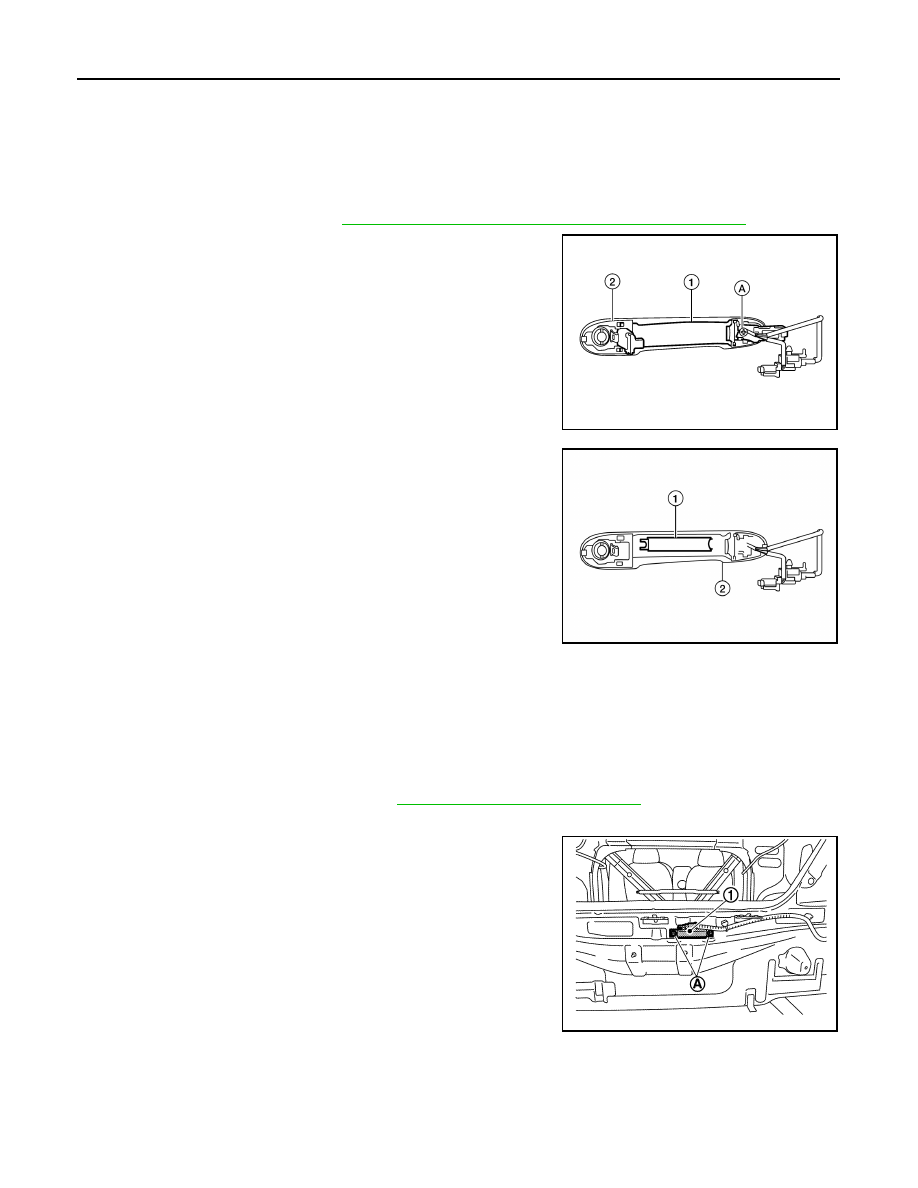

1. Remove outside handle. Refer to

DLK-164, "OUTSIDE HANDLE : Removal and Installation"

.

2. Remove screw (1) and outside handle finisher (1) from outside

handle (2).

3. Remove outside key antenna (outside handle) (1) from outside

handle (2).

INSTALLATION

Installation is in the reverse order of removal.

REAR BUMPER
REAR BUMPER : Removal and Installation

INFOID:0000000009486694

REMOVAL

1. Remove the rear bumper fascia. Refer to

EXT-26, "Removal and Installation"

.

2. Disconnect the harness connector from the outside key antenna (rear bumper)
3. Release clips (A) and remove outside key antenna (rear

bumper) (1).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3209ZZ

ALKIA3210ZZ

JMKIA7952ZZ

DOOR REQUEST SWITCH

DLK-179

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR REQUEST SWITCH

DRIVER SIDE
DRIVER SIDE : Removal and Installation

INFOID:0000000009671355

The door request switch (driver side) is serviced as an assembly with the outside handle. Refer to

DLK-164,

"OUTSIDE HANDLE : Removal and Installation"

.

PASSENGER SIDE
PASSENGER SIDE : Removal and Installation

INFOID:0000000009671356

The door request switch (passenger side) is serviced as an assembly with the outside handle. Refer to

DLK-

164, "OUTSIDE HANDLE : Removal and Installation"

.

BACK DOOR
BACK DOOR : Removal and Installation

INFOID:0000000009671357

REMOVAL

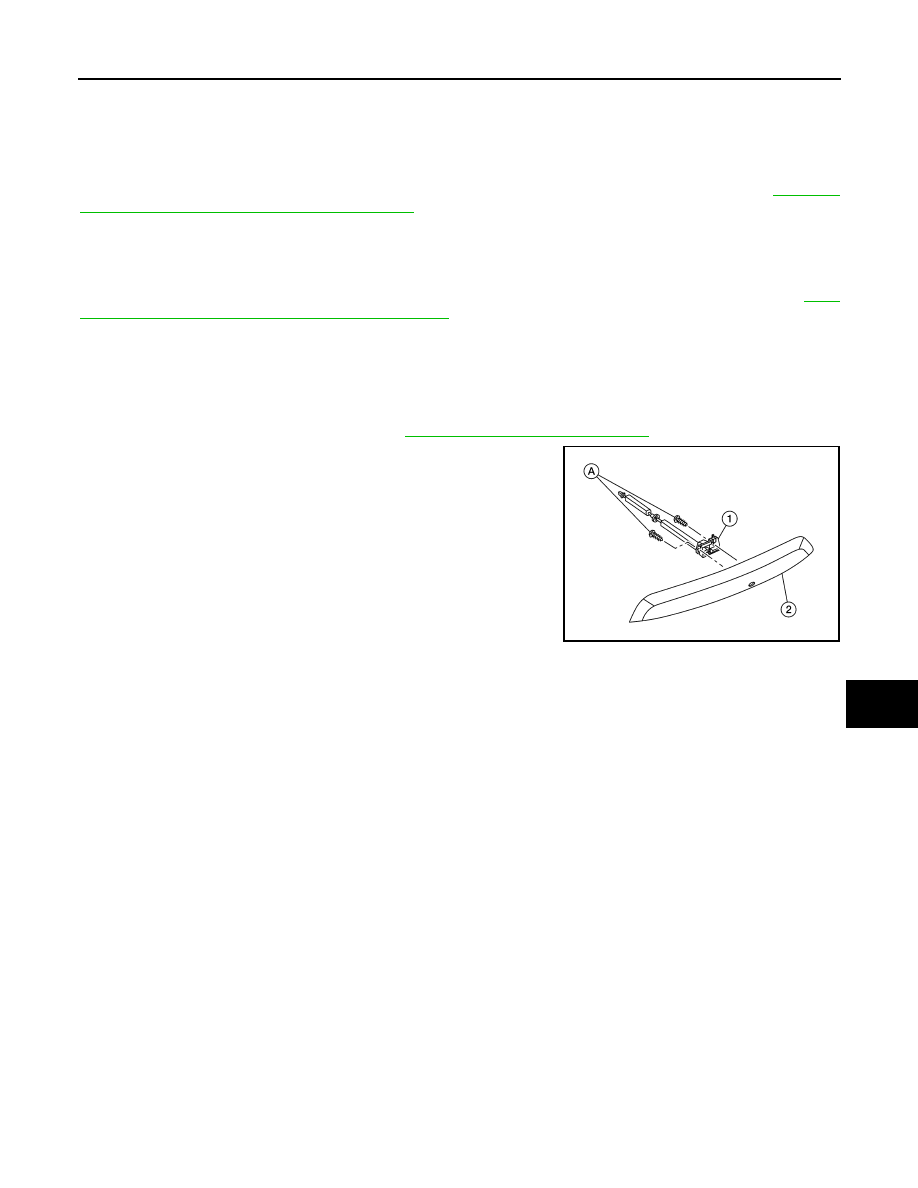

1. Remove back door outer finisher. Refer to

EXT-46, "Removal and Installation"

.

2. Remove screws (A) and back door request switch (1) from back

door outer finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

AWKIA2584ZZ

DLK-180

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Removal and Installation

INFOID:0000000009486695

REMOVAL

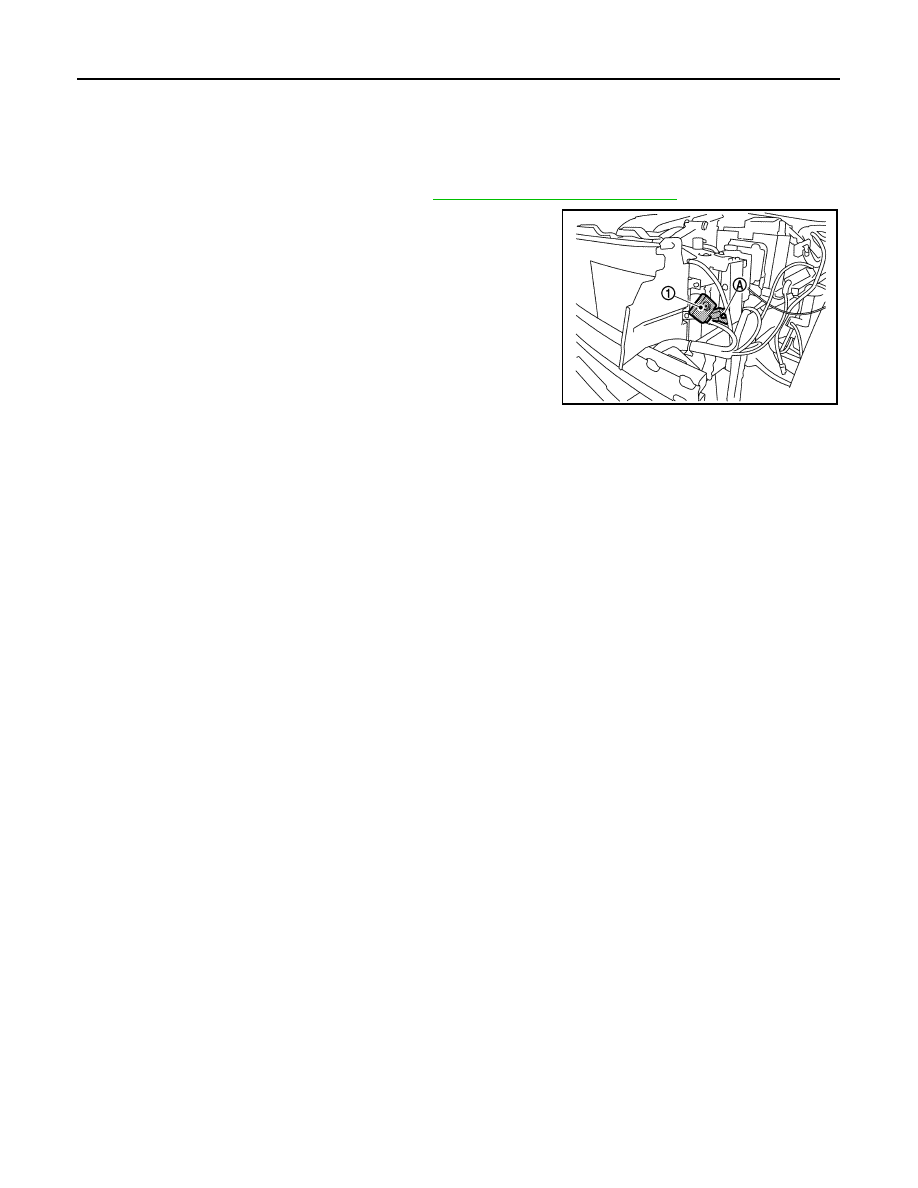

1. Remove front combination lamp (LH). Refer to

EXL-99, "Removal and Installation"

2. Remove bolt (A) and Intelligent Key warning buzzer (1).

INSTALLATION

Installation is in the reverse order of removal.

JMKIA7949ZZ
