HOOD

DLK-137

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CLEARANCE ADJUSTMENT

1. Loosen hood hinge nuts and bolts.
2. Loosen hood lock assembly bolts.
3. Adjust the hood lock assembly so the clearance measurements are within the specifications provided.
4. Tighten hood hinge nuts and bolts to specified torque.
5. Tighten hood lock assembly bolts to specified torque.

HEIGHT ADJUSTMENT

1. Loosen hood lock assembly bolts.
2. Adjust the surface height of hood assembly to front upper grille, front fender and front combination lamp to

the specified values by rotating hood bumper rubber.

3. Temporarily tighten hood lock assembly bolts.

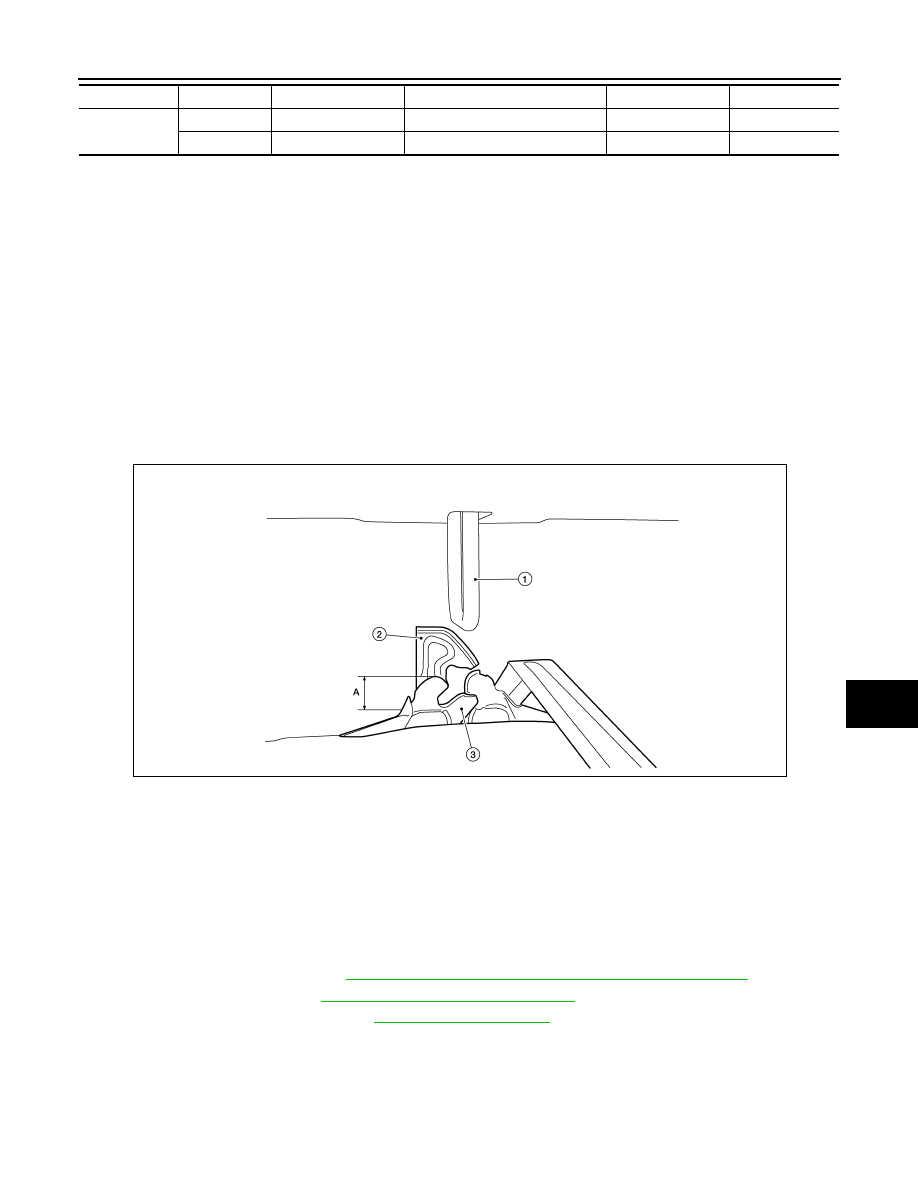

4. Adjust (A) as shown to the following value with hood’s own weight by dropping it from approximately 200

mm (7.87 in) height or by pressing hood lightly [approximately 29 N (3.0 kg, 6.5 lb)].

5. After adjustment, tighten hood lock assembly bolts to specified torque.

HOOD HINGE
HOOD HINGE : Removal and Installation

INFOID:0000000009486659

REMOVAL

1. Remove hood assembly. Refer to

DLK-135, "HOOD ASSEMBLY : Removal and Installation"

.

2. Remove front fender. Refer to

DLK-142, "Removal and Installation"

.

3. Remove cowl top side cover. Refer to

EXT-34, "Exploded View"

.

4. Remove hood hinge bolts and hood hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Before installing the hood hinge, apply anticorrosive agent onto the surface of the vehicle.

C – C

H

Clearance

3.5

± 1.0 (0.14 ± 0.04)

1.5 (0.06)

1.5 (0.06)

J

Surface height

0.0

± 1.5 (0.0 ± 0.06)

1.5 (0.06)

1.5 (0.06)

Section

Item

Measurement

Standard

Parallelism

Equality

1.

Hood striker

2.

Secondary latch

3.

Primary latch

A.

20.0 mm (0.79 in)

ALKIA3162ZZ

DLK-138

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

• Check hood hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

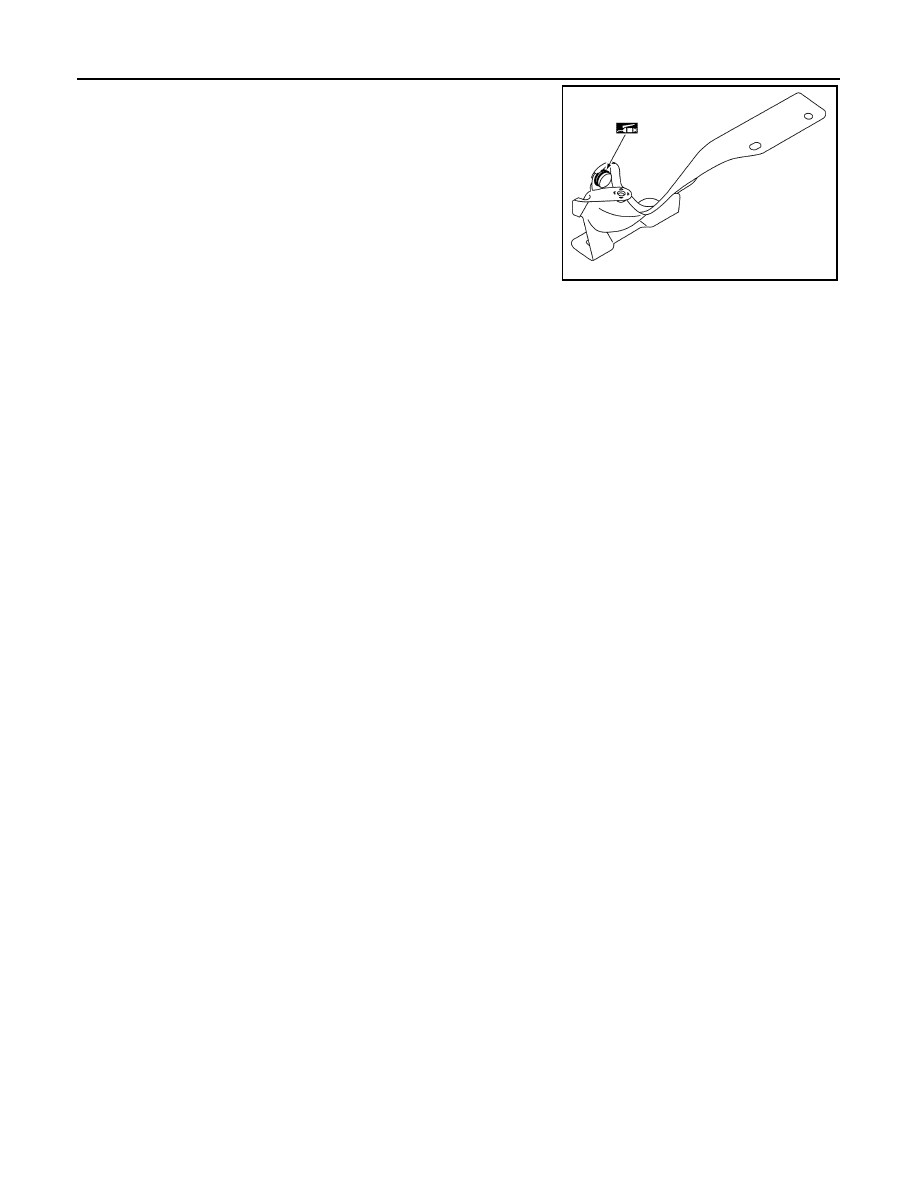

HOOD SUPPORT ROD
HOOD SUPPORT ROD : Removal and Installation

INFOID:0000000009486660

REMOVAL

1. Support hood assembly using a suitable tool.

WARNING:

Bodily injury may occur if hood assembly is not supported properly when removing hood support

rod.

2. Rotate and remove hood support rod from grommet.
3. Release tab and remove grommet from hood hinge (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

JMKIA7995ZZ

RADIATOR CORE SUPPORT

DLK-139

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

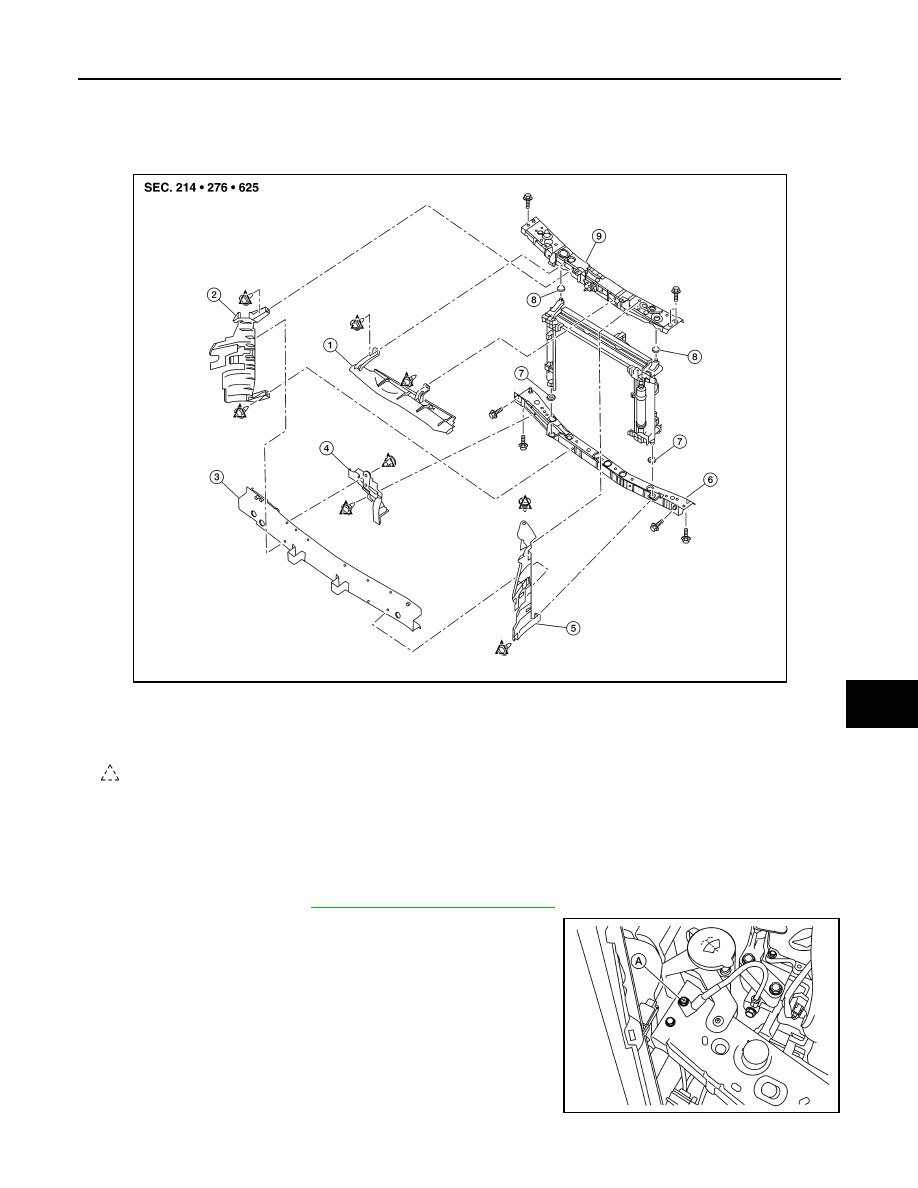

RADIATOR CORE SUPPORT

Exploded View

INFOID:0000000009486780

RADIATOR CORE SUPPORT UPPER
RADIATOR CORE SUPPORT UPPER : Removal and Installation

INFOID:0000000009486661

REMOVAL

1. Remove front grille. Refer to

EXT-29, "Removal and Installation"

.

2. Remove ground harness bolt (A).

1.

Upper air guide

2.

Air guide (RH)

3.

Front bumper reinforcement

4.

Lower air guide

5.

Air guide (LH)

6.

Radiator core lower support

7.

Lower grommet

8.

Upper grommet

9.

Radiator core upper support

Clip

ALKIA3172ZZ

ALKIA3174ZZ

DLK-140

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

RADIATOR CORE SUPPORT

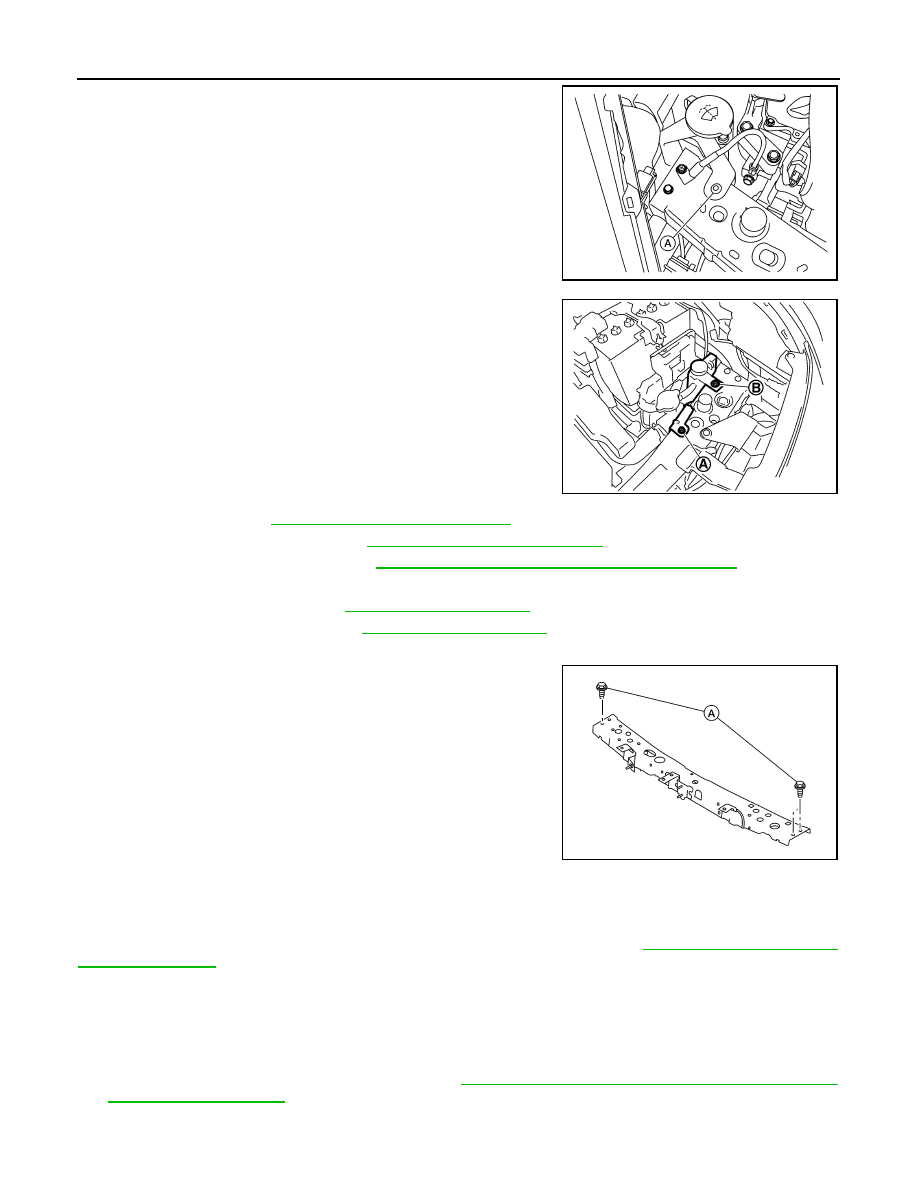

3. Remove washer tube inlet clip (A).

4. Remove radiator cap adapter bracket bolt (A) and radiator reser-

voir tank bolt (B).

5. Remove horn. Refer to

HRN-6, "Removal and Installation"

.

6. Remove crash zone sensor. Refer to

SR-23, "Removal and Installation"

.

7. Remove hood lock assembly. Refer to

DLK-159, "HOOD LOCK : Removal and Installation"

.

8. Release hood lock release cable clips from radiator core support upper using a suitable tool.
9. Remove upper air guide. Refer to

DLK-139, "Exploded View"

.

10. Remove air guide (LH/RH). Refer to

DLK-139, "Exploded View"

.

11. Release all harness connector clips from radiator core support upper using a suitable tool.
12. Remove bolts (A) and radiator core support upper.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, perform hood assembly adjustment procedure. Refer to

DLK-136, "HOOD ASSEM-

BLY : Adjustment"

.

RADIATOR CORE SUPPORT LOWER
RADIATOR CORE SUPPORT LOWER : Removal and Installation

INFOID:0000000009486662

REMOVAL

1. Remove radiator core support upper. Refer to

DLK-139, "RADIATOR CORE SUPPORT UPPER :

Removal and Installation"

.

2. Reposition the radiator and condenser.

AWKIA2567ZZ

JMKIA8027ZZ

AWKIA2568ZZ
