REMOTE KEYLESS ENTRY RECEIVER

DLK-105

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 8

NO

>> Repair or replace harness between BCM and remote keyless entry.

8.

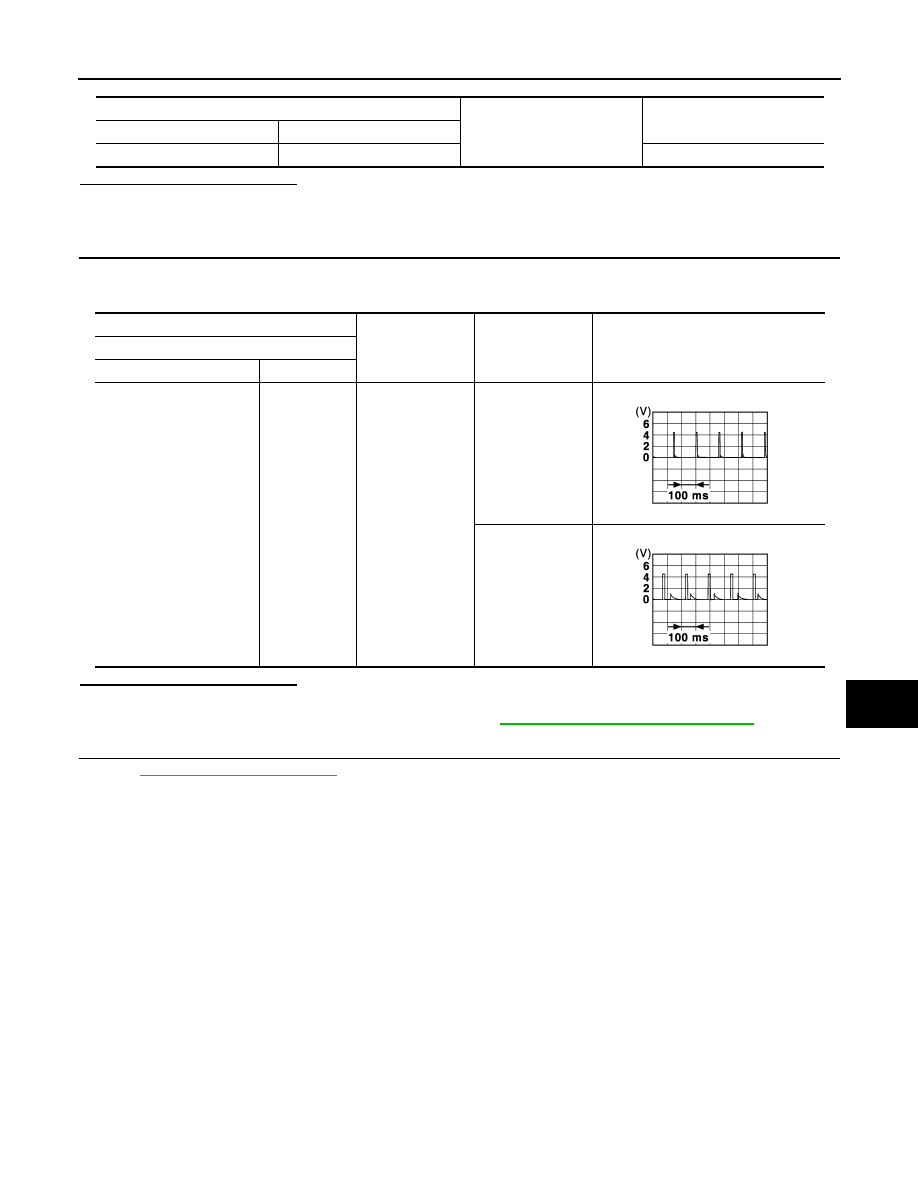

CHECK REMOTE KEYLESS ENTRY RECEIVER RSSI SIGNAL

1. Reconnect remote keyless entry receiver connector.

2. Check signal between remote keyless entry receiver harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace remote keyless entry receiver. Refer to

DLK-181, "Removal and Installation"

.

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

BCM

Ground

Continuity

Connector

Terminal

M97

22

No

(+)

(–)

Condition

Signal

(Reference value)

Remote keyless entry receiver

Connector

Terminal

M90

3

Ground

During waiting

When pressing
and holding either
button on Intelli-
gent Key

JMKIA5952GB

JMKIA5953GB

DLK-106

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

SHIFT P WARNING LAMP

SHIFT P WARNING LAMP

Component Function Check

INFOID:0000000009645332

1.

CHECK FUNCTION

1. Select INTELLIGENT KEY of BCM using CONSULT.

2. Select LCD in ACTIVE TEST mode.

3. Touch SET P to check that it works normally.
Is the inspection result normal?

YES

>> Shift P warning lamp is OK.

NO

>> Refer to

DLK-106, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009645333

1.

CHECK SHIFT P WARNING LAMP

Refer to

DLK-106, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

DLK-107

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYMPTOM DIAGNOSIS

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK
SWITCH

ALL DOOR
ALL DOOR : Description

INFOID:0000000009645229

All doors do not lock/unlock using door lock and unlock switch.

ALL DOOR : Diagnosis Procedure

INFOID:0000000009645230

1.

CHECK DOOR LOCK AND UNLOCK SWITCH

Check door lock and unlock switch.

Refer to

DLK-88, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).

Refer to

DLK-162, "DOOR LOCK : Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

1. Replace BCM. Refer to

BCS-70, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

DRIVER SIDE
DRIVER SIDE : Description

INFOID:0000000009645231

Driver side door does not lock/unlock using door lock and unlock switch.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000009645232

1.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).

Refer to

DLK-78, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-70, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

PASSENGER SIDE

DLK-108

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

PASSENGER SIDE : Description

INFOID:0000000009645233

Passenger side door does not lock/unlock using door lock and unlock switch.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000009645234

1.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (passenger side).

Refer to

DLK-79, "PASSENGER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-70, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

REAR LH
REAR LH : Description

INFOID:0000000009645235

Rear LH side door does not lock/unlock using door lock and unlock switch.

REAR LH : Diagnosis Procedure

INFOID:0000000009645236

1.

CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly LH.

Refer to

DLK-80, "REAR LH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-70, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

REAR RH
REAR RH : Description

INFOID:0000000009645237

Rear RH side door does not lock/unlock using door lock and unlock switch.

REAR RH : Diagnosis Procedure

INFOID:0000000009645238

1.

CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly RH.

Refer to

DLK-81, "REAR RH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-70, "Removal and Installation"

.
