DIAGNOSIS SYSTEM (AV CONTROL UNIT)

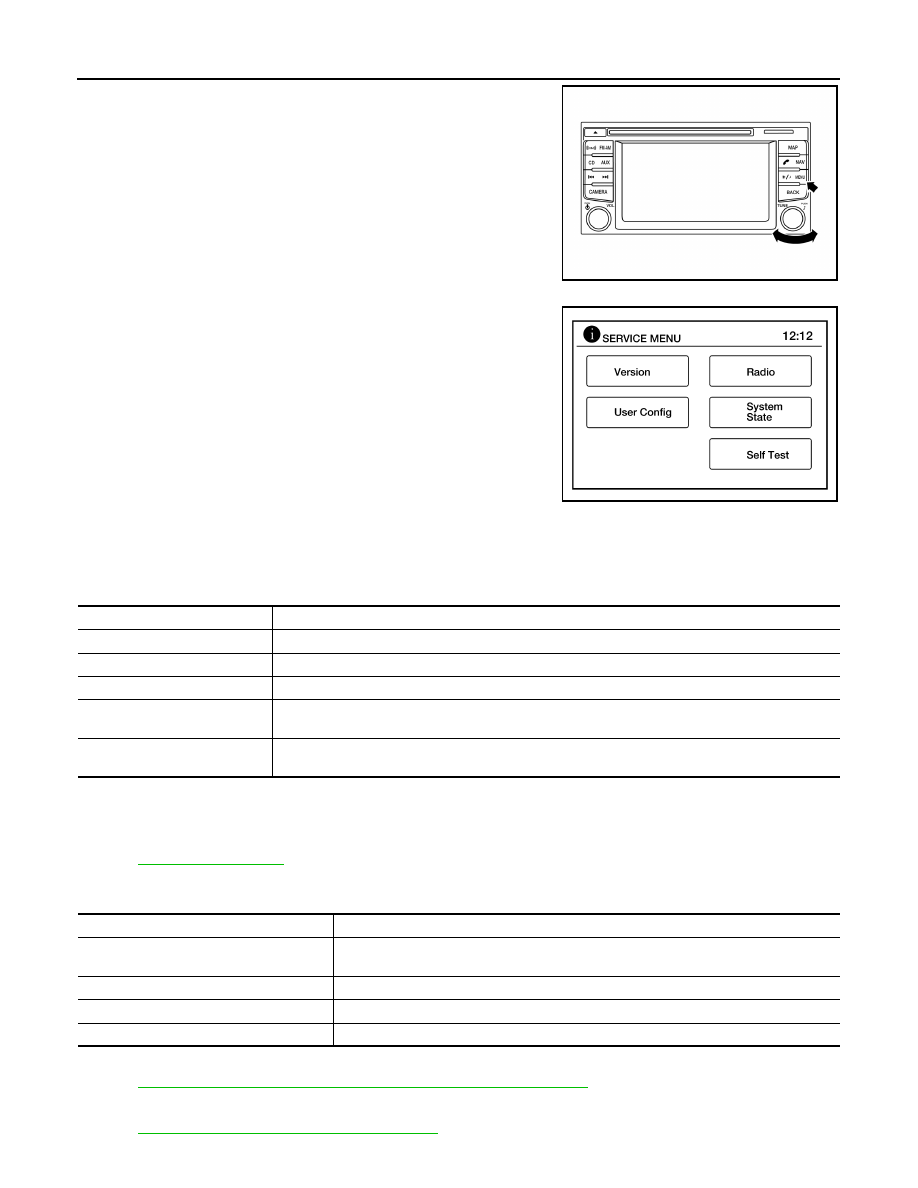

3. While pressing the MENU button, turn the TUNE-SCROLL dial

counterclockwise 3 or more clicks, then clockwise 3 or more

clicks, then counterclockwise 3 or more clicks. Shifting from cur-

rent screen to previous screen is performed by pressing BACK

button.

4. The trouble diagnosis initial screen is displayed, and Version,

User Config, Radio, System State or Self Test can be selected.

CONSULT Function

INFOID:0000000009459995

CONSULT FUNCTIONS

CONSULT performs the following functions via communication with the AV control unit.

ECU IDENTIFICATION

The part number of AV control unit is displayed.

SELF DIAGNOSTIC RESULT

Refer to

AV-154, "DTC Index"

.

DATA MONITOR

CONFIGURATION

Refer to

AV-178, "CONFIGURATION (AV CONTROL UNIT) : Description"

.

CAN DIAG SUPPORT MNTR

Refer to

LAN-12, "CAN Diagnostic Support Monitor"

.

ALNIA1460ZZ

ALNIA1378ZZ

Direct Diagnostic Mode

Description

Ecu Identification

The AV control unit part number is displayed.

Self Diagnostic Result

The AV control unit self diagnostic results are displayed.

Data Monitor

The AV control unit input/output data is displayed in real time.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing AV control unit.

CAN Diag Support Mntr

• The result of transmit/receive diagnosis of AV communication is displayed.
• The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item [Unit]

Description

VHCL SPD SIG [On/Off]

Indicates vehicle speed signal received from combination meter on CAN communication
line.

ILLUM SIG [On/Off]

Indicates condition of illumination signal for the AV control unit.

IGN SIG [On/Off]

Indicates condition of ignition signal.

REV SIG [On/Off]

Indicates condition of reverse signal received from BCM.

AV

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

AV-149

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

CONSULT Function

INFOID:0000000009681918

CONSULT FUNCTIONS

CONSULT performs the following functions via communication with the around view monitor control unit.

ECU IDENTIFICATION

The part number of around view monitor control unit is displayed.

SELF DIAGNOSTIC RESULT

Refer to

AV-157, "DTC Index"

.

DATA MONITOR

WORK SUPPORT

Direct Diagnostic Mode

Description

Ecu Identification

The around view monitor control unit part number is displayed.

Self Diagnostic Result

The around view monitor control unit self diagnostic results are displayed.

Data Monitor

The around view monitor control unit input/output data is displayed in real time.

Work support

The settings for around view monitor control unit functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing around view monitor control unit.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item

Description

ST ANGLE SENSOR SIGNAL [On/Off] Indicates condition of steering angle sensor signal.

REVERSE SIGNAL [On/Off]

Indicates selector lever position.

VEHICLE SPEED SIGNAL [mph/km/h] Indicates condition of vehicle speed signal.

CAMERA SWITCH SIGNAL [On/Off]

Indicates condition of camera switch signal.

CAMERA OFF SIGNAL [On/Off]

Indicates condition of camera OFF signal.

ST ANGLE SENSOR TYPE [Absolute] Indicates steering angle sensor type.

ST GEAR RATIO TYPE [Type O]

Indicates steering gear ratio type.

STEERING POSITION [LHD/RHD]

Indicates LH or RH drive type.

REAR CAMERA IMAGE SIGNAL [OK/
NG]

Indicates condition of camera image signal.

F-CAMERA IMAGE SIGNAL [OK/NG]

Indicates condition of camera image signal.

DR-SIDE CAMERA IMAGE SIG [OK/
NG]

Indicates condition of camera image signal.

PA-SIDE CAMERA IMAGE SIG [OK/
NG]

Indicates condition of camera image signal.

Support Item

Setting

Description

NON-VIEWABLE AREA REMINDER

ON

ON/OFF setting of non-viewable area can be performed.

OFF

PREDICTIVE COURSE LINE
DISPLAY

ON

ON/OFF setting of predictive course line display can be performed.

OFF

INITIALIZE CAMERA IMAGE
CALIBRATION

—

Factory image calibration restoration can be performed.

STEERING ANGLE SENSOR
ADJUSTMENT

—

Steering angle sensor neutral position adjustment can be performed.

AV-150

< SYSTEM DESCRIPTION >

[NAVIGATION]

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

CONFIGURATION

Refer to

AV-179, "CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Description"

.

CAN DIAG SUPPORT MNTR

Refer to

LAN-12, "CAN Diagnostic Support Monitor"

.

CALIBRATING CAMERA IMAGE
(FRONT CAMERA)

STATUS

Performs calibration of front camera.

AXIS X

AXIS Y

ROTATE

CALIBRATING CAMERA IMAGE
(PASS-SIDE CAMERA)

STATUS

Performs calibration of passenger side camera.

AXIS X

AXIS Y

ROTATE

CALIBRATING CAMERA IMAGE
(DR-SIDE CAMERA)

STATUS

Performs calibration of driver side camera.

AXIS X

AXIS Y

ROTATE

CALIBRATING CAMERA IMAGE
(REAR CAMERA)

STATUS

Performs calibration of rear camera.

AXIS X

AXIS Y

ROTATE

FINE TUNING OF BIRDS-EYE VIEW

STATUS

Confirmation and adjustment of difference between each camera can be per-
formed.

SELECT

AXIS X

AXIS Y

ROTATE

Support Item

Setting

Description

AV

AV CONTROL UNIT

AV-151

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS INFORMATION

AV CONTROL UNIT

Reference Value

INFOID:0000000009459996

VALUES ON THE DIAGNOSIS TOOL

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor Item

Condition

Value/Status

VHCL SPD SIG

Vehicle speed = 0 km/h (0 MPH).

Off

Vehicle speed > 0 km/h (0 MPH).

On

ILLUM SIG

Illumination signal is not received.

Off

Illumination signal is received.

On

IGN SIG

Ignition switch OFF or ACC.

Off

Ignition switch ON.

On

REV SIG

Selector lever in any position other than R.

Off

Selector lever in R position.

On

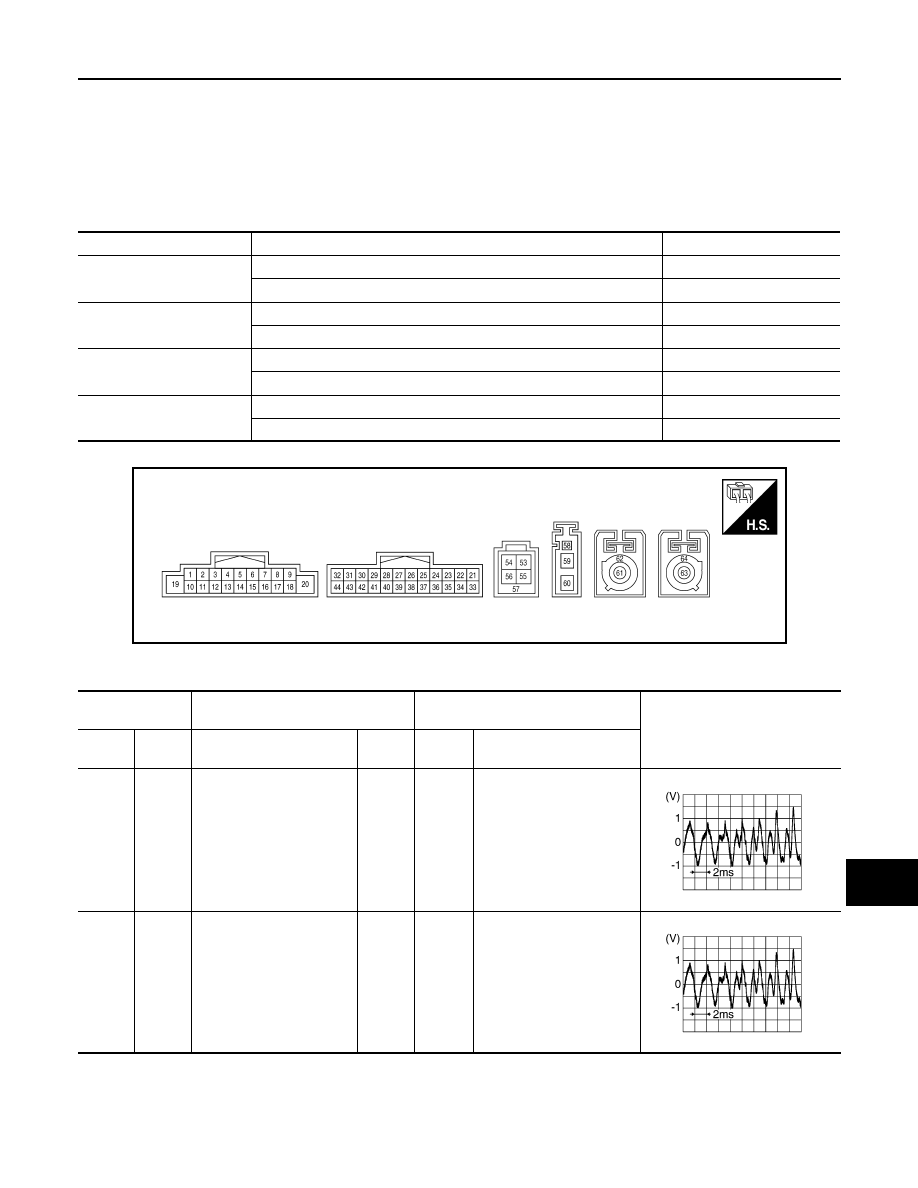

AWNIA3138ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

2

(GR)

3

(P)

Sound signal front speaker
LH

Output

ON

Sound output

4

(W)

5

(R)

Sound signal rear speaker
LH

Output

ON

Sound output

SKIB3609E

SKIB3609E
