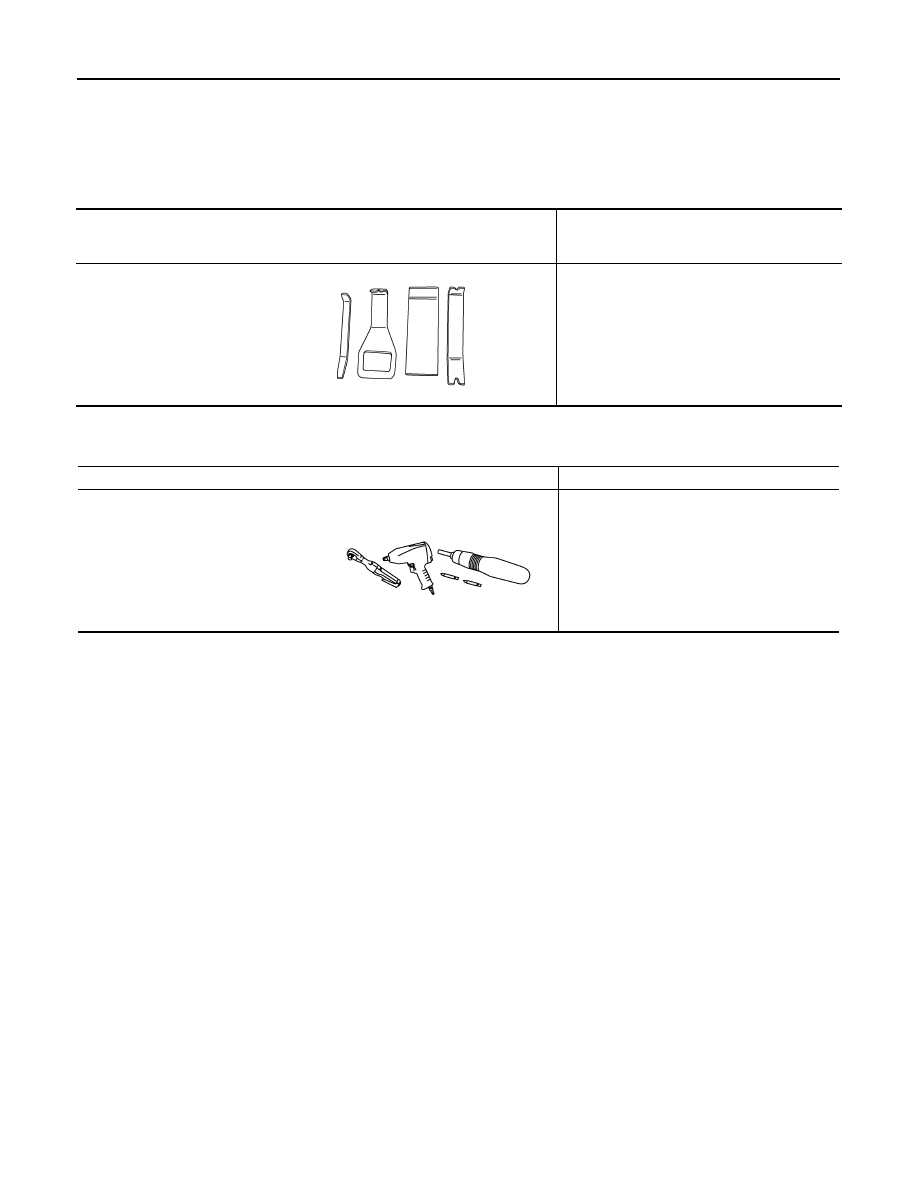

Special Service Tools

INFOID:0000000009541242

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009541243

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

AV

COMPONENT PARTS

AV-65

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

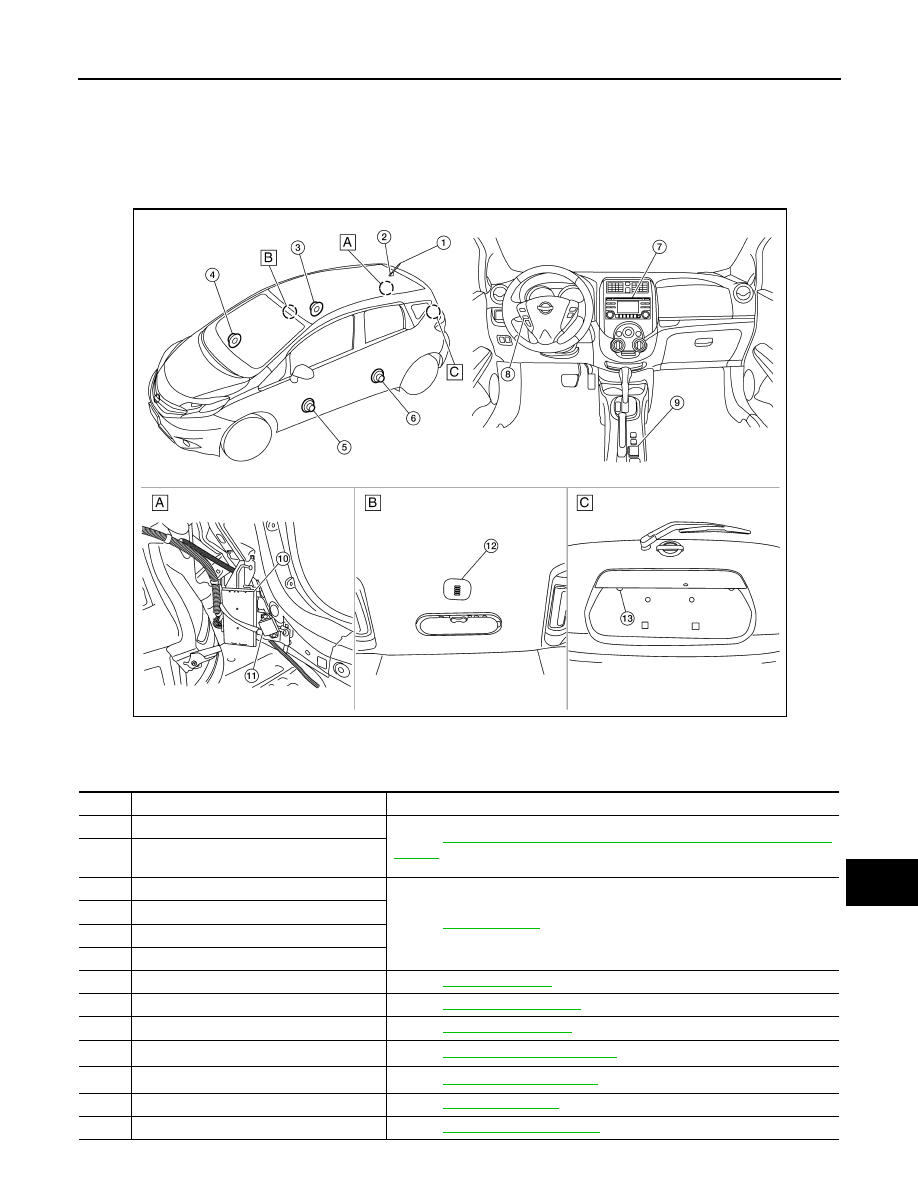

Component Parts Location

INFOID:0000000009681856

A. Luggage side lower finisher (RH) re-

moved

B. Front of headliner

C. Center of back door

AWNIA3091ZZ

No.

Component

Function

1.

Rod antenna

Refer to

AV-68, "Rod Antenna, Antenna Amp., Satellite Antenna and Antenna

Feeder"

.

2.

Antenna base (antenna amp. and satellite
antenna)

3.

Rear door speaker RH

Refer to

AV-66, "Speaker"

.

4.

Front door speaker RH

5.

Front door speaker LH

6.

Rear door speaker LH

7.

Audio unit

Refer to

AV-66, "Audio Unit"

.

8.

Steering wheel audio control switches

Refer to

AV-67, "Steering Switch"

.

9.

USB interface

Refer to

AV-66, "USB Interface"

.

10.

Bluetooth

®

 control unit

Refer to

AV-67, "Bluetooth Control Unit"

.

11.

Bluetooth

®

 antenna

Refer to

AV-67, "Bluetooth Antenna"

.

12.

Microphone

Refer to

AV-67, "Microphone"

.

13.

Rear view camera

Refer to

AV-68, "Rear View Camera"

.

AV-66

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

COMPONENT PARTS

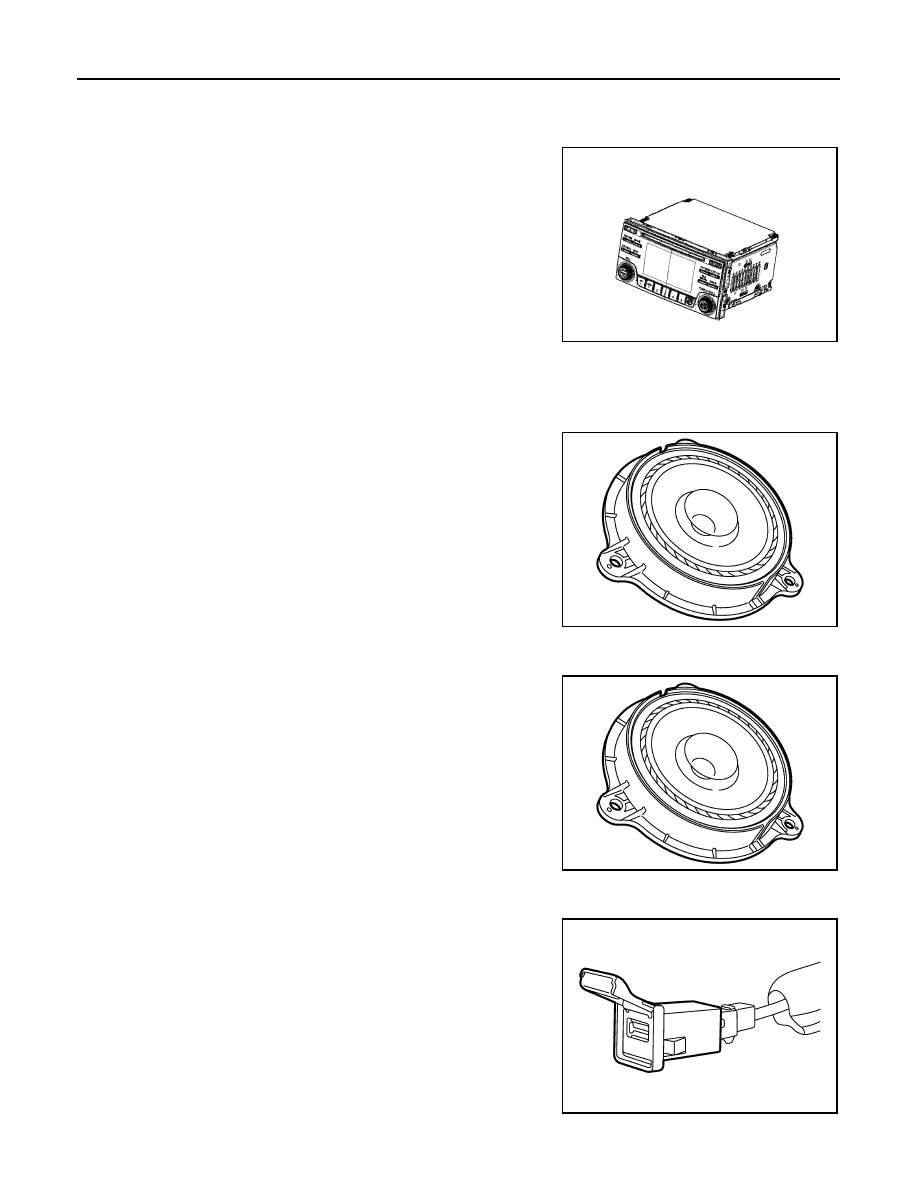

Audio Unit

INFOID:0000000009681857

Description

• AM/FM electronic tuner radio, CD drive, auxiliary input jack, and

camera controller are integrated into the audio unit.

• The display can show audio status and rear view monitor images.
• Music files stored in iPod

®*

/USB memory can be played using the

separate USB connector.

Speaker

INFOID:0000000009681858

FRONT DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the front doors.

• Sound signals are input from the audio unit to output high, mid and

low range sounds.

REAR DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.

• Sound signals are input from the audio unit to output high, mid and

low range sounds.

USB Interface

INFOID:0000000009681859

• USB Interface is installed in the console.
• iPod

®

 and USB memory can be connected to the audio unit.

JSNIA4722ZZ

JPNIA1454ZZ

JPNIA1454ZZ

JPNIA1447ZZ

AV

COMPONENT PARTS

AV-67

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

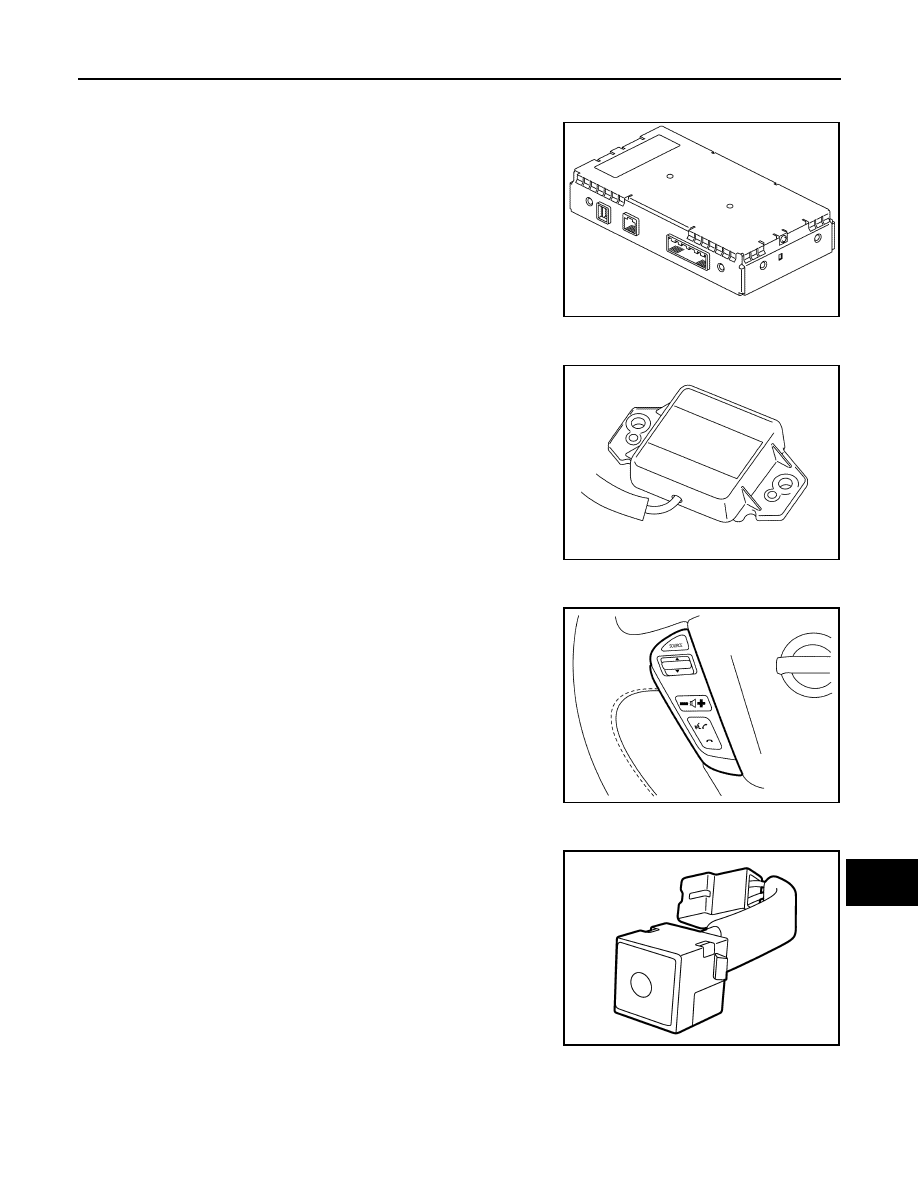

Bluetooth Control Unit
