TM-242

< REMOVAL AND INSTALLATION >

[4AT: RE4F03C]

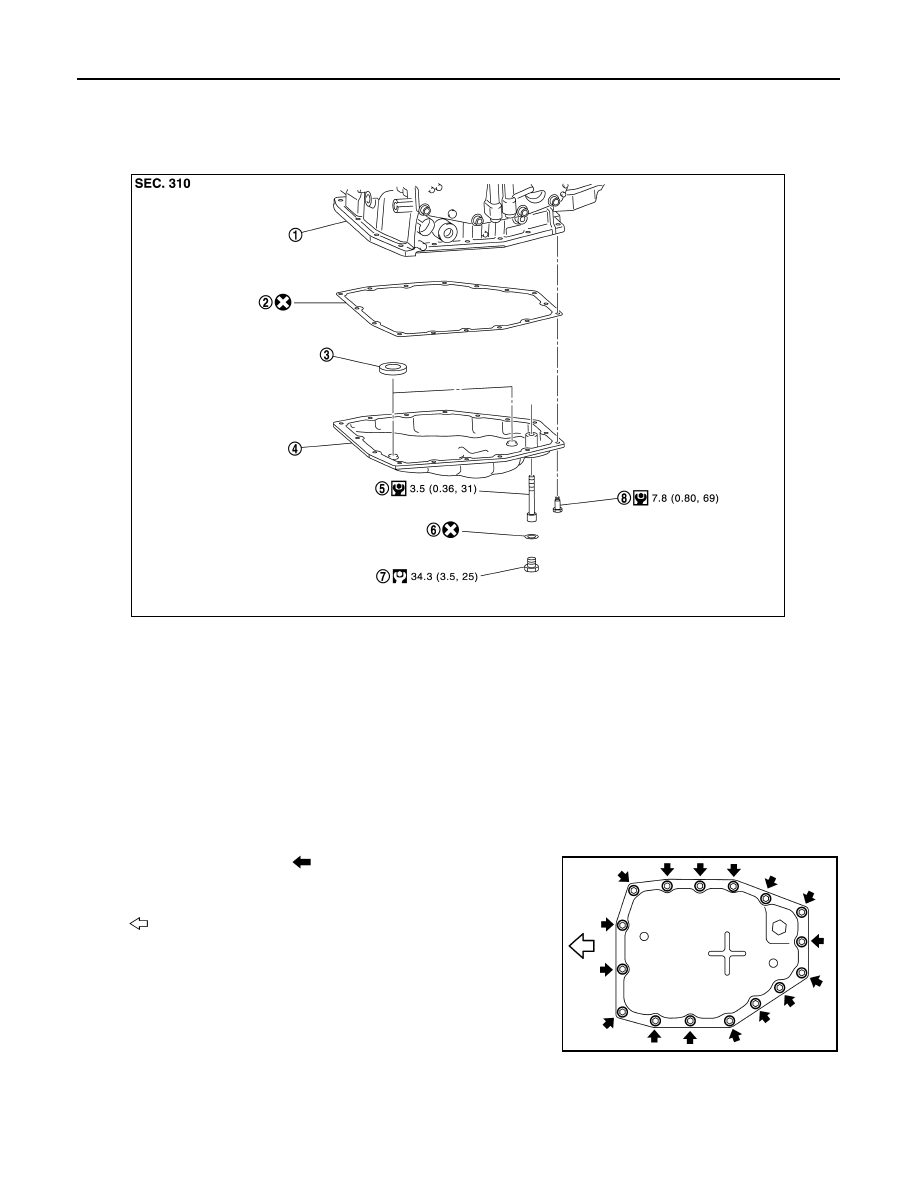

OIL PAN

OIL PAN

Exploded View

INFOID:0000000009268028

Removal and Installation

INFOID:0000000009268029

REMOVAL

1. Remove the drain plug and overflow tube, and then drain the ATF.

WARNING:

A/T fluid can splash when draining, use safety glasses to protect eyes.

2. Remove the drain plug gasket from the drain plug.
3. Remove the oil pan bolts (

), and then remove the oil pan and

oil pan gasket.

4. Remove the magnets from the oil pan.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse oil pan gasket and drain plug gasket.

1.

Transaxle assembly

2.

Oil pan gasket

3.

Magnet

4.

Oil pan

5.

Overflow tube

6.

Drain plug gasket

7.

Drain plug

8.

Oil pan fitting bolt

JSDIA1932GB

: Front

JSDIA1933ZZ

OIL PAN

TM-243

< REMOVAL AND INSTALLATION >

[4AT: RE4F03C]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Do not reuse oil pan bolts.

• Completely remove all moisture, oil, old gasket, etc. from the oil pan gasket mating surface of tran-

saxle case and oil pan.

• When installing the overflow tube, be sure to tighten to the specified torque. If it is not tightened to

the specified torque, the tube may be damaged.

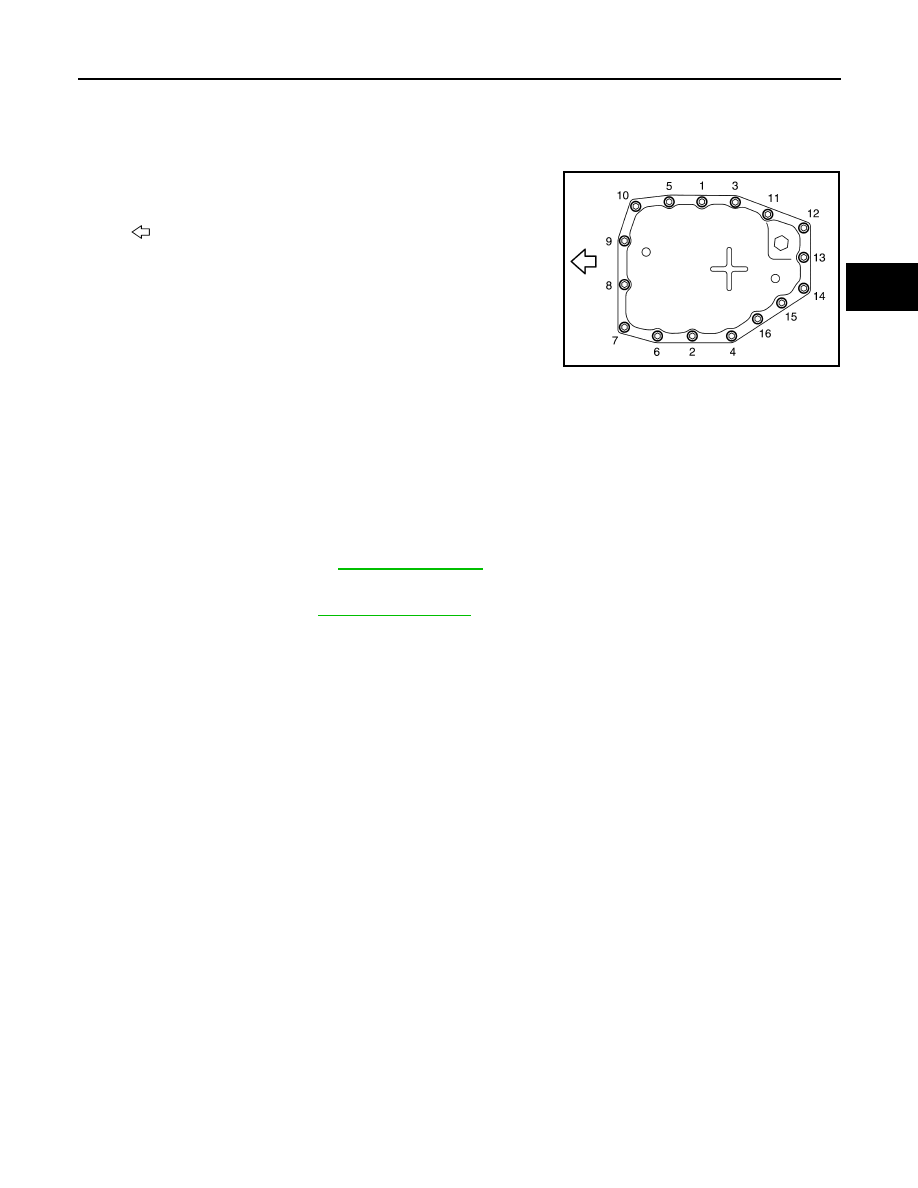

• When the oil pan is installed, temporarily tighten oil pan bolts, then

tighten the oil pan bolts to specification in the order shown.

Inspection and Adjustment

INFOID:0000000009268030

INSPECTION AFTER REMOVAL

Check oil pan for foreign material.

• If a large amount of worn material is found, clutch plate may be worn.

• If iron powder is found, bearings, gears, or clutch plates may be worn.

• If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.

Check points where wear is found in all cases.

INSPECTION AFTER INSTALLATION

Check for A/T fluid leakage. Refer to

TM-230, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Check the A/T fluid level. Refer to

TM-231, "Adjustment"

.

: Front

JSDIA1934ZZ

TM-244

< REMOVAL AND INSTALLATION >

[4AT: RE4F03C]

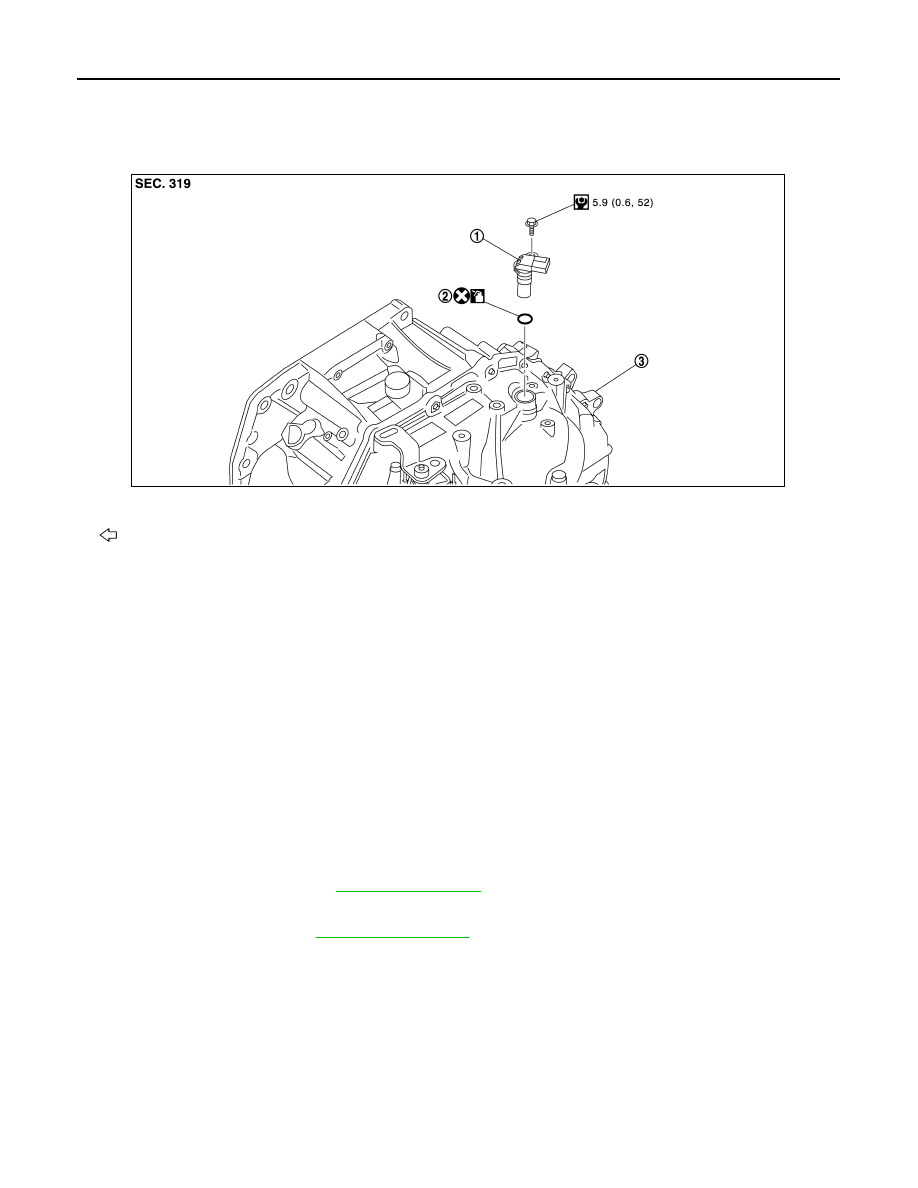

OUTPUT SPEED SENSOR

OUTPUT SPEED SENSOR

Exploded View

INFOID:0000000009268031

Removal and Installation

INFOID:0000000009268032

REMOVAL

1. Remove the front LH wheel and tire.
2. Disconnect the harness connector from output speed sensor.
3. Remove the output speed sensor.
4. Remove the O-ring from the output speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN Matic S ATF to the O-ring.

Inspection and Adjustment

INFOID:0000000009268033

INSPECTION AFTER INSTALLATION

Check for A/T fluid leakage. Refer to

TM-230, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Check the A/T fluid level. Refer to

TM-231, "Adjustment"

.

1.

Output speed sensor

2.

O-ring

3.

Transaxle assembly

Front

JSDIA1935GB

DIFFERENTIAL SIDE OIL SEAL

TM-245

< REMOVAL AND INSTALLATION >

[4AT: RE4F03C]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

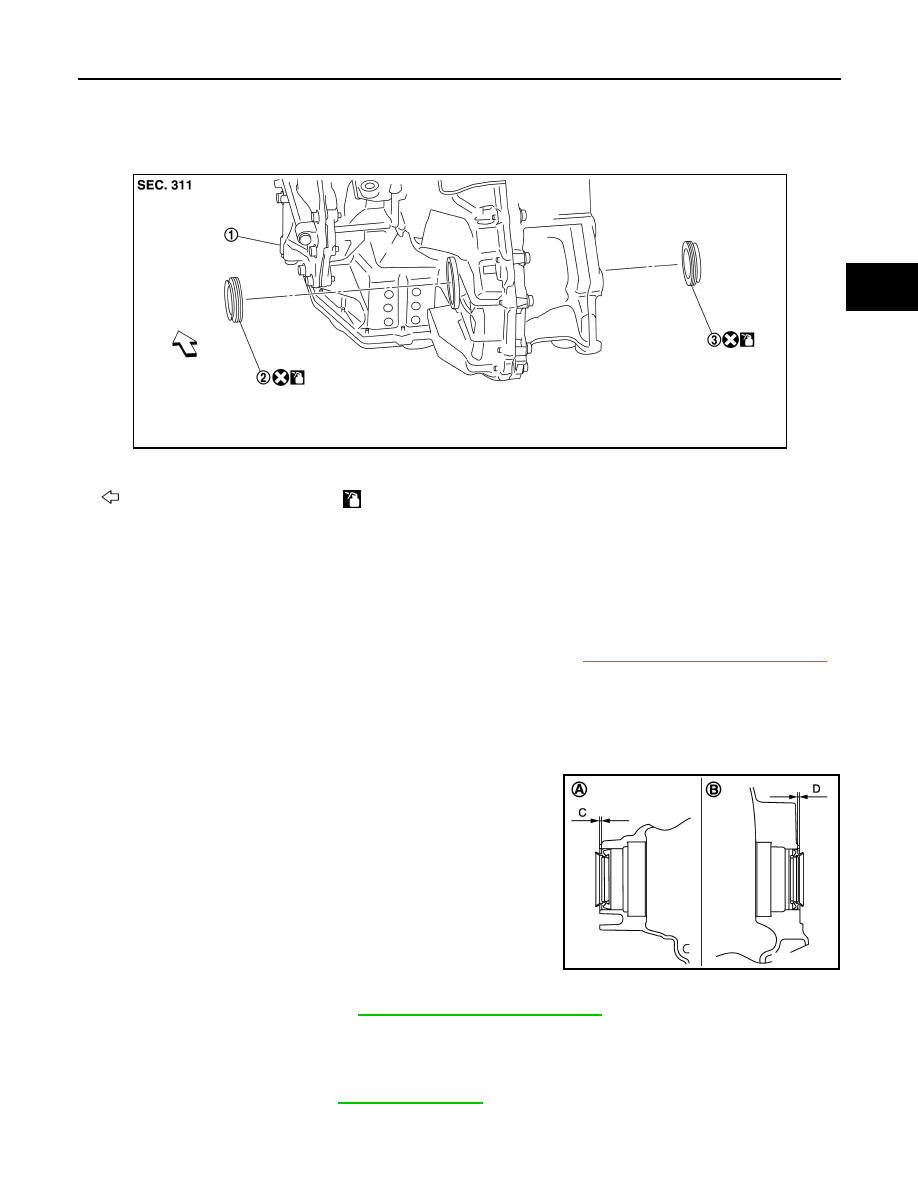

DIFFERENTIAL SIDE OIL SEAL

Exploded View

INFOID:0000000009268034

Removal and Installation

INFOID:0000000009268035

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the front drive shafts from the transaxle assembly. Refer to

FAX-15, "Removal and Installation"

.

2. Remove the differential side oil seal using suitable tool.

CAUTION:

When removing the differential side oil seal, be careful not to scratch the oil seal mating surfaces

of the transaxle case and converter housing.

INSTALLATION

1. Drive the differential side oil seal into the transaxle case side (A)

and converter housing side (B) using suitable tool to the speci-

fied dimension.

CAUTION:

• Be careful not to scratch the lip of the differential side oil seal

when press-fitting it.

• Do not reuse differential side oil seal.

• Apply Genuine NISSAN Matic S ATF to the differential side oil

seal lip and around the oil seal.

2. Install the front drive shaft. Refer to

FAX-15, "Removal and Installation"

.

Inspection and Adjustment

INFOID:0000000009268036

INSPECTION AFTER INSTALLATION

Check for A/T fluid leakage. Refer to

TM-230, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

1.

Transaxle assembly

2.

Differential side oil seal (left side)

3.

Differential side oil seal (right side)

Front

Genuine NISSAN Matic S ATF

JSDIA1936ZZ

Dimension (C)

: 1.8

± 0.5 mm (0.071 ± 0.020 in).

Dimension (D)

: 1.8

± 0.5 mm (0.071 ± 0.020 in).

JSDIA1836ZZ
