TM-218

< DTC/CIRCUIT DIAGNOSIS >

[4AT: RE4F03C]

OVERDRIVE CONTROL SWITCH

OVERDRIVE CONTROL SWITCH

Component Function Check

INFOID:0000000009268004

1.

CHECK O/D INDICATOR LAMP FUNCTION

Check O/D OFF indicator lamp turns ON for approx. 2 seconds when ignition switch turns ON.
Is the inspection results normal?

YES

>> GO TO 2.

NO

>> Go to

TM-220, "Diagnosis Procedure"

.

2.

CHECK O/D SWITCH FUNCTION

1. Shift the selector lever to “D” position.

2. Check that O/D OFF indicator lamp turns ON/OFF when sport mode switch is operated.
Is the inspection results normal?

YES

>> INSPECTION END

NO

>> Go to

TM-218, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009268005

1.

CHECK OVERDRIVE CONTROL SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect A/T shift selector connector.

3. Turn ignition switch ON.

4. Check the voltage between A/T shift selector harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK OVERDRIVE CONTROL SWITCH

Check overdrive control switch. Refer to

TM-219, "Component Inspection (Overdrive Control Switch)"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK GROUND CIRCUIT

Check the continuity between A/T shift selector harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CHECK CIRCUIT BETWEEN COMBINATION METER AND A/T SHIFT SELECTOR (PART 1)

1. Turn ignition switch OFF.

2. Disconnect combination meter connector.

3. Check the continuity between combination meter harness connector terminal and A/T shift selector har-

ness connector terminal.

A/T shift selector harness connector

Voltage

Connector

Terminal

M38

1

2

Approx. 5 V

A/T shift selector harness connector

Ground

Continuity

Connector

Terminal

M38

2

Ground

Existed

OVERDRIVE CONTROL SWITCH

TM-219

< DTC/CIRCUIT DIAGNOSIS >

[4AT: RE4F03C]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace the malfunctioning parts.

5.

CHECK CIRCUIT BETWEEN COMBINATION METER AND A/T SHIFT SELECTOR (PART 2)

Check the continuity between combination meter harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace the malfunctioning parts.

6.

CHECK COMBINATION METER INPUT SIGNAL

1. Connect all of the disconnected connectors.

2. Turn ignition switch ON.

3. Select “Data Monitor” in “METER/M&A”.

4. Select “O/D OFF SW”.

5. Check that “O/D OFF SW” turns ON/OFF when overdrive control switch is operated. Refer to

MWI-22,

"Reference Value"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace combination meter. Refer to

MWI-53, "Removal and Installation"

.

Component Inspection (Overdrive Control Switch)

INFOID:0000000009268006

1.

CHECK OVERDRIVE CONTROL SWITCH

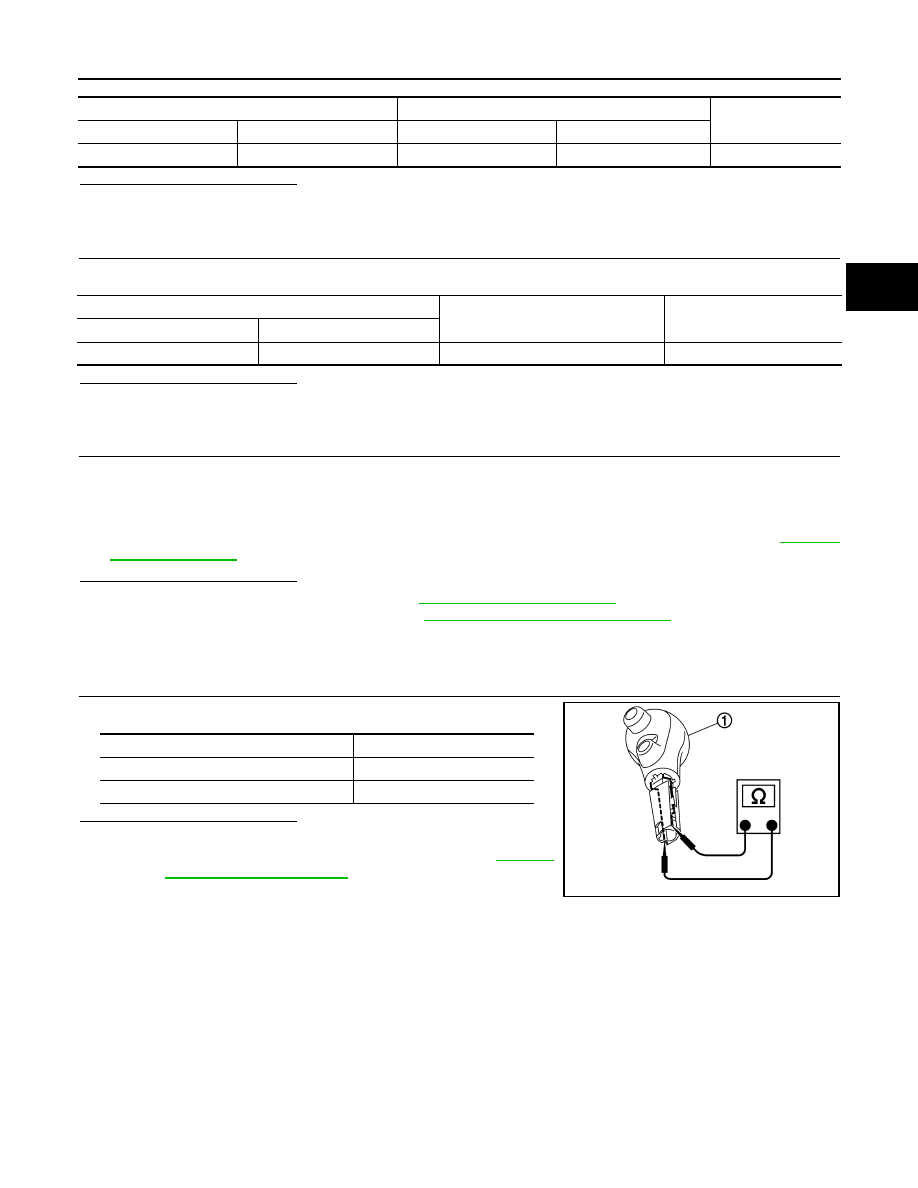

Check the continuity between wires of selector lever knob (1)

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace the selector lever knob. Refer to

TM-233,

"Removal and Installation"

.

Combination meter harness connector

A/T shift selector harness connector

Continuity

Connector

Terminal

Connector

Terminal

M24

28

M38

1

Existed

Combination meter harness connector

Ground

Continuity

Connector

Terminal

M24

28

Ground

Not existed

Condition

Continuity

Overdrive control switch is depressed

Existed

Overdrive control switch is released

Not existed

JSDIA1969ZZ

TM-220

< DTC/CIRCUIT DIAGNOSIS >

[4AT: RE4F03C]

OD OFF INDICATOR LAMP

OD OFF INDICATOR LAMP

Component Function Check

INFOID:0000000009268007

1.

CHECK O/D OFF INDICATOR LAMP FUNCTION

Check O/D OFF indicator lamp turns ON for approx. 2 seconds when ignition switch turns ON.
Is the inspection results normal?

YES

>> INSPECTION END

NO

>> Go to

TM-220, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009268008

1.

CHECK DTC (TCM)

With CONSULT

1. Turn ignition switch ON.

2. Check “Self Diagnostic Results” in “TRANSMISSION”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

TM-109, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK DTC (COMBINATION METER)

With CONSULT

Check “Self Diagnostic Results” in “METER/M&A”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

MWI-25, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK COMBINATION METER INPUT SIGNAL

With CONSULT

1. Shift the selector lever to “D” position.

2. Select “Data Monitor” in “METER/M&A”.

3. Select “O/D OFF IND”.

4. Check that “O/D OFF IND” turns ON/OFF when overdrive control switch is operated. Refer to

MWI-22,

"Reference Value"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-53, "Removal and Installation"

.

NO

>> GO TO 4.

4.

CHECK TCM INPUT/OUTPUT SIGNAL

With CONSULT

1. Select “Data Monitor” in “TRANSMISSION”.

2. Select “OD CONT SW”.

3. Check that “OD CONT SW” turns ON/OFF when overdrive control switch is operated. Refer to

TM-99,

"Reference Value"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-53, "Removal and Installation"

.

NO

>> Check overdrive control switch. Refer to

TM-218, "Diagnosis Procedure"

.

SHIFT POSITION INDICATOR CIRCUIT

TM-221

< DTC/CIRCUIT DIAGNOSIS >

[4AT: RE4F03C]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT POSITION INDICATOR CIRCUIT

Component Parts Function Inspection

INFOID:0000000009268009

1.

CHECK SHIFT POSITION INDICATOR

1. Start the engine.

2. Shift the selector lever.

3. Check that the selector lever position and the shift position indicator on the combination meter are identi-

cal.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

TM-221, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009268010

1.

CHECK TCM INPUT/OUTPUT SIGNAL

With CONSULT

1. Start the engine.

2. Select “Data Monitor” in “TRANSMISSION”.

3. Select “RANGE”.

4. Shift the selector lever.

5. Check that selector lever position, “RANGE” on the CONSULT screen, and shift position indicator display

on the combination meter are identical.

 Is the check result normal?

YES

>> INSPECTION END

NO-1 (“RANGE” is changed but is not displayed on the shift position indicator.>>Check

“Self

Diagnostic

Result” in “TRANSMISSION”.

NO-2 (“RANGE” and shift position indicator are different.)>>Check “Self Diagnostic Result” in “TRANSMIS-

SION”.

NO-3 (Specific“RANGE” is not displayed on the shift position indicator.)>>Check “Self Diagnostic Result” in

“METER/M&A”.
