SEC-24
< SYSTEM DESCRIPTION >

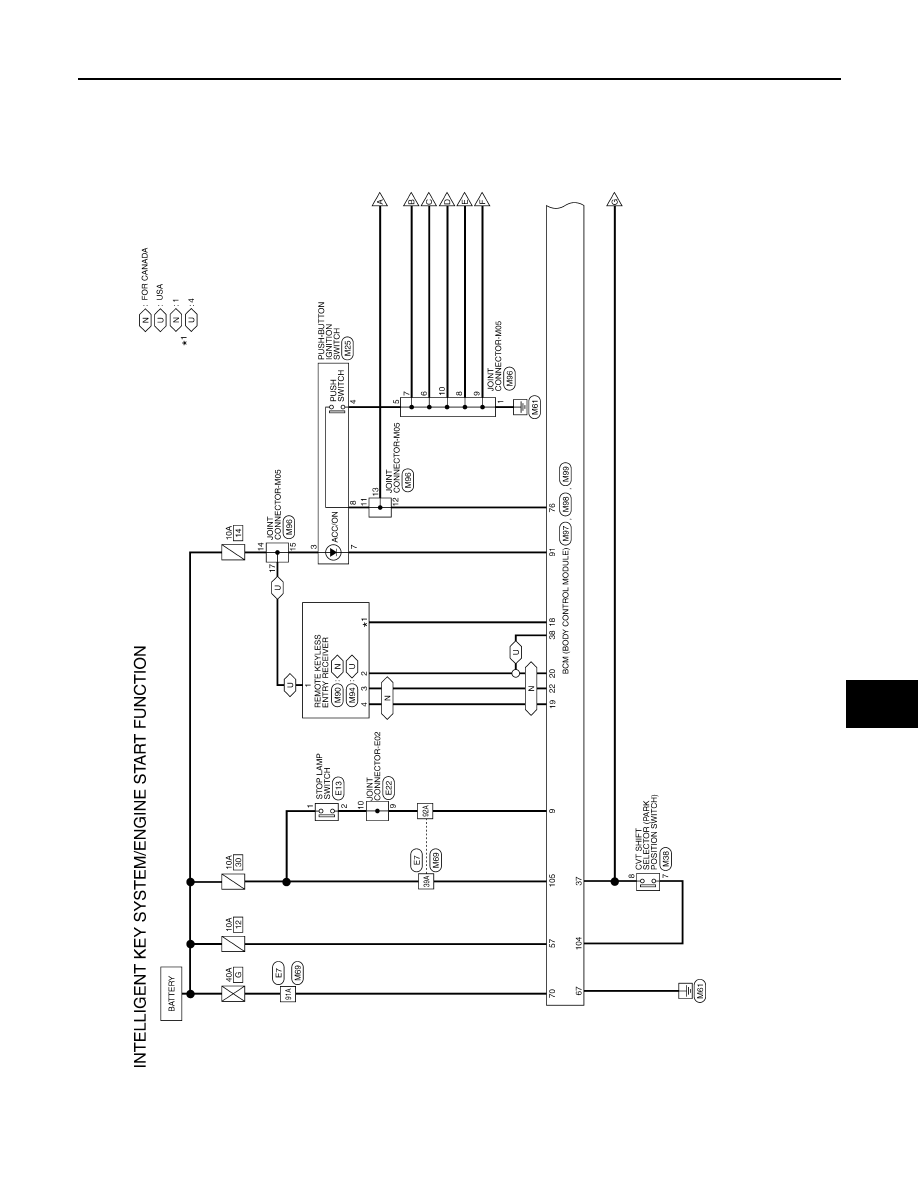

[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
*: Initial Setting
THEFT ALM
THEFT ALM : CONSULT Function (BCM - THEFT)
INFOID:0000000009533723
DATA MONITOR
ACTIVE TEST
PANIC ALARM SET
MODE 3
1.5 sec
Intelligent Key panic alarm button setting.
MODE 2
OFF
MODE 1*
0.5 sec
LO- BATT OF KEY FOB WARN
On*
Intelligent Key low battery warning ON.
Off
Intelligent Key low battery warning OFF.
AUTO LOCK SET
MODE7
5 min
Auto door lock time setting.
MODE6
4 min
MODE5
3 min
MODE4
2 min
MODE3*
1 min
MODE2
30 sec
MODE1
Off
TRUNK OPEN DELAY
MODE 3
1.5 sec
Intelligent Key trunk open button setting.
MODE 2
OFF
MODE 1*
0.5 sec
Support Item
Setting
Description
Monitored Item
Description
REQ SW -DR [On/Off]
Indicates condition of door request switch LH.
REQ SW -AS [On/Off]
Indicates condition of door request switch RH.
REQ SW -BD/TR [On/Off]
Indicates condition of trunk open switch.
PUSH SW [On/Off]
Indicates condition of push-button ignition switch.
DOOR SW-DR [On/Off]
Indicates condition of front door switch LH.
DOOR SW-AS [On/Off]
Indicates condition of front door switch RH.
DOOR SW-RR [On/Off]
Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off]
Indicates condition of rear door switch LH.
DOOR SW-BK [On/Off]
Indicates condition of trunk switch.
CDL LOCK SW [On/Off]
Indicates condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW [On/Off]
Indicates condition of unlock signal from door lock and unlock switch.
KEY CYL LK-SW [On/Off]
Indicates condition of lock signal from door key cylinder switch.
KEY CYL UN-SW [On/Off]
Indicates condition of unlock signal from door key cylinder switch.
KEY CYL SW-TR [On/Off]
Indicates condition of trunk key cylinder switch.
TR/BD OPEN SW [On/Off]
Indicates condition of trunk open switch.
TRNK/HAT MNTR [On/Off]
Indicates condition of trunk room lamp switch.
RKE-LOCK [On/Off]
Indicates condition of lock signal from Intelligent Key.
RKE-UNLOCK [On/Off]
Indicates condition of unlock signal from Intelligent Key.
RKE-TR/BD [On/Off]
Indicates condition of trunk open signal from Intelligent Key.
