Nissan Versa Sedan. Manual - part 594
MWI

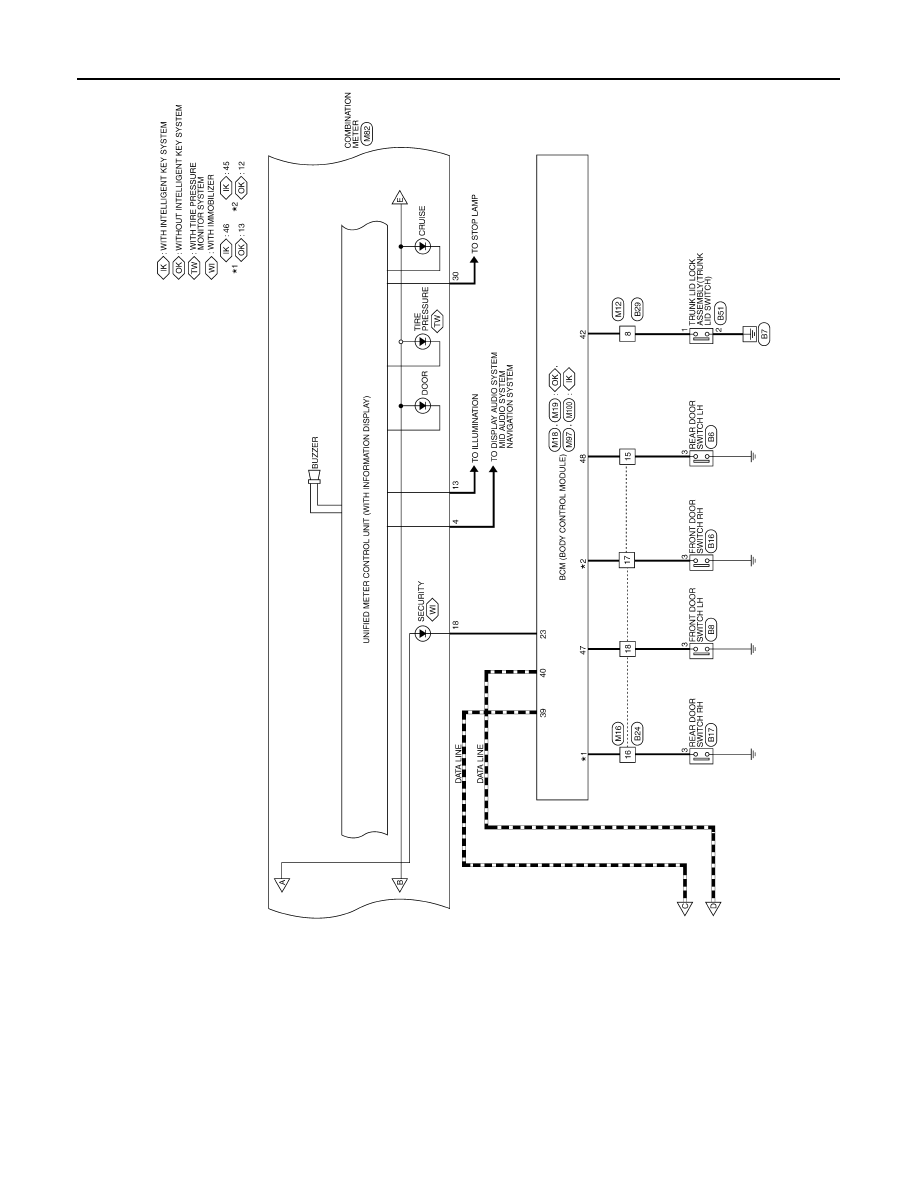

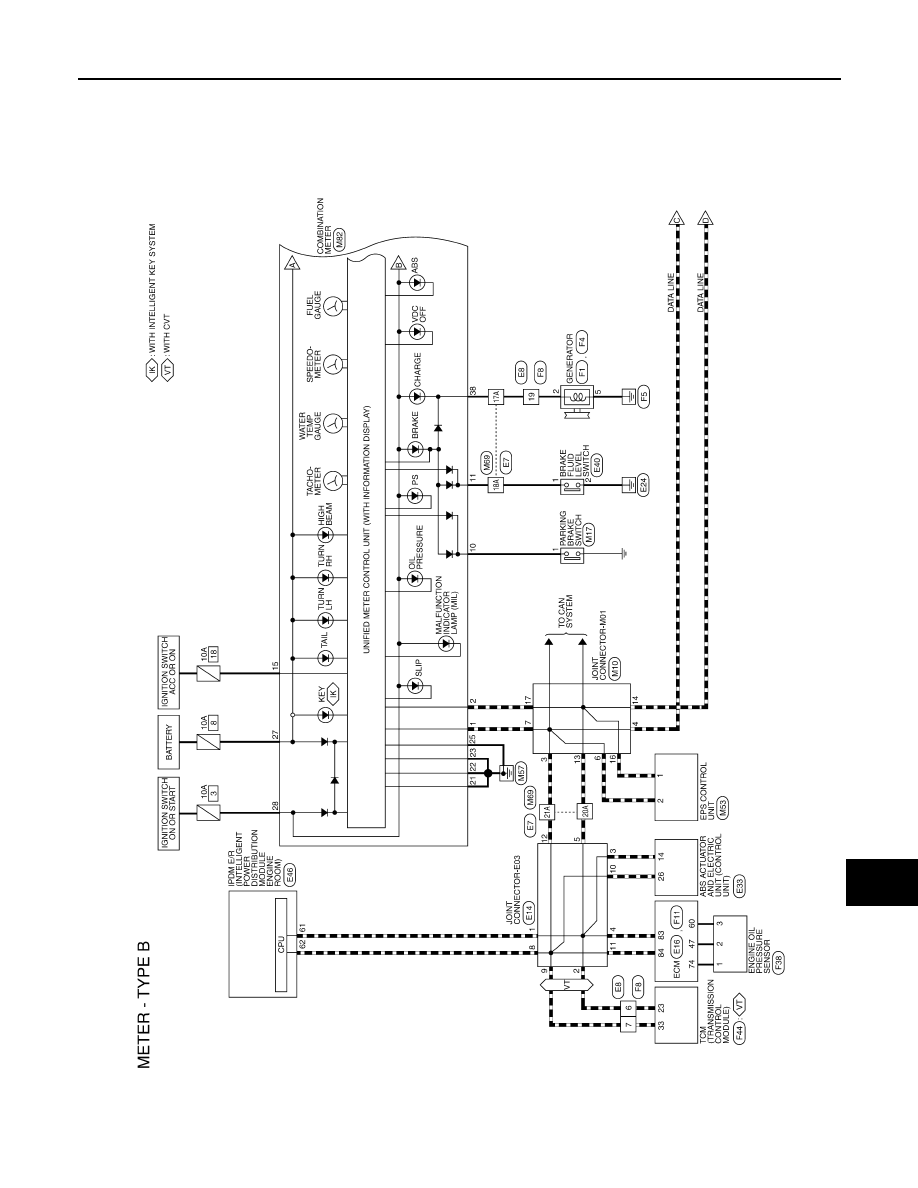

COMBINATION METER
MWI-75
< ECU DIAGNOSIS INFORMATION >
[TYPE B]
C
D
E
F
G
H
I
J
K
L
M
B
A
O
P
Fail-Safe
INFOID:0000000009266519
The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.
DTC Index
INFOID:0000000009266520
Function
Specifications
Speedometer
Reset to zero by suspending communication.
Tachometer
Illumination control
When suspending communication, changes to nighttime mode.
Shift position indicator
When suspending communication, not indicate.
Information display
Trip com-
puter
Current fuel consump-
tion
• When reception time of an abnormal signal is 2 seconds or
less, the last received datum is used for calculation to indi-
cate the result.
• When reception time of an abnormal signal is more than two
seconds, the last result calculated during normal condition is
indicated.
Average fuel consump-
tion
Distance to empty
Engine coolant temperature gauge
Reset to zero by suspending communication.
Odo/trip meter
An indicated value is maintained at communications blackout.
Buzzer
The buzzer turns OFF by suspending communication.
Warning lamp/indicator lamp
ABS warning lamp
The lamp turns ON by suspending communication.
Malfunction indicator lamp (MIL)
EPS warning lamp
Brake warning lamp
High beam indicator lamp
The lamp turns OFF by suspending communication.
Turn signal indicator lamp
Door warning lamp
Light indicator lamp
Oil pressure warning lamp
Key warning lamp
O/D OFF indicator lamp
Shift P warning lamp
Engine start operation indicator lamp
Display contents of CONSULT
Diagnostic item is detected when...
Refer to
CAN COMM CIRCUIT
[U1000]
When combination meter is not transmitting or receiving CAN communica-
tion signal for 2 seconds or more.
MWI-89, "Diagno-
sis Procedure"
CONTROL UNIT (CAN)
[U1010]
When detecting error during the initial diagnosis of the CAN controller of
combination meter.
MWI-90, "Diagno-
sis Procedure"
VEHICLE SPEED
[B2205]
The abnormal vehicle speed signal is input from the ABS actuator and elec-
tric unit (control unit) for 2 seconds or more.
ENGINE SPEED
[B2267]
If ECM continuously transmits abnormal engine speed signals for 2 seconds
or more.
MWI-92, "Diagno-
sis Procedure"
WATER TEMP
[B2268]
If ECM continuously transmits abnormal engine coolant temperature signals
for 60 seconds or more.
