HIGH WATER TEMPERATURE WARNING LAMP : System Description

INFOID:0000000009266572

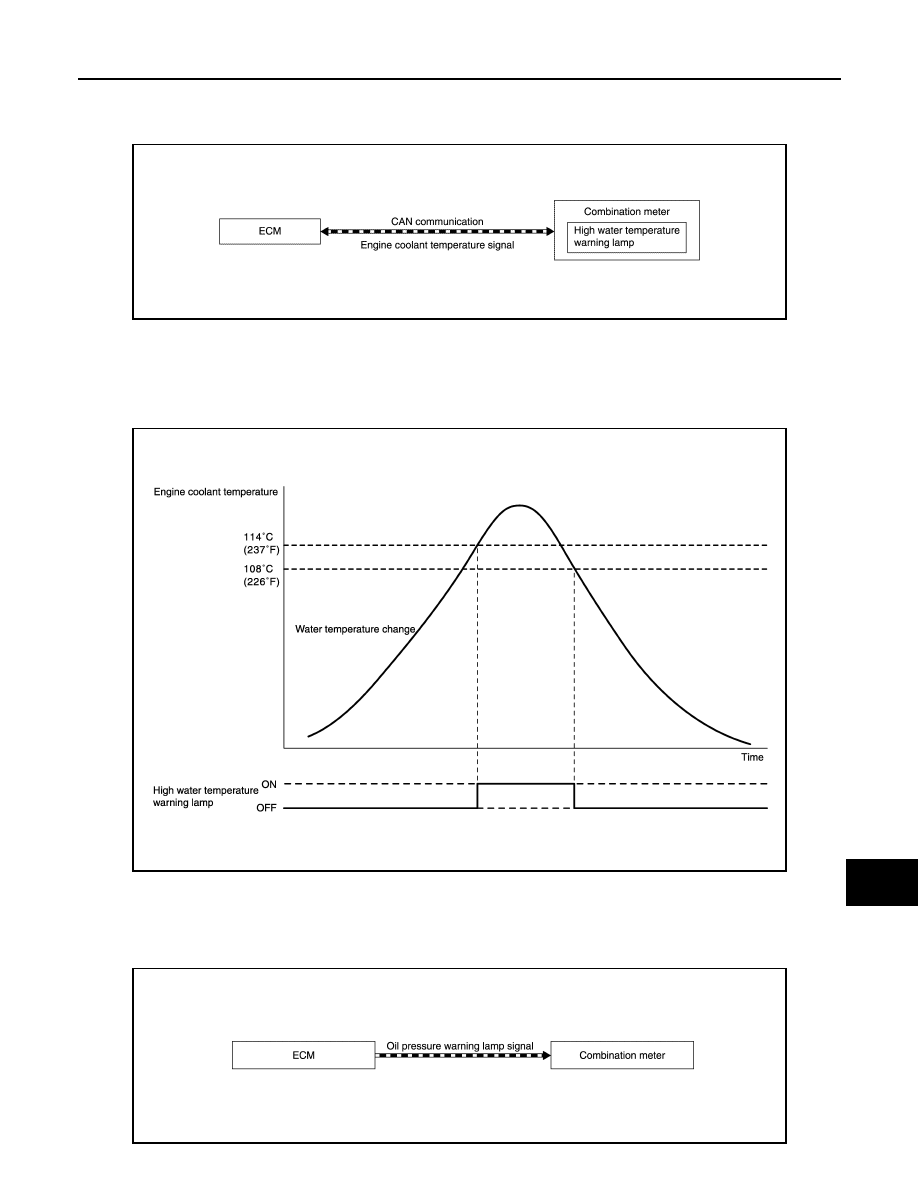

SYSTEM DIAGRAM

DESCRIPTION

The ECM monitors the engine coolant temperature from the engine coolant temperature sensor. When the

coolant temperature is above the specified value, the ECM sends a CAN communication signal to the combi-

nation meter turning on the high temperature warning lamp.

Timing Chart

OIL PRESSURE WARNING LAMP
OIL PRESSURE WARNING LAMP : System Diagram

INFOID:0000000009266573

SYSTEM DIAGRAM

JSNIA4067GB

JSNIA3281GB

JSNIA4039GB

MWI-16

< SYSTEM DESCRIPTION >

[TYPE A]

SYSTEM

OIL PRESSURE WARNING LAMP : System Description

INFOID:0000000009266574

DESCRIPTION

The combination meter turns the oil pressure warning lamp ON when receiving a signal from the ECM via

CAN communication.

METER ILLUMINATION
METER ILLUMINATION : System Description

INFOID:0000000009266575

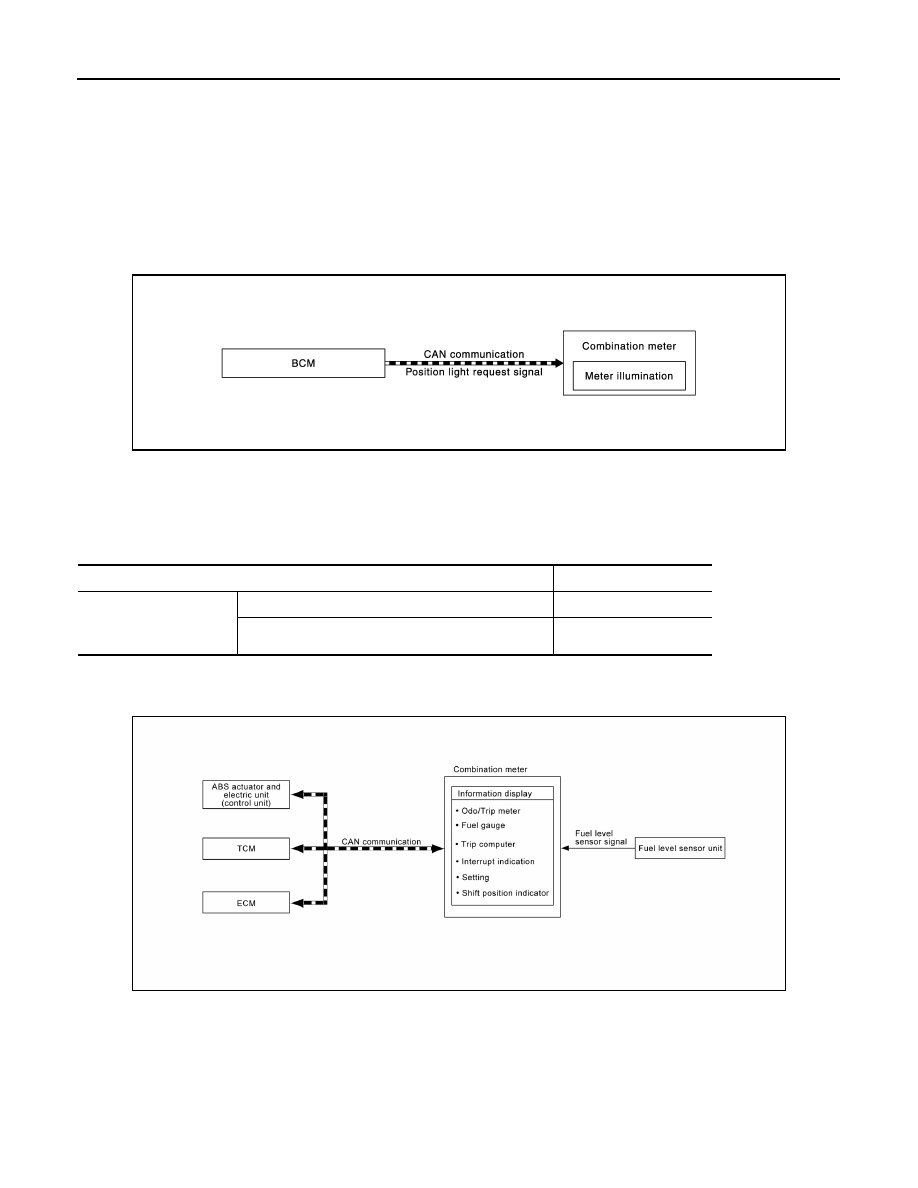

SYSTEM DIAGRAM

DESCRIPTION

Meter Illumination Control Function

Meter illumination control is enabled when the meter receives a signal from the BCM that the combination

switch is in the 1st or 2nd position, the meter switches from Daytime mode to Nighttime mode.

INFORMATION DISPLAY
INFORMATION DISPLAY : System Diagram

INFOID:0000000009266576

INFORMATION DISPLAY : System Description

INFOID:0000000009266577

DESCRIPTION

• The combination meter receives signals from switches, sensors and modules for operating the following

functions on  the information display.

- Odo/trip meter

- Fuel gauge

JSNIA2919GB

Condition

Meter illumination

Combination
switch
(lighting switch)

1ST or 2ND position

Nighttime mode

Off

Daytime mode

AWNIA2459GB

MWI

SYSTEM

MWI-17

< SYSTEM DESCRIPTION >

[TYPE A]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

- Trip computer

- Interrupt indication

- Meter illumination level

- Setting

- Low fuel warning

- Loose fuel cap warning

ODO/TRIP METER

The combination meter calculates mileage using the vehicle speed signal from the ABS actuator and electric

unit (control unit) and displays the mileage on the information display.

FUEL GAUGE

Control Outline

The fuel level sensor unit sends a variable resistor signal to the combination meter. The fuel gauge indicates

the approximate fuel level in the fuel tank.

Refuel Control

The unit detects the driver is refueling the vehicle and accelerates the fuel gauge segment movement if the
fuel level changes by 9   (2-3/8 US, 2 lmp gal) or more.

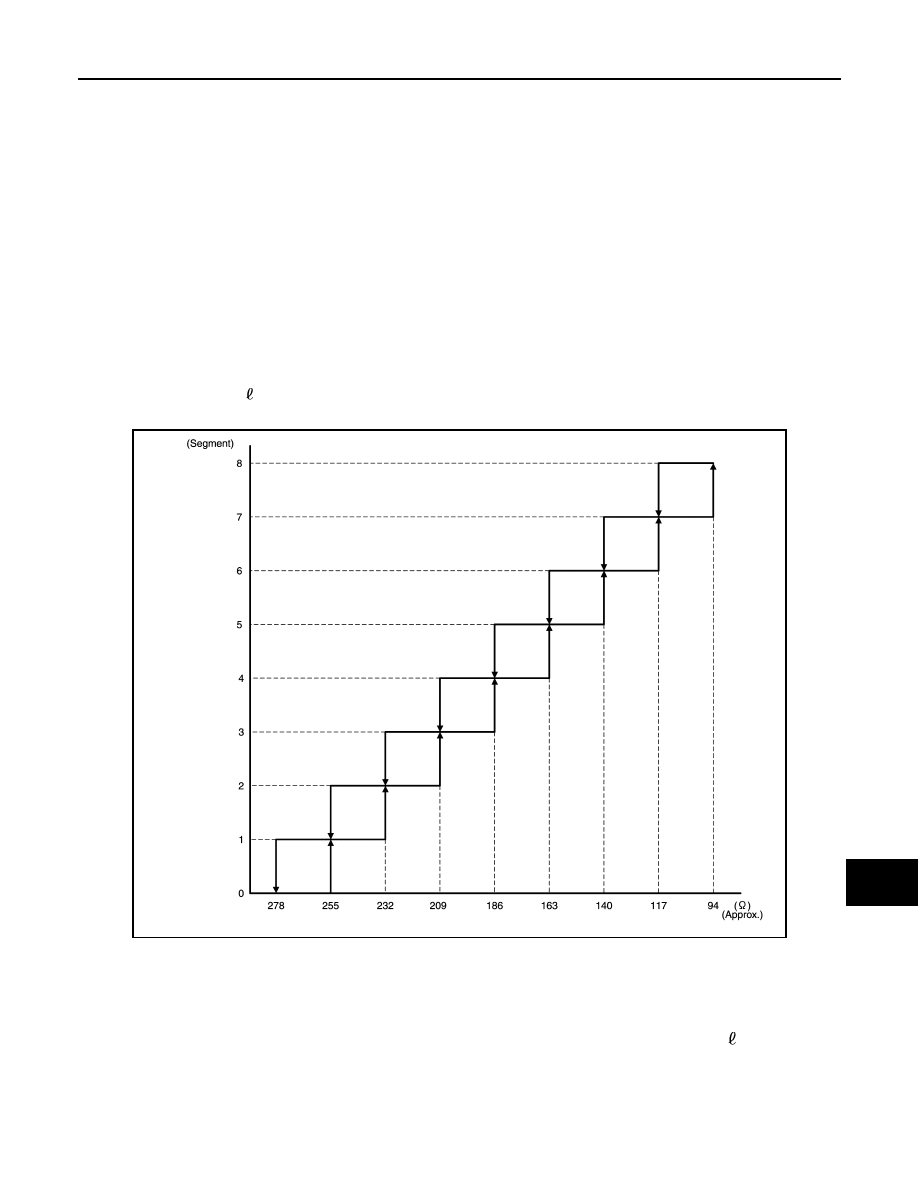

Lighting segment-resistance relationship

INTERRUPT INDICATION

The combination meter may interrupt the current information display with a warning, alert or maintenance

reminder on the information display, based on signals received from each unit and switch.

Low Fuel Warning

The low fuel warning turns ON when the fuel level in the fuel tank reaches approximately 6.3   (1-5/8 US gal,

1-3/8 Imp gal).

LOOSE FUEL CAP WARNING

The LOOSE FUEL CAP message will display in the information display when the fuel-filler cap is not tightened

correctly. The message will turn off as soon as the ECM detects the fuel-filler cap is properly tightened. The

ECM provides a loose fuel cap signal to the combination meter via CAN communication lines.

JSNIA4206GB

MWI-18

< SYSTEM DESCRIPTION >

[TYPE A]

DIAGNOSIS SYSTEM (COMBINATION METER)

DIAGNOSIS SYSTEM (COMBINATION METER)

Diagnosis Description

INFOID:0000000009266578

ON BOARD DIAGNOSIS ITEM

The information display, speedometer and tachometer can be checked in self-diagnosis mode.

NOTE:

• Check combination meter power supply and ground circuits if self-diagnosis mode does not start. Refer to

MWI-94, "COMBINATION METER : Diagnosis Procedure"

. Replace combination meter if power supply and

ground circuits are found to be normal and self-diagnosis mode does not start. Refer to

MWI-104, "Removal

and Installation"

.

• Combination meter self-diagnosis mode will function with the ignition switch in ON. Combination meter self-

diagnosis mode will exit upon turning the ignition switch to OFF.

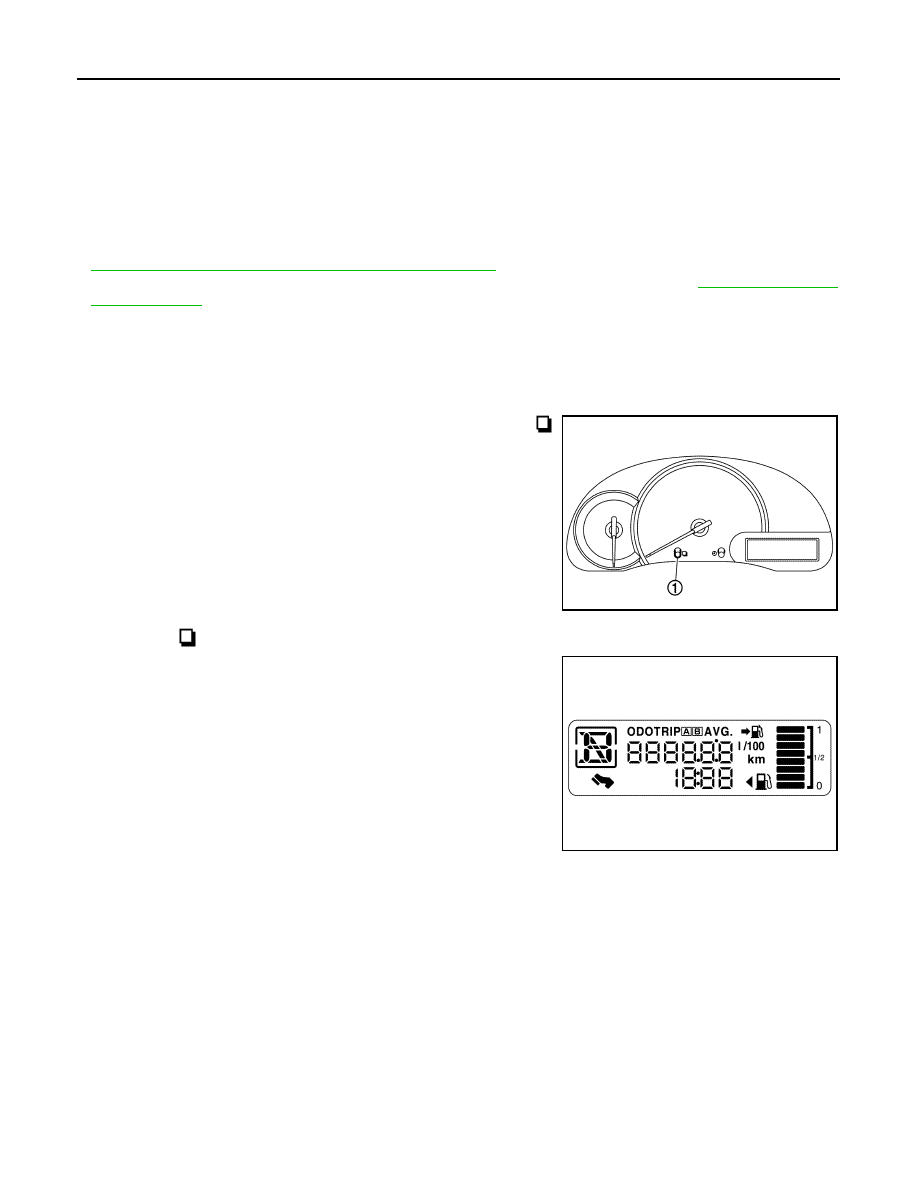

METHOD OF STARTING

1. Turn the ignition switch OFF.

2. Turn the ignition switch ON while pressing and holding the

switch (1) for 0.8 seconds or more.

3. Press the   switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)
4. The combination meter is turned to self-diagnosis mode.

• All segments of the information display are displayed.

JSNIA3917ZZ

JSNIA3891ZZ
