Nissan Versa Sedan. Manual - part 502





INL-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009269222

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

  —
(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

COMPONENT PARTS

INL-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

INTERIOR ROOM LAMP CONTROL SYSTEM

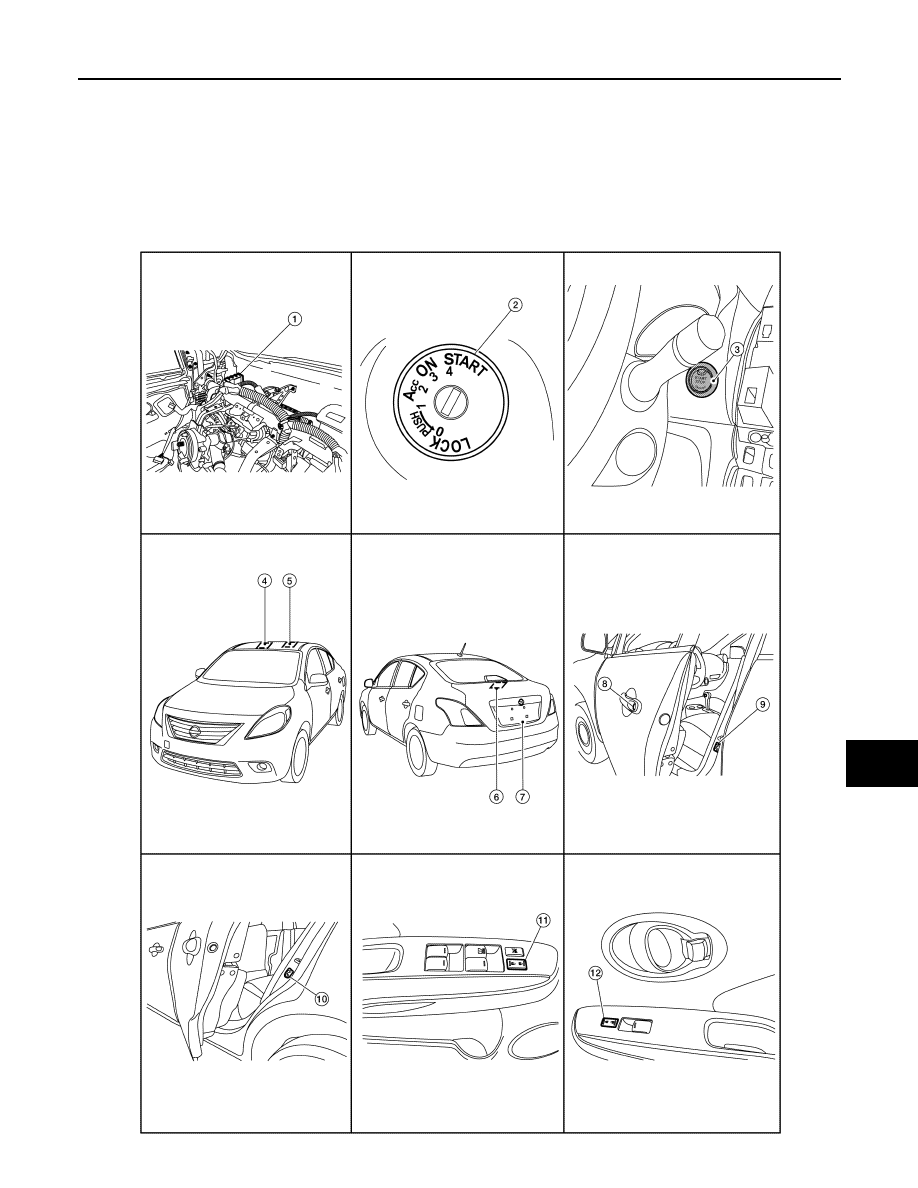

INTERIOR ROOM LAMP CONTROL SYSTEM : Component Parts Location

INFOID:0000000009269223

AWLIA2006ZZ

INL-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

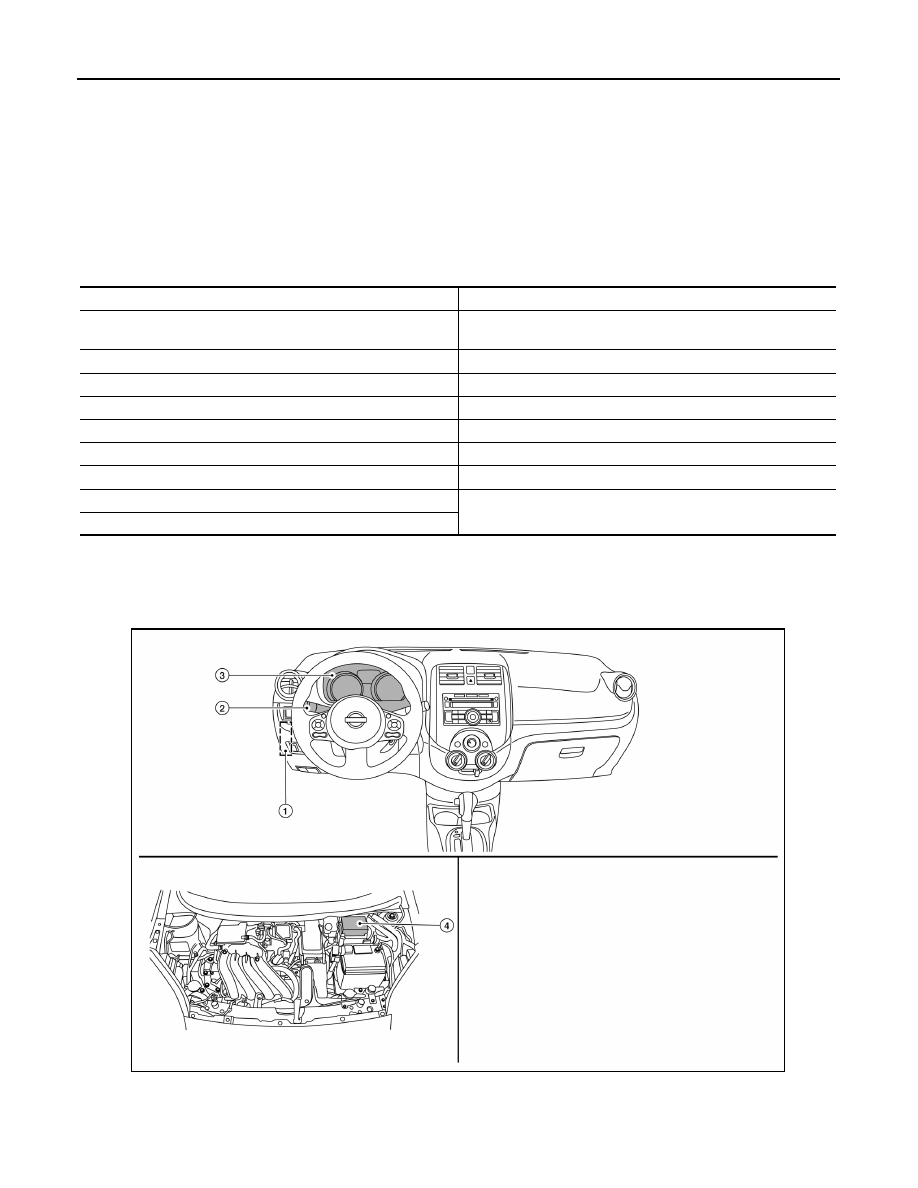

INTERIOR ROOM LAMP CONTROL SYSTEM : Component Description

INFOID:0000000009269224

ILLUMINATION CONTROL SYSTEM
ILLUMINATION CONTROL SYSTEM : Component Parts Location

INFOID:0000000009269225

1.

BCM (view with instrument panel removed) 2.

Key switch
(without Intelligent Key)

3.

Push-button ignition switch
(with Intelligent Key)

4.

Map lamp (if equipped)

5.

Interior room lamp

6.

Trunk room lamp

7.

Trunk lid lock assembly (with Intelligent Key)
Trunk lid switch (without Intelligent Key)

8.

Front door lock key cylinder switch LH 9.

Front door switch LH (RH similar)

10. Rear door switch LH (RH similar)

11. Main power window and door lock/un-

lock switch

12.  Power window and door lock/un-

lock switch RH

Part name

Description

BCM

Provides power and ground and controls timer functions for the in-
terior room lamp, map lamp (if equipped) and trunk room lamp.

Push-button ignition switch (with Intelligent Key)

Provides ignition switch status to the BCM.

Key switch (without Intelligent Key)

Provides key in ignition switch status to the BCM.

Door switches

Provides door OPEN/CLOSED status to the BCM.

Main power window and door lock/unlock switch

Provides door lock/unlock switch LH status to the BCM.

Power window and door lock/unlock switch RH

Provides door lock/unlock switch RH status to the BCM.

Front door lock key cylinder switch LH

Provides door lock/unlock switch LH status to the BCM.

Trunk lid lock assembly (with Intelligent Key)

Provides trunk lid OPEN/CLOSED status to the BCM.

Trunk lid switch (without Intelligent Key)

1.

BCM (located behind left side of instru-
ment panel)

2.

Combination switch (lighting and turn
signal switch)

3.

Combination meter (illumination con-
trol switch)

4.

IPDM E/R

ALLIA1029ZZ

COMPONENT PARTS

INL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ILLUMINATION CONTROL SYSTEM : Component Description

INFOID:0000000009269226

Part name

Description

BCM

The BCM monitors the combination switch (lighting and turn sig-
nal switch) position. The BCM requests, via CAN communication,
that the IPDM E/R activate the tail lamp relay.

IPDM E/R

The IPDM E/R activates the tail lamp relay based on inputs re-
ceived from the BCM via the CAN communication network.

Combination meter (illumination control switch)

The illumination control switch is a part of the combination meter.
The combination meter controls illumination intensity by varying
resistance to the illumination lamps based on the illumination con-
trol switch position.

Combination switch (lighting and turn signal switch)

The combination switch (lighting and turn signal switch) provides
input to the BCM about the combination switch (lighting and turn
signal switch) position.
