WINDSHIELD GLASS

GW-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REMOVAL AND INSTALLATION

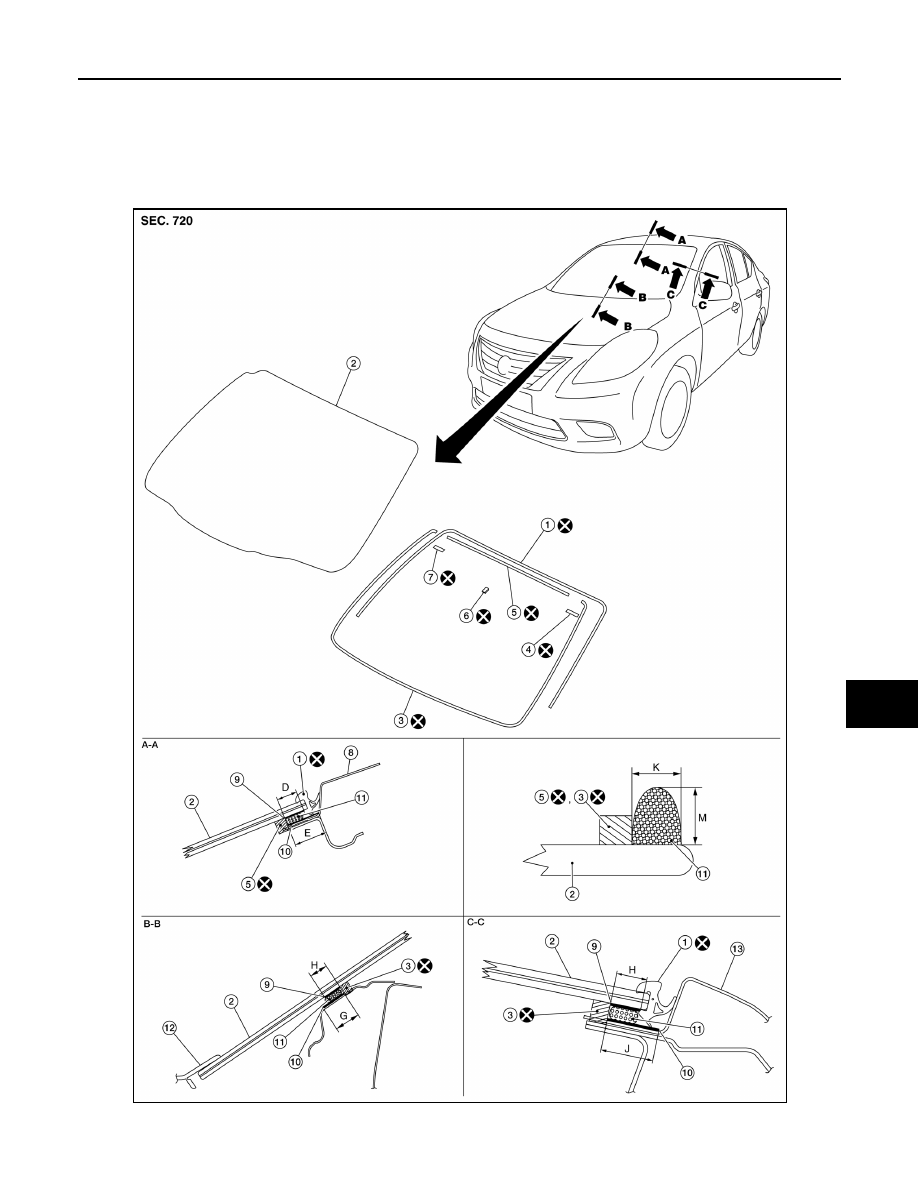

WINDSHIELD GLASS

Exploded View

INFOID:0000000009267749

AWKIA1888ZZ

GW-16

< REMOVAL AND INSTALLATION >

WINDSHIELD GLASS

Unit: mm (in)

Removal and Installation

INFOID:0000000009267750

REMOVAL

1. Remove front pillar finishers (LH/RH). Refer to

INT-19, "FRONT PILLAR FINISHER : Removal and Instal-

lation"

.

2. Partially remove the headlining (front edge). Refer to

INT-29, "Removal and Installation"

.

3. Remove cowl top covers. Refer to

EXT-24, "Removal and Installation"

.

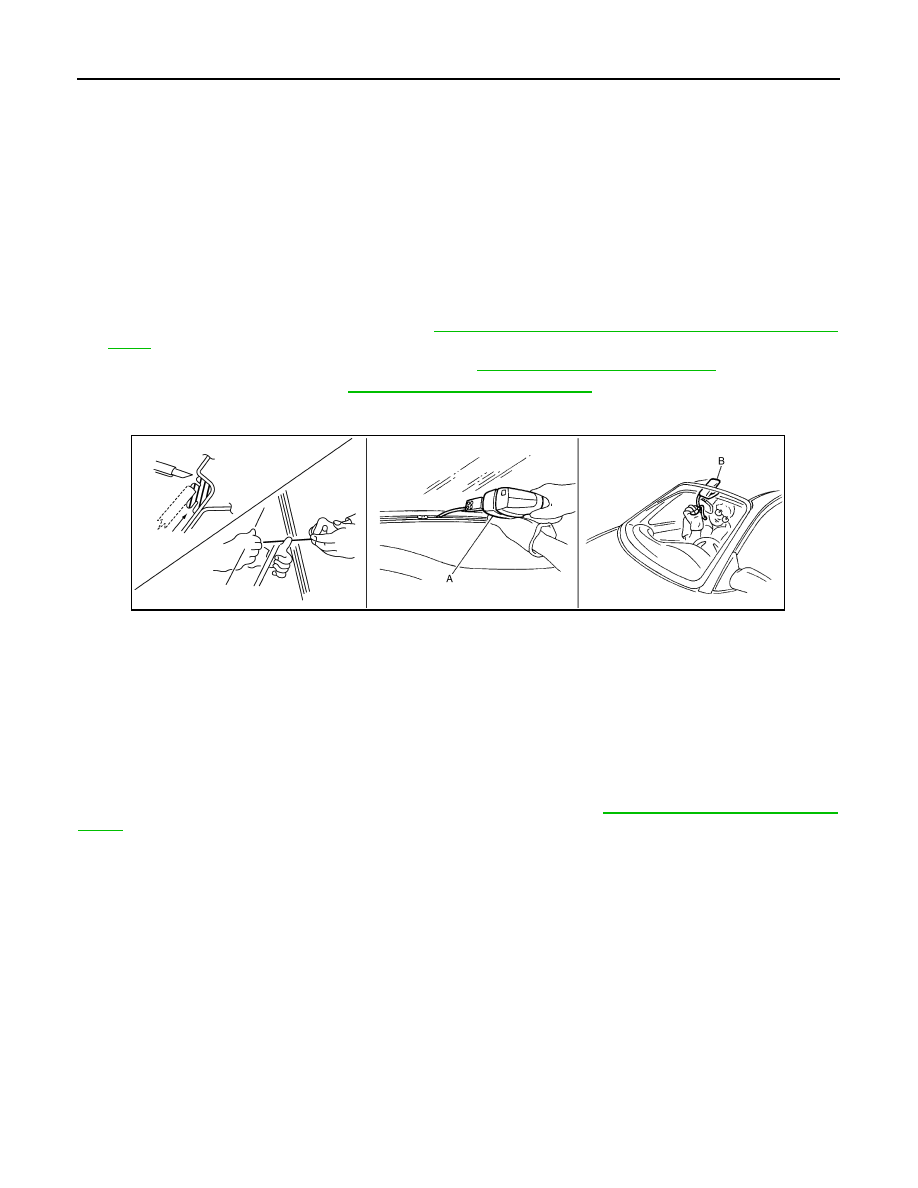

4. Remove glass using piano wire or power cutting tool (A) and an inflatable pump bag (B) after removing

moldings.

• Mark the body and the glass with matching marks if the windshield glass is reused.

• Apply protective tape around the windshield glass to protect the painted surface from damage.

WARNING:

Always wear safety glasses and heavy gloves to help prevent injuries.

CAUTION:

• Be careful not to scratch the glass when removing.

• Be careful not to set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

Installation is in reverse order of removal

CAUTION:

Be sure the adjustments of front wiper arms stop location. Refer to

WW-45, "WIPER ARM : Adjust-

ment"

.

• Use a Genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions pro-

vided with it.

• The start and finish of the adhesive application shall be located at the middle of glass bottom to assure

watertightness.

• Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by

passenger room air pressure when all door windows are closed.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive is completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well-ventilated location. Avoid breathing the vapors. They may be harmful if

inhaled. Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive is completely cured may affect the performance

of the windshield in an accident.

CAUTION:

1.

Windshield glass molding

2.

Windshield glass

3.

Dam sealant rubber (lower)

4.

Windshield glass holder (LH)

5.

Dam sealant rubber (upper)

6.

Inside mirror base

7.

Windshield glass holder (RH)

8.

Roof assembly

9.

Glass primer

10.

Body primer

11. Adhesive

12. Cowl top cover

13.

Body side outer panel

D.

10.0 (0.39)

G.

19.5 (0.77)

H.

8.0 (0.31)

J.

19.0 (0.75)

K

7.0 (0.28)

M

12.0 (0.47)

PIIB5779E

WINDSHIELD GLASS

GW-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

• Do not use an adhesive that is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Adhere carefully to the expiration or manufacture date

printed on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for 24 hours or more or until the urethane adhesive is completely

cured. Curing time varies depending on temperature and humidity. The curing time increases

under lower temperature and lower humidity.

Inspection

INFOID:0000000009267751

REPAIRING WATER LEAKAGE FOR WINDSHIELD GLASS

Leakage can be repaired without removing the windshield glass.

Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.

This can be done by applying water to the windshield area while pushing glass outward.

Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

GW-18

< REMOVAL AND INSTALLATION >

REAR WINDOW GLASS

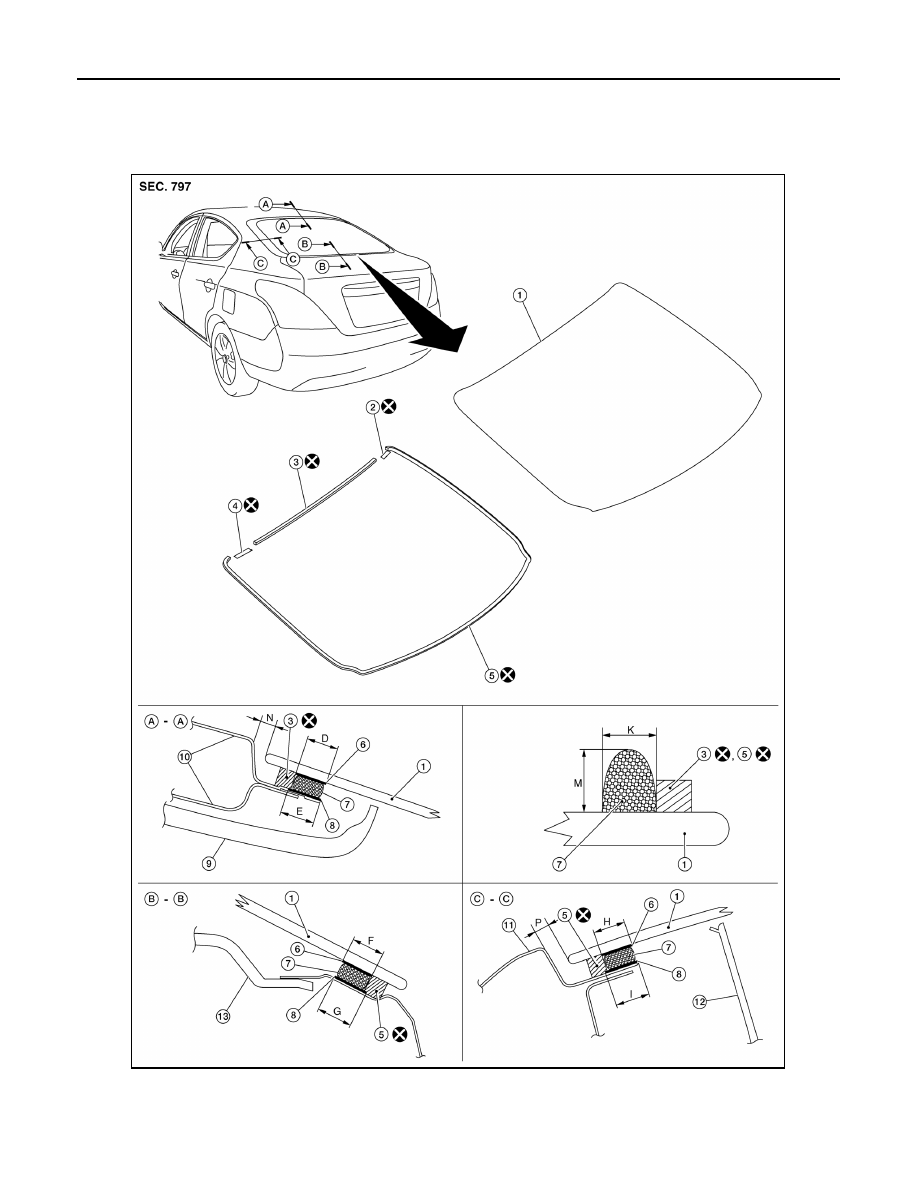

REAR WINDOW GLASS

Exploded View

INFOID:0000000009267752

Unit: mm (in)

1.

Rear window glass

2.

Rear window glass holder (RH)

3.

Dam sealant rubber (upper)

4.

Rear window glass holder (LH)

5.

Dam sealant rubber (lower)

6.

Glass primer

7.

Adhesive

8.

Body primer

9.

Headlining assembly

AWKIA1849ZZ
