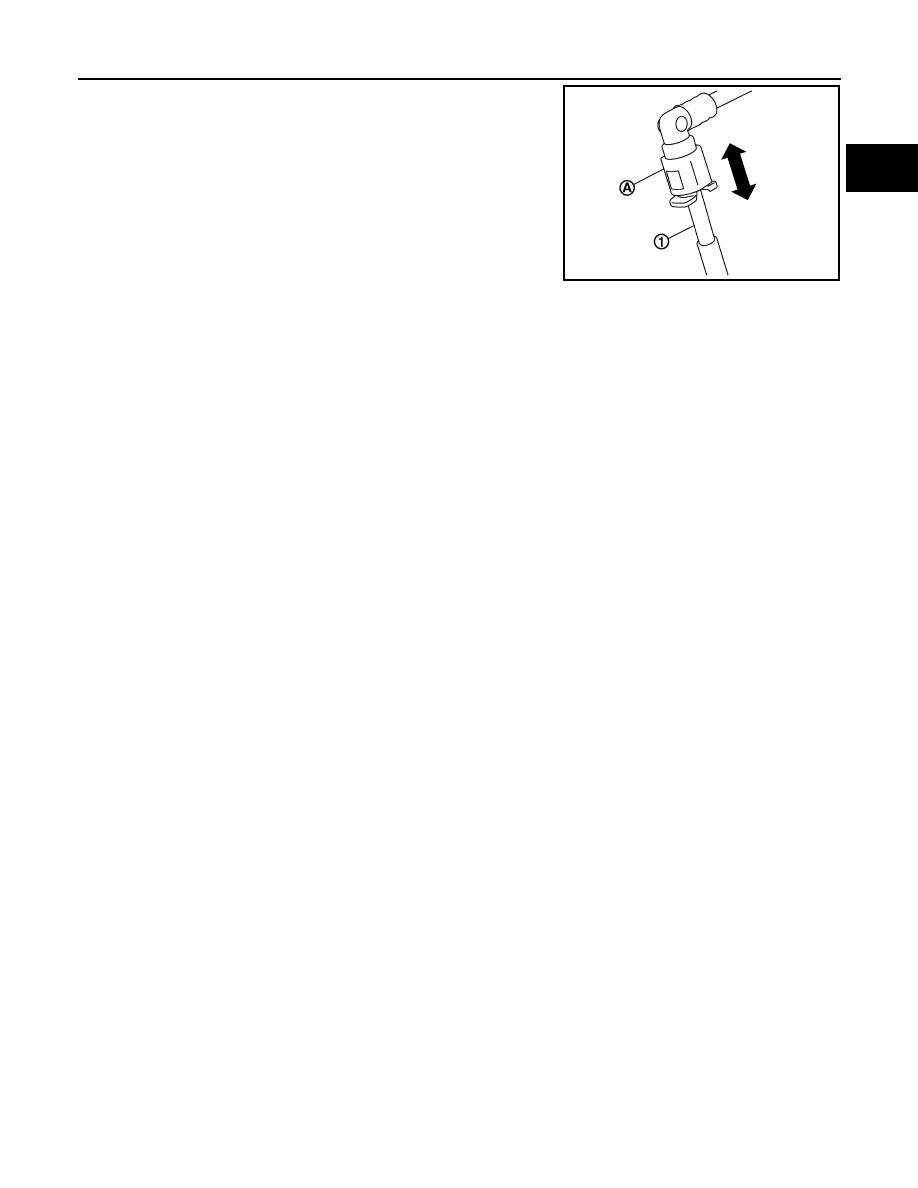

FUEL INJECTOR AND FUEL TUBE EM-43 < REMOVAL AND INSTALLATION > [HR16DE] C D E F G H I J K L M A EM N P O c. After connecting, check that the connection is secure: • Visually confirm that the two retainer tabs are connected to the connector. • With the fuel feed hose not fixed to the clamp, pull quick con- nector (A) hard by hand to check that the quick connector (A) is not disconnected from the centralized underfloor piping (1) and that the quick connector (1) is securely connected. 8. Install remaining parts in the reverse order of removal. INSPECTION AFTER INSTALLATION Check on Fuel Leaks 1. Turn ignition switch ON with the engine stopped. Ensure there are no fuel leaks at fuel pipe connection points. NOTE: Use mirrors for checking points out of clear sight. 2. Start the engine and increase engine speed. Check again that there are no fuel leaks. CAUTION: Do not touch the engine immediately after stopped, as the engine becomes extremely hot. PBIC3795E |
