HOW TO SET SRT CODE

EC-139

< BASIC INSPECTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

• Fuel tank temperature: Less than 4.1 V

Refer to

EC-70, "Reference Value"

.

>> GO TO 6.

6.

PATTERN 2

1. Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then

release the accelerator pedal and keep it released for more than 10 seconds.

2. Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH) again

NOTE:

• Checking the vehicle speed with GST is advised.

• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.

In this case, the time required for diagnosis may be extended.

>> GO TO 7.

7.

PATTERN 3

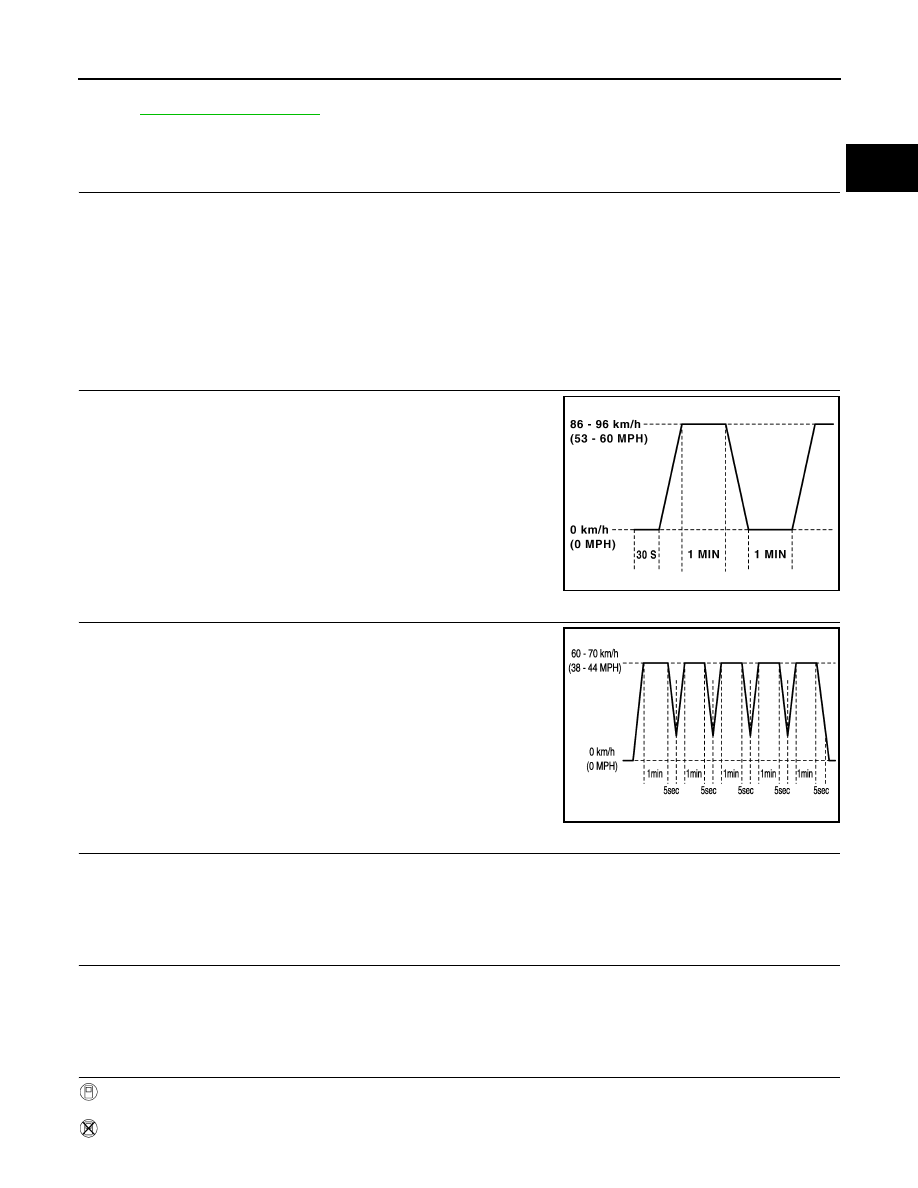

• Operate vehicle following the driving pattern shown in the figure.

- Release the accelerator pedal during deceleration of vehicle speed

from 90 km/h (56 MPH) to 0 km/h (0 MPH).

>> GO TO 8.

8.

PATTERN 4

• Operate vehicle following the driving pattern shown in the figure.

- Drive the vehicle in a proper gear at 60 km/h (38 MPH) and main-

tain the speed.

- Release the accelerator pedal fully at least 5 seconds.

- Repeat the above two steps at least 5 times.

>> GO TO 9.

9.

PATTERN 5

• The accelerator pedal must be held very steady during steady-state driving.

• If the accelerator pedal is moved, the test must be conducted again.

>> GO TO 10.

10.

PATTERN 6

1. Start the engine and wait at least 2 hours .

2. Turn ignition OFF and wait at least 90 minutes.

>> GO TO 11.

11.

CHECK SRT STATUS

WITH CONSULT

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode of “ENGINE” using CONSULT.

WITHOUT CONSULT

PBIB2244E

JSBIA0160GB

EC-140

< BASIC INSPECTION >

[HR16DE]

HOW TO SET SRT CODE

Perform “SRT status” mode with

EC-58, "On Board Diagnosis Function"

.

WITH GST

Select Service $01 with GST.
Is SRT(s) set?

YES

>> GO TO 12.

NO

>> Call TECH LINE or take appropriate action.

12.

CHECK PERMANENT DTC

NOTE:

Permanent DTC cannot be checked with a tool other than CONSULT or GST.

WITH CONSULT

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode of “ENGINE” using CONSULT.

WITH GST

Select Service $01 with GST.
Is permanent DTC(s) detected?

YES

>> Proceed to

EC-147, "Description"

.

NO

>> END

HOW TO ERASE PERMANENT DTC

EC-141

< BASIC INSPECTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

HOW TO ERASE PERMANENT DTC

Description

INFOID:0000000009267046

OUTLINE

When a DTC is stored in ECM

When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same mal-

function is not detected after performing the driving pattern for MIL shutoff three times in a raw.

When a DTC is not stored in ECM

The erasing method depends on a permanent DTC stored in ECM. Refer to the following table.

NOTE:

If the applicable permanent DTC includes multiple groups, perform the procedure of Group B first. If the per-

manent DTC is not erased, perform the procedure of Group A.

×: Applicable —: Not applicable

*: For group, refer to

EC-85, "DTC Index"

.

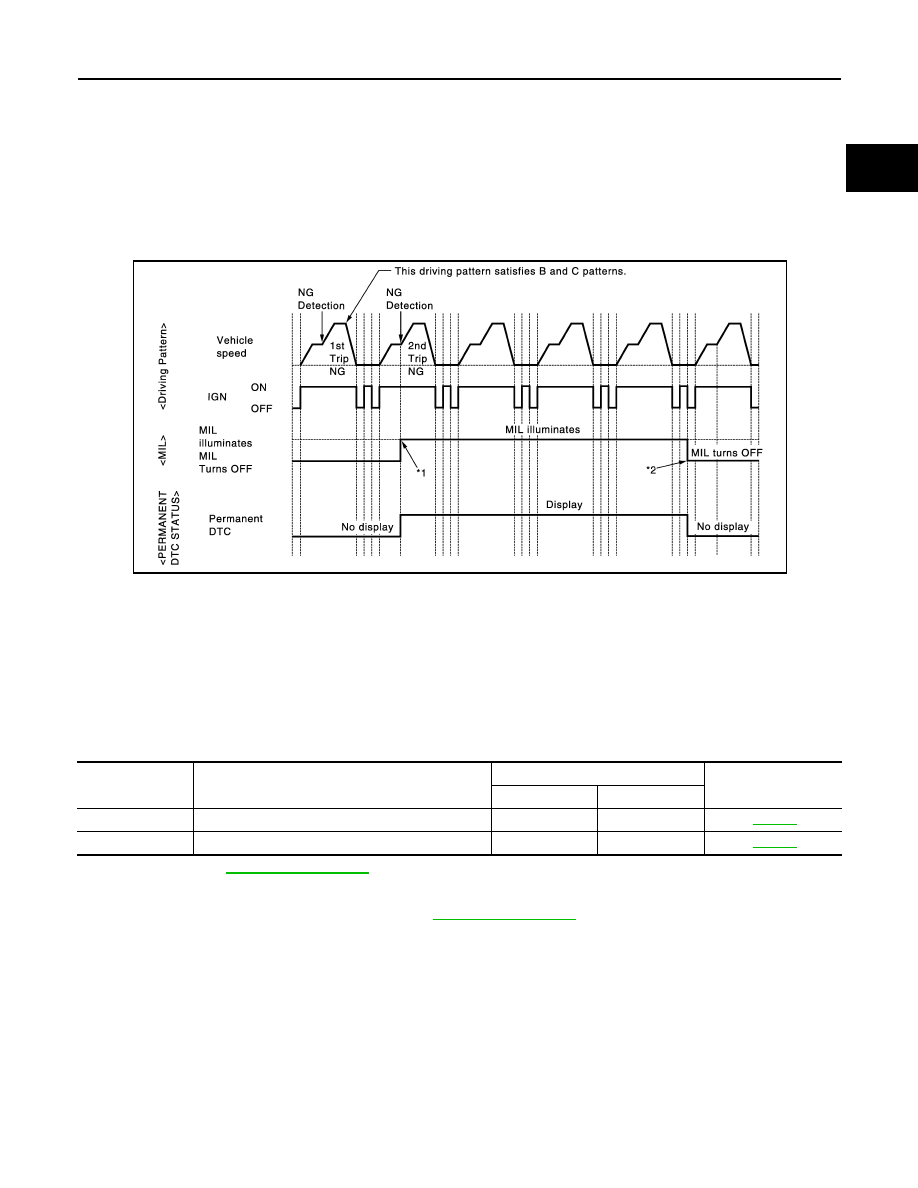

PERMANENT DTC ITEM

For permanent DTC items, MIL turns ON. Refer to

EC-85, "DTC Index"

.

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

*2: MIL will turn off after vehicle is driven

3 times (driving pattern B) without
any malfunctions.

JSBIA0063GB

Group

*

Perform “DTC CONFIRMATION PROCEDURE” for

applicable DTCs.

Driving pattern

Reference

B

D

A

×

—

—

EC-142

B

—

×

×

EC-144

EC-142

< BASIC INSPECTION >

[HR16DE]

HOW TO ERASE PERMANENT DTC

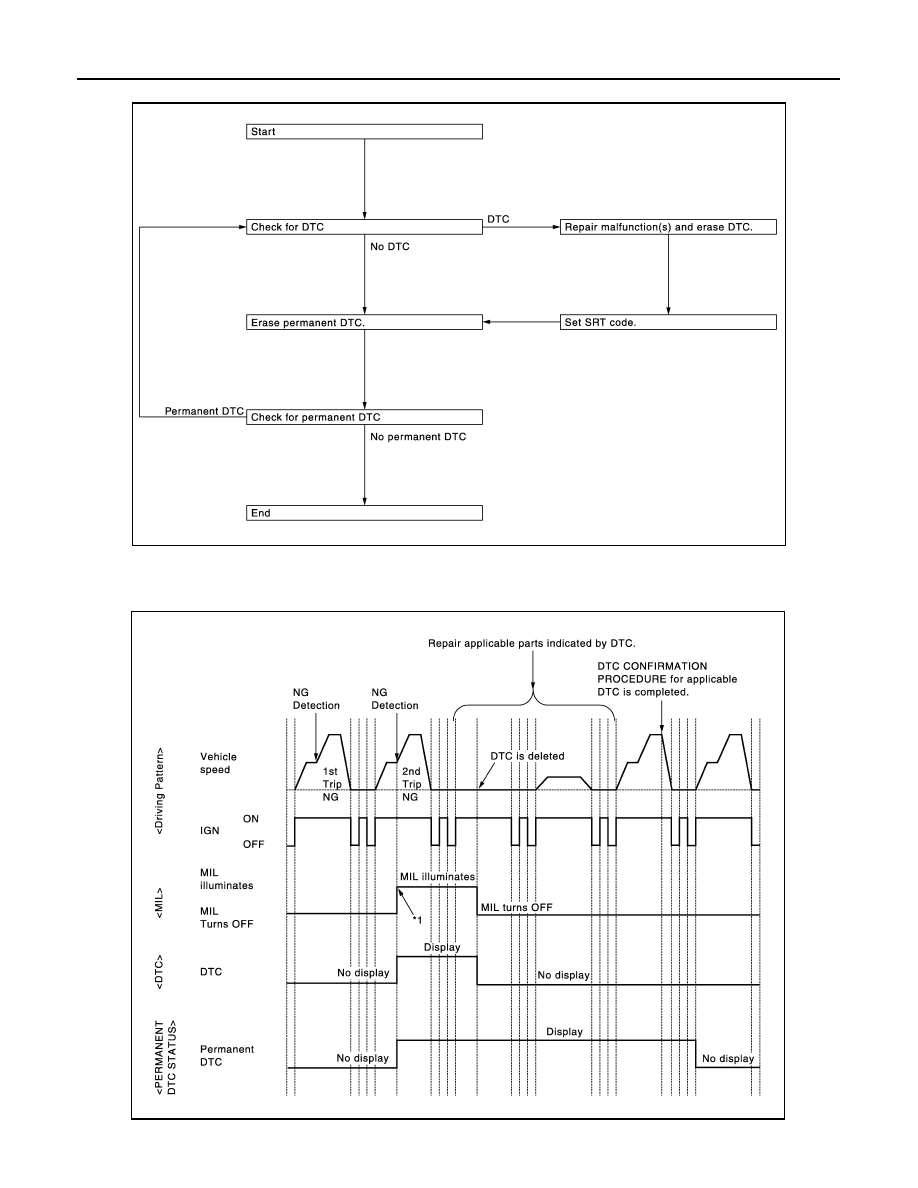

PERMANENT DTC SERVICE PROCEDURE

Work Procedure (Group A)

INFOID:0000000009267047

JSBIA0401GB

JSBIA0064GB
