RADIATOR CORE SUPPORT

RADIATOR CORE SUPPORT

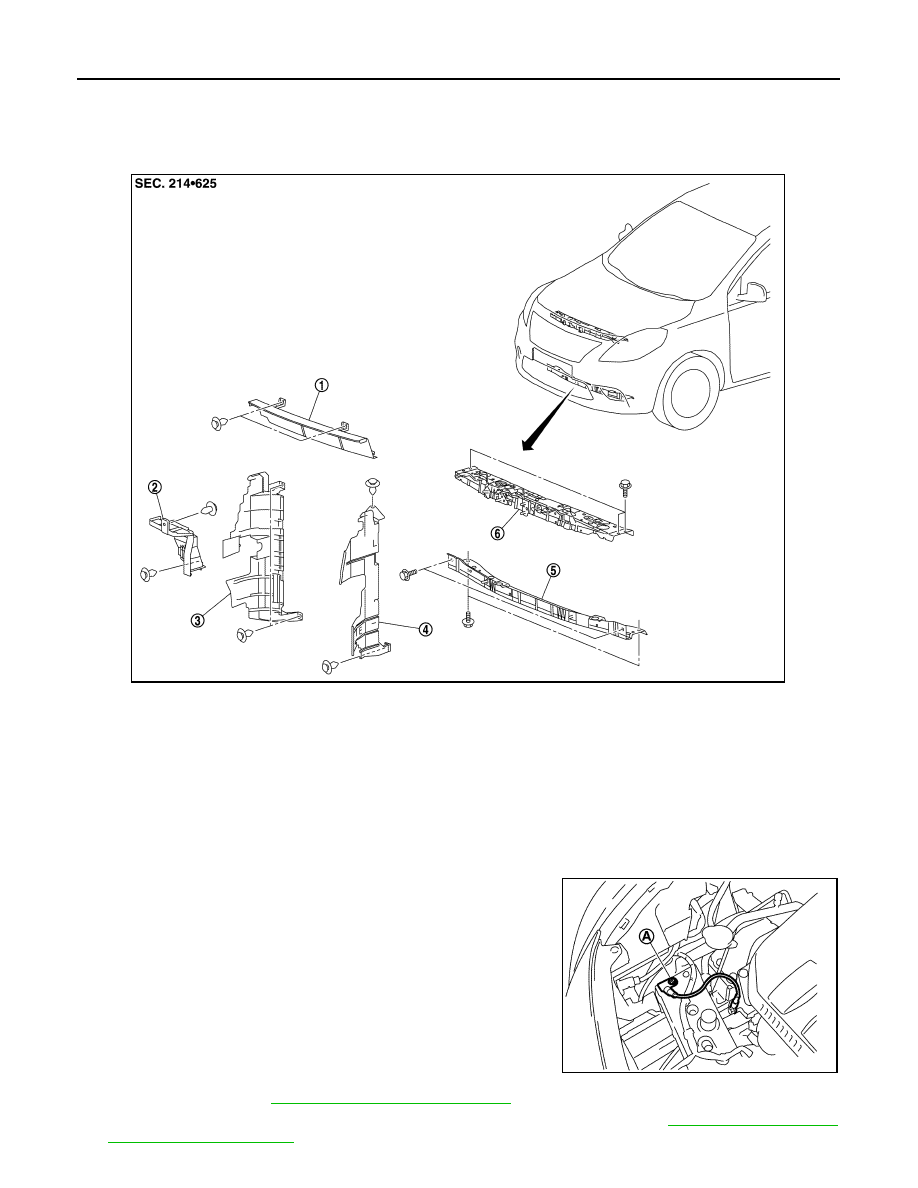

Exploded View

INFOID:0000000009268980

RADIATOR CORE SUPPORT UPPER
RADIATOR CORE SUPPORT UPPER : Removal and Installation

INFOID:0000000009268981

RADIATOR CORE SUPPORT UPPER

Removal

1. Remove ground harness bolt (A).

2. Remove horn. Refer to

HRN-6, "Removal and Installation"

.

3. Remove hood lock assembly and hood lock control cable assembly clip. Refer to

DLK-299, "HOOD LOCK

: Removal and Installation"

.

1.

Radiator upper seal

2.

Condenser side seal

3.

Radiator side seal (RH)

4.

Radiator side seal (LH)

5.

Radiator core support lower

6.

Radiator core support upper

JMKIA8149ZZ

JMKIA8026ZZ

RADIATOR CORE SUPPORT

DLK-279

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4. Remove crash zone sensor. Refer to

SR-22, "Removal and Installation"

.

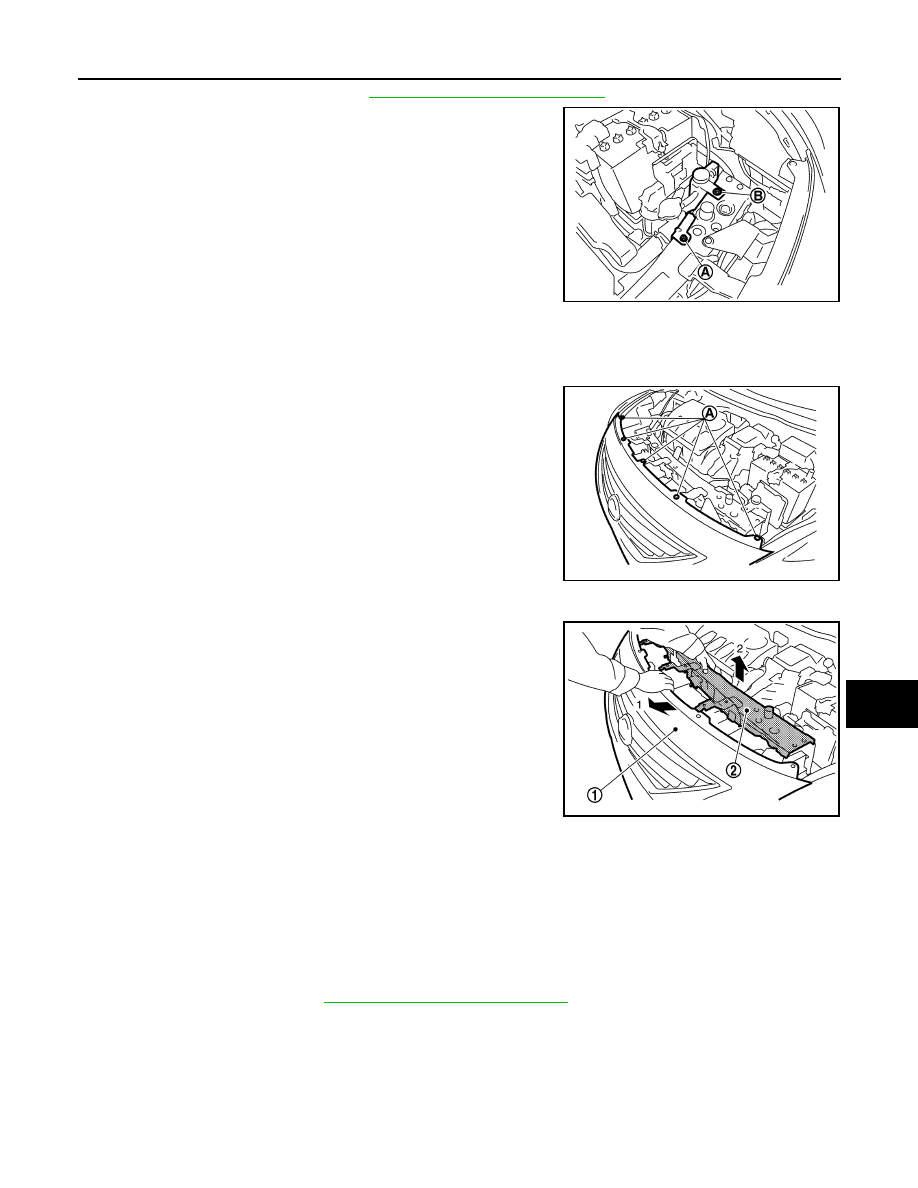

5. Remove radiator cap adapter bracket bolt (A) and radiator reser-

voir tank bolt (B).

6. Remove radiator upper seal clips.
7. Remove upper clips of radiator side seal (LH/RH).
8. Disconnect all harness clips.
9. Remove front bumper fascia upper side clips (A).

10. Remove radiator core support upper bolts.
11. Pull back on upper part of front bumper fascia (1) and then

remove radiator core support upper (2) by pulling upward.

Installation

Installation is in the reverse order of removal.

RADIATOR CORE SUPPORT LOWER
RADIATOR CORE SUPPORT LOWER : Removal and Installation

INFOID:0000000009268982

RADIATOR CORE SUPPORT LOWER

Removal

1. Remove under cover. Refer to

EXT-19, "Removal and Installation"

.

2. Remove radiator upper seal clips.

JMKIA8027ZZ

JMKIA8028ZZ

JMKIA8029ZZ

DLK-280

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

RADIATOR CORE SUPPORT

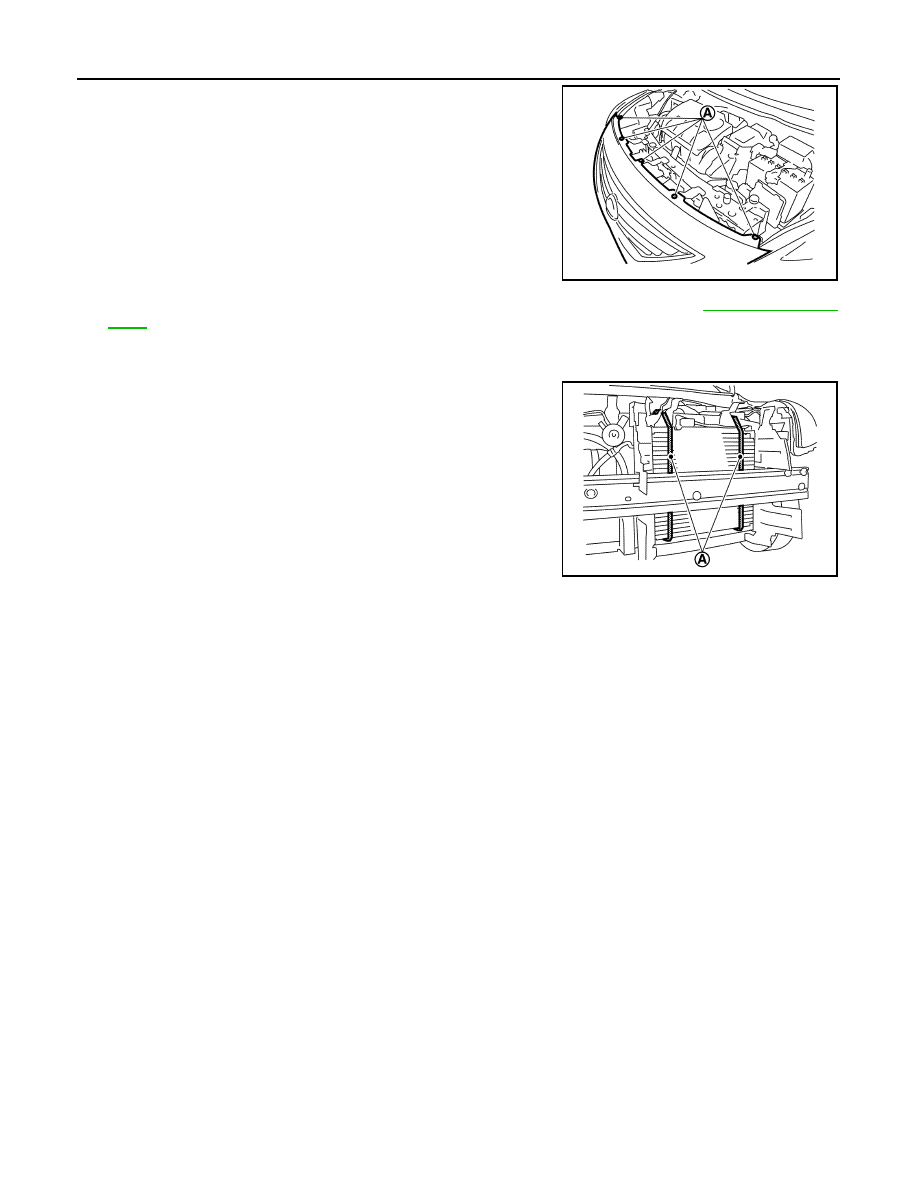

3. Remove front bumper fascia upper side clips (A).

4. Remove fender protector (LH/RH) clips from radiator core support lower. Refer to

EXT-26, "Exploded

View"

.

5. Remove lower clips of radiator side seal (LH/RH).
6. Remove lower clips of condenser side seal.
7. Use suitable tools (A) to suspend components and to prevent

them from falling.

CAUTION:

Use care to avoid damage to radiator and condenser.

8. Remove radiator core support lower bolts and radiator core support lower.

Installation

Installation is in the reverse order of removal.

JMKIA8028ZZ

JMKIA8030ZZ

FRONT FENDER

DLK-281

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT FENDER

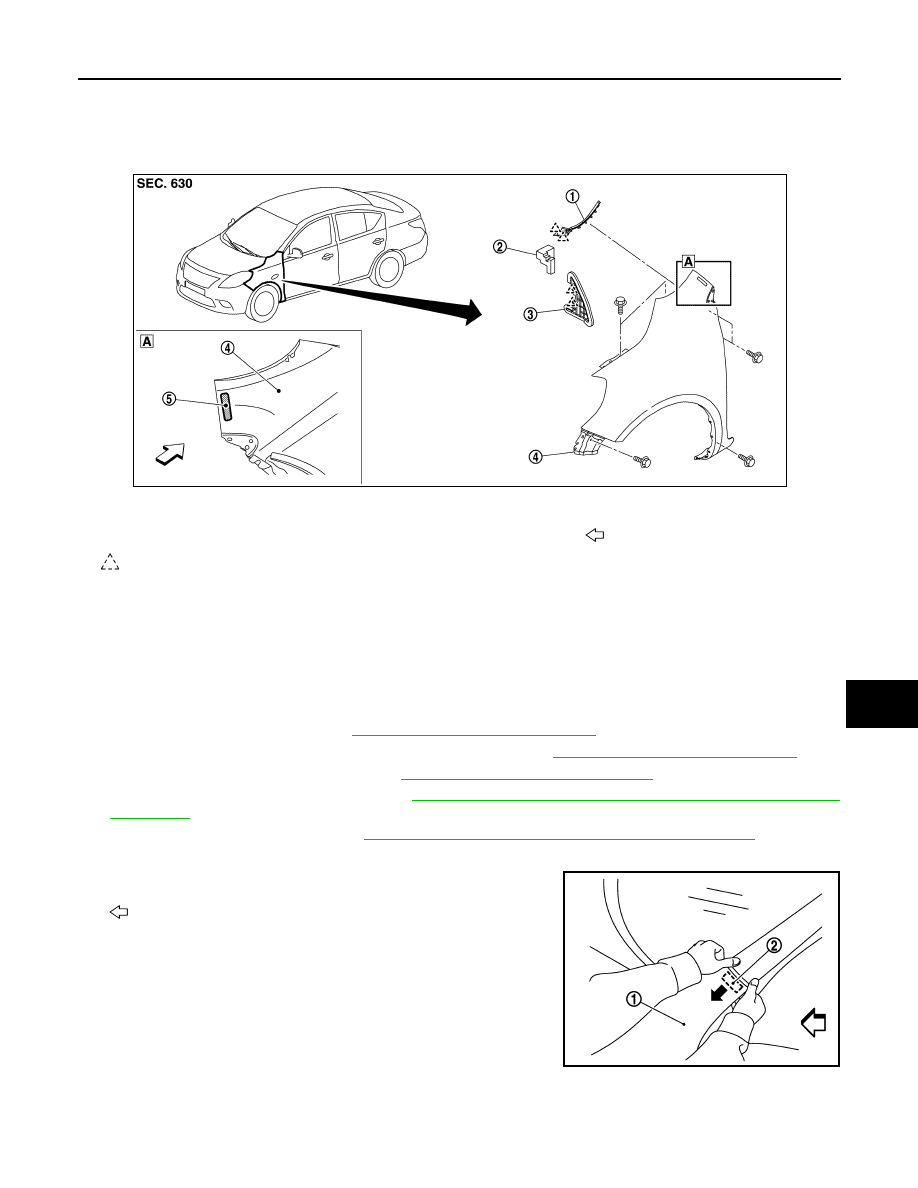

Exploded View

INFOID:0000000009268983

FRONT FENDER
FRONT FENDER : Removal and Installation

INFOID:0000000009268984

CAUTION:

Use a shop cloths to protect the body from being damaged during removal and installation.

REMOVAL

1. Remove fender protector. Refer to

EXT-26, "Removal and Installation"

.

2. Remove front bumper fascia and bumper side bracket. Refer to

EXT-16, "Removal and Installation"

.

3. Remove front combination lamp. Refer to

EXL-102, "Removal and Installation"

.

4. Remove front door corner finisher. Refer to

MIR-17, "FRONT DOOR CORNER FINISHER : Removal and

Installation"

.

5. Remove front fender cover. Refer to

DLK-282, "FENDER COVER : Removal and Installation"

.

6. Remove front fender bolts from front fender.
7. Remove front fender stiffener (2) while carefully pulling upper

portion of front fender (1) away from body.

: Front

8. Remove front fender.

CAUTION:

1.

Front fender cover

2.

Front fender seal

3.

Front fender upper insulator

4.

Front fender

5.

Front fender stiffener

Front

Pawl

JMKIA8150ZZ

JMKIA5633ZZ
