Nissan Versa Sedan. Manual - part 236

DLK-262

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

KEYFOB ID SET UP WITHOUT CONSULT

KEYFOB ID SET UP WITHOUT CONSULT

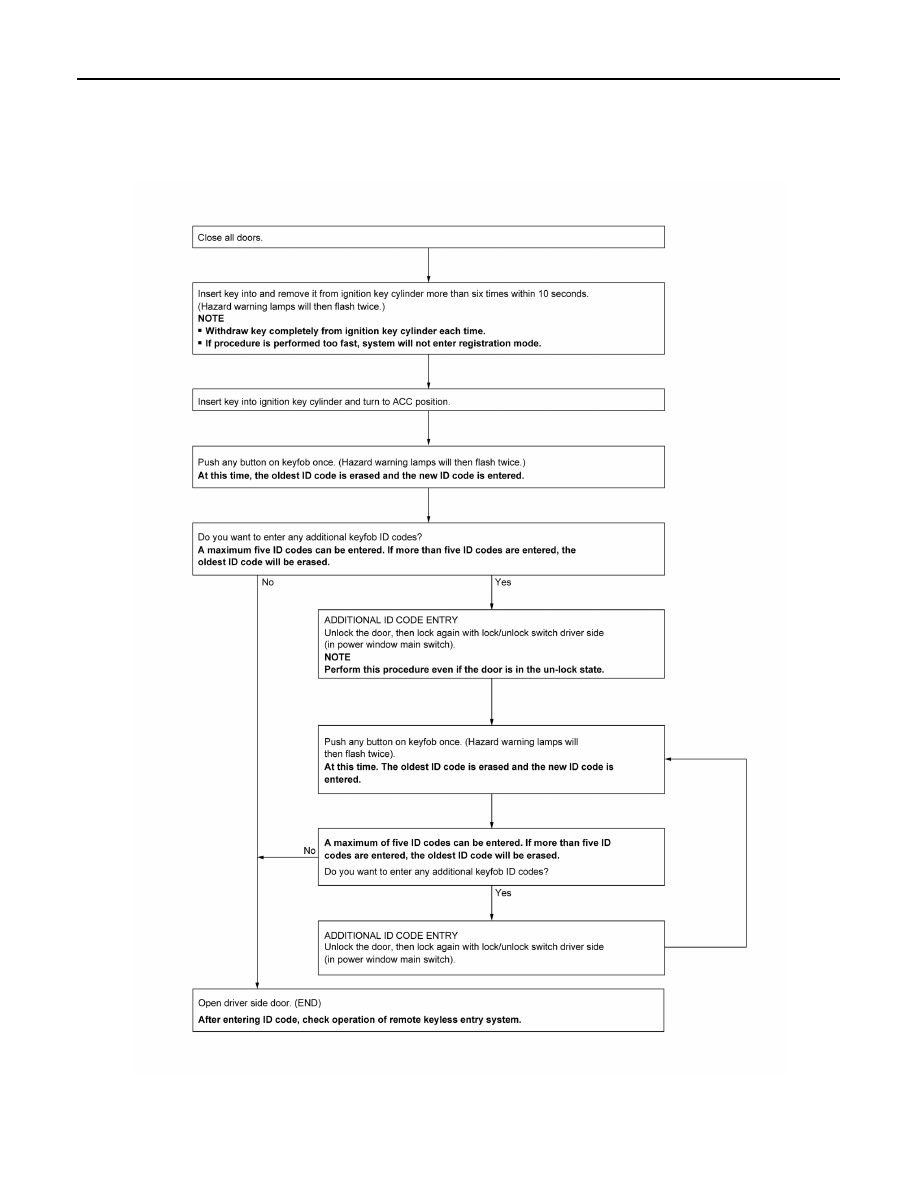

ID Code Entry Procedure

INFOID:0000000009268969

KEYFOB ID SET UP WITHOUT CONSULT

NOTE:

• If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A specific ID

code can be erased with CONSULT. However, when the ID code of a lost keyfob is not known, all controller

ALKIA2029GB

KEYFOB ID SET UP WITHOUT CONSULT

DLK-263

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfobs

must be re-registered.

To erase all ID codes in memory, register one ID code (keyfob) five times. After all ID codes are erased, the

ID codes of all remaining and/or new keyfobs must be re-registered.

• When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If five ID

codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less

than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is added

and no ID codes are erased.

• If you need to activate more than two additional new keyfobs, repeat the procedure “Additional ID code

entry” for each new keyfob

DLK-261, "ID Code Entry Procedure"

(with CONSULT),

DLK-262, "ID Code Entry

Procedure"

(without CONSULT).

• A maximum amount of five ID codes is allowed. When more than five ID codes are entered, the oldest ID

code will be erased.

• Even if same ID code that is already in the memory is input, the same ID code can be entered. The code is

counted as an additional code.

DLK-264

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

POWER DOOR LOCK SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

POWER DOOR LOCK SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009268970

DOOR LOCK/UNLOCK FUNCTION MALFUNCTION

NOTE:

• Before performing the diagnosis in the following table, check “WORK FLOW”. Refer to

DLK-228, "Work

Flow"

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

• If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

Symptom

Diagnosis/service procedure

Reference page

Key reminder door function does not operate
properly.

Check door switch.

DLK-235

Check key switch.

DLK-244

Check Intermittent Incident.

GI-45

Power door lock does not operate with door
lock and unlock switch on main power window
and door lock/unlock switch or power window
and door lock/unlock switch RH.

Check BCM Power supply and ground circuit.

BCS-116

Check main power window and door lock and unlock switch.

DLK-238

Check power window and door lock and unlock switch RH.

DLK-239

Check Intermittent Incident.

GI-45

Specific door lock actuator does not operate.

Check door lock actuator.

Driver side

Passenger side

Rear LH

Rear RH

Check Intermittent Incident.

GI-45

Power door locks do not operate with front
door lock key cylinder switch LH.

Check key cylinder switch.

DLK-242

Replace BCM.

BCS-122

Vehicle speed sensing auto door LOCK oper-
ation does not operate.

Ensure automatic door lock/unlock function (lock operation)
is enabled.

BCS-113

Check combination meter vehicle speed signal.

MWI-91

(Type

MWI-41

(Type

Check intermittent incident.

GI-45

Ignition OFF interlock auto door UNLOCK
function does not operate.

Ensure automatic door lock/unlock function (unlock opera-
tion) is enabled.

BCS-113

Check BCM for DTCs.

BCS-105

Check intermittent incident.

GI-45

REMOTE KEYLESS ENTRY SYSTEM SYMPTOMS

DLK-265

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

REMOTE KEYLESS ENTRY SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009268971

REMOTE KEYLESS ENTRY SYSTEM

Symptom

Diagnoses/service procedure

Reference

page

All functions of remote keyless entry system do not
operate.

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241 or Signal Tech II Tool J-50190)
NOTE:
If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

DLK-255

2. Check BCM and remote keyless entry receiver.

DLK-252

The new ID of keyfob cannot be entered.

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241 or Signal Tech II Tool J-50190)
NOTE:
If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

2. Door switch check

3. ACC power check

4. Replace BCM.

Door lock or unlock does not function.
(If the power door lock system does not operate
manually, check power door lock system)

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241 or Signal Tech II Tool J-50190)
NOTE:
If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

DLK-255

2. Replace BCM.

BCS-122

Hazard and horn reminder does not activate properly
when pressing lock or unlock button of keyfob.

1. Check hazard and horn reminder mode with CONSULT
NOTE:
Hazard and horn reminder mode can be changed.
First check the hazard and horn reminder mode setting.

DLK-201

2. Door switch check

DLK-235

3. Replace BCM.

BCS-122

Hazard reminder does not activate properly when
pressing lock or unlock button of keyfob.
(Horn reminder OK)

1. Check hazard reminder mode with CONSULT
NOTE:
Hazard reminder mode can be changed.
First check the hazard reminder mode setting.

DLK-201

2. Check hazard function with hazard switch

—

3. Replace BCM.

BCS-122
