TRUNK LID OPENER ACTUATOR

YES

>> Replace trunk lid lock assembly.

NO

>> Repair or replace harness.

TRUNK LID OPENER SWITCH

DLK-103

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

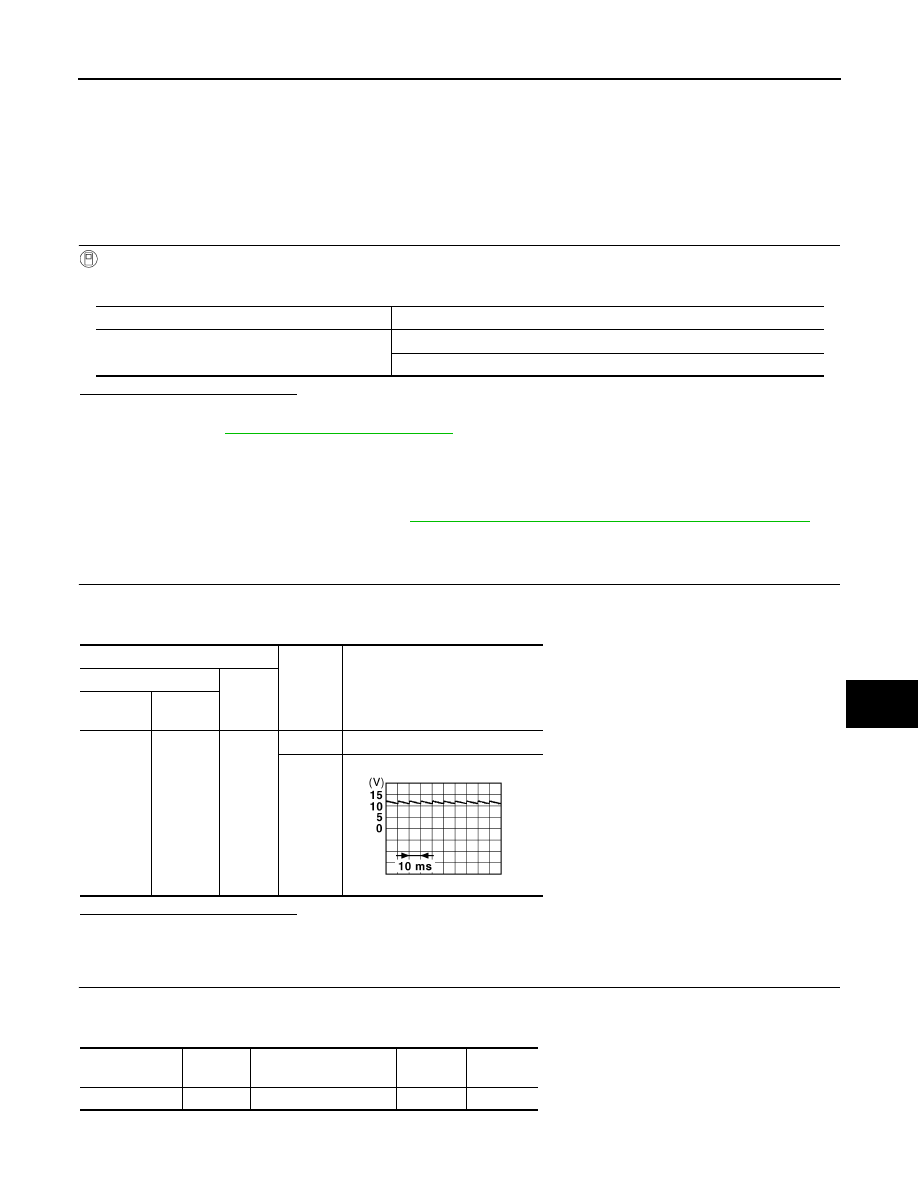

TRUNK LID OPENER SWITCH

Component Function Check

INFOID:0000000009268786

1.

CHECK FUNCTION

1. Select TRUNK of BCM using CONSULT.

2. Select TR/BD OPEN SW in DATA MONITOR mode.

3. Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Trunk lid switch is OK.

NO

>> Refer to

DLK-103, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009268787

Regarding Wiring Diagram information, refer to

DLK-59, "TRUNK LID OPENER SYSTEM : Wiring Diagram"

.

1.

CHECK TRUNK LID OPENER INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect trunk lid switch connector.

3. Check signal between trunk lid switch harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK TRUNK LID OPENER SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between BCM harness connector and trunk lid switch harness connector.

3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

Monitor item

Condition

Status

TR/BD OPEN SW

Trunk lid switch

Pressed

On

Released

Off

(+)

(–)

Signal

(Reference value)

Trunk lid switch

Connector

Terminal

B51

1

Ground

JPMIA0012GB

BCM

Trunk lid switch

Continuity

Connector

Terminal

Connector

Terminal

M99

42

B51

1

Yes

BCM

Ground

Continuity

Connector

Terminal

M99

42

No

DLK-104

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

TRUNK LID OPENER SWITCH

YES

>> Replace BCM. Refer to

BCS-69, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK TRUNK LID SWITCH GROUND CIRCUIT

Check continuity between trunk lid switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK TRUNK LID SWITCH

Refer to

DLK-103, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace trunk lid switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000009268788

1.

CHECK TRUNK LID SWITCH

1. Turn ignition switch OFF.

2. Disconnect trunk lid switch connector.

3. Check continuity between trunk lid switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace trunk lid switch.

Trunk lid  switch

Ground

Continuity

Connector

Terminal

B51

2

Yes

Trunk lid switch

Condition

Continuity

Terminal

1

2

Trunk lid  switch

Pressed

Yes

Release

No

TRUNK LAMP SWITCH

DLK-105

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LAMP SWITCH

Description

INFOID:0000000009268789

Detects trunk open/close condition.

Component Function Check

INFOID:0000000009268790

1.

CHECK FUNCTION

 With CONSULT

Check TRNK/HAT MNTR in Data Monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Trunk room lamp switch is OK.

NO

>> Refer to

DLK-105, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009268791

Regarding Wiring Diagram information, refer to

DLK-37, "INTELLIGENT KEY SYSTEM : Wiring Diagram"

.

1.

CHECK TRUNK ROOM LAMP SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 2

2.

CHECK TRUNK ROOM LAMP SWITCH CIRCUIT

1. Disconnect BCM and trunk room lamp switch connector.

2. Check continuity between BCM connector and trunk room lamp switch connector.

3. Check continuity between BCM connector and ground.

Monitor item

Condition

TRNK/HAT MNTR

OPEN

: ON

CLOSE

: OFF

Terminals

Trunk

condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M100

51

Ground

OPEN

0

CLOSE

JPMIA0011GB

BCM connector

Terminal

Trunk room  lamp

switch connector

Terminal

Continuity

M100

51

 B50

1

Yes
