CO-12

< PERIODIC MAINTENANCE >

[HR16DE]

RADIATOR

RADIATOR

RADIATOR CAP
RADIATOR CAP : Inspection

INFOID:0000000009269206

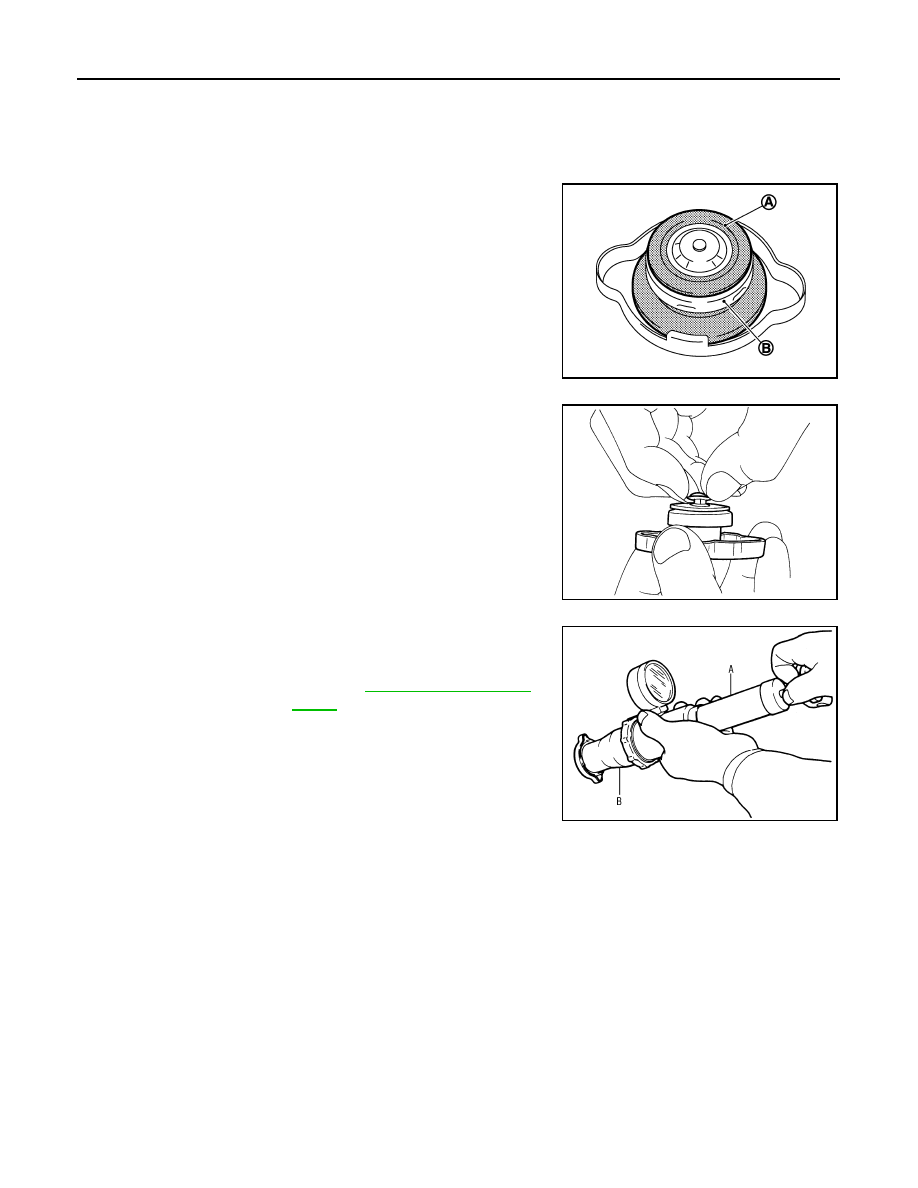

• Check valve seat (A) of radiator cap.

- Replace the cap if the metal plunger cannot be seen around the

edge of the black rubber gasket.

- Replace the cap if deposits of waxy residue or other foreign mate-

rial are on the black rubber gasket or the metal retainer.

• Pull negative-pressure valve to open it, and check that it closes

completely when released.

- Check that there is no dirt or damage on the valve seat of radiator

cap negative-pressure valve.

- Make sure that the valve operates properly while opening and

closing.

• Check radiator cap relief pressure using a suitable tool (A) and

Tool (B).

- When connecting the radiator cap to the Tool (B), apply water or

coolant to the cap seal surface.

- Replace radiator cap if there is an abnormality in the negative-

pressure valve, or if the radiator cap does not perform within spec-

ifications.

CAUTION:

When installing radiator cap, thoroughly wipe out the radiator filler neck to remove any waxy residue

or foreign material.

RADIATOR
RADIATOR : Inspection

INFOID:0000000009269207

Check radiator for mud or clogging. If necessary, clean radiator as follows.

CAUTION:

• Be careful not to bend or damage radiator fins.

• When the radiator is cleaned on-vehicle, remove the surrounding parts in order to access the radia-

tor core.

• Then tape the harness and harness connectors to prevent water from entering.
1. Spray water to the back side of the radiator core using a side-to-side motion from the top down.
2. Stop spraying when debris no longer flows from radiator core.
3. Blow air into the back side of radiator core using a side-to-side motion from the top down.

(B)

: Metal plunger

JPBIA0108ZZ

SMA967B

Standard and Limit

: Refer to

CO-26, "Standard and

Limit"

.

Tool number (B)

: EG17650301 (J-33984-A)

PBIC5122J

RADIATOR

CO-13

< PERIODIC MAINTENANCE >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

• Use compressed air lower than 490 kPa (5 kg/cm

2

, 71 psi) and keep distance more than 30 cm (11.81

in).

4. Continue to blow air until no water sprays out.
5. Check for coolant leaks. Repair as necessary.

CO-14

< REMOVAL AND INSTALLATION >

[HR16DE]

RADIATOR

REMOVAL AND INSTALLATION

RADIATOR

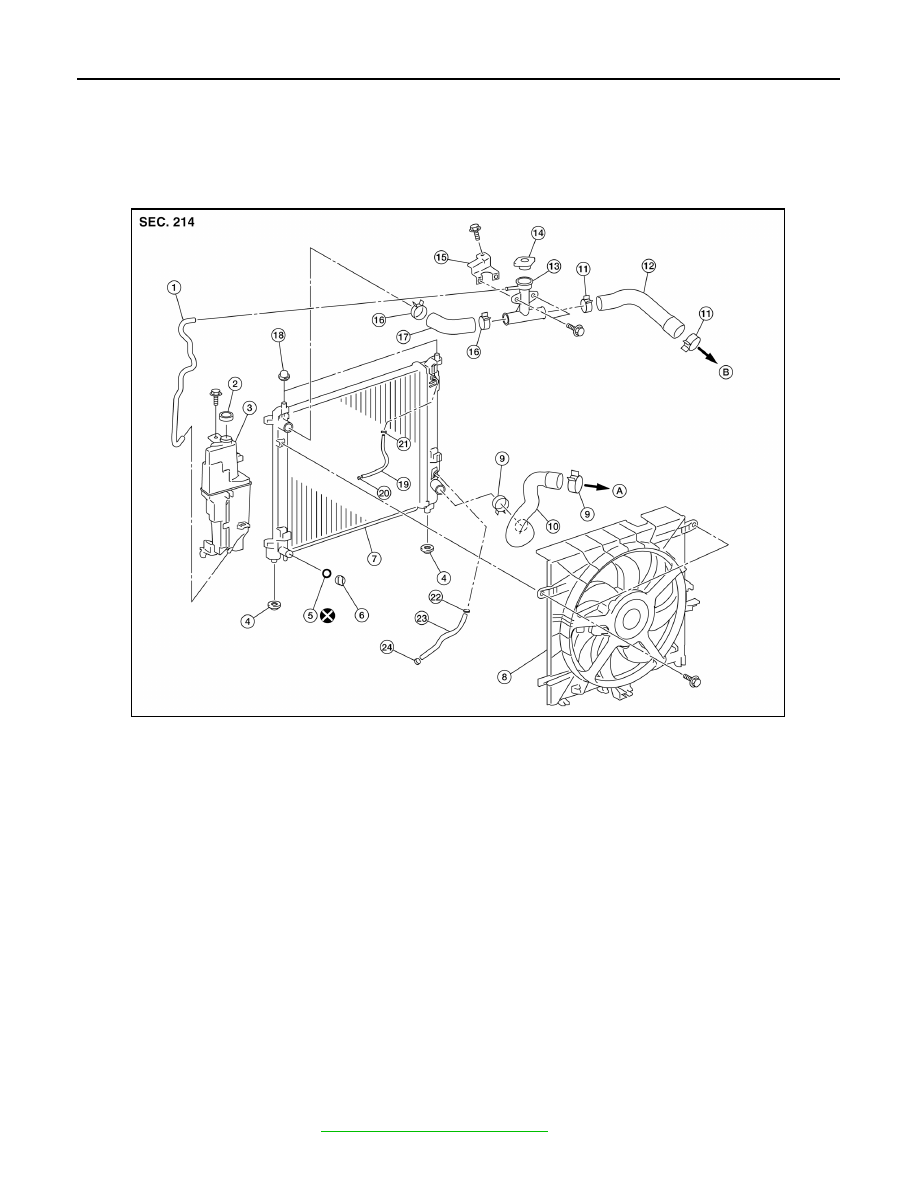

Exploded View

INFOID:0000000009269208

Removal and Installation

INFOID:0000000009269209

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the radiator cap. Slowly turn it a

quarter of a turn to release built-up pressure. Carefully remove radiator cap by turning it all the way.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Drain engine coolant. Refer to

CO-8, "Draining Engine Coolant"

.

1.

Reservoir tank hose

2.

Reservoir tank cap

3.

Reservoir tank

4.

Mounting rubber (lower)

5.

O-ring

6.

Drain plug

7.

Radiator

8.

Cooling fan assembly

9.

Clamp

10. Radiator hose (lower)

11. Clamp

12. Radiator hose to water outlet (upper)

13. Radiator cap adapter

14. Radiator cap

15. Radiator cap adapter bracket

16. Clamp

17. Radiator hose (upper) to radiator

18. Mounting rubber (upper)

19. CVT cooler hose/ A/T fluid cooler hose 20. Clamp

21. Clamp

22. Clamp

23. CVT cooler hose/ A/T fluid cooler hose 24. Clamp

A.

To water inlet

B.

To water outlet

AWBIA1144GB

RADIATOR

CO-15

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

CAUTION:

• Perform this step when the engine is cold.

• Do not spill engine coolant on drive belt.

2. Remove air duct (inlet). Refer to

EM-25, "Removal and Installation"

.

3. Disconnect battery negative terminal. Refer to

PG-63, "Removal and Installation"

.

4. Loosen the following from the radiator core support (upper):
a. Air bag harness
b. Hood lock cable
c. Radiator cap adapter
d. Horn harness
5. Remove radiator hose (lower).
6. Remove radiator hose (upper) from water outlet.
7. Disconnect harness connector from fan motor, and move harness aside.
8. Disconnect reservoir tank hose, and remove reservoir tank.
9. Remove radiator core support (upper).
10. Remove radiator hose (upper) from radiator.
11. Remove cooling fan assembly. Refer to

CO-17, "Removal and Installation"

.

CAUTION:

Be careful not to damage or scratch the radiator.

12. Disconnect CVT cooler lines or A/T fluid cooler hose (if equipped).
13. Remove the radiator from bottom of the vehicle.

CAUTION:

When removing, do not damage or scratch radiator core or A/C condenser.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.

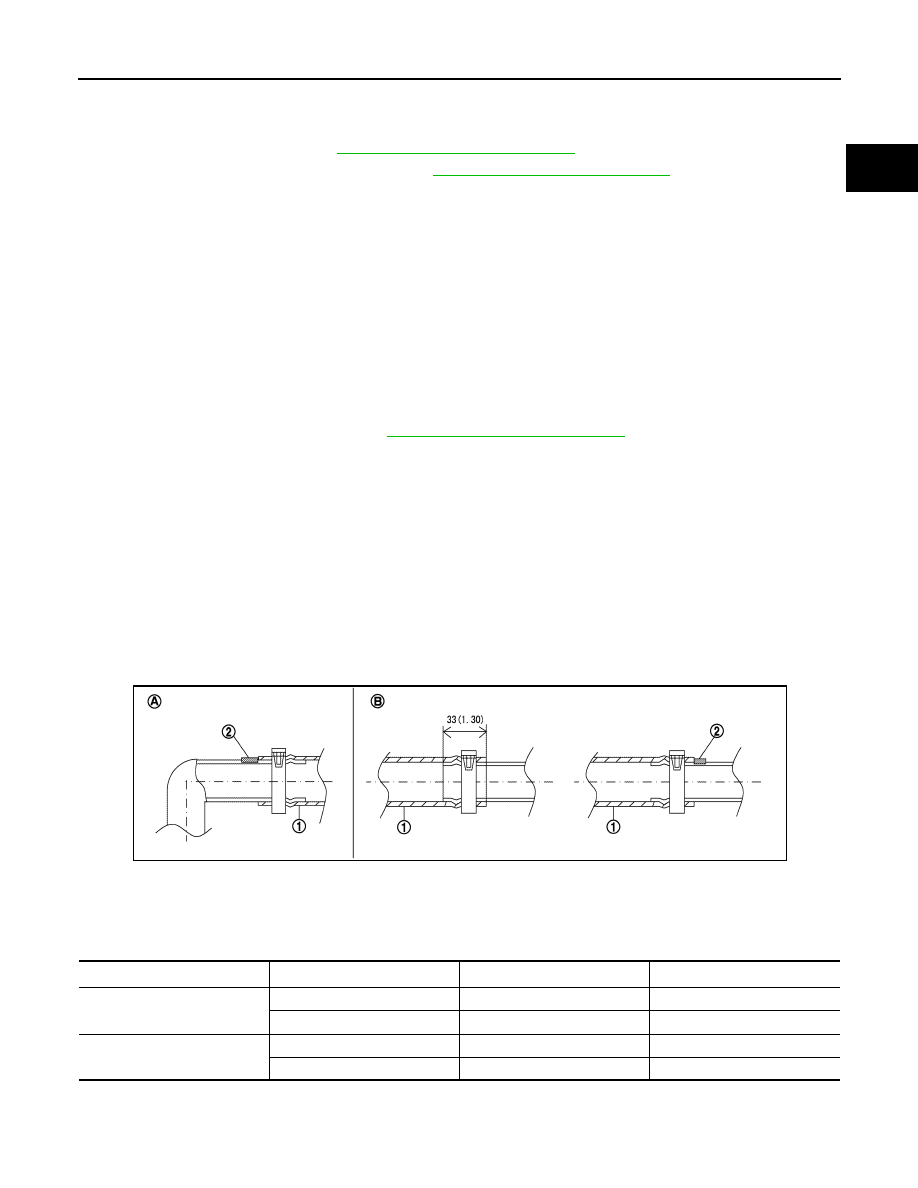

• Insert the radiator hose (1) all the way to the stopper (2) or by 33 mm (1.30 in) (hose without a stopper) as

shown.

• The correct orientation of the hose clamps are as shown.

*: Refer to the illustrations for the specific position for each hose clamp tab.

1.

Radiator hose

2.

Stopper

A.

Radiator side

B.

Engine side

JPBIA4294GB

Radiator hose

Hose end

Paint mark

Position of hose clamp

*

Radiator hose (upper)

Radiator side

Upper

A

Engine side

Upper

B

Radiator hose (lower)

Radiator side

Lower

C

Engine side

Upper

D
