DTC Index

INFOID:0000000009268691

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→ ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch

OFF

→ ON after returning to the normal condition if the malfunction is detected again.

Priority

DTC

1

• U1000: CAN COMM
• U1010: CONTROL UNIT (CAN)

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2195: ANTI SCANNING
• B2196: DONGLE NG

3

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1716: [PRESS DATA ERR] FL
• C1717: [PRESS DATA ERR] FR
• C1718: [PRESS DATA ERR] RR
• C1719: [PRESS DATA ERR] RL
• C1729: VHCL SPEED SIG ERR

CONSULT display

Fail-safe

Tire pressure monitor

warning lamp ON

Reference

U1000: CAN COMM

—

—

BCS-114

U1010: CONTROL UNIT (CAN)

—

—

BCS-115

B2190: NATS ANTENNA AMP

×

—

SEC-133

B2191: DIFFERENCE OF KEY

×

—

SEC-136

B2192: ID DISCORD BCM-ECM

×

—

SEC-137

B2193: CHAIN OF BCM-ECM

×

—

SEC-139

B2195: ANTI SCANNING

×

—

SEC-140

B2196: DONGLE NG

×

—

SEC-141

C1704: LOW PRESSURE FL

—

×

WT-22

C1705: LOW PRESSURE FR

—

×

C1706: LOW PRESSURE RR

—

×

C1707: LOW PRESSURE RL

—

×

C1708: [NO DATA] FL

—

×

WT-23

C1709: [NO DATA] FR

—

×

C1710: [NO DATA] RR

—

×

C1711: [NO DATA] RL

—

×

BCS-106

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM

C1716: [PRESS DATA ERR] FL

—

×

WT-26

C1717: [PRESS DATA ERR] FR

—

×

C1718: [PRESS DATA ERR] RR

—

×

C1719: [PRESS DATA ERR] RL

—

×

C1729: VHCL SPEED SIG ERR

—

×

WT-28

CONSULT display

Fail-safe

Tire pressure monitor

warning lamp ON

Reference

BCS

BCM

BCS-107

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

WIRING DIAGRAM

BCM

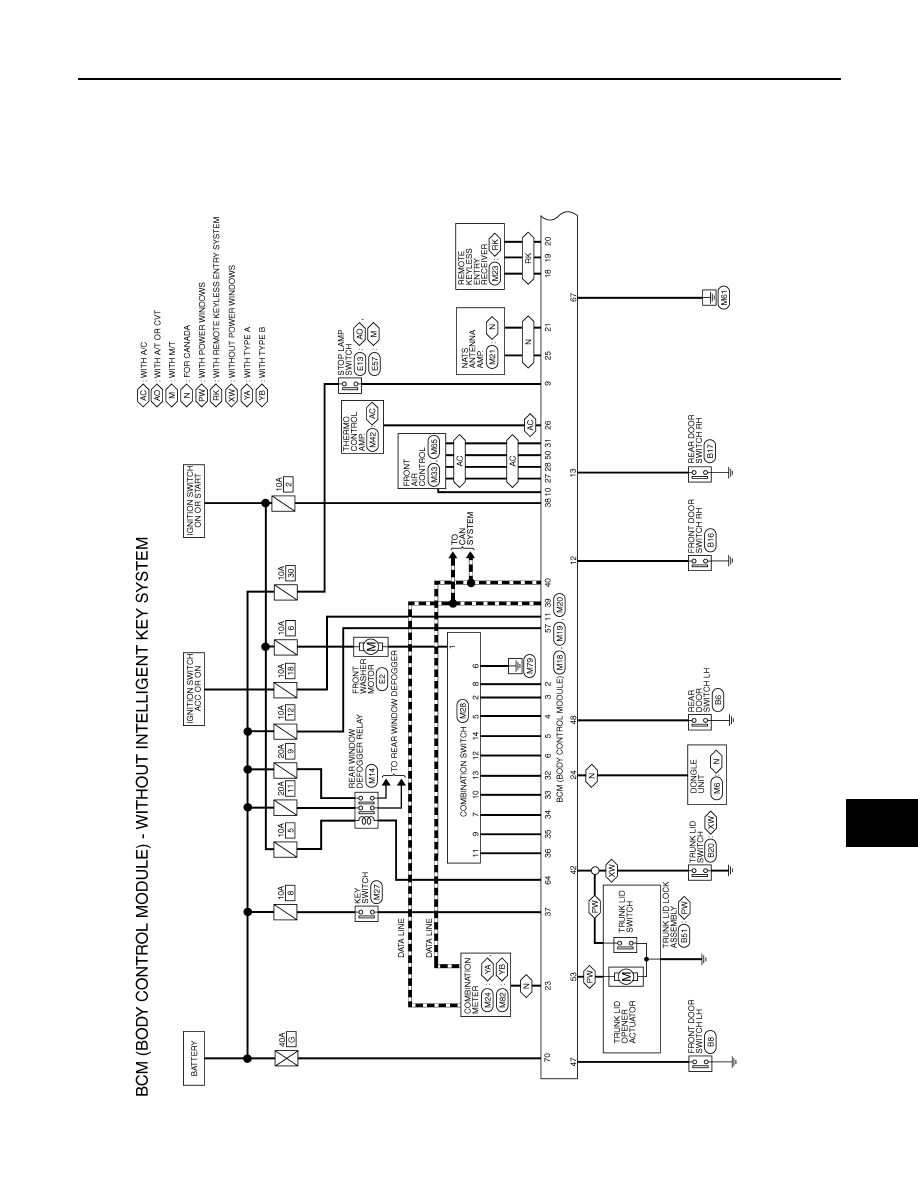

Wiring Diagram

INFOID:0000000009268692

ABMWA2065GB

BCS-108

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

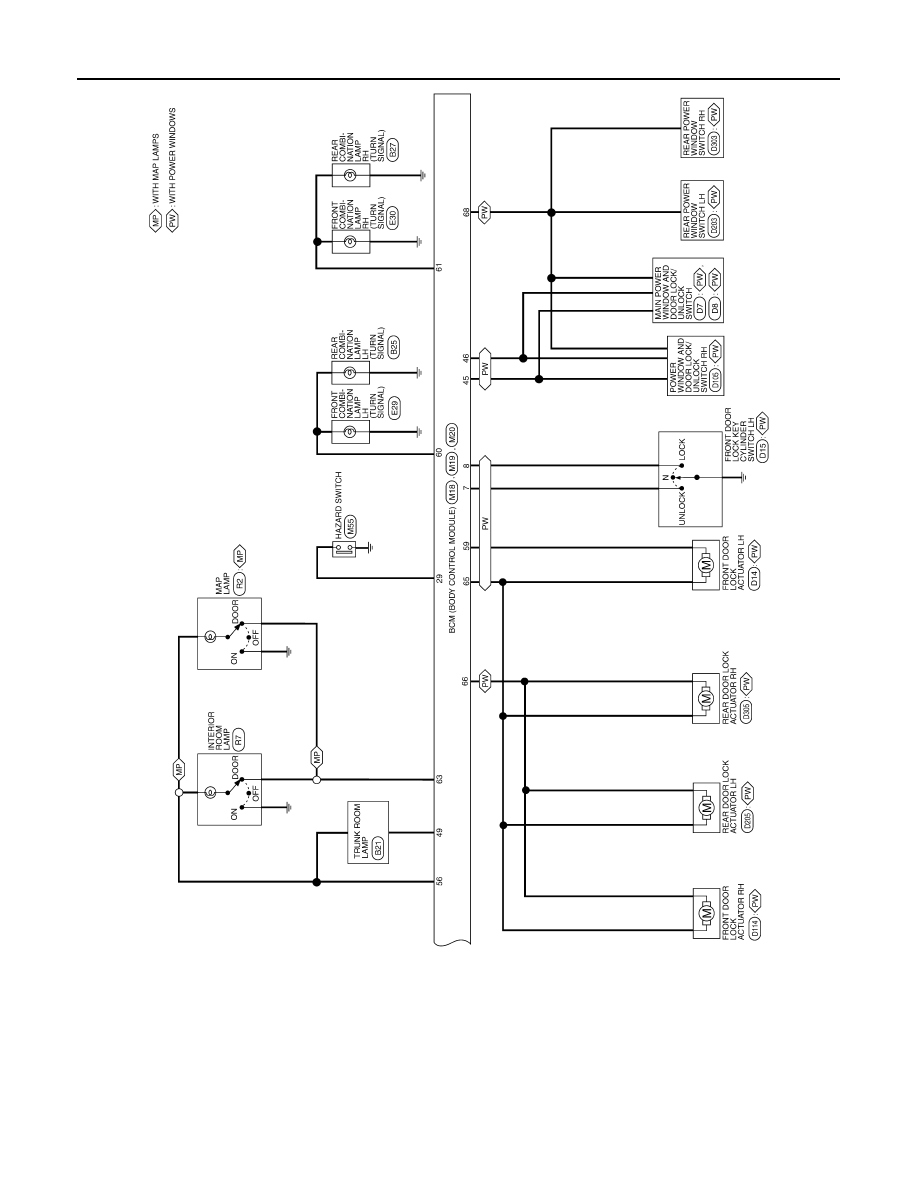

BCM

ABMWA2066GB
