DESCRIPTION

LU-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

SYSTEM DESCRIPTION

DESCRIPTION

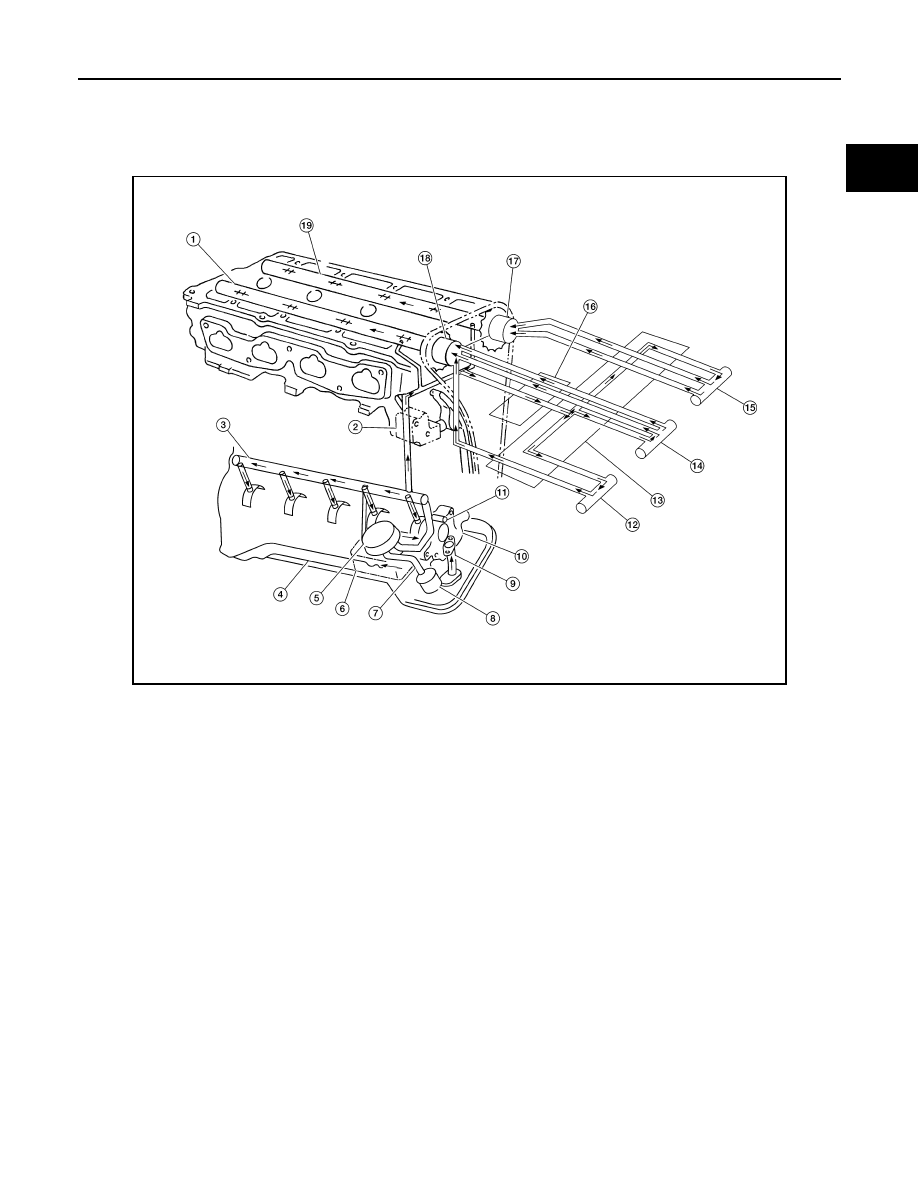

Engine Lubrication System

INFOID:0000000011277141

ALBIA0942ZZ

1.

Camshaft (INT)

2.

Chain tensioner

3.

Main gallery

4.

Oil pan

5.

Oil cooler

6.

Balancer unit

7.

Oil pan oil gallery

8.

Oil filter (with relief valve)

9.

Oil Strainer

10. Oil pump

11. Timing chain and balancer unit timing

chain oil jet

12. Intake valve timing intermediate lock-

control solenoid valve

13. Intake valve timing control cover

14. Intake valve timing control solenoid

valve

15. Exhaust valve timing control solenoid

valve

16. Front cover

17. Exhaust valve timing controller

18. Intake valve timing controller

19. Camshaft (EXH)

LU-6

< SYSTEM DESCRIPTION >

DESCRIPTION

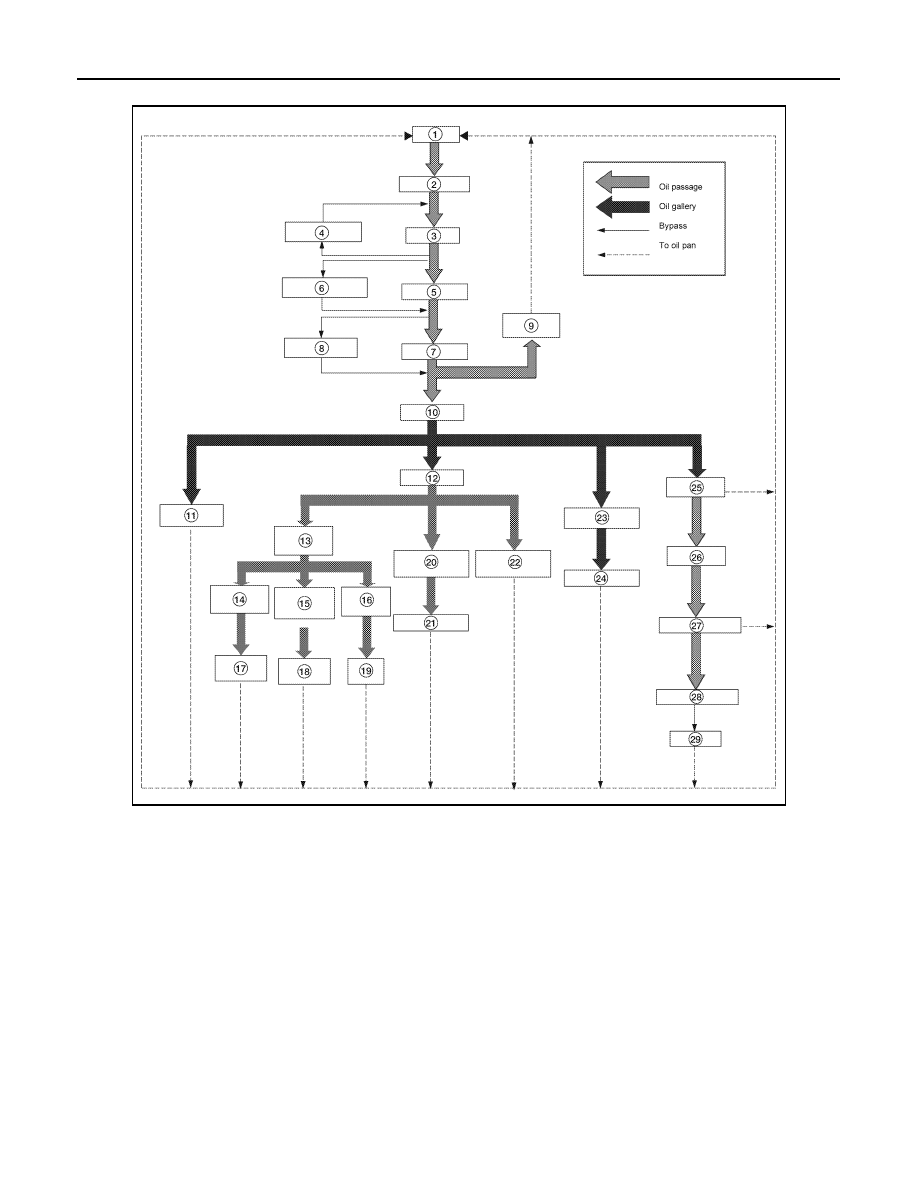

Engine Lubrication System Schematic

INFOID:0000000011277142

ALBIA0915ZZ

1.

Oil pan

2.

Oil strainer

3.

Oil pump

4.

Regulator valve

5.

Oil filter

6.

Relief valve (Built in oil filter)

7.

Oil cooler

8.

Relief valve

9.

Chain oil jet

10. Main gallery

11. Piston oil jet

12. Cylinder head

13. C-VTC oil filter

14. C-VTC EXH solenoid valve

15. C-VTC intermediate solenoid valve

16. C-VTC INT solenoid valve

17. C-VTC exhaust

18. C-VTC intermediate

19. C-VTC intake

20. Camshaft journal

21. Camshaft

22. Chain tensioner

23. Balancer housing

24. Balancershaft journal

25. Main bearing

26. Crankshaft

27. Connectiong rod bearing

28. Connectiong rod

29. Piston

ENGINE OIL

LU-7

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

PERIODIC MAINTENANCE

ENGINE OIL

Inspection

INFOID:0000000011277143

ENGINE OIL LEVEL

NOTE:

Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop

it and allow 5 minutes before checking.

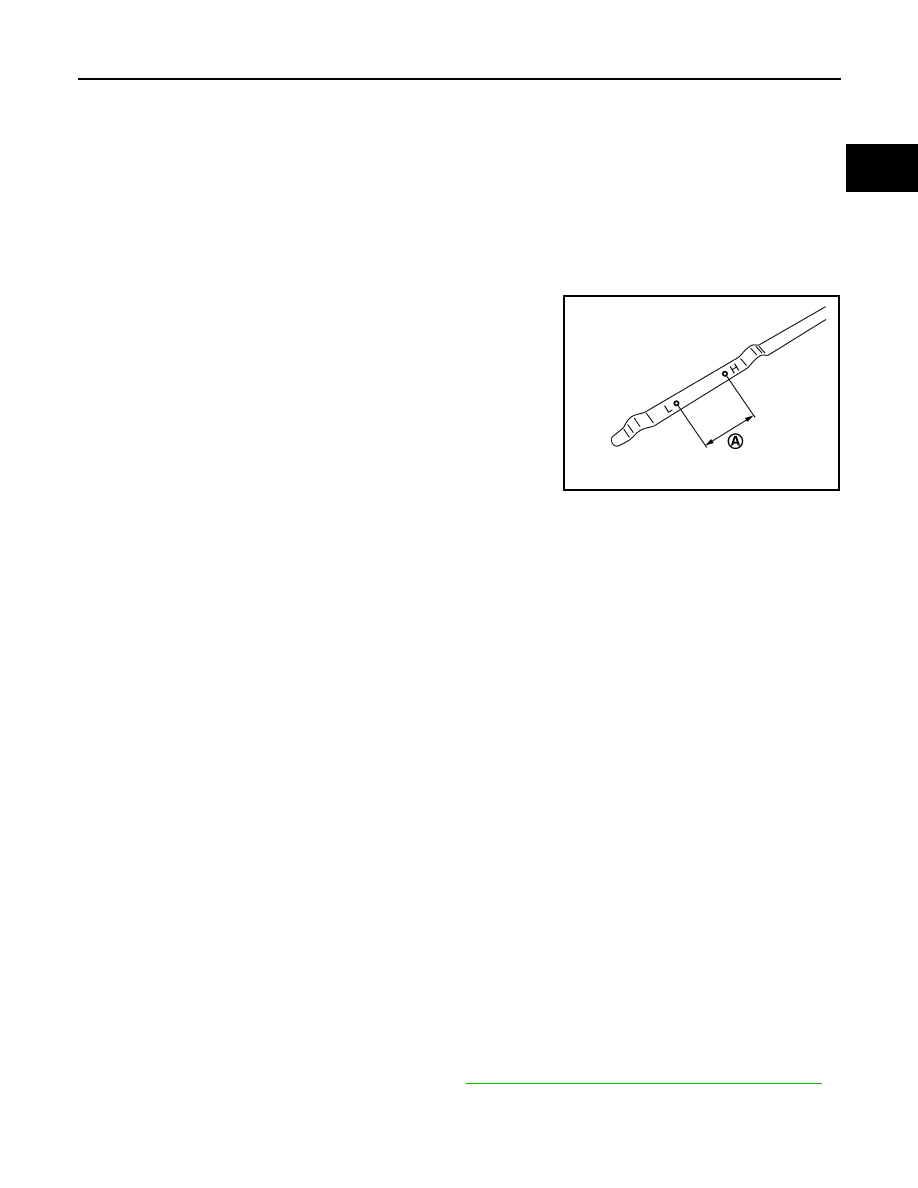

1. Pull out oil level gauge and wipe it clean.
2. Insert oil level gauge and check the engine oil level is within the

range (A) as shown.

3. If it is out of range, adjust it.

ENGINE OIL APPEARANCE

• Check engine oil for white milky appearance or excessive contamination.

• If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.

Repair or replace damaged parts.

ENGINE OIL LEAKS

Check for engine oil leaks around the following areas:

• Oil temperature sensor

• Oil level sensor

• Oil level gauge assembly O-ring.

• Crankshaft position sensor

• Camshaft position sensors

• Oil cooler

• Oil pan (upper and lower)

• Oil pan drain plug

• Oil pressure switch

• Oil filter

• Intake valve timing intermediate lock control solenoid valve

• Intake valve timing control solenoid valve

• Exhaust valve timing control solenoid valve

• Front cover

• Mating surface between cylinder head and camshaft bracket

• Mating surface between cylinder block and cylinder head

• Mating surface between cylinder head and rocker cover

• Crankshaft oil seals (front and rear)

OIL PRESSURE CHECK

WARNING:

• Be careful not to get burn yourself, as engine oil may be hot.

• When checking engine oil pressure, CVT shift lever should be in "P" position.  Be sure to apply park-

ing brake.

1. Check the engine oil level.
2. Remove fender protector side cover (RH). Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

3. Disconnect harness connector at oil pressure switch and remove oil pressure switch using suitable tool.

CAUTION:

Never drop or shock oil pressure switch.

PBIC3309J

LU-8

< PERIODIC MAINTENANCE >

ENGINE OIL

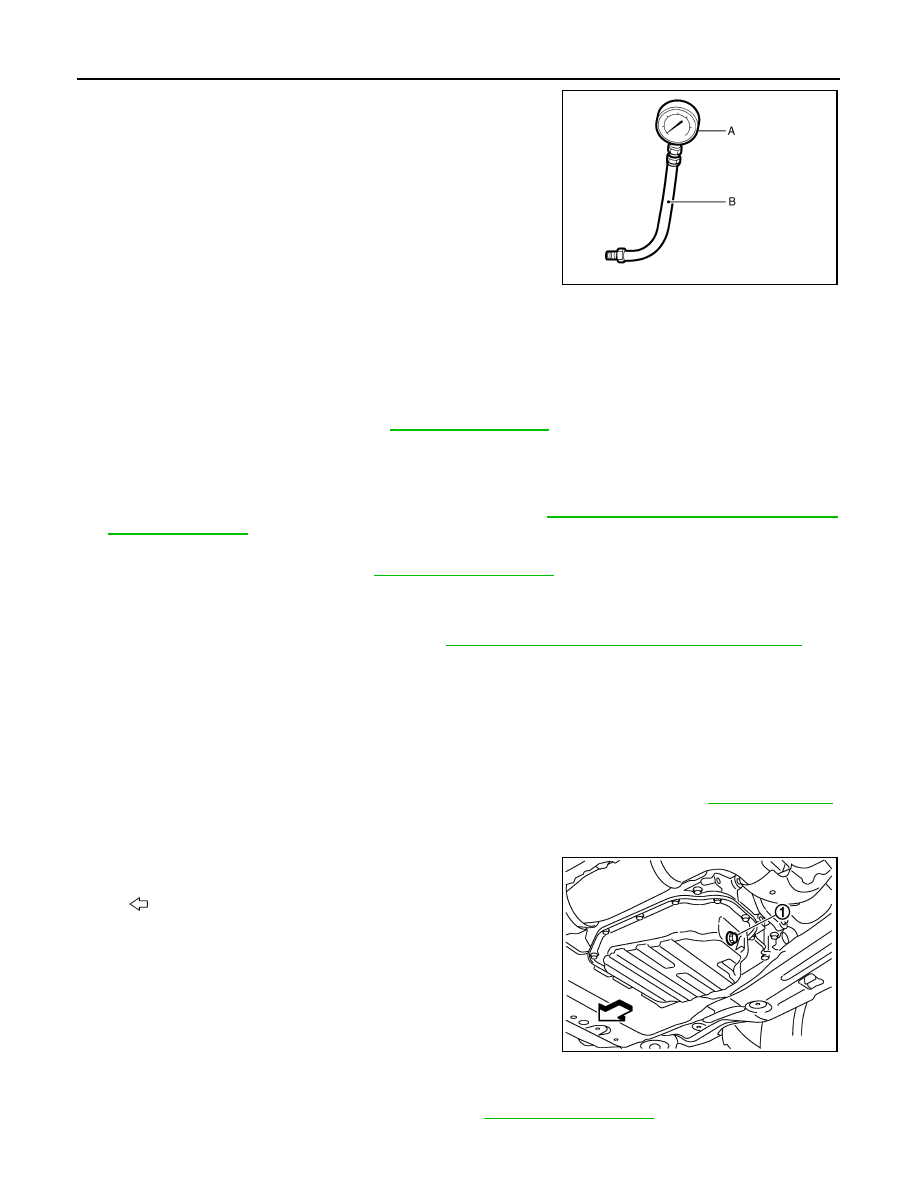

4. Install suitable tools (A/B).

5. Start the engine and warm it up to normal operating temperature.
6. Check the engine oil pressure with engine running under no-load.

NOTE:

• When engine oil temperature is low, engine oil pressure becomes high.

• If difference is extreme, check oil passage and oil pump for engine oil leaks.

7. After the inspections, install oil pressure switch as follows:
a. Remove old liquid gasket adhering to oil pressure switch and engine.
b. Apply liquid gasket and tighten oil pressure switch to the specification.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-22, "Recommended Chemical Prod-

ucts and Sealants"

.

8. Check engine oil level.
9. After warming up engine, check that there are no engine oil leaks with the engine running.
10. Install fender protector side cover (RH). Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

Draining

INFOID:0000000011277144

WARNING:

• Be careful not to get burn yourself, as engine oil may be hot.

• Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin

contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as

soon as possible.

1. Warm up the engine, and check for engine oil leaks from engine components. Refer to

LU-7, "Inspection"

.

2. Stop the engine and wait for 10 minutes.
3. Loosen oil filler cap.
4. Remove drain plug (1) and then drain engine oil.

Refilling

INFOID:0000000011277145

1. Install drain plug with new drain plug washer. Refer to

EM-36, "Exploded View"

.

CAUTION:

JPBIA0074ZZ

Engine oil pressure

: Refer to

LU-18, "Oil Pressure"

.

Tightening torque

: Refer to

EM-97, "Exploded View"

.

: Front

JPBIA0889ZZ
