Nissan Rogue. Manual - part 661

HAZARD SWITCH

EXL-273

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

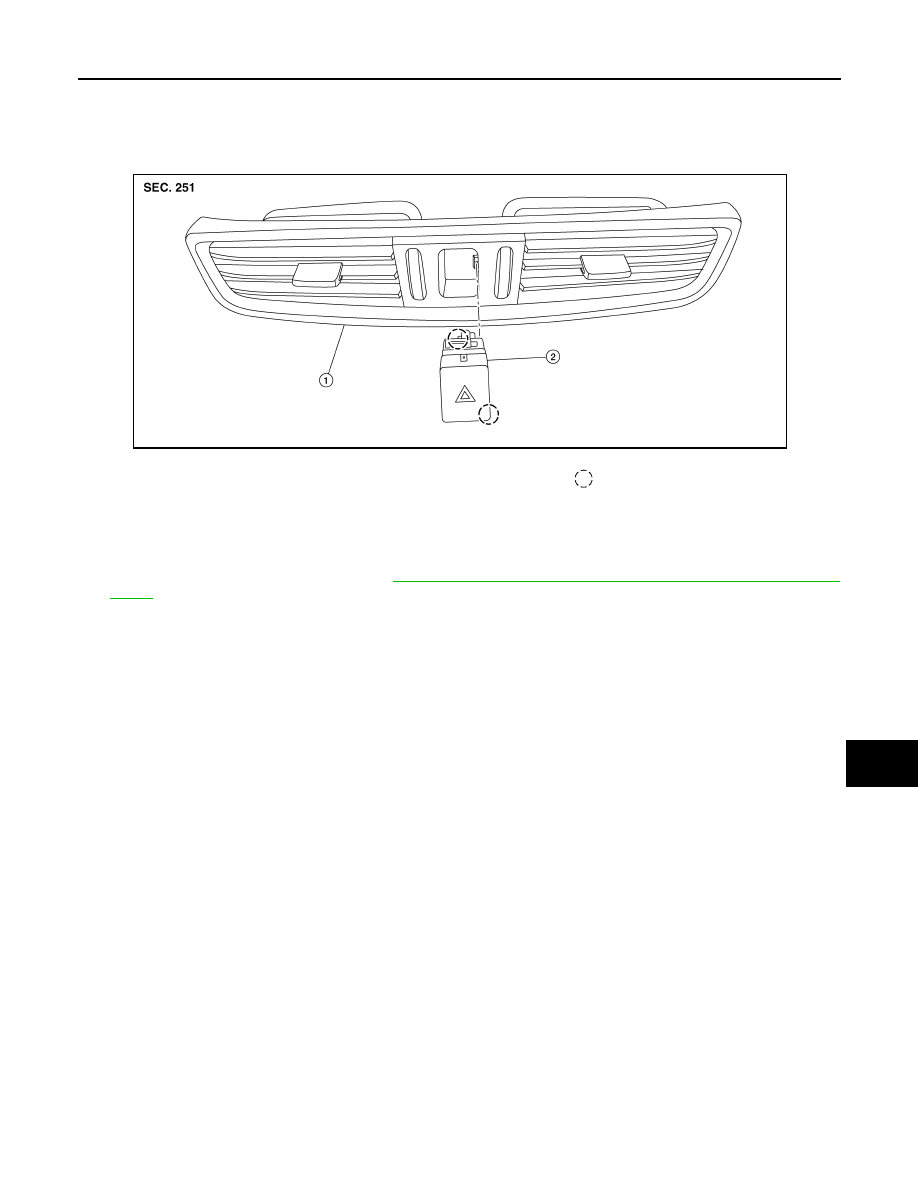

HAZARD SWITCH

Exploded View

INFOID:0000000011280919

Removal and Installation

INFOID:0000000011280920

REMOVAL

1. Remove center ventilator grille. Refer to

VTL-13, "CENTER VENTILATOR GRILLE : Removal and Instal-

lation"

.

2. Release the pawls and remove the hazard switch.

INSTALLATION

Installation is in the reverse order of removal.

1.

Center ventilator grille

2.

Hazard switch

Pawl

AWLIA2315ZZ

EXL-274

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

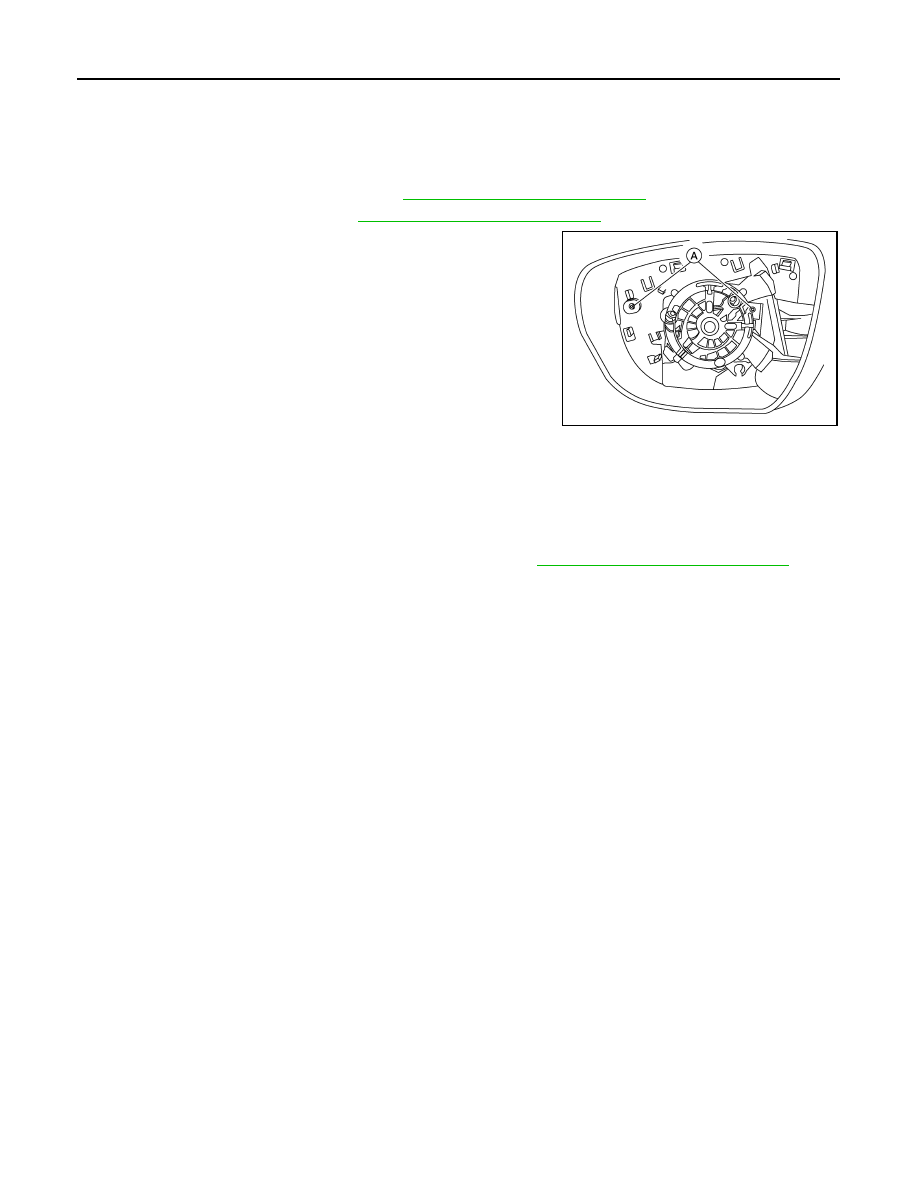

SIDE TURN SIGNAL LAMP

SIDE TURN SIGNAL LAMP

Removal and Installation

INFOID:0000000011280921

REMOVAL

1. Remove door mirror rear finisher. Refer to

MIR-26, "Removal and Installation"

.

2. Remove door mirror glass. Refer to

MIR-24, "Removal and Installation"

.

3. Remove the screws (A) and reposition side turn signal lamp.

4. Disconnect the harness connector from the side turn signal lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000011280922

The side turn signal lamp bulb is not serviced separately. Refer to

EXL-126, "Removal and Installation"

.

AWLIA2319ZZ

REAR COMBINATION LAMP

EXL-275

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

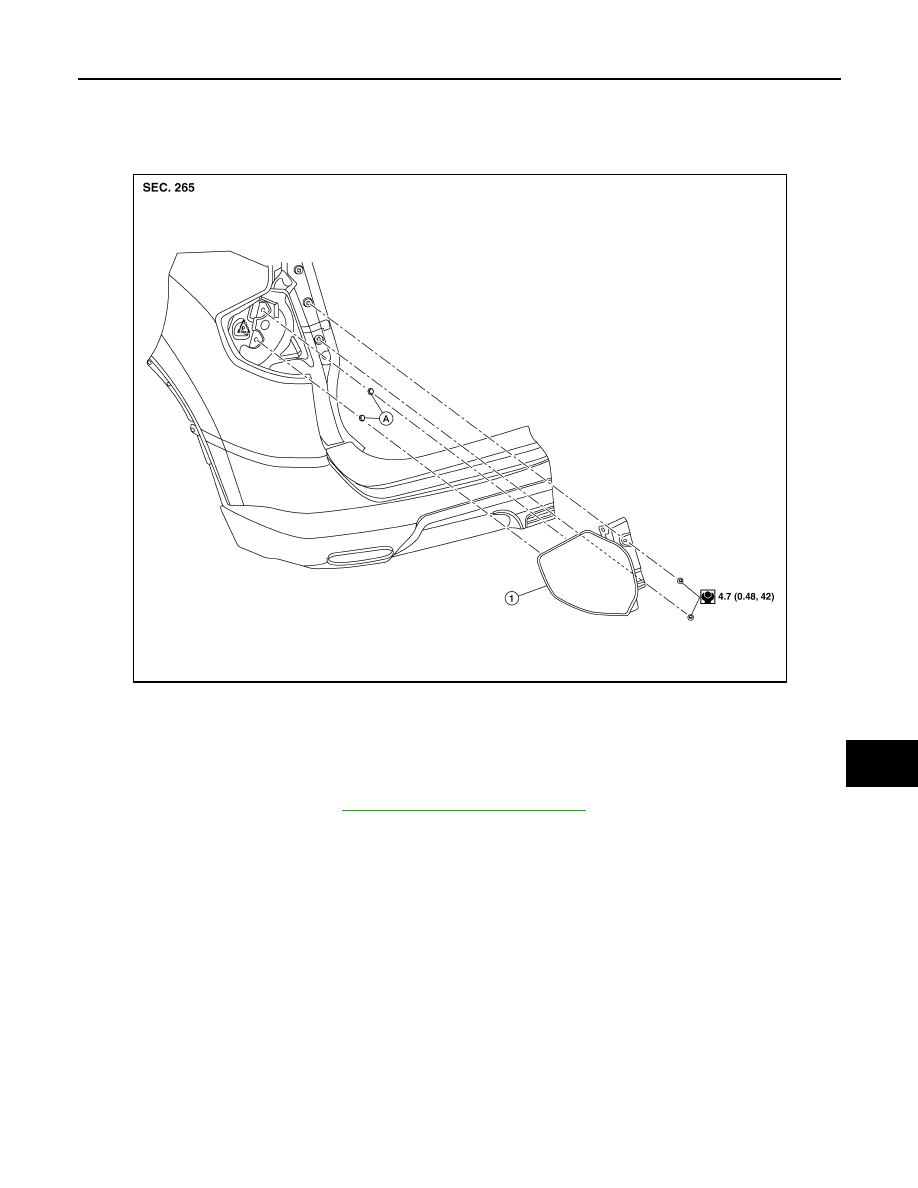

REAR COMBINATION LAMP

Exploded View

INFOID:0000000011280923

Removal and Installation

INFOID:0000000011280924

REMOVAL

1. Remove side air spoiler. Refer to

EXT-49, "Removal and Installation"

.

2. Remove rear combination lamp bolts.
3. Pull rear combination lamp rearward to release from clip and locators.
4. Disconnect the harness connector from the rear combination lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000011280925

WARNING:

Do not touch bulb with bare hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP LAMP BULB

1.

Rear combination lamp

A.

Grommet

B.

Clip

AWLIA2488ZZ

EXL-276

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR COMBINATION LAMP

Removal

1. Remove rear combination lamp. Refer to

EXL-127, "Removal and Installation"

.

2. Rotate stop lamp bulb socket counterclockwise and remove.
3. Remove stop lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.

TAIL LAMP BULB

Removal

1. Remove rear combination lamp. Refer to

EXL-127, "Removal and Installation"

.

2. Rotate tail lamp bulb socket counterclockwise and remove.
3. Remove tail lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.

TURN SIGNAL LAMP BULB

Removal

1. Remove rear combination lamp. Refer to

EXL-127, "Removal and Installation"

.

2. Rotate turn signal lamp bulb socket counterclockwise and remove.
3. Remove turn signal lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.
