Nissan Rogue. Manual - part 627





PRECAUTIONS

EXL-137

< PRECAUTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011280811

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000011280812

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily  dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

EXL-138

< PREPARATION >

[LED HEADLAMP]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000011280813

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

COMPONENT PARTS

EXL-139

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

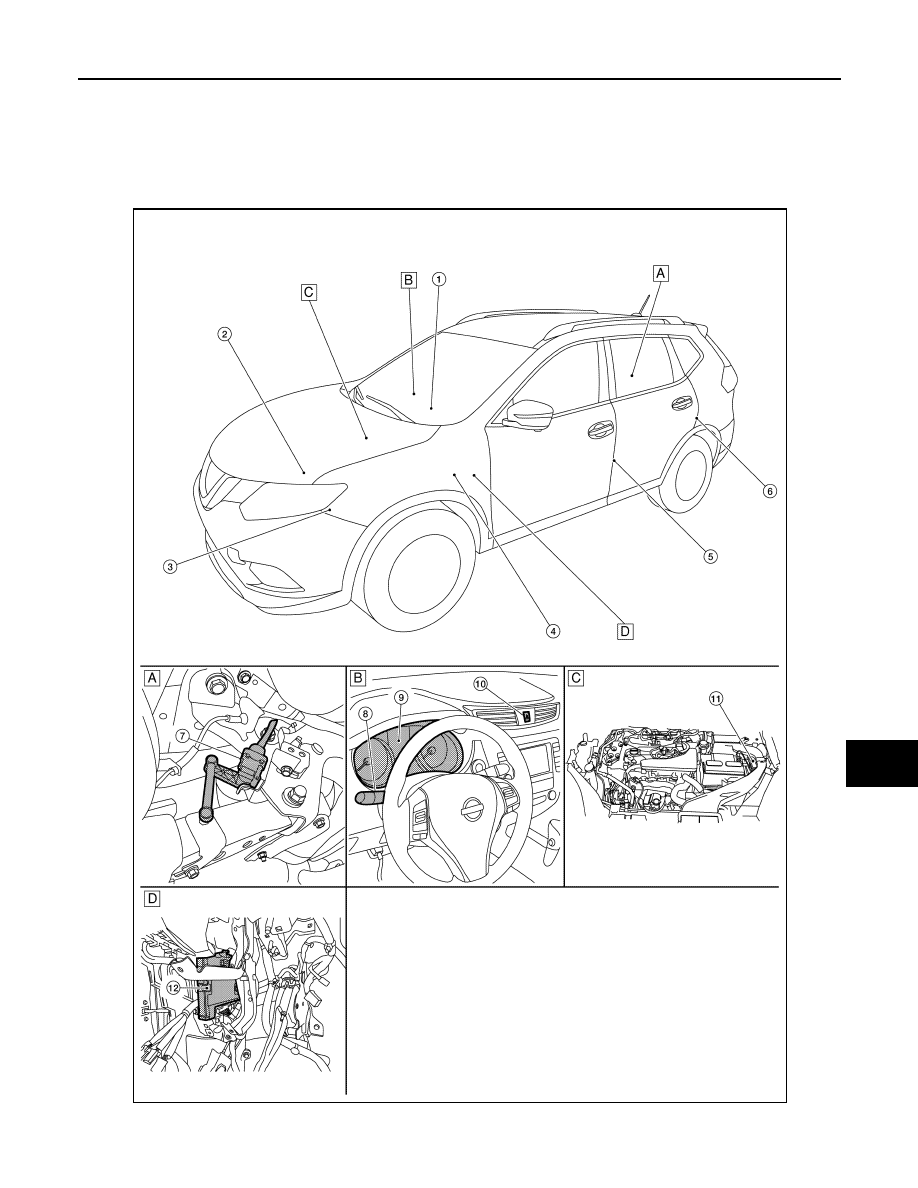

Component Parts Location

INFOID:0000000011280814

ALLIA1543ZZ

EXL-140

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

COMPONENT PARTS

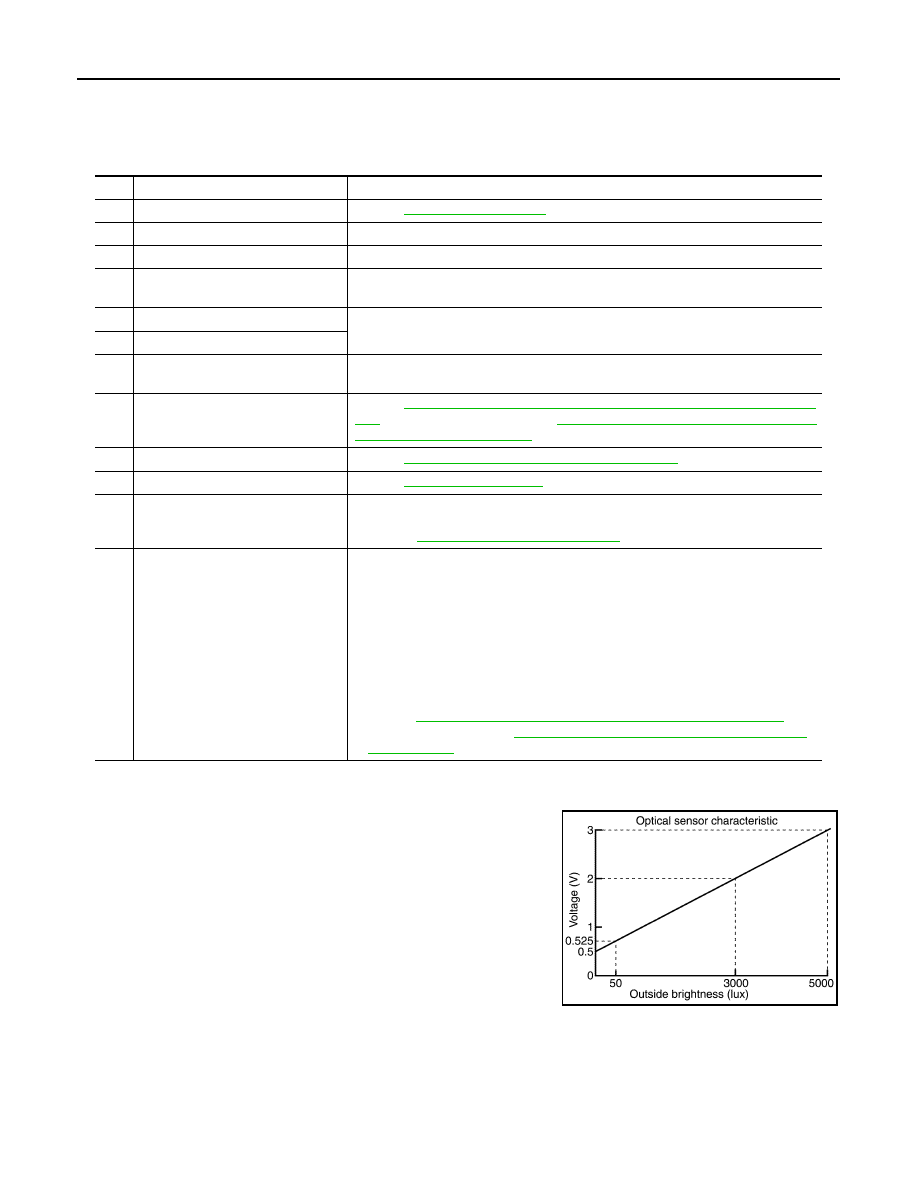

Optical Sensor

INFOID:0000000011280815

Optical sensor converts the outside brightness (lux) to voltage and

transmits the optical sensor signal to BCM.

A.

Right rear wheel area

B.

Instrument panel

C.

Engine compartment

D.

Left side of instrument panel (view
with trim panel removed)

No.

Part

Function

1.

Optical sensor

Refer to

EXL-10, "Optical Sensor"

.

2.

LED headlamp control module

Turns the headlamps ON according to the power supply from IPDM E/R.

3.

Headlamp aiming motor

Moves the headlamps up/down based on inputs from the rear height sensor.

4.

Parking brake switch

Transmits the parking brake switch signal to the combination meter to operate the
daytime running light system.

5.

Front door switch LH (RH similar)

Transmits the door open signal to the BCM to operate the autolight system.

6.

Rear door switch LH (RH similar)

7.

Rear height sensor

Sends the vehicles pitch angle signal to the IPDM E/R necessary for adjusting the
headlamp aiming motors.

8.

Combination switch
(Lighting and turn signal switch)

Refer to

BCS-9, "COMBINATION SWITCH READING SYSTEM : System Descrip-

tion"

 (with Intelligent Key system) or

BCS-81, "COMBINATION SWITCH READING

SYSTEM : System Description"

 (without Intelligent Key system).

9.

Combination meter

Refer to

MWI-8, "METER SYSTEM : System Description"

.

10.

Hazard switch

Refer to

EXL-11, "Hazard Switch"

.

11.

IPDM E/R

• Supplies voltage to the load according to the request from BCM (via CAN com-

munication).

• Refer to

PCS-6, "Component Parts Location"

 for detailed installation location.

12.

BCM

• Detects each switch condition by the combination switch reading function.
• Judges that the exterior lamps are turned ON according to the vehicle condition.
• Requests the headlamp (HI/LO), tail lamp and front fog lamp ON to IPDM E/R (via

CAN communication).

• Requests high beam indicator lamp ON to the combination meter (via CAN com-

munication).

• Judges the outside brightness from the optical sensor signal.
• Judges the ON/OFF timing according to the vehicle condition.
• Judges the ON/OFF status of the exterior lamp according to the outside bright-

ness and the vehicle condition.

• Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 (with

Intelligent Key system) or

BCS-79, "BODY CONTROL SYSTEM : Component

Parts Location"

 (without Intelligent Key system).

JMLIA2581GB
