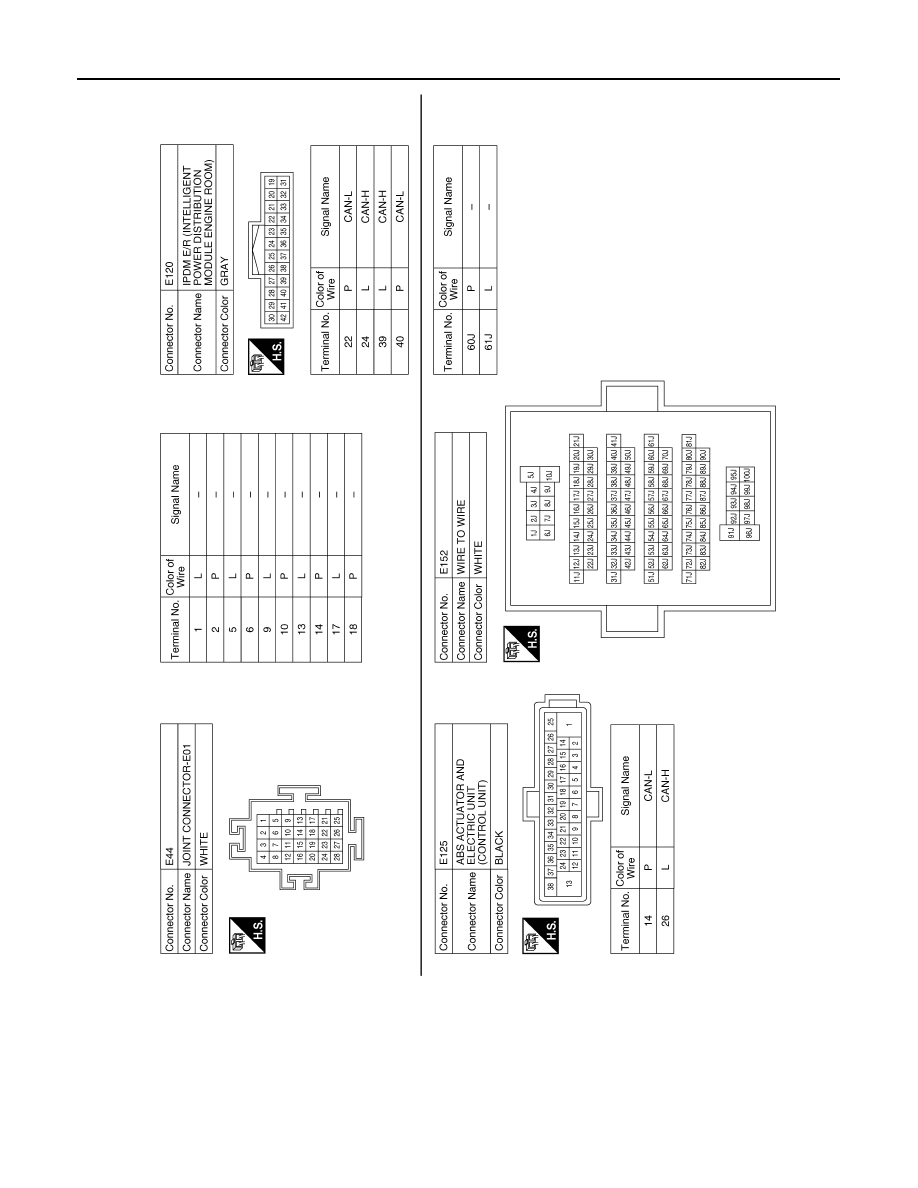

DLN-28

< WIRING DIAGRAM >

[TRANSFER: TY21C]

AWD SYSTEM

AADIA0802GB

AWD SYSTEM

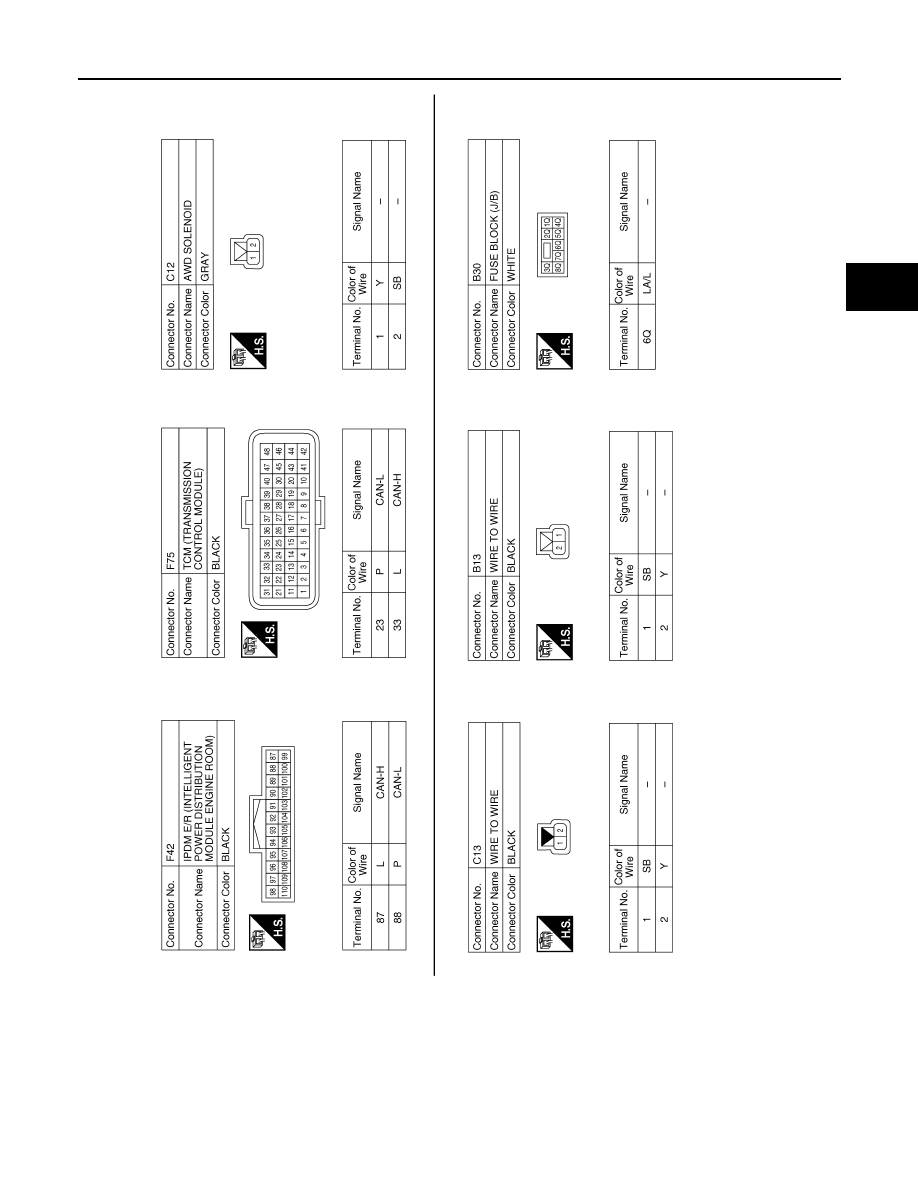

DLN-29

< WIRING DIAGRAM >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

AADIA0803GB

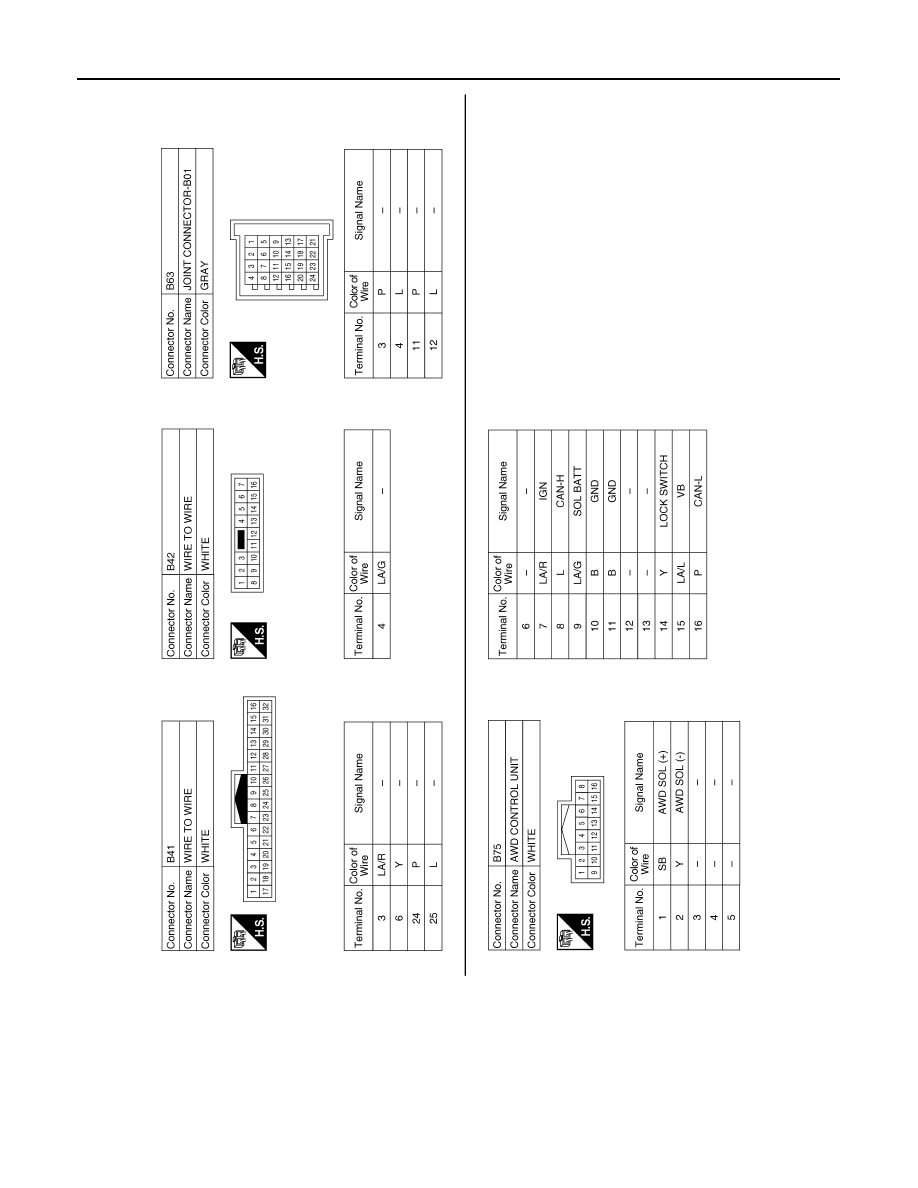

DLN-30

< WIRING DIAGRAM >

[TRANSFER: TY21C]

AWD SYSTEM

AADIA0804GB

DIAGNOSIS AND REPAIR WORK FLOW

DLN-31

< BASIC INSPECTION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000011278310

DETAILED FLOW

1.

INTERVIEW FROM THE CUSTOMER

Clarify customer complaints before inspection. First of all, perform an interview utilizing

DLN-32, "Diagnostic

Work Sheet"

 and reproduce symptoms as well as fully understand it. Ask customer about his/her complaints

carefully. Check symptoms by driving vehicle with customer, if necessary.

CAUTION:

Customers are not professional. Never guess easily like “maybe the customer means that...,” or

“maybe the customer mentions this symptom”.

>> GO TO 2.

2.

CHECK SYMPTOM

Reproduce the symptom that is indicated by the customer, based on the information from the customer

obtained by interview. Also check that the symptom is not caused by protection function. Refer to

DLN-22,

"Protection Function"

.

CAUTION:

When the symptom is caused by normal operation, fully inspect each portion and obtain the under-

standing of customer that the symptom is not caused by a malfunction.

>> GO TO 3.

3.

PERFORM SELF DIAGNOSTIC RESULT

 With CONSULT

Perform “Self Diagnostic Result” of “ALL MODE AWD/4WD”.
Is any DTC detected?

YES

>> Record or print self diagnostic results. GO TO 4.

NO

>> GO TO 6.

4.

RECHECK SYMPTOM

 With CONSULT

1. Erase “Self Diagnostic Result” of “ALL MODE AWD/4WD”.

2. Perform DTC confirmation procedures for the error detected system.

NOTE:

If some DTCs are detected at the same time, determine the order for performing the diagnosis based on

DLN-

22, "DTC Inspection Priority Chart"

.

Is any DTC detected?

YES

>> GO TO 5.

NO

>> Check harness and connectors based on the information obtained by interview. Refer to

GI-44,

"Intermittent Incident"

.

5.

REPAIR OR REPLACE ERROR-DETECTED PARTS

• Repair or replace error-detected parts.

• Reconnect part or connector after repairing or replacing.

• When DTC is detected, erase “Self Diagnostic Result” of “ALL MODE AWD/4WD”.

>> GO TO 7.

6.

IDENTIFY ERROR-DETECTED SYSTEM BY SYMPTOM DIAGNOSIS

Estimate error-detected system based on symptom diagnosis and perform inspection.
Can the error-detected system be identified?
