DLK-290

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

POWER DOOR LOCK SYSTEM

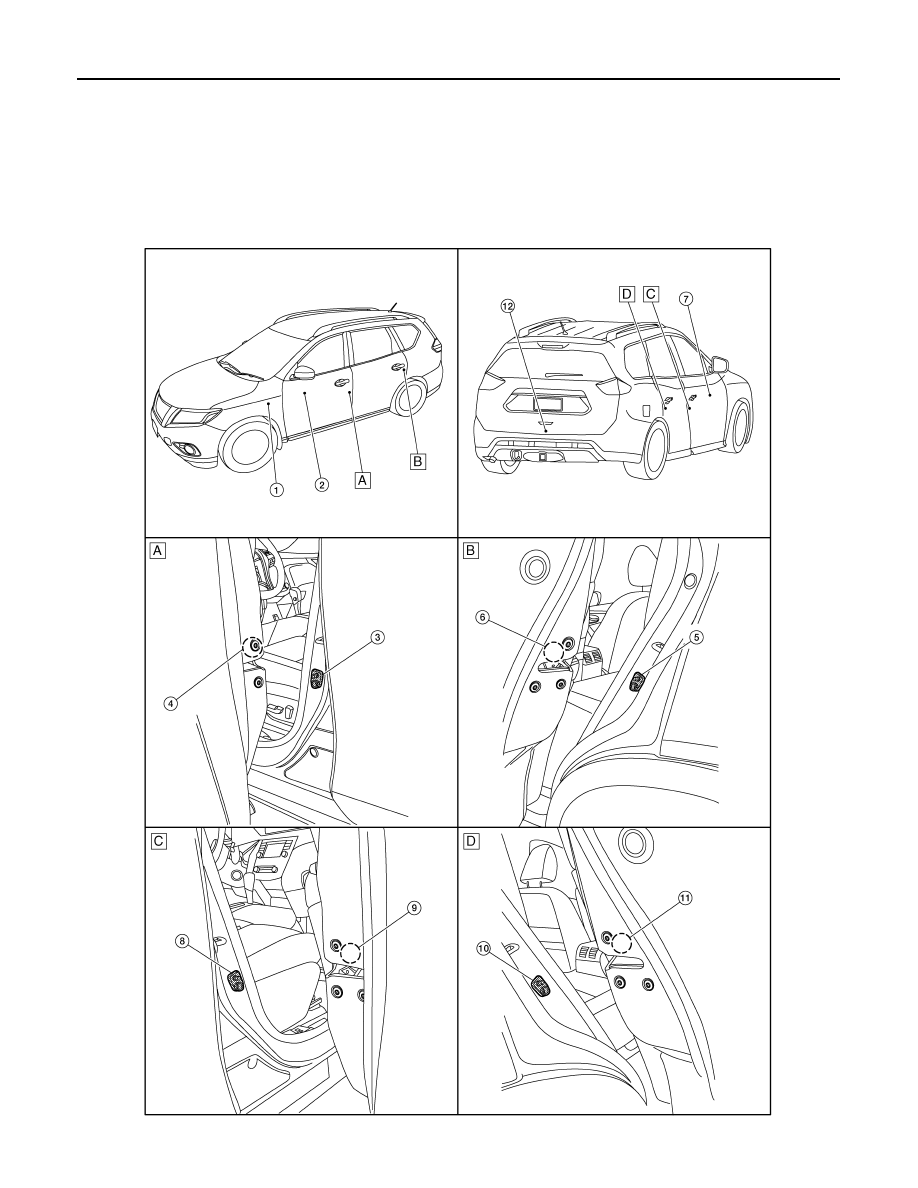

POWER DOOR LOCK SYSTEM : Component Parts Location

INFOID:0000000011279069

ALKIA3430ZZ

2015 Rogue NAM

COMPONENT PARTS

DLK-291

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

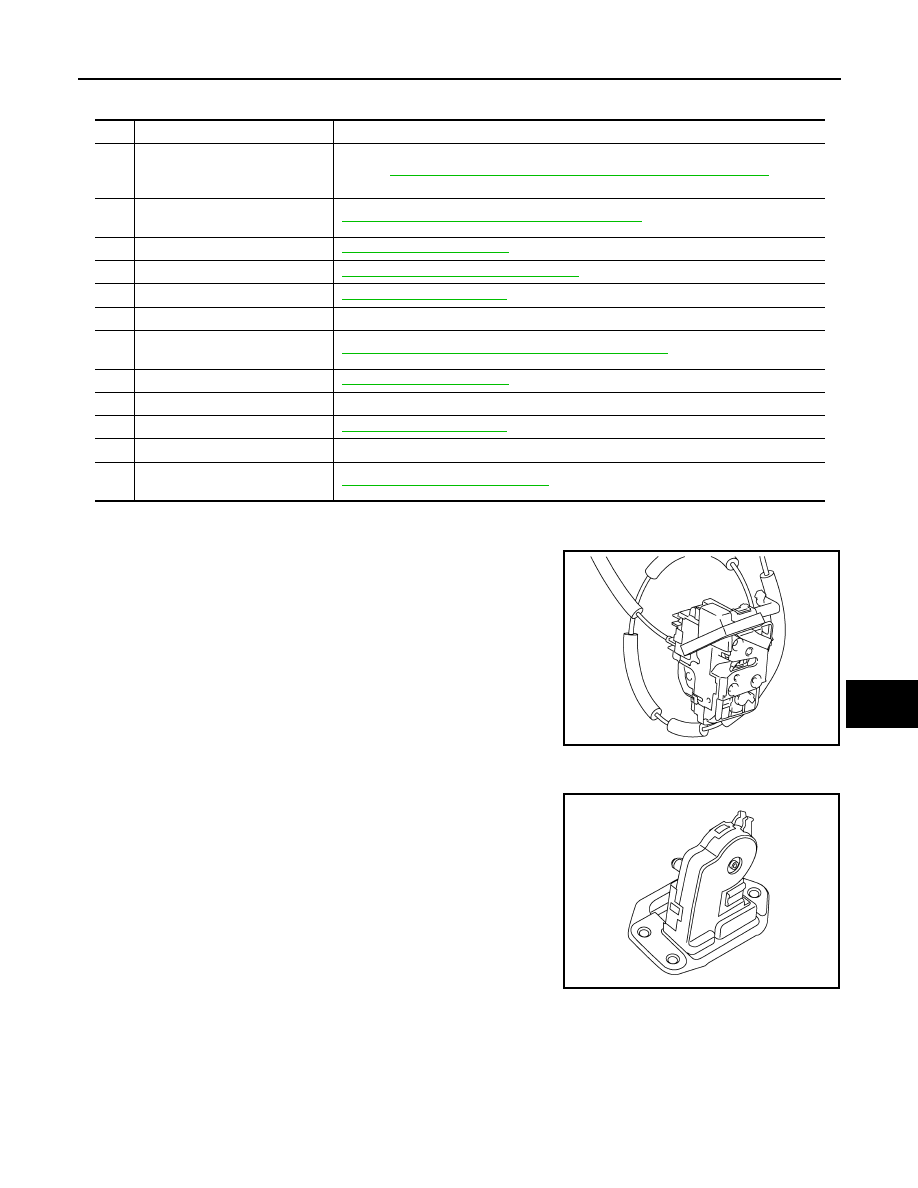

Front Door Lock Assembly (Driver Side)

INFOID:0000000011279070

• Door lock actuator and unlock sensor are Integrated in driver door

lock assembly.

• Door lock actuator receives lock/unlock signal from BCM, and then

locks/unlocks driver door.

• Only front door lock assembly (driver side) integrates unlock sen-

sor. Unlock sensor transmits lock/unlock status of driver door to

BCM.

Back Door Lock Assembly

INFOID:0000000011279071

• Back door lock assembly lock assembly integrates door lock actu-

ator and back door latch.

• Door lock actuator locks/unlocks the back door according to the

door lock/unlock signal from BCM.

No.

Component

Function

1.

BCM

Controls the door lock system.
Refer to

BCS-79, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location

2.

Main power window and door
lock/unlock switch

DLK-21, "Door Lock and Unlock Switch (Driver Side)"

3.

Front door switch LH

DLK-292, "Front Door Switch"

4.

Front door lock assembly LH

DLK-24, "Front Door Lock Assembly (LH)"

5.

Rear door switch LH

DLK-292, "Rear Door Switch"

6.

Rear door lock actuator LH

Rear door lock actuator locks/unlocks the rear door latch assembly.

7.

Power window and door lock/un-
lock switch RH

DLK-21, "Door Lock and Unlock Switch (Passenger Side)"

8.

Front door switch RH

DLK-292, "Front Door Switch"

9.

Front door lock actuator RH

Rear door lock actuator locks/unlocks the rear door latch assembly.

10.

Rear door switch RH

DLK-292, "Rear Door Switch"

11.

Rear door lock actuator RH

Rear door lock actuator locks/unlocks the rear door latch assembly.

12.

Back door lock assembly (door
ajar switch)

DLK-20, "Back Door Lock Assembly"

JMKIA8649ZZ

JMKIA8651ZZ

2015 Rogue NAM

DLK-292

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

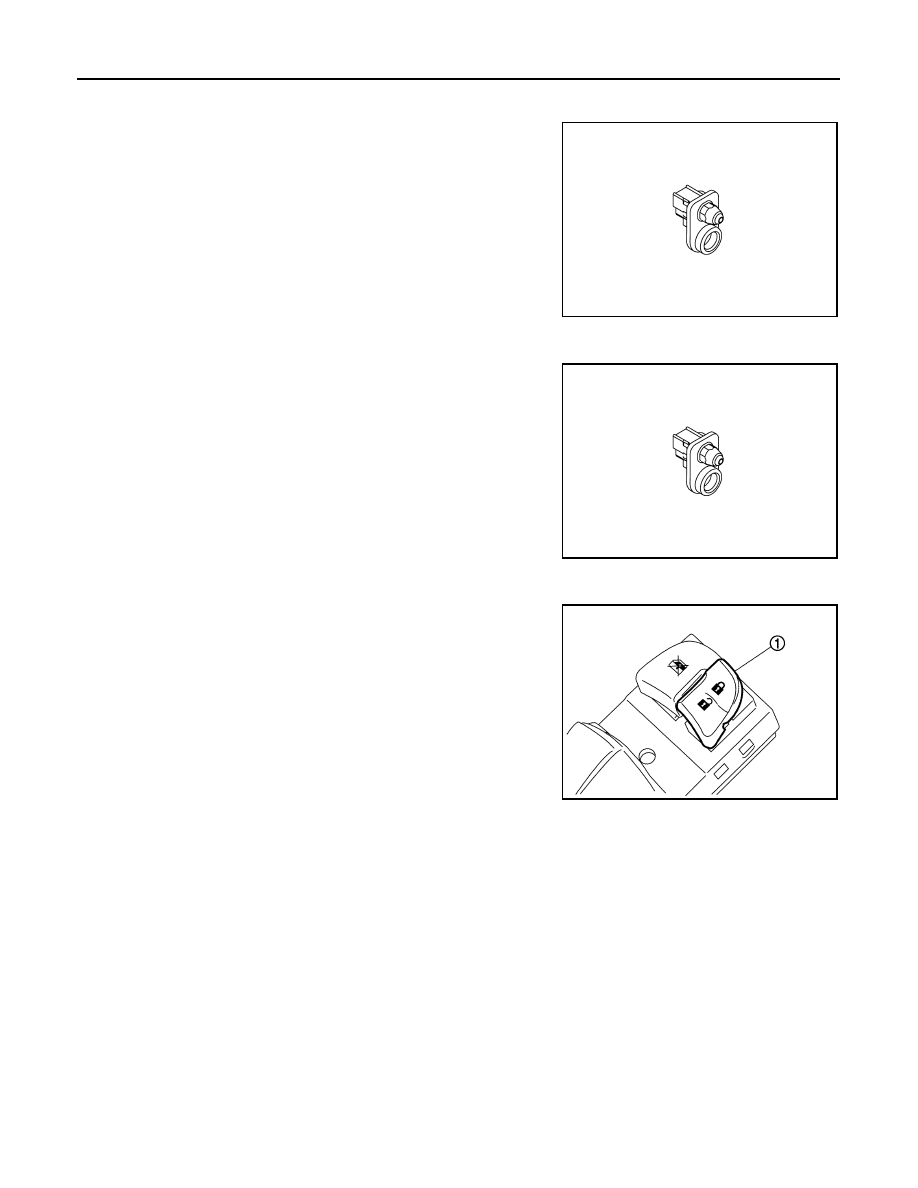

Rear Door Switch

INFOID:0000000011279072

Door switch detects open/close status of door and transmits door

switch signal to BCM.

Front Door Switch

INFOID:0000000011279073

Door switch detects open/close status of door and transmits door

switch signal to BCM.

Door Lock and Unlock Switch

INFOID:0000000011279074

• Door lock and unlock switch transmits door lock/unlock signal

operation to BCM.

• Door lock and unlock switch (1) is integrated in the main power

window and door lock/unlock switch and power window and door

lock/unlock switch RH.

JMKIA6526ZZ

JMKIA6526ZZ

JMKIA9352ZZ

2015 Rogue NAM

SYSTEM

DLK-293

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM

POWER DOOR LOCK SYSTEM

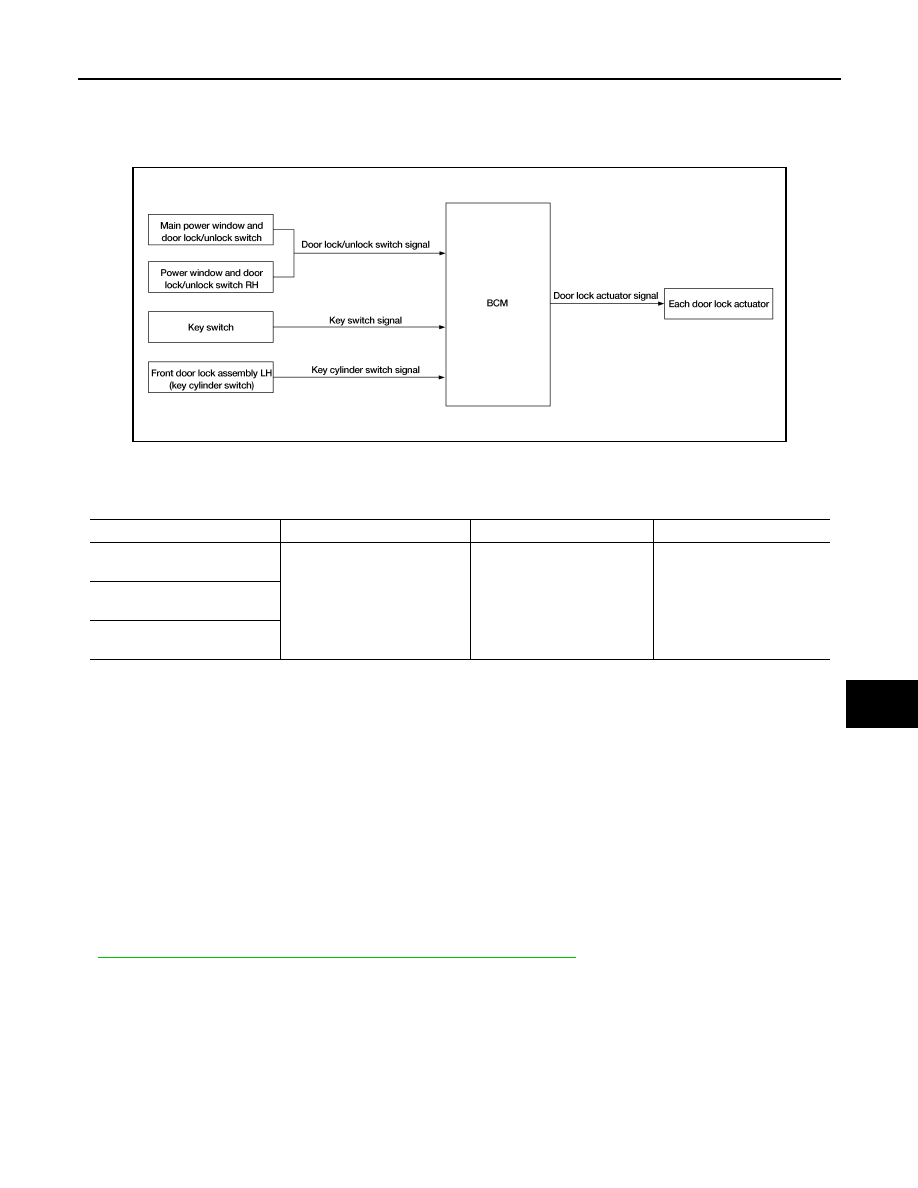

POWER DOOR LOCK SYSTEM : System Diagram

INFOID:0000000011279075

POWER DOOR LOCK SYSTEM : System Description

INFOID:0000000011279076

DOOR LOCK FUNCTION

Functions Available by Operating the Door Lock and Unlock Switches on Driver Door and Passenger Door

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all door lock

actuators are locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all door lock

actuators are unlocked.

Functions Available by Operating the Key Cylinder Switch on Driver Door

• Interlocked with the locking operation of door key cylinder, door lock actuators of all door lock actuators are

locked.

Selective Unlock Operation

• When door key cylinder is unlocked, door lock actuator driver side is unlocked.

• When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door lock

actuators on all doors are unlocked.

Select unlock operation mode can be changed using “DOOR LOCK-UNLOCK SET” in “Work support”. Refer

to

BCS-87, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

REMOTE KEYLESS ENTRY SYSTEM

ALKIA2289GB

Switch

Input/output signal to BCM

BCM function

Actuator

Main power window and door
lock/unlock switch

Door lock/unlock signal

Door lock/unlock control

Door lock actuator

Power window and door lock/
unlock switch RH

Front door lock key cylinder
switch LH
