HOOD LOCK

HOOD LOCK RELEASE HANDLE : Removal and Installation

INFOID:0000000011279029

REMOVAL

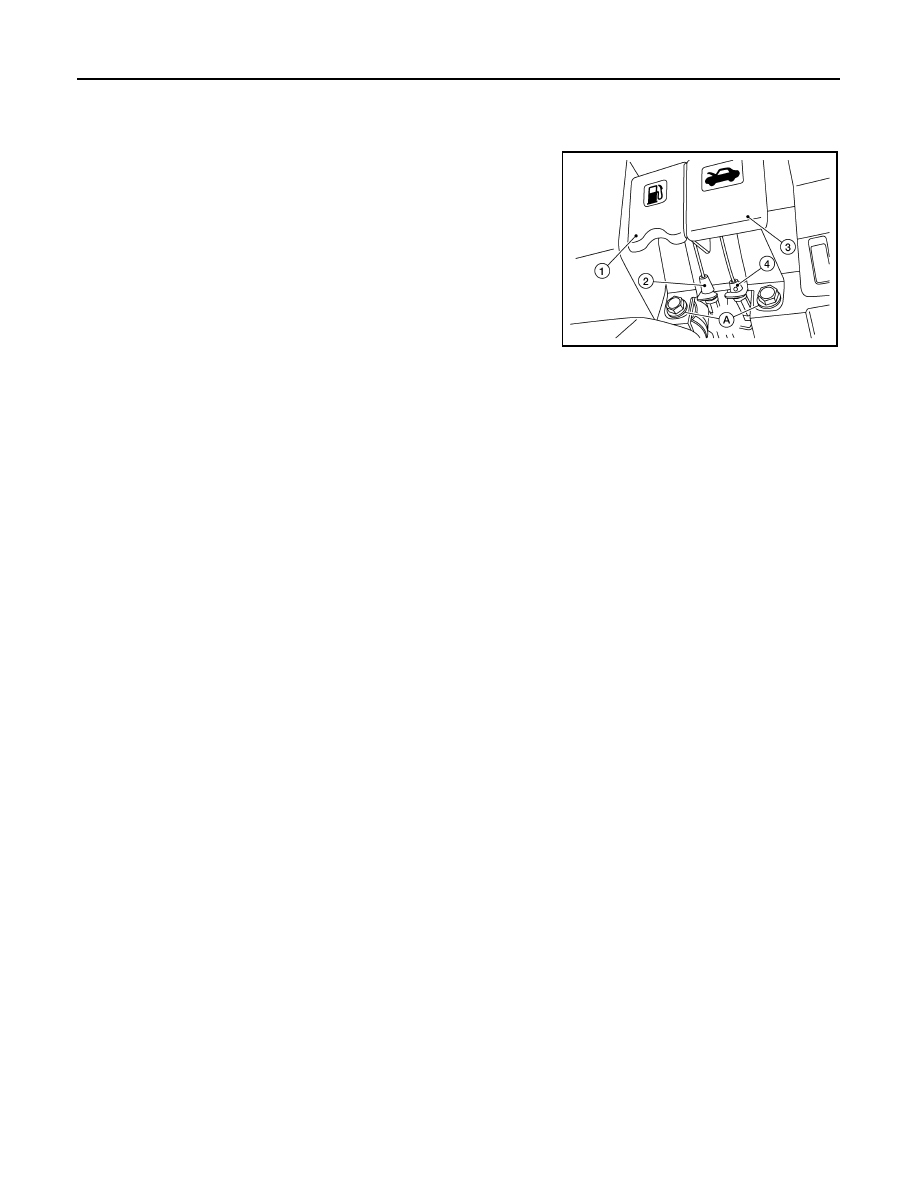

1. Remove fuel filler lid/hood lock release handle bolts (A).
2. Disconnect fuel filler lid release cable (2) from fuel filler lid

release handle (1).

3. Disconnect hood lock release cable (4) from hood lock release

handle (3).

4. Remove hood lock release handle.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3422ZZ

2015 Rogue NAM

FRONT DOOR LOCK

DLK-263

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR LOCK

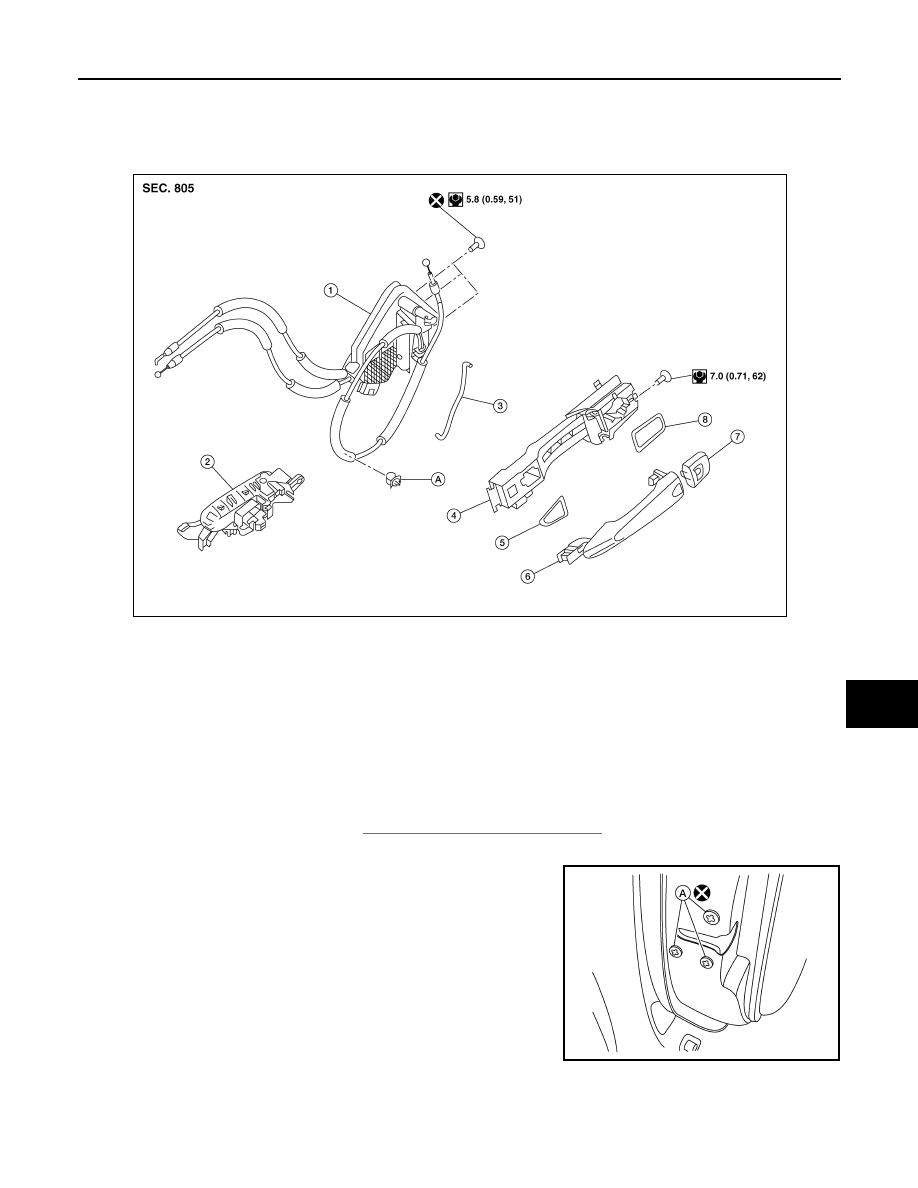

Exploded View

INFOID:0000000011279030

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000011279031

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove vapor barrier.
3. Remove front door lock bolts (A).

1.

Front door lock

2.

Inside handle

3.

Door key cylinder rod (LH only)

4.

Outside handle bracket

5.

Front gasket

6.

Outside handle

7.

Outside handle escutcheon / door key
cylinder (LH only)

8.

Rear gasket

A.

Clip

AWKIA2920ZZ

ALKIA3355ZZ

2015 Rogue NAM

DLK-264

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

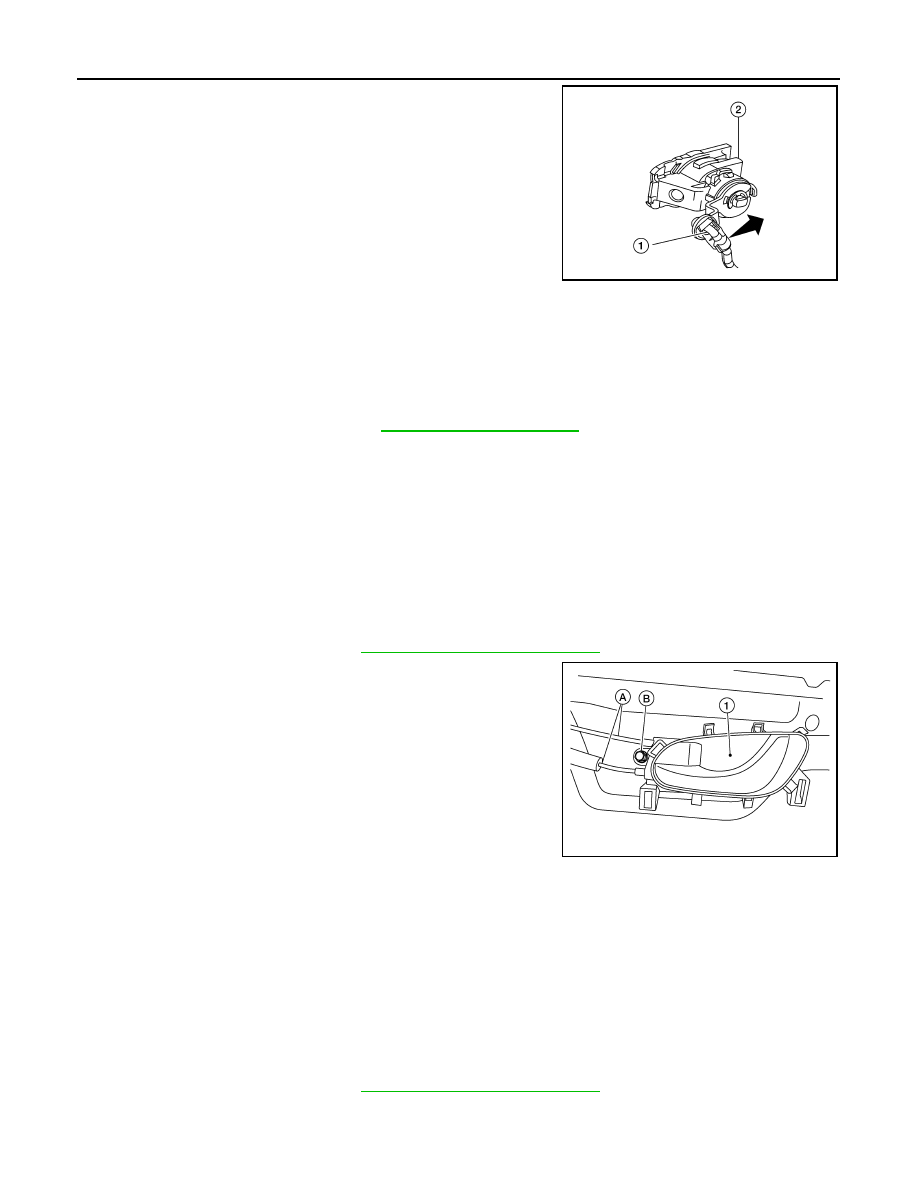

4. Disconnect door key cylinder rod (LH only) (1) from front door

lock (2) (LH only).

5. Disconnect door lock cables from inside handle and outside handle..
6. Disconnect the harness connector from the front door lock and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse front door lock bolts.

• Tighten bolts to specification. Refer to

DLK-263, "Exploded View"

.

• After installation, check door lock cables are properly engaged to inside handle and outside handle

bracket.

• When installing door key cylinder rod (LH only), be sure to rotate door key cylinder rod holder until a

click is felt.

• After installation, check door open/close and lock/unlock operation.

• Check door lock assembly for poor lubrication. If necessary apply a suitable multi-purpose grease.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000011279032

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove inside handle bolt (B).
3. Disconnect the door lock cables (A) and remove inside handle

(1).

INSTALLATION

 Installation is in the reverse order of removal.

CAUTION:

• After installation, check door lock cables are properly engaged to inside handle.

• After installation, check door open/close and lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000011279033

REMOVAL

1. Fully close front door glass.
2. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

ALKIA2487ZZ

ALKIA3392ZZ

2015 Rogue NAM

FRONT DOOR LOCK

DLK-265

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

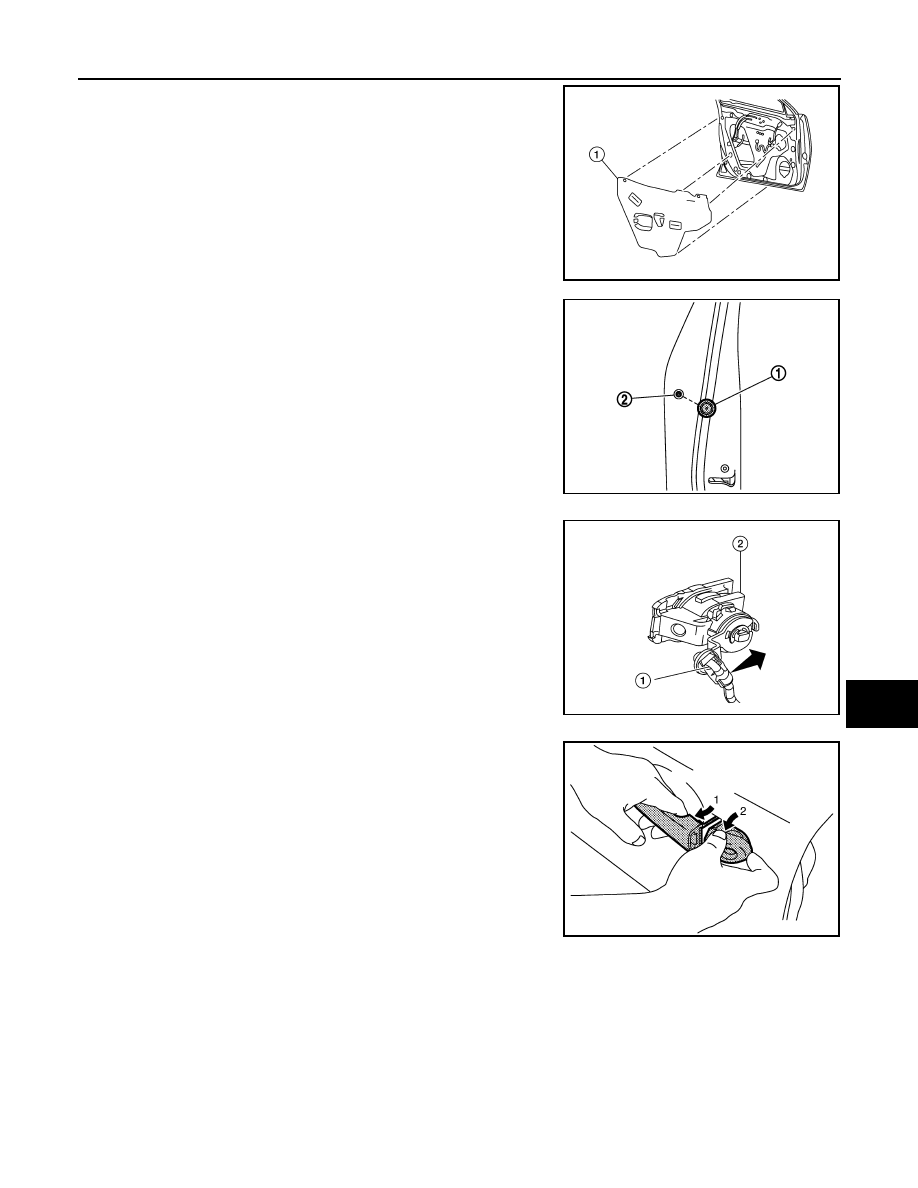

3. Remove front door vapor barrier (1).

NOTE:

LH side shown; RH similar.

4. Remove door side grommet (1), and remove bolt from grommet

hole (2).

5. Separate door key cylinder rod (LH only) (1) from door key cylin-

der assembly (LH only) (2).

6. While pulling (1) outside handle, remove (2) door key cylinder

assembly (LH side) or outside handle escutcheon (RH side).

ALKIA3488ZZ

JMKIA5888ZZ

ALKIA2487ZZ

ALKIA2487ZZ

JMKIA0560ZZ
