Nissan Rogue. Manual - part 1055

SE-86

< UNIT DISASSEMBLY AND ASSEMBLY >

THIRD ROW SEAT

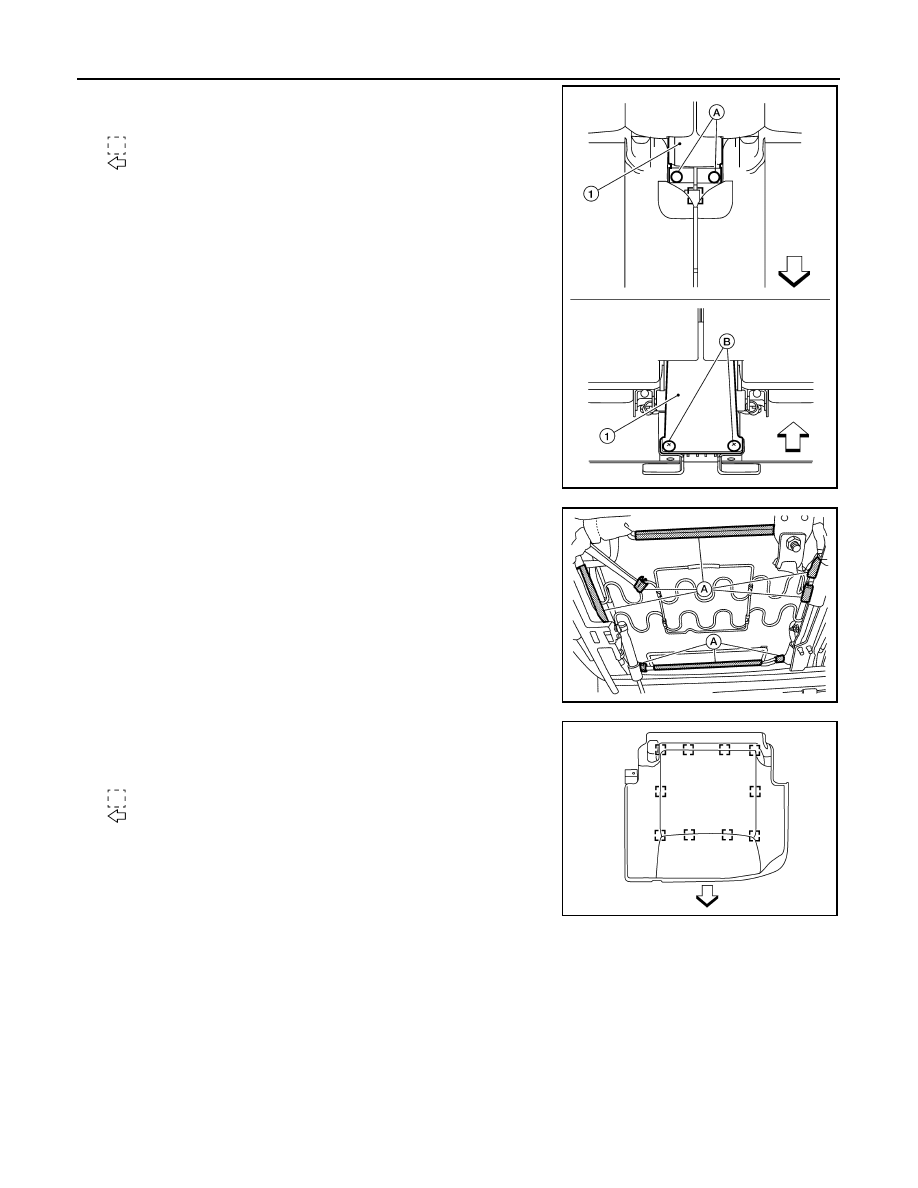

3. Using a suitable tool, release seat cushion trim clips (A) and

remove rear screws (B). Then, release metal clip and remove

the center seat frame finisher (1).

: Metal clip

: Front

4. Release J-hooks (A) from seat frame and remove seat cushion

trim and seat cushion pad.

5. Remove hog rings and separate the seat cushion trim from the

seat cushion pad.

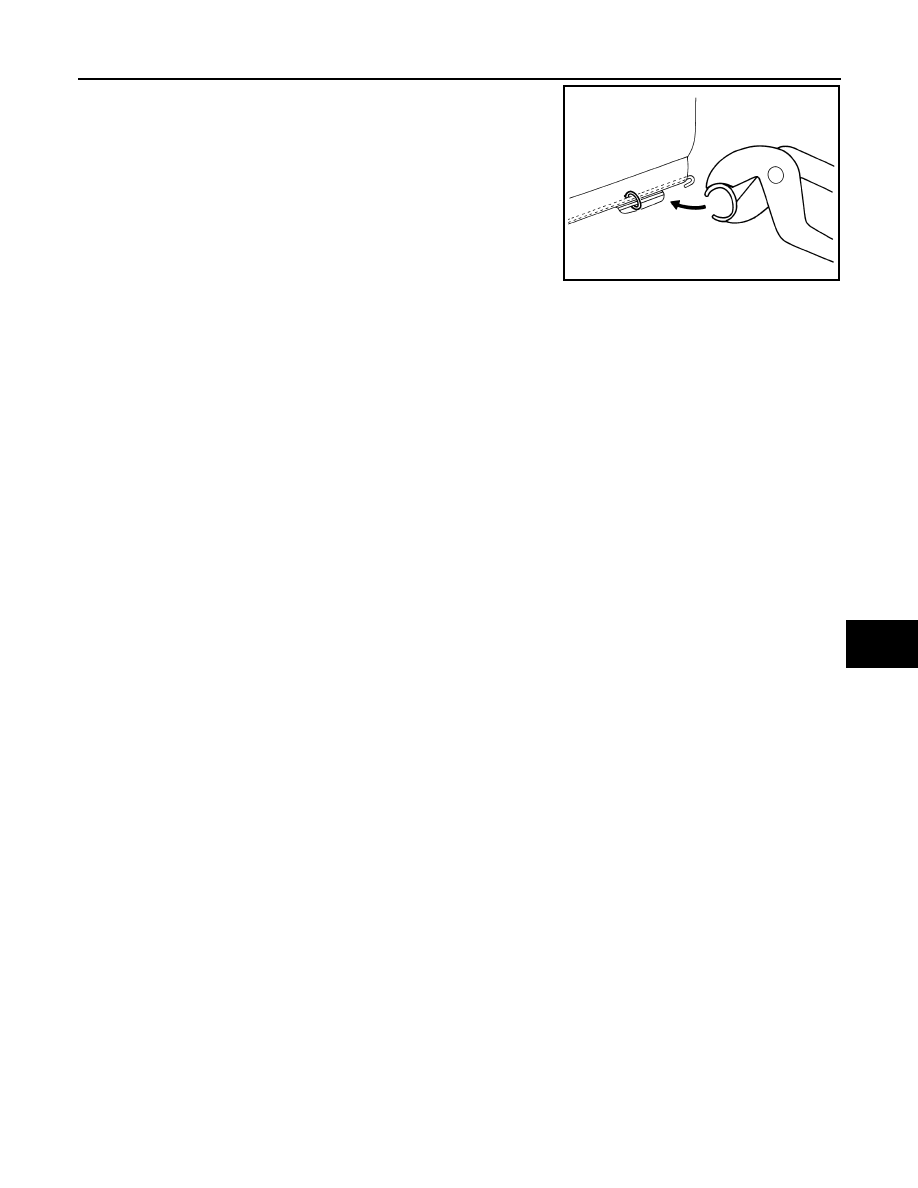

NOTE:

Remove all pieces of hog rings and discard them.

: Hog ring

: Front

ASSEMBLY

Assembly is in the reverse order of disassembly.

ALJIA1440ZZ

ALJIA1438ZZ

AWJIA1299ZZ

THIRD ROW SEAT

SE-87

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Make sure hook fastener is pressed into place after seat cushion

trim is assembled.

• Smooth out all wrinkles during assembly.
