MOONROOF UNIT ASSEMBLY

• Always work with a helper.

• Handle glass lid with care to prevent damage.

NOTE:

• For easier and more accurate installation, always mark each point before removal.

• After any adjustment, check moonroof operation and glass lid alignment.

Unit: mm (in)

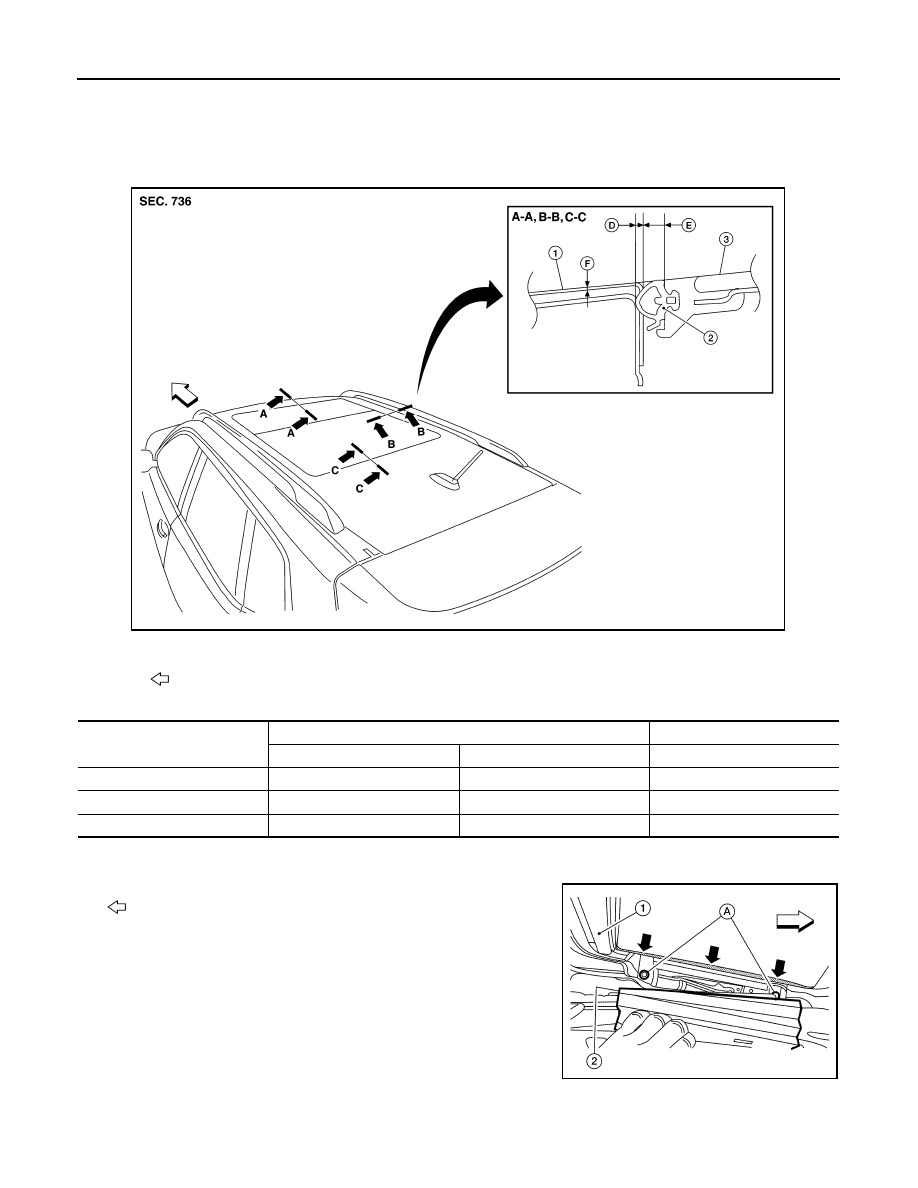

Gap adjustment (Front and Rear)

1. Open sunshade (1).

: Front

2. Tilt glass lid up, then release side trim cover (2) on each side

and set aside.

NOTE:

LH side shown; RH similar.

3. Loosen glass lid bolts (A) (two each on LH and RH side), then tilt

glass lid down.

4. Manually adjust glass lid from outside of vehicle until gaps A-A

and C-C are within specification.

NOTE:

Temporarily loosely tighten glass lid bolts to prevent movement between each adjustment.

5. Tilt glass lid up and down several times using moonroof switch to check that it operates smoothly.

1.

Roof panel

2.

Weatherstrip

3.

Glass lid/panoramic roof glass

Front

ALKIA3675ZZ

Portion

Gap

Surface height difference

D

E

F

A-A

1.4

± 0.8 (0.06 ± 0.03)

7.3

± 0.8 (0.29 ± 0.03)

0.7

± 1.5 (0.03 ± 0.06)

B-B

1.4

± 0.8 (0.06 ± 0.03)

7.3

± 0.8 (0.29 ± 0.03)

0.7

± 1.5 (0.03 ± 0.06)

C-C

1.4

± 0.8 (0.06 ± 0.03)

7.3

± 0.8 (0.29 ± 0.03)

0.7

± 1.5 (0.03 ± 0.06)

ALKIA0059ZZ

MOONROOF UNIT ASSEMBLY

RF-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

6. Tilt glass lid up and tighten bolts.

NOTE:

First tighten left front bolt, then right rear bolt on glass lid to prevent uneven torque while tightening

remaining bolts.

7. Attach side trim covers (LH/RH), then tilt glass lid down.

Gap Adjustment (Sides)

The moonroof unit assembly is mounted on locator pins and adjustment from side to side cannot be per-

formed.

Surface Height Adjustment

1. Tilt glass lid up and down several times using moonroof switch to check that it operates smoothly.
2. Check height difference between roof surface and glass lid surface, then compare to specifications.
3. If necessary, adjust height difference by using the following procedure.

• Loosen glass lid bolts.

• Manually raise/lower glass lid until height difference is within specification.

NOTE:

If necessary, shims may be added between moonroof unit assembly and roof to increase adjustment

range. Refer to

RF-50, "Removal and Installation"

.

Temporarily loosely tighten moonroof unit assembly bolts to prevent movement between each adjust-

ment.

• Tilt glass lid up and down several times using moonroof switch to check that it operates smoothly.

• Tighten glass lid and moonroof side bracket bolts.

NOTE:

First tighten left front bolt, then right rear bolt on glass lid to prevent uneven torque while tightening

remaining bolts.

• After any adjustment, check moonroof operation and glass lid alignment.

RF-58

< REMOVAL AND INSTALLATION >

MOONROOF UNIT ASSEMBLY

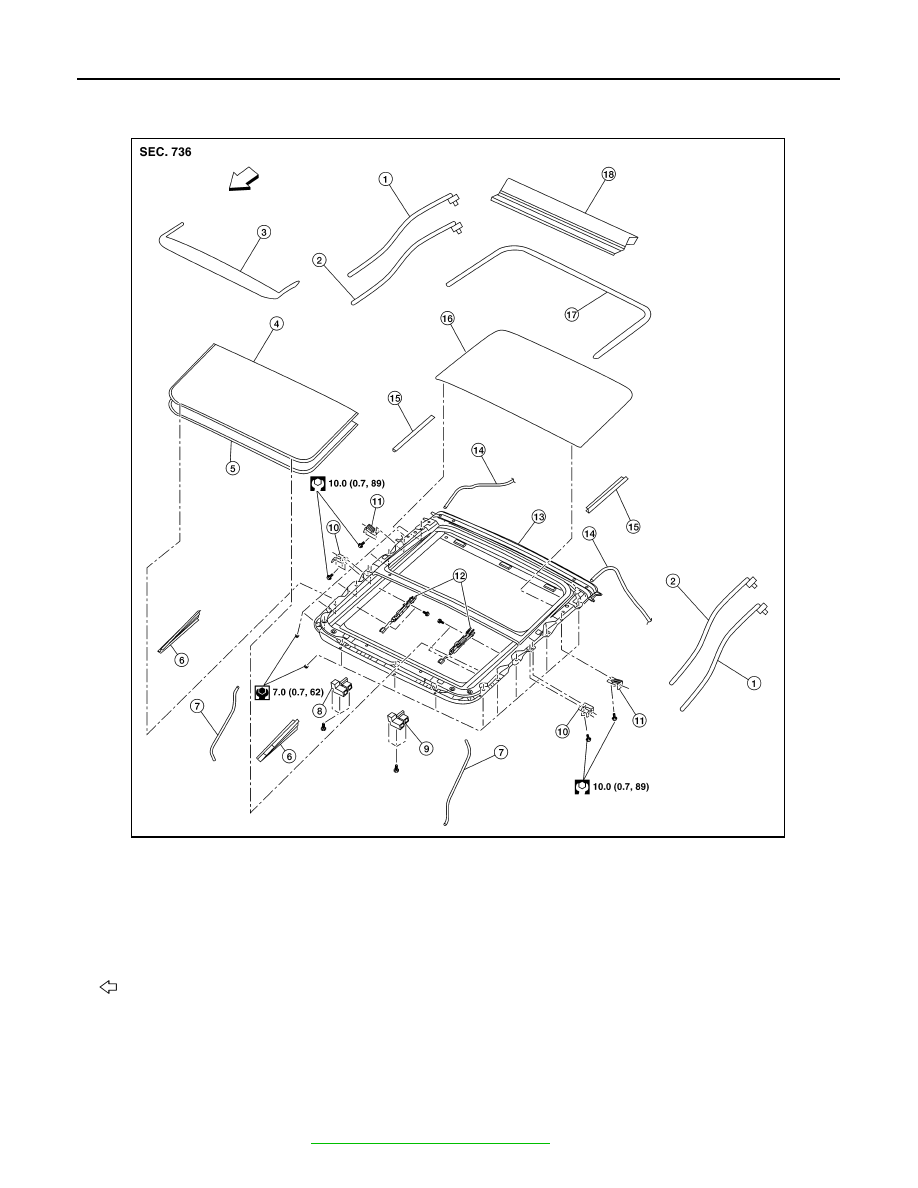

Exploded View

INFOID:0000000011280169

Removal and Installation

INFOID:0000000011280170

REMOVAL

CAUTION:

• Always work with a helper.

• When taking moonroof unit assembly out, use cloths to protect the seats and trim from damage.
1. Remove headlining. Refer to

INT-30, "Removal and Installation"

.

1.

Sunshade cable (LH/RH)

2.

Glass lid cable (LH/RH)

3.

Wind deflector

4.

Glass lid

5.

Glass lid weatherstrip

6.

Side trim cover (LH/RH)

7.

Front drain hose (LH/RH)

8.

Moonroof motor assembly

9.

Sunshade motor assembly

10. Moonroof front bracket (LH/RH)

11. Moonroof rear bracket (LH/RH)

12. Cable guide (LH/RH)

13. Moonroof unit assembly

14. Rear drain hose (LH/RH)

15. Rear trim covers (LH/RH)

16. Panoramic roof glass

17. Panoramic roof glass weatherstrip

18. Sunshade

Front

AWJIA1645ZZ

MOONROOF UNIT ASSEMBLY

RF-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

2. Disconnect drain hoses (front/rear) from moonroof unit assembly. Refer to

RF-54, "Inspection"

.

3. Disconnect harness connectors from moonroof motor assembly and sunshade motor assembly.
4. Remove nuts, then using a helper carefully lift each side and remove moonroof unit assembly out back of

vehicle.

WARNING:

Bodily injury may occur if moonroof unit assembly is not supported properly when removing.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing the moonroof unit assembly, perform the leak test and check that there is no air or

water intrusion. Refer to

RF-54, "Inspection"

.
