< REMOVAL AND INSTALLATION >

[WITH COLOR DISPLAY]

CONTROL UNIT

REMOVAL AND INSTALLATION

CONTROL UNIT

Removal and Installation

INFOID:0000000009466349

A/C AND AV SWITCH ASSEMBLY

Removal and Installation

The A/C and AV switch assembly is located in cluster lid C.

• Refer to

AV-481, "Removal and Installation"

 (BOSE W/COLOR DISPLAY).

• Refer to

AV-652, "Removal and Installation"

 (BOSE W/COLOR DISPLAY W/NAVI).

A/C AUTO AMP.

Removal

1. Remove the AV control unit.

• Refer  to

AV-481, "Removal and Installation"

 (BOSE W/COLOR DISPLAY).

• Refer  to

AV-652, "Removal and Installation"

 (BOSE W/COLOR DISPLAY W/NAVI).

2. Remove the two A/C auto amp. bracket screws.

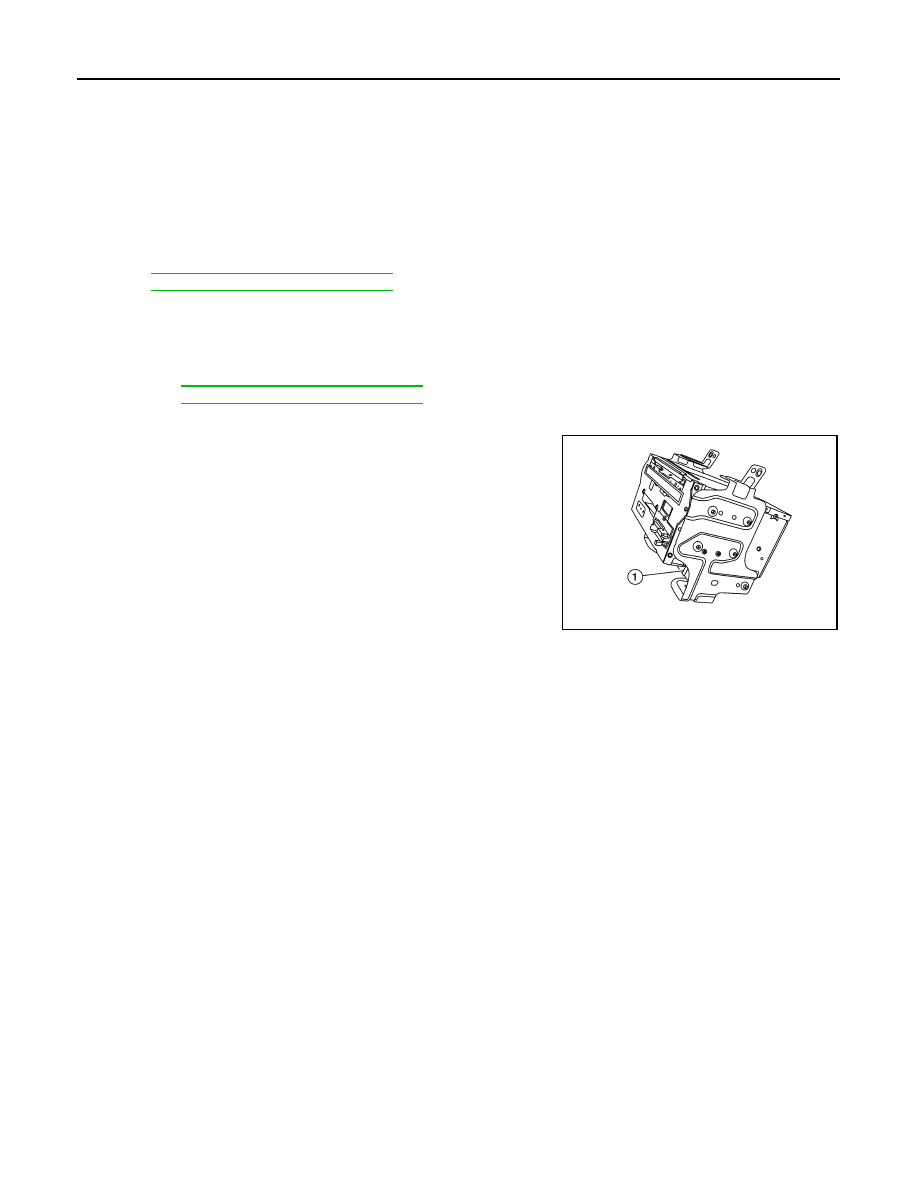

3. Remove the A/C auto amp. (1) from the bracket.

Installation

Installation is in the reverse order of removal.

AWIIA1608ZZ

AMBIENT SENSOR

HAC-101

< REMOVAL AND INSTALLATION >

[WITH COLOR DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AMBIENT SENSOR

Removal and Installation

INFOID:0000000009466350

REMOVAL

1. From under the vehicle, disconnect the harness connector from the ambient sensor.

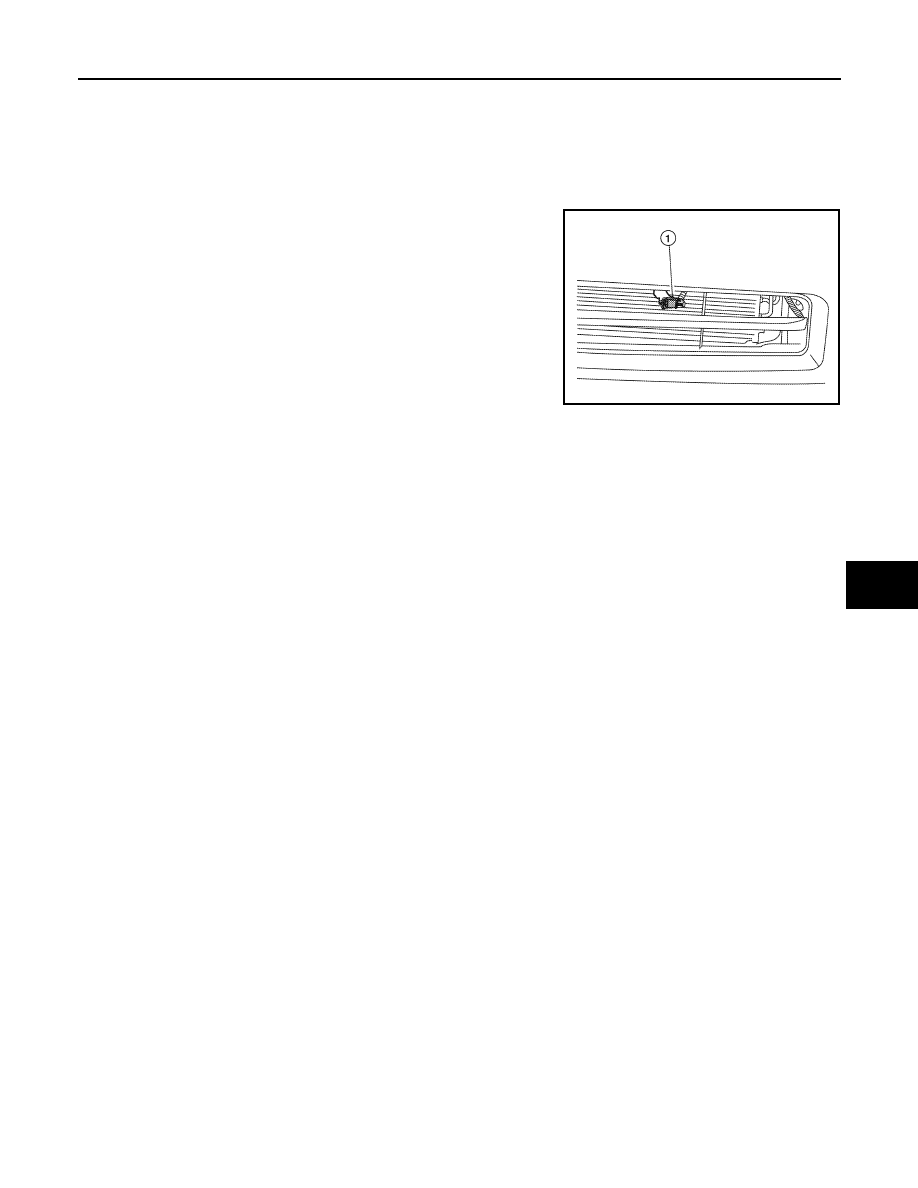

2. Release the two ambient sensor clips and remove the ambient

sensor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0314ZZ

HAC-102

< REMOVAL AND INSTALLATION >

[WITH COLOR DISPLAY]

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000009466351

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-19, "Removal and Installation"

.

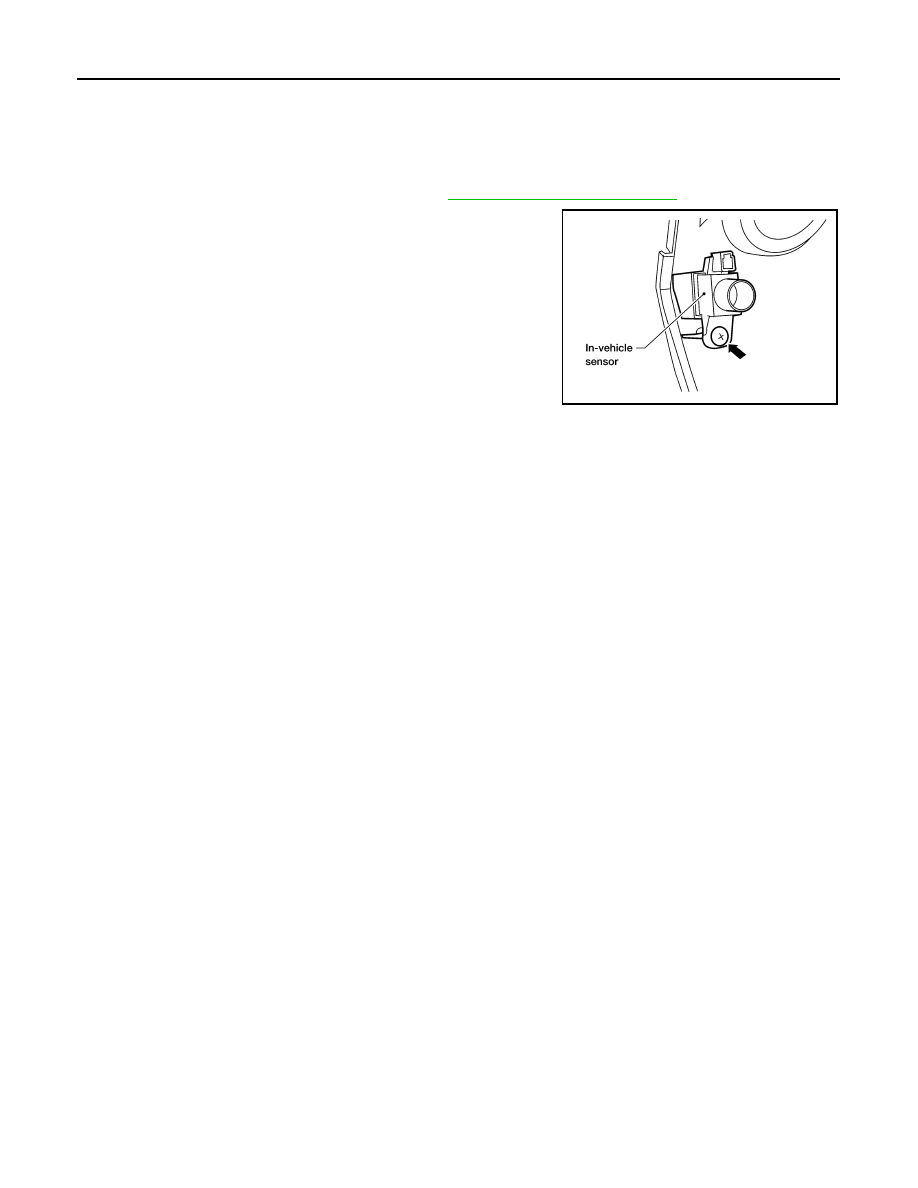

2. Remove the in-vehicle sensor screw and the in-vehicle sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that the aspirator hose is securely attached to the in-vehicle sensor when installing the

instrument lower panel LH.

WJIA0098E

SUNLOAD SENSOR

HAC-103

< REMOVAL AND INSTALLATION >

[WITH COLOR DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000009466352

REMOVAL

1. Remove the front LH speaker grille from the instrument panel. Refer to

IP-10, "Exploded View"

.

2. Disconnect the harness connector from the sunload sensor.

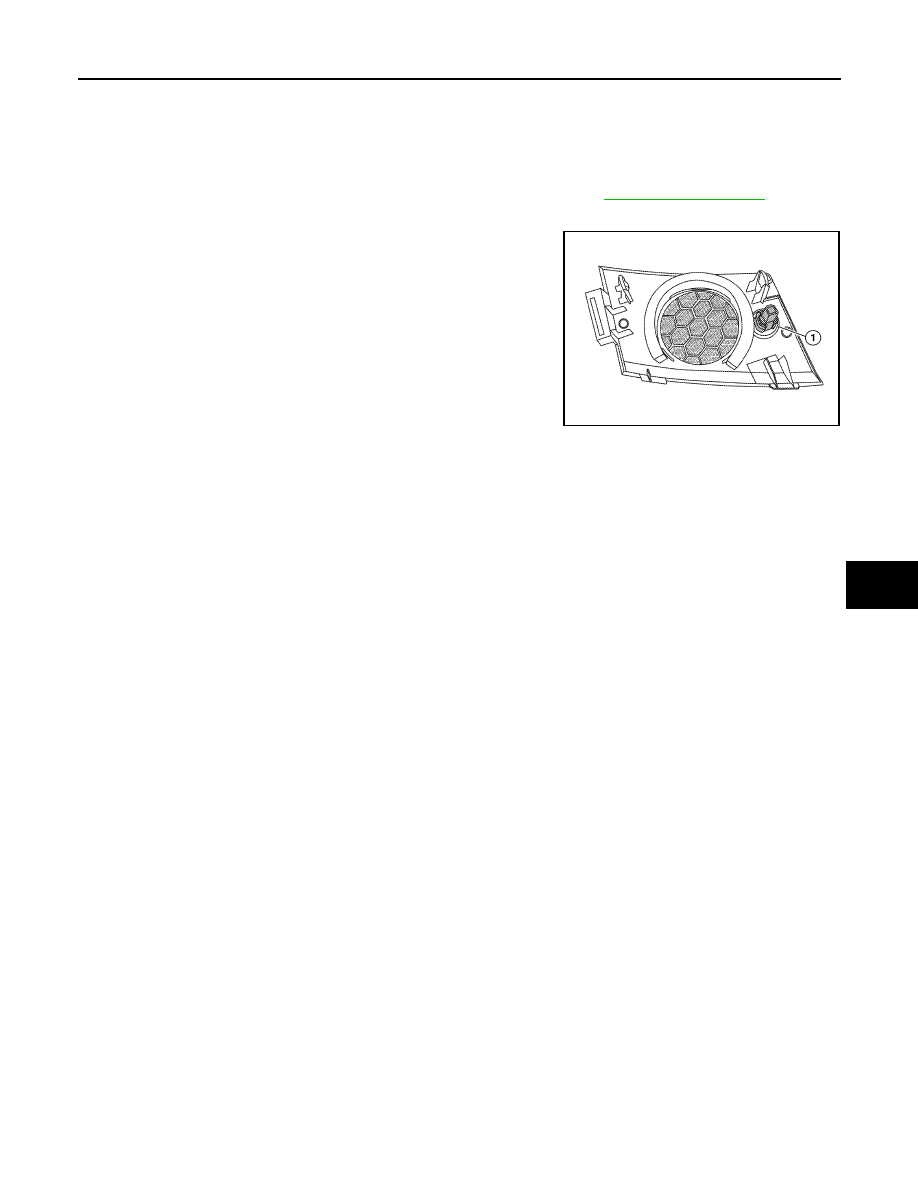

3. Release the sunload sensor tabs and remove the sunload sen-

sor (1) from the front LH speaker grille.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0345ZZ
