P1211 TCS CONTROL UNIT

P1211 TCS CONTROL UNIT

Description

INFOID:0000000010095089

The malfunction information related to TCS is transferred via the CAN communication line from “ABS actuator

and electric unit (control unit)” to ECM.

Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit

(control unit)” but also for ECM after TCS related repair.

DTC Logic

INFOID:0000000010095090

DTC DETECTION LOGIC

Freeze frame data is not stored in the ECM for this self-diagnosis.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10.5 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and let it idle for at least 60 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>>

EC-404, "Diagnosis Procedure"

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010095091

Go to

BRC-4, "Work Flow"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1211

TCS control unit

ECM receives malfunction information from
“ABS actuator and electric unit (control unit)”.

• ABS actuator and electric unit (control

unit)

• TCS related parts

P1212 TCS COMMUNICATION LINE

EC-405

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1212 TCS COMMUNICATION LINE

Description

INFOID:0000000010095092

This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse

signals are exchanged between ECM and “ABS actuator and electric unit (control unit)”.

Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit

(control unit)” but also for ECM after TCS related repair.

DTC Logic

INFOID:0000000010095093

DTC DETECTION LOGIC

NOTE:

• If DTC P1212 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.

Refer to

EC-161, "DTC Logic"

.

• If DTC P1212 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-393, "DTC Logic"

.

Freeze frame data is not stored in the ECM for this self-diagnosis.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10.5 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and let it idle for at least 10 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-405, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010095094

Go to

BRC-4, "Work Flow"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1212

TCS communication line

ECM cannot receive the information from
“ABS actuator and electric unit (control
unit)” continuously.

• Harness or connectors

(The CAN communication line is open or shorted.)

• ABS actuator and electric unit (control unit)
• Dead (Weak) battery

EC-406

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P1217 ENGINE OVER TEMPERATURE

P1217 ENGINE OVER TEMPERATURE

DTC Logic

INFOID:0000000010095095

DTC DETECTION LOGIC

NOTE:

• If DTC P1217 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.

Refer to

EC-161, "DTC Logic"

.

• If DTC P1217 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-393, "DTC Logic"

.

If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will

rise.

When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is

indicated.

CAUTION:

When a malfunction is indicated, always replace the coolant. Refer to

CO-10, "System Inspection"

.

Also, replace the engine oil. Refer to

MA-23, "ENGINE OIL : Changing Engine Oil"

.

1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Always use

coolant with the proper mixture ratio. Refer to

MA-16, "FOR USA AND CANADA : Anti-Freeze Cool-

ant Mixture Ratio"

 (For NORTH AMERICA) or

MA-17, "FOR MEXICO : Engine Coolant Mixture

Ratio"

 (For MEXICO).

2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.

DTC CONFIRMATION PROCEDURE

1.

PERFORM COMPONENT FUNCTION CHECK

Perform component function check. Refer to

EC-406, "Component Function Check"

.

NOTE:

Use component function check to check the overall function of the cooling fan. During this check, a DTC might

not be confirmed.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-407, "Diagnosis Procedure"

.

Component Function Check

INFOID:0000000010095096

1.

PERFORM COMPONENT FUNCTION CHECK-I

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-

sure fluid escaping from the radiator.

Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up

pressure to escape. Then turn the cap all the way off.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1217

Engine over tempera-
ture (Overheat)

• Cooling fan does not operate properly (Over-

MA-16, "FOR USA AND CANADA : Anti-
Freeze Coolant Mixture Ratio"

heat).

• Cooling fan system does not operate proper-

ly (Overheat).

• Engine coolant was not added to the system

using the proper filling method.

• Engine coolant is not within the specified

range.

• Harness or connectors

(The cooling fan circuit is open or shorted.)

• IPDM E/R (Cooling fan relays)
• Cooling fan motor
• Radiator hose
• Radiator
• Radiator  cap
• Water pump
• Thermostat

P1217 ENGINE OVER TEMPERATURE

EC-407

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

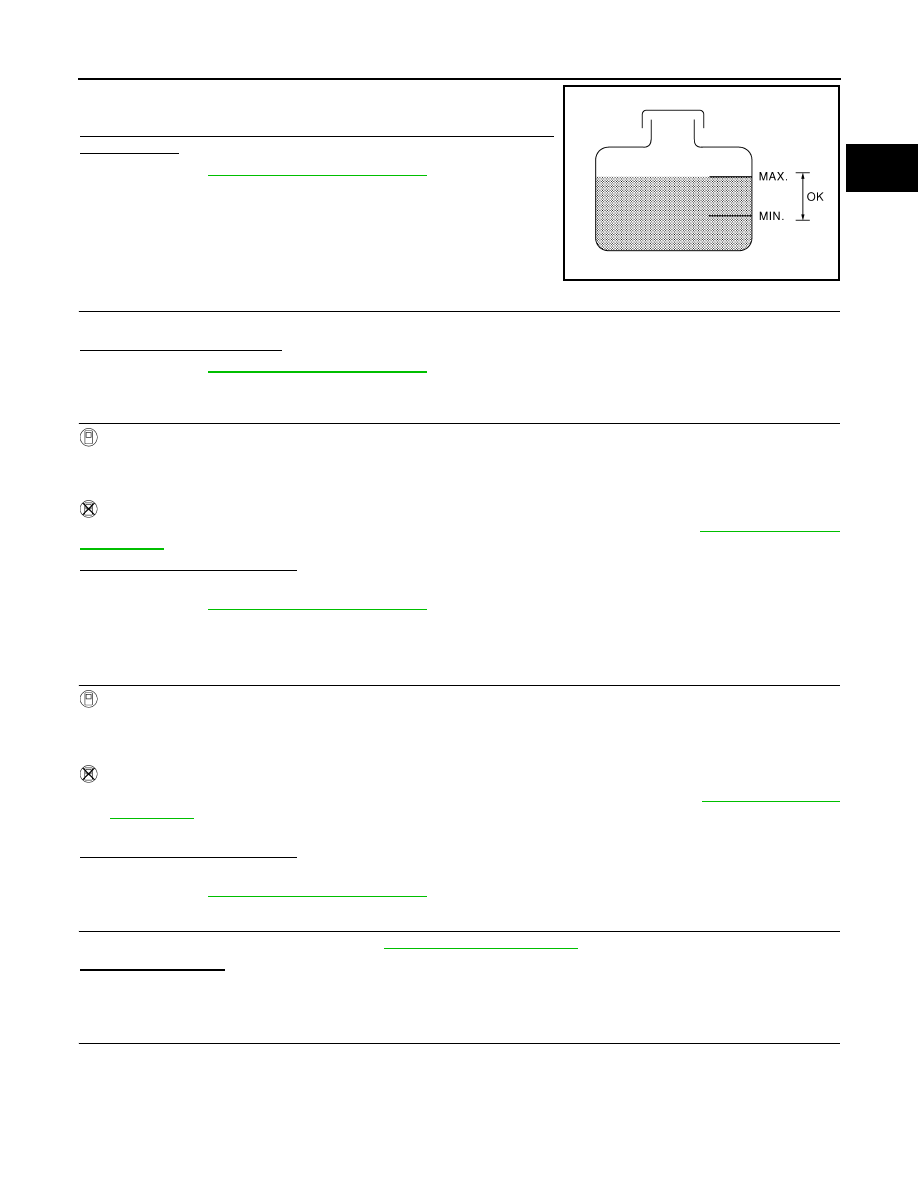

Check the coolant level in the reservoir tank and radiator.

Allow engine to cool before checking coolant level.
Is the coolant level in the reservoir tank and/or radiator below the

proper range?

YES

>> Go to

EC-407, "Diagnosis Procedure"

.

NO

>> GO TO 2.

2.

PERFORM COMPONENT FUNCTION CHECK-II

Confirm whether customer filled the coolant or not.
Did customer fill the coolant?

YES

>> Go to

EC-407, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM COMPONENT FUNCTION CHECK-III

With CONSULT

1. Turn ignition switch ON.

2. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT.

3. Check that cooling fan motors-1 and -2 operate at each speed (LOW/MID/HI).

Without CONSULT

Perform IPDM E/R auto active test and check cooling fan motors operation, refer to

PCS-11, "Diagnosis

Description"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-407, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010095097

1.

CHECK COOLING FAN OPERATION

With CONSULT

1. Turn ignition switch ON.

2. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT.

3. Check that cooling fans-1 and -2 operate at each speed (LOW/MID/HI).

Without CONSULT

1. Perform IPDM E/R auto active test and check cooling fan motors operation, refer to

PCS-11, "Diagnosis

Description"

.

2. Check that cooling fans-1 and -2 operate at each speed (Low/Middle/High).
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Go to

EC-486, "Diagnosis Procedure"

.

2.

CHECK COOLING SYSTEM FOR LEAKAGE-I

Check cooling system for leakage. Refer to

CO-10, "System Inspection"

.

Is leakage detected?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK COOLING SYSTEM FOR LEAKAGE-II

Check the following for leakage.

• Hose

• Radiator

• Water pump

SEF621W
