Nissan Maxima. Manual - part 217





BCS

POWER CONSUMPTION CONTROL SYSTEM

BCS-15

< SYSTEM DESCRIPTION >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER CONSUMPTION CONTROL SYSTEM

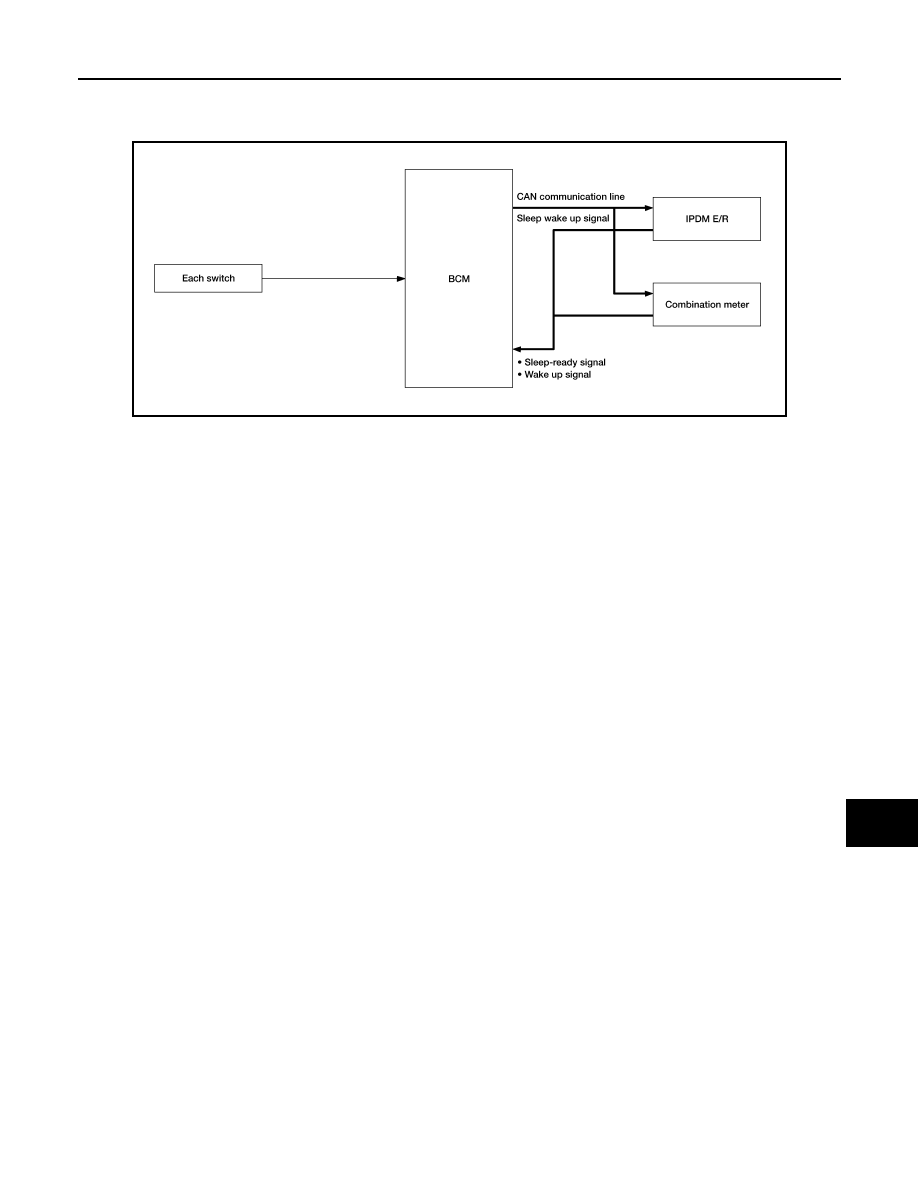

System Diagram

INFOID:0000000009467036

System Description

INFOID:0000000009467037

OUTLINE

• BCM incorporates a power saving control function that reduces the power consumption according to the

vehicle status.

• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep

request to each unit (IPDM E/R and combination meter) that operates with the ignition switch OFF.

Normal mode (wake-up)

- CAN communication is normally performed with other units

- Each control with BCM is operating properly

CAN communication sleep mode (CAN sleep)

- CAN transmission is stopped

- Control with BCM only is operating

Low power consumption mode (BCM sleep)

- Low power consumption control is active

- CAN transmission is stopped

LOW POWER CONSUMPTION CONTROL WITH BCM

BCM reduces the power consumption with the following operation in the low power consumption mode.

• The reading interval of the each switches changes from 10 ms interval to 60 ms interval.

Sleep mode activation

• BCM receives the sleep-ready signal (ready) from IPDM E/R and combination meter via CAN communica-

tion.

• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful-

filled.

• Each unit stops the transmission of CAN communication with the sleep wakeup signal. BCM is in CAN com-

munication sleep mode.

• BCM is in the low power consumption mode and perform the low power consumption control when all of the

BCM sleep conditions are fulfilled with CAN sleep condition.

ALCIA0030GB

BCS-16

< SYSTEM DESCRIPTION >

[BCM]

POWER CONSUMPTION CONTROL SYSTEM

Sleep condition

Wake-up operation

• BCM changes from the low power consumption mode to the CAN communication sleep mode when any of

the BCM wake-up conditions is fulfilled. Only the control with BCM is activated.

• BCM transmits the sleep wake up signal (wake up) to each unit when any of the CAN wake-up conditions is

fulfilled. It changes from the low power consumption mode or the CAN communication sleep mode to the

normal mode.

• Each unit starts the transmission of CAN communication with the sleep wake up signal. In addition, the com-

bination meter transmits the wake up signal to BCM via CAN communication to report the CAN communica-

tion start.

Wake-up condition

CAN sleep condition

BCM sleep condition

• Receiving the sleep-ready signal (ready) from all units
• Ignition switch: OFF
• Vehicle security system alarm and panic alarm: No operation
• Warning lamp: No operation
• Intelligent Key system buzzer: No operation
• Trunk room lamp switch status: No change
• Brake switch: OFF
• Key slot status: No change
• Turn signal indicator lamp: No operation
• Exterior  lamp:  OFF
• Door lock status: No change
• CONSULT communication status: No communication
• Meter display signal: Non-transmission
• Door switch status: No change
• Rear window defogger: OFF

• Interior room lamp battery saver: Time out
• RAP system: OFF
• Power window switch communication: No transmission
• Push-button ignition switch (push switch) illumination: OFF
• NATS: No operation
• Remote keyless entry receiver communication status: No com-

munication

• Tire pressure monitor system: Stop

BCM wake-up condition

CAN wake-up condition

• Door unlock sensor: OFF

→ON, ON→OFF

• Front door lock assembly LH (key cylinder switch): Lock or un-

lock

• Door lock switch: OFF

→ON

• Door unlock switch: OFF

→ON

• Trunk lid opener switch: OFF

→ON

• Power window serial link communication: Receiving
• Remote keyless entry receiver: Receiving valid keyfob

• Receiving the sleep-ready signal (Not-ready) from any units
• Key slot: OFF

→ON, ON→OFF

• Push-button ignition switch (push switch): OFF

→ON

• Hazard switch: OFF

→ON

• PASSING switch: OFF

→ON, ON→OFF

• TAIL LAMP switch: OFF

→ON

• Driver door switch: OFF

→ON, ON→OFF

• Passenger door switch: OFF

→ ON, ON → OFF

• Trunk room lamp switch: OFF

→ON, ON→OFF

• Driver door request switch: OFF

→ON

• Passenger door request switch: OFF

→ON

• Trunk opener request switch: OFF

→ON

• Stop lamp switch 2 signal: ON
• Remote keyless entry receiver: Receiving valid keyfob

BCS

POWER CONSUMPTION CONTROL SYSTEM

BCS-17

< SYSTEM DESCRIPTION >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

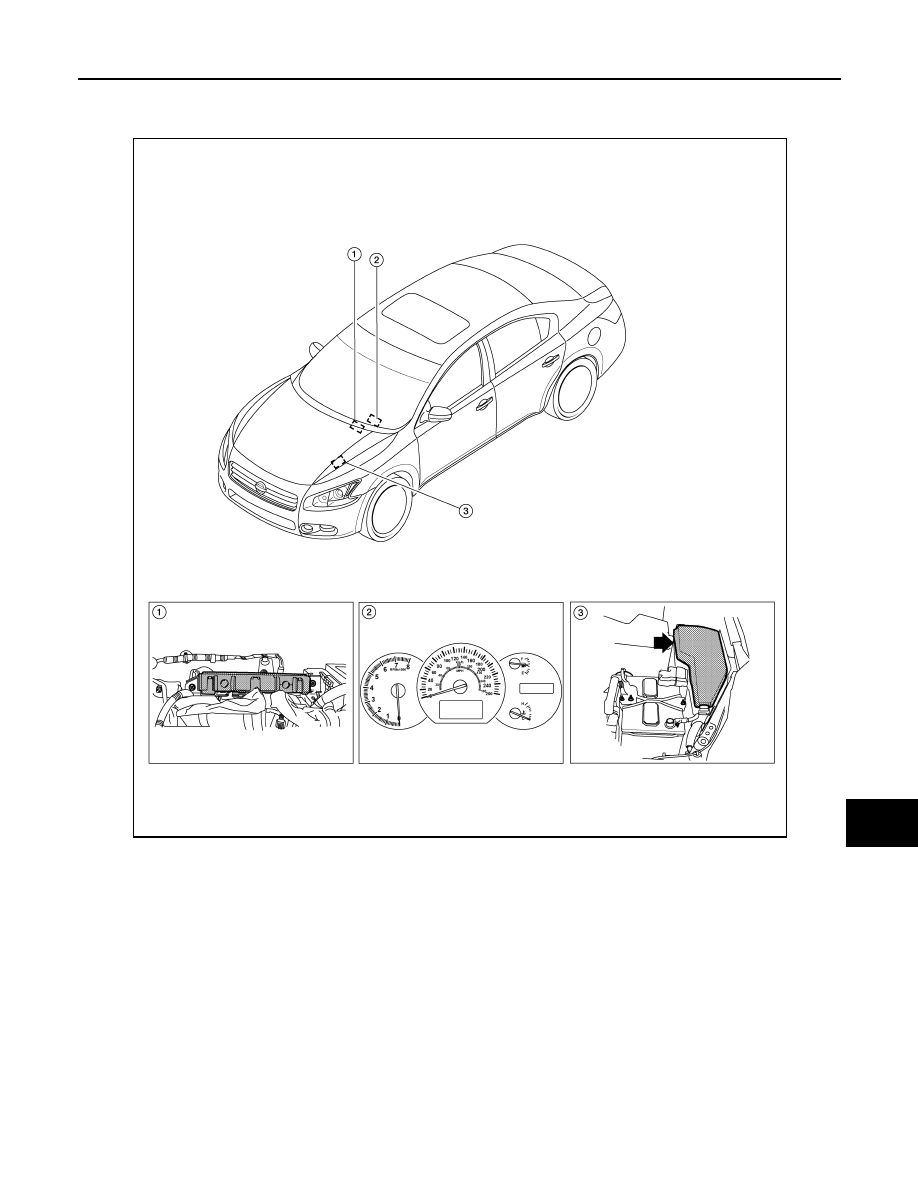

Component Parts Location

INFOID:0000000009467038

1.

BCM M16, M17, M18, M19, M20,
M21 (view with instrument panel re-
moved)

2.

Combination meter M24

3.

IPDM E/R E16, E17, E18, E200,
E201, F10

AWMIA1468ZZ

BCS-18

< SYSTEM DESCRIPTION >

[BCM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009467039

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

DOOR LOCK

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Work support

Changes the setting for each system function.

Configuration

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

CAN Diag Support Mntr

Monitors the reception status of CAN communication viewed from BCM.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×
